Decor Clay

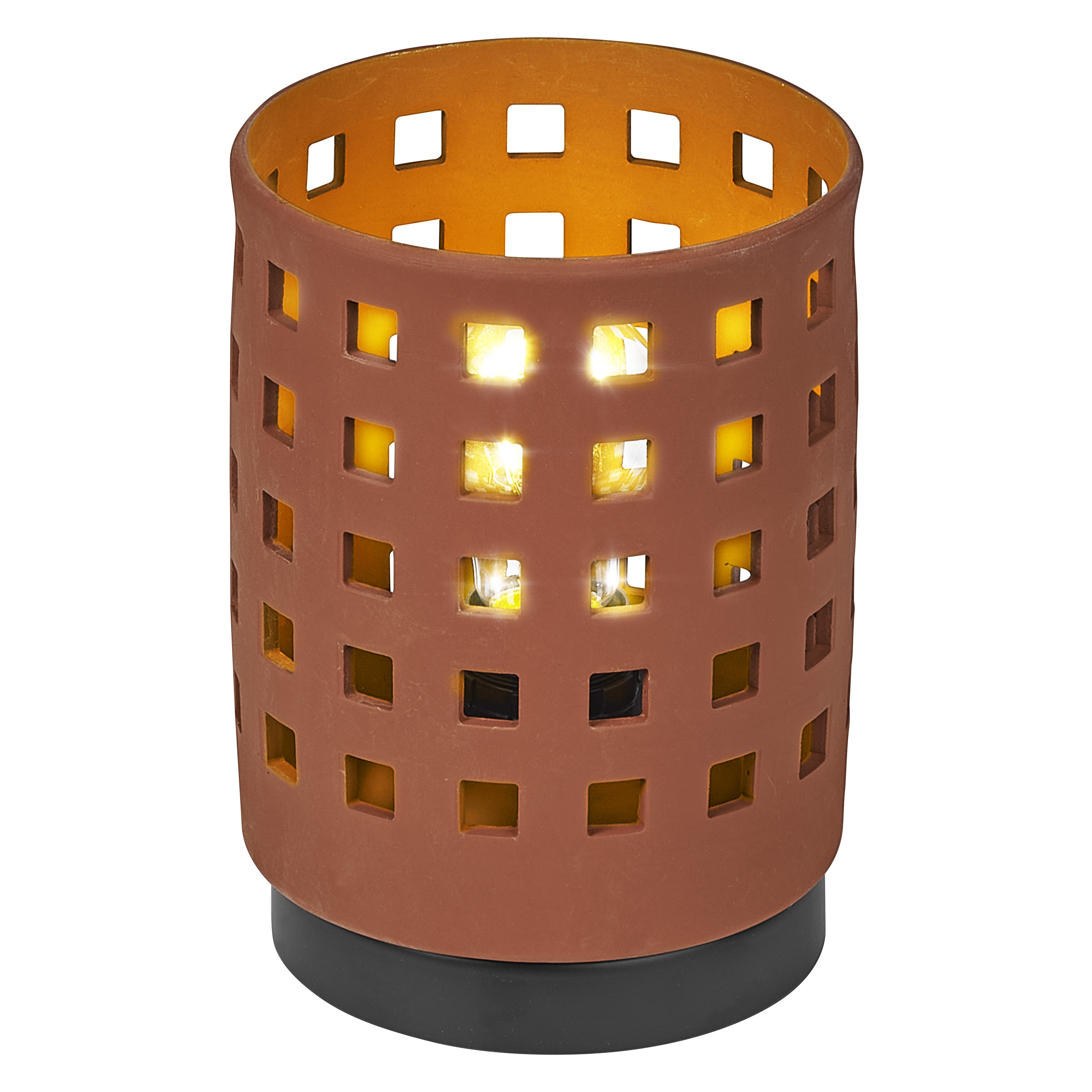

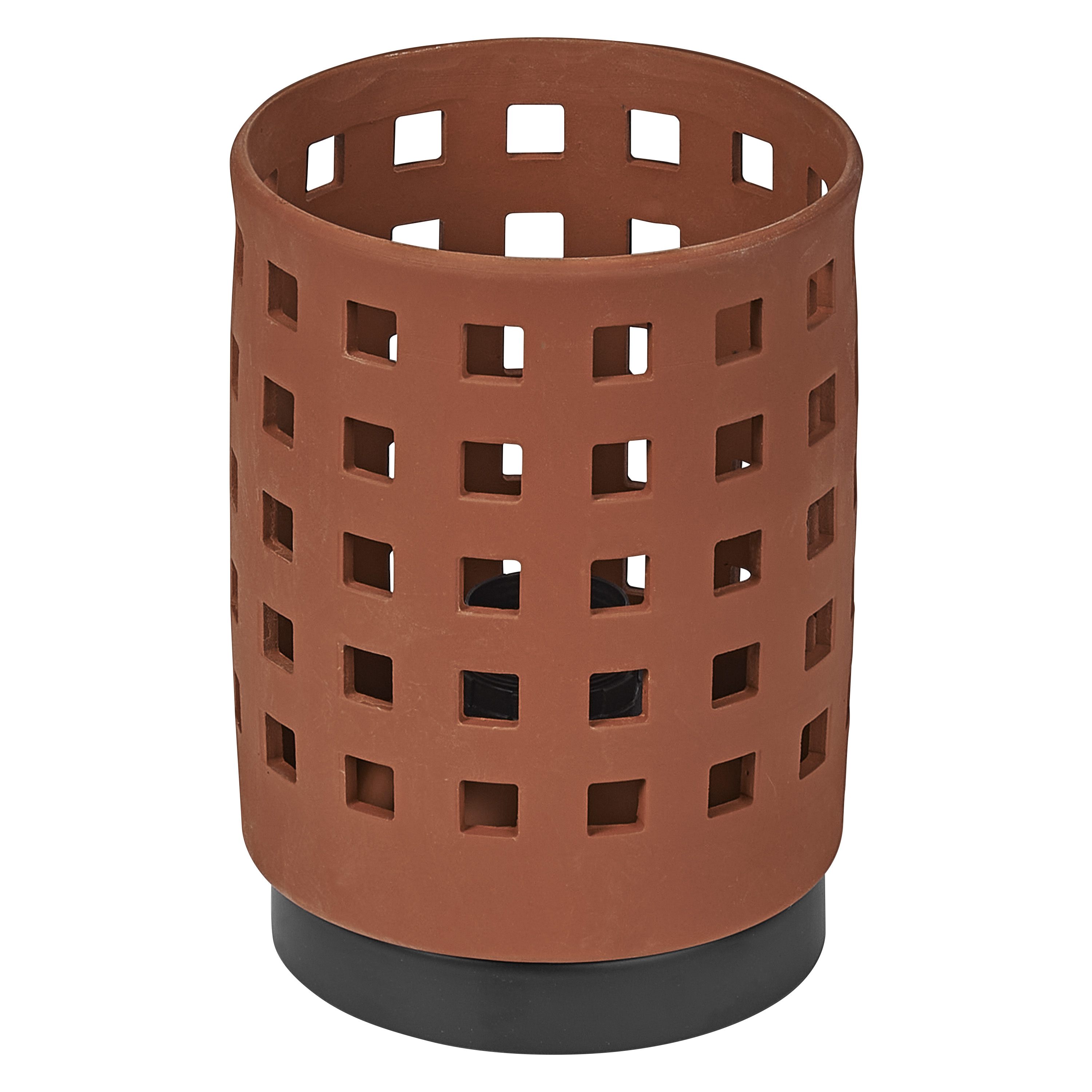

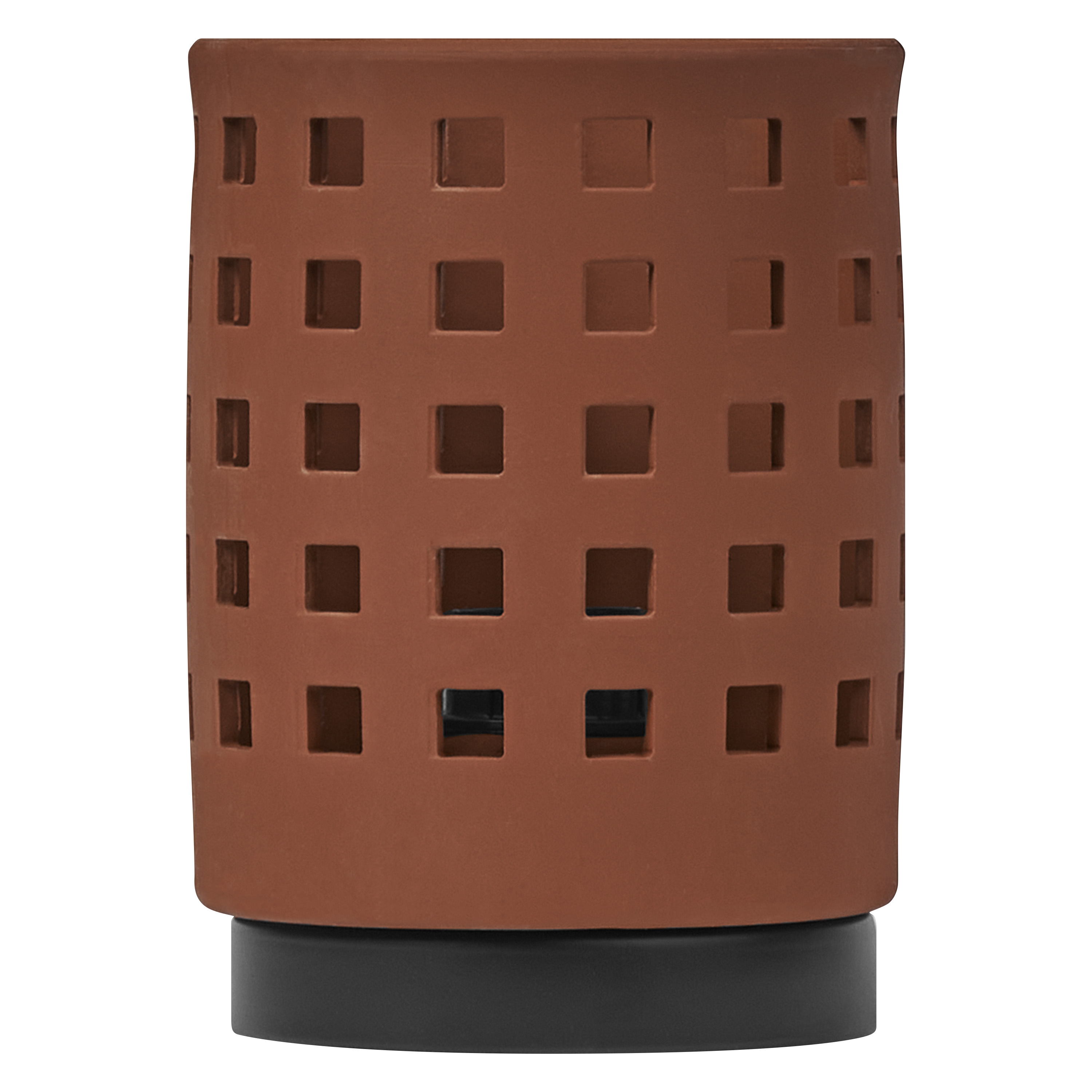

Decor Clay Windows Table 1XE27 Brown

GTIN: 4058075841024 Folding box / 1 Show all packages
Download data sheet
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • High-quality look and feel
  • High flexibility in the choice of the light source
  • Sustainable solution thanks to exchangeable light sources
  • Easy mounting
Areas of application
  • Indoor applications
  • Corridors, entrance areas, stairwells, living rooms, basements
Product features
  • Housing material: metal and clay
  • Textile cable
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class II
Operating mode Mains voltage
Dimensions & Weight
Diameter 145.00 mm
Height 203.00 mm
Product weight 1150.00 g
Cable length 1800 mm
Materials & Colors
Product color Brown
Housing color Brown
Body material Clay|Steel
Glow Wire Test according to IEC 60695-2-12 650 °C
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Plug type C (EU)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Standing
Application environment Indoor
Adjustable No
With light source No
Replaceable light source No
Holder designation E27
Certificates & Standards
Standards CE
Additional product data
Product remark Maximum bulb wattage: 6 W LED
Number of illuminants 1
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075841024 Folding box
1		 202 mm x 202 mm x 283 mm 1412.00 g 11.55 dm³
4058075841031 Shipping box
4		 418 mm x 218 mm x 591 mm 6456.00 g 53.85 dm³
