Decor Clay
Decor Clay Windows Pendant LN 4XE27 Brown
GTIN: 4058075841000
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High-quality look and feel
- High flexibility in the choice of the light source
- Sustainable solution thanks to exchangeable light sources
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
Product features
- Housing material: metal and clay
- Textile cable
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | I |
| Operating mode | Mains voltage |
Dimensions & Weight
| Length | 905.00 mm |
| Height | 1500.00 mm |
| Width | 125.00 mm |
| Product weight | 2950.00 g |
Materials & Colors
| Product color | Brown |
| Housing color | Brown |
| Body material | Clay|Steel |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Suspended |
| Application environment | Indoor |
| With light source | No |
| Replaceable light source | No |
| Holder designation | E27 |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
Additional product data
| Product remark | Maximum bulb wattage: 6 W LED |
| Number of illuminants | 4 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075841000 | Folding box 1 |
182 mm x 236 mm x 933 mm | 3506.00 g | 40.07 dm³ |
| 4058075841017 | Shipping box 2 |
946 mm x 378 mm x 261 mm | 8328.00 g | 93.33 dm³ |
User instruction / safety instructions
DECOR CLAY WINDOWS PENDANT E27
DECOR CLAY WINDOWS PENDANT E27
Declarations of conformity
DECOR LUM
DECOR LUM

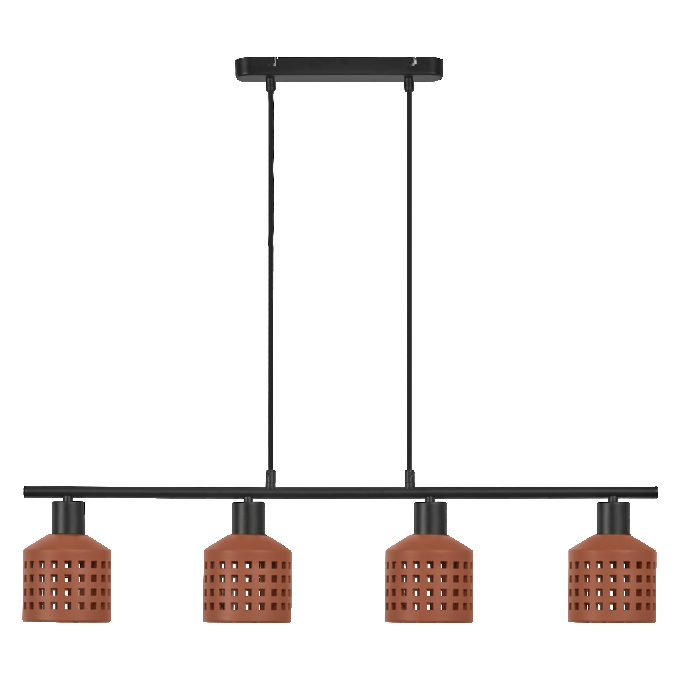

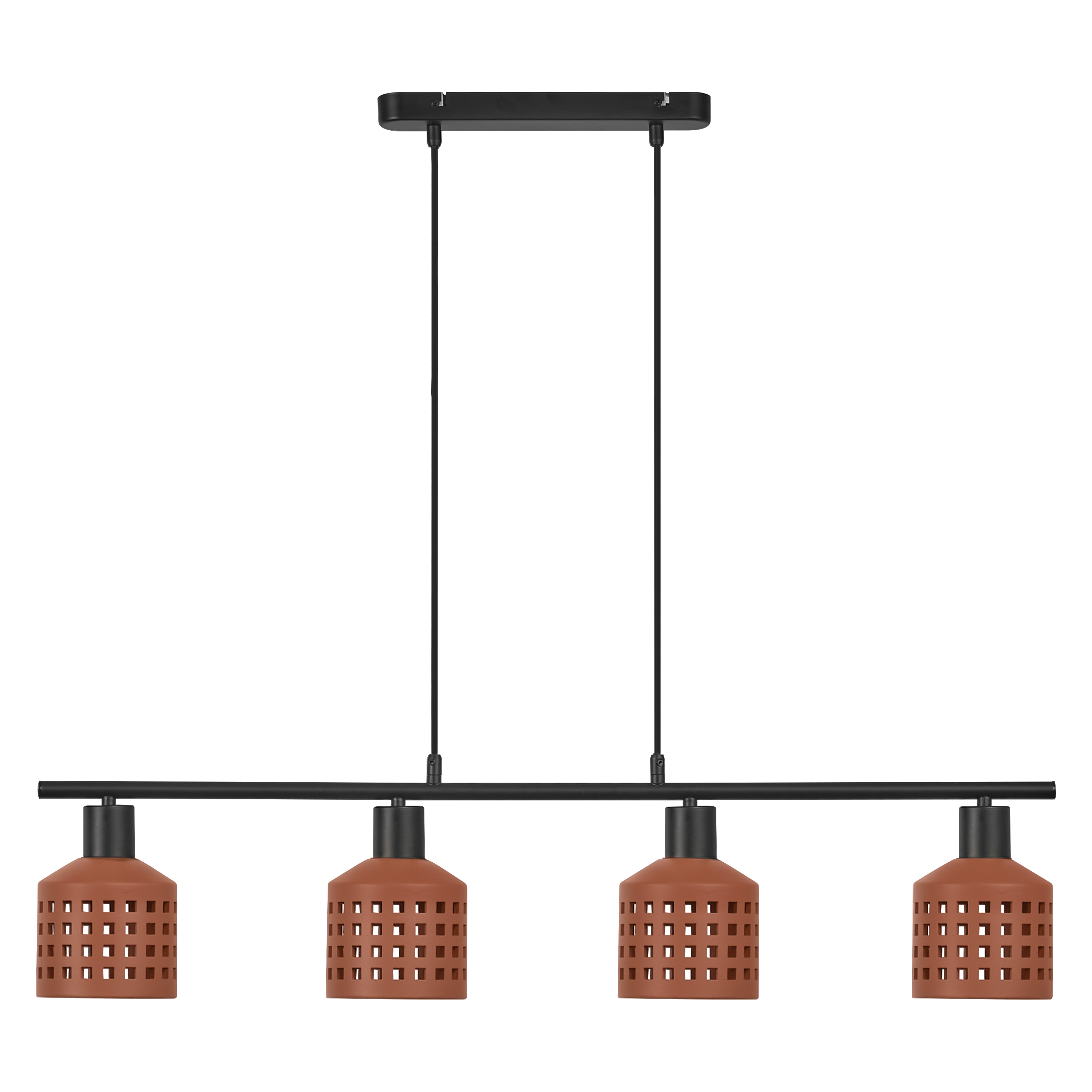

Product image: white background, upright
DECOR CLAY WINDOWS PEND LN 4XE27
DECOR CLAY WINDOWS PEND LN 4XE27

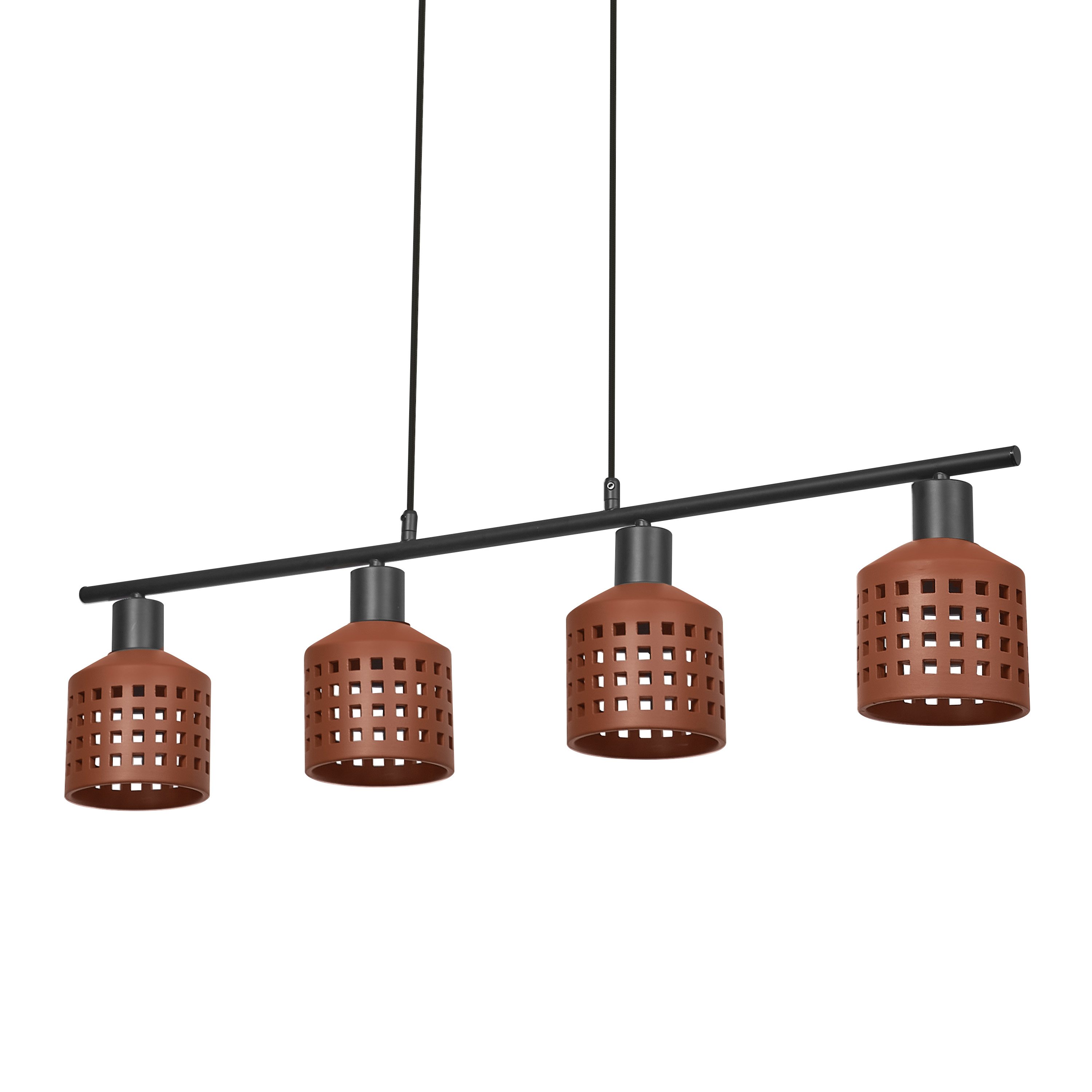

Product image: white background, upright, alternative image
DECOR CLAY WINDOWS PEND LN 4XE27
DECOR CLAY WINDOWS PEND LN 4XE27

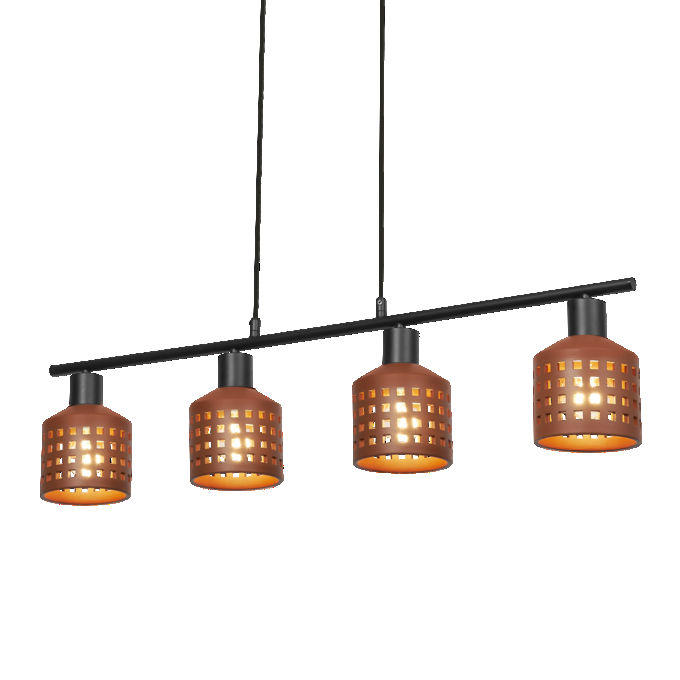

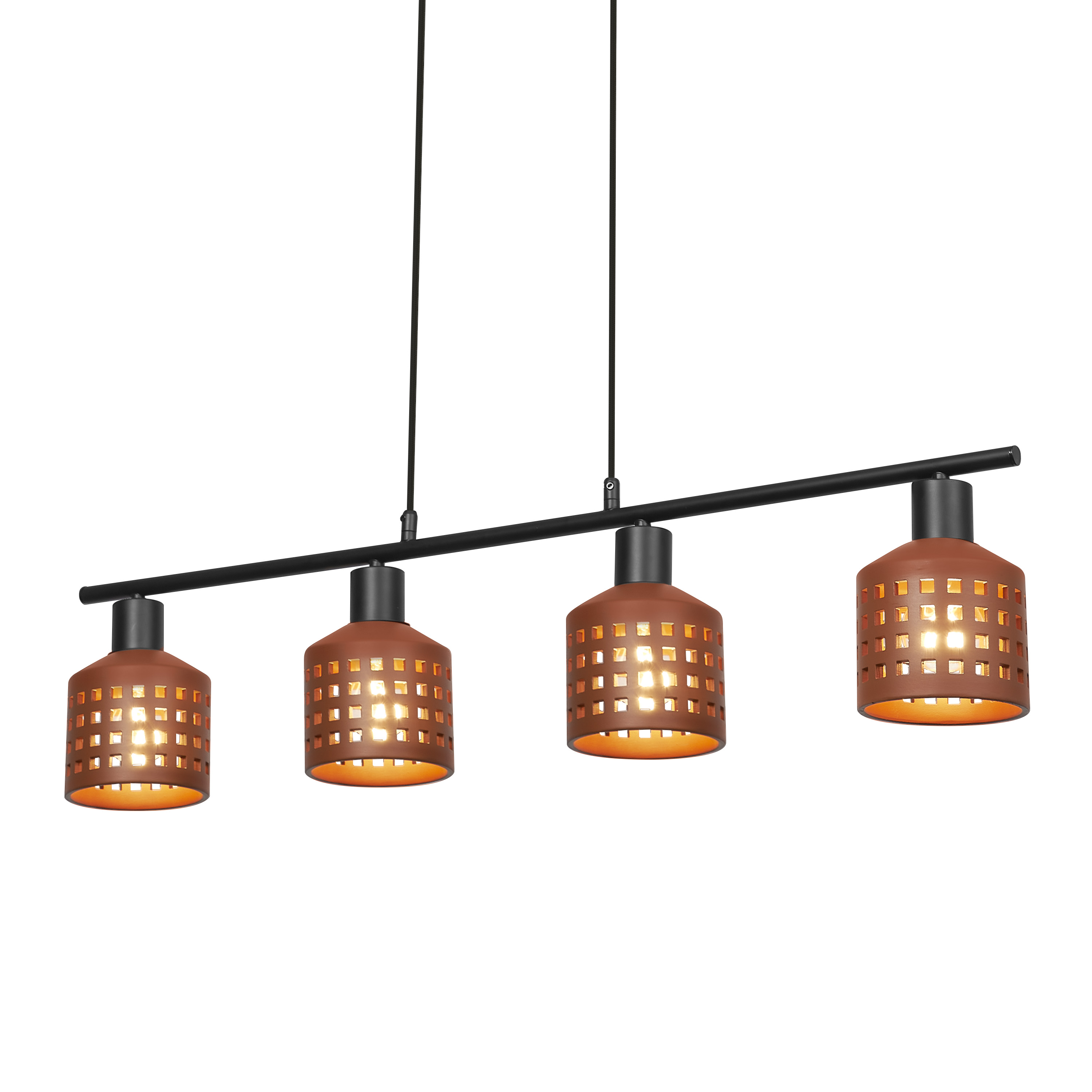

Product image: white background, upright, switched on
DECOR CLAY WINDOWS PEND LN 4XE27
DECOR CLAY WINDOWS PEND LN 4XE27
Product line drawing with letters
DECOR CLAY WINDOWS PEND LN 4XE27
DECOR CLAY WINDOWS PEND LN 4XE27
Product line drawing with numbers
DECOR CLAY WINDOWS PEND LN 4XE27
DECOR CLAY WINDOWS PEND LN 4XE27
Product line drawing - technical
DECOR CLAY WINDOWS PEND LN 4XE27
DECOR CLAY WINDOWS PEND LN 4XE27

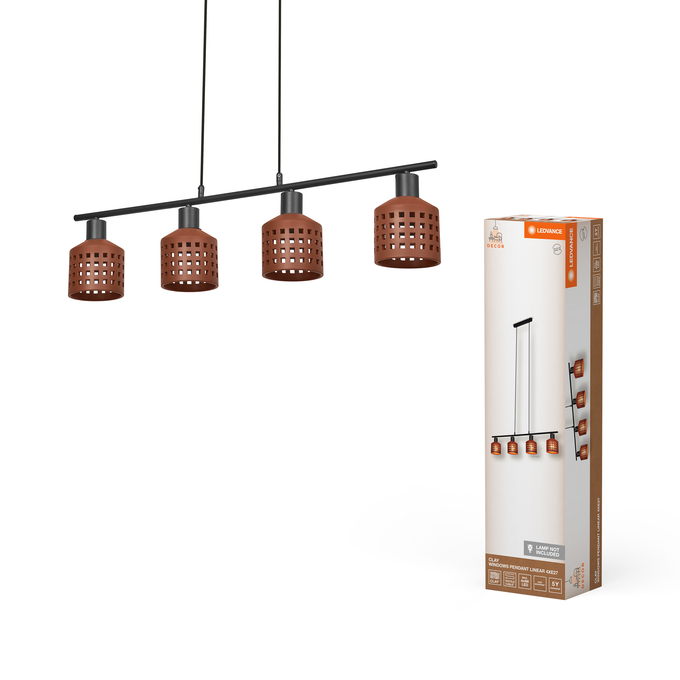

Combo Shot = Product Beauty Shot + Packaging Image
