Decor Clay

Decor Clay Windows Pendant PL 3XE27 Brown

GTIN: 4058075840980 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • High-quality look and feel
  • High flexibility in the choice of the light source
  • Sustainable solution thanks to exchangeable light sources
  • Easy mounting
Areas of application
  • Indoor applications
  • Corridors, entrance areas, stairwells, living rooms, basements
Product features
  • Housing material: metal and clay
  • Textile cable
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class I
Operating mode Mains voltage
Dimensions & Weight
Diameter 325.00 mm
Height 1500.00 mm
Product weight 2350.00 g
Materials & Colors
Product color Brown
Housing color Brown
Body material Clay|Steel
Glow Wire Test according to IEC 60695-2-12 650 °C
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Terminal, 3-Pole (L, N, PE)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Suspended
Application environment Indoor
With light source No
Replaceable light source No
Holder designation E27
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Additional product data
Product remark Maximum bulb wattage: 6 W LED
Number of illuminants 3
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075840980 Folding box
1
328 mm x 328 mm x 227 mm 2786.00 g 24.42 dm³
4058075840997 Shipping box
2
342 mm x 342 mm x 473 mm 6442.00 g 55.32 dm³
User instruction / safety instructions
DECOR CLAY WINDOWS PENDANT E27
Declarations of conformity
DECOR LUM

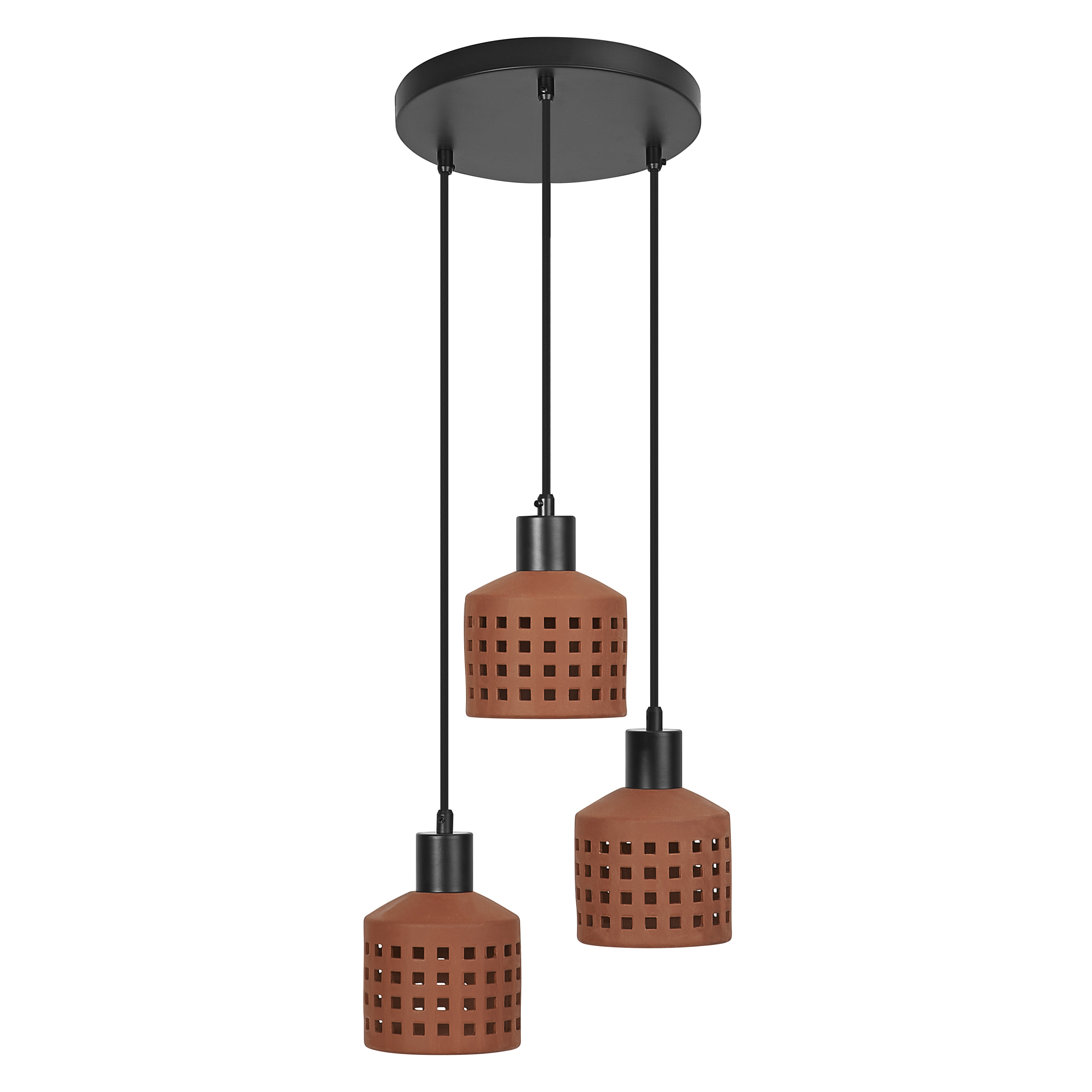

Product image: white background, upright
DECOR CLAY WINDOWS PEND PL 3XE27

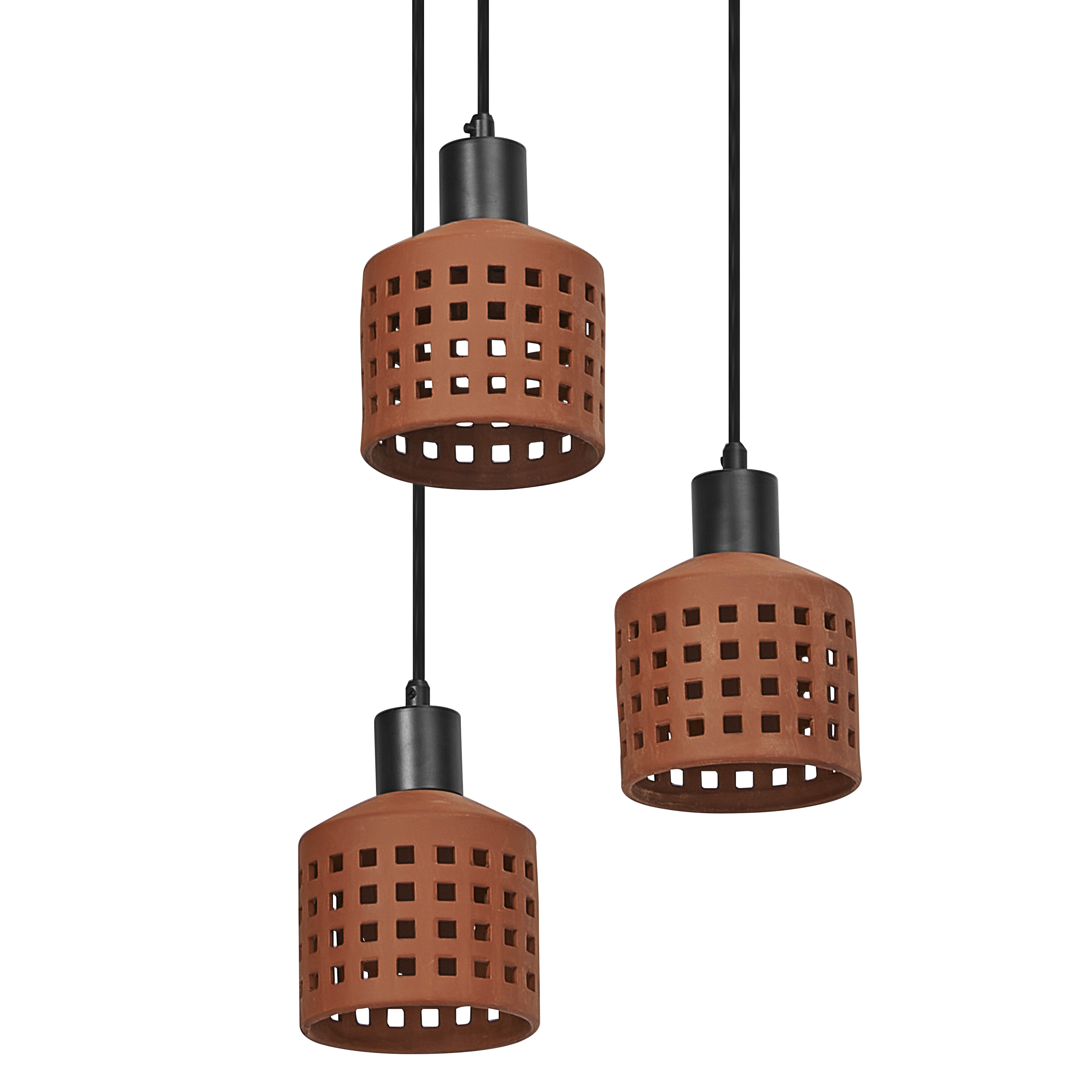

Product image: white background, upright, alternative image
DECOR CLAY WINDOWS PEND PL 3XE27

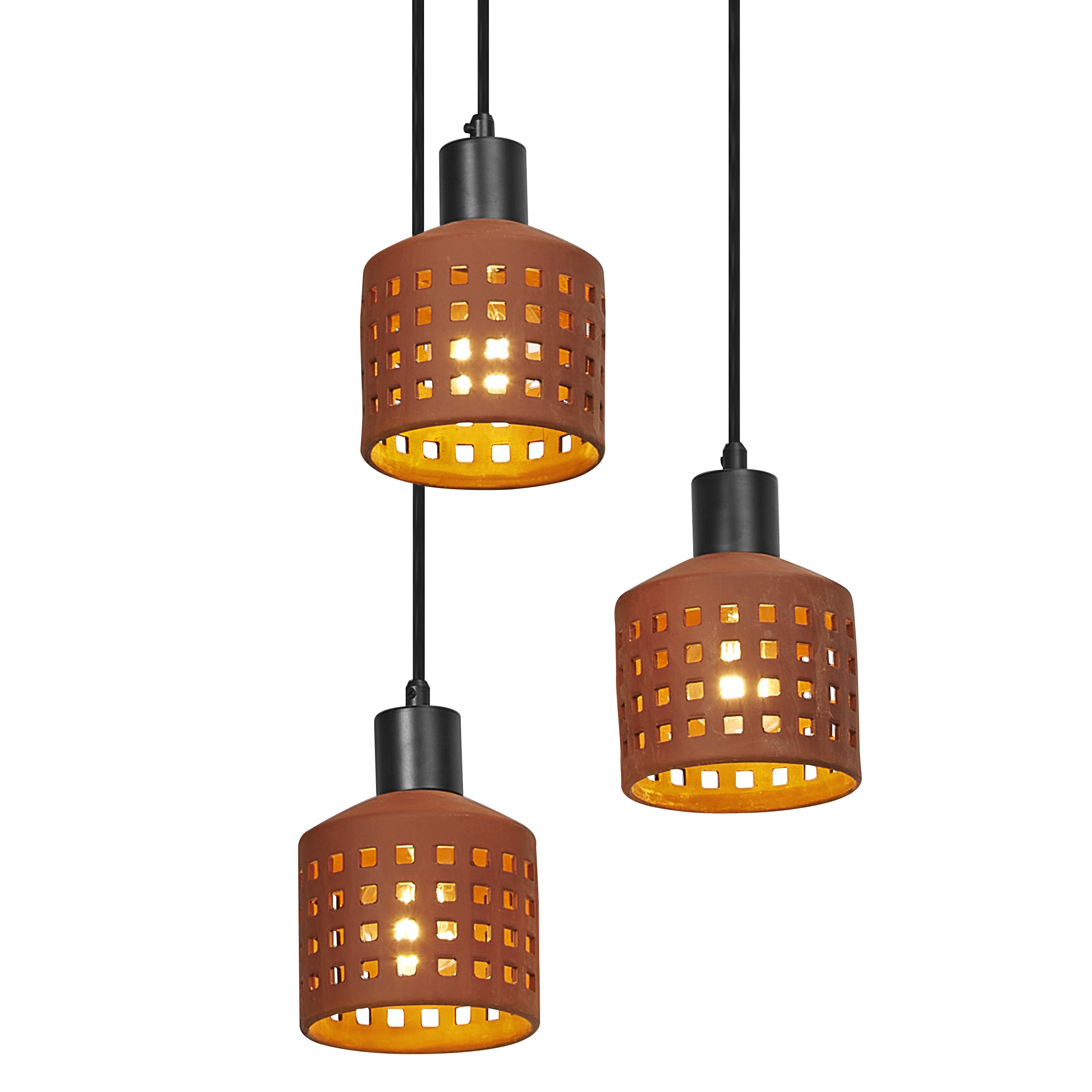

Product image: white background, upright, switched on
DECOR CLAY WINDOWS PEND PL 3XE27
Product line drawing with letters
DECOR CLAY WINDOWS PEND PL 3XE27
Product line drawing with numbers
DECOR CLAY WINDOWS PEND PL 3XE27
Product line drawing - technical
DECOR CLAY WINDOWS PEND PL 3XE27
Combo Shot = Product Beauty Shot + Packaging Image
LUM DECOR CLAY WINDOWS PEND PL 3xE27
Packaging image, frontal
LUM DECOR CLAY WINDOWS PEND PL 3xE27
Packaging image, spacial
LUM DECOR CLAY WINDOWS PEND PL 3xE27
Product infographic with environment and dimensions
DECORLUM
Product image with graphic and measurements
DECORLUM
Application pictures
DECOR CLASSIC CLAY Concept
Application pictures
DECOR CLAY WINDOWS PEND PL 3XE27 Ambient
Application pictures
DECOR CLAY WINDOWS PEND PL 3XE27 Closeup 1
Application pictures
DECOR CLAY WINDOWS PEND PL 3XE27 Closeup 2
Application pictures Getty
DECOR CLAY WINDOWS PEND PL 3XE27 BR
