Decor Clay
Decor Clay Windows Wall 2XE27 Brown
GTIN: 4058075840966
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High-quality look and feel
- High flexibility in the choice of the light source
- Sustainable solution thanks to exchangeable light sources
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
Product features
- Housing material: metal and clay
- Textile cable
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | I |
| Operating mode | Mains voltage |
Dimensions & Weight
| Length | 375.00 mm |
| Height | 227.00 mm |
| Width | 168.00 mm |
| Product weight | 1550.00 g |
Materials & Colors
| Product color | Brown |
| Housing color | Brown |
| Body material | Clay|Steel |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | No |
| Replaceable light source | No |
| Holder designation | E27 |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
Additional product data
| Product remark | Maximum bulb wattage: 6 W LED |
| Number of illuminants | 2 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075840966 | Folding box 1 |
182 mm x 210 mm x 533 mm | 1884.00 g | 20.37 dm³ |
| 4058075840973 | Shipping box 2 |
546 mm x 196 mm x 441 mm | 4505.00 g | 47.19 dm³ |
User instruction / safety instructions
DECOR CLAY WINDOWS WALL E27
DECOR CLAY WINDOWS WALL E27
Declarations of conformity
DECOR LUM
DECOR LUM

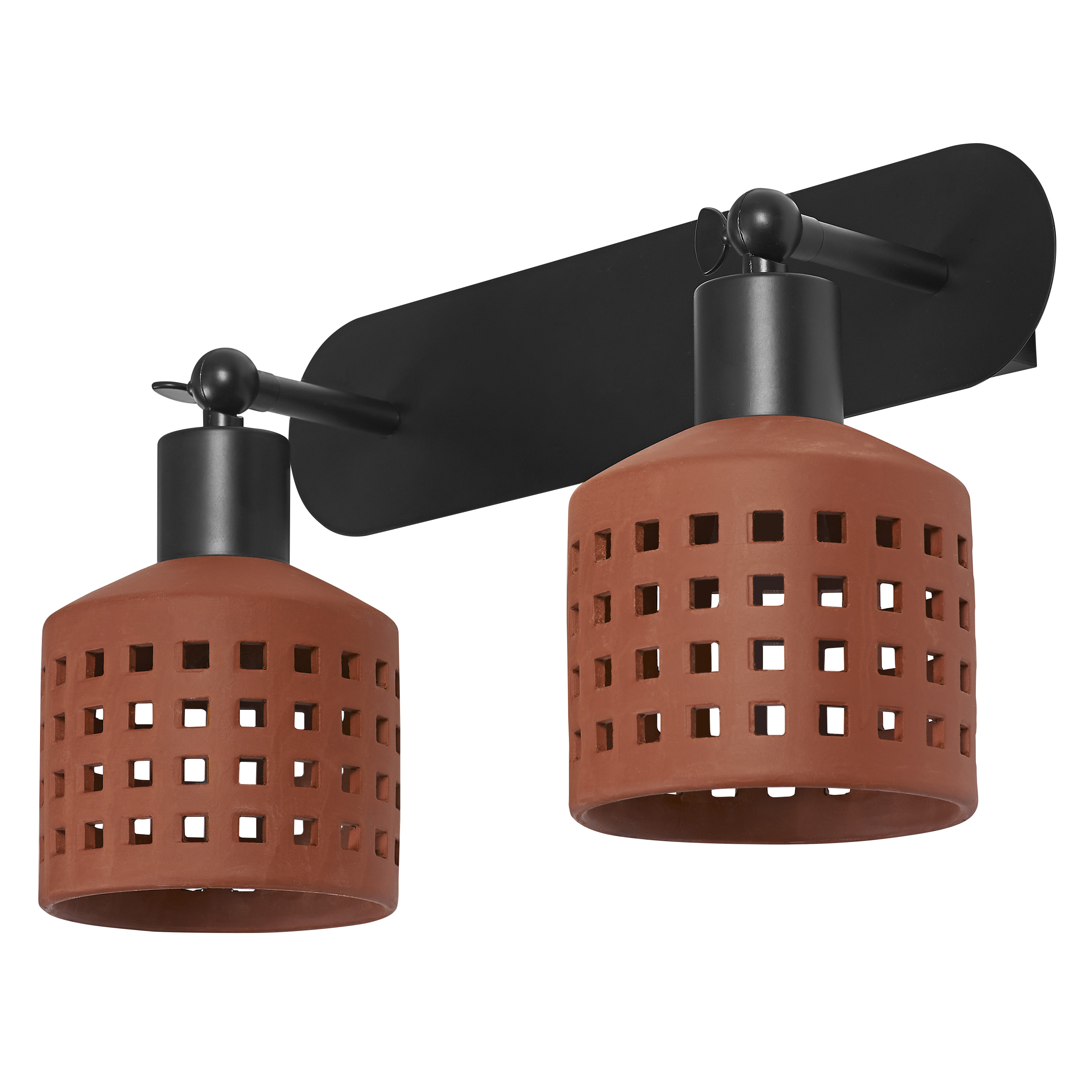

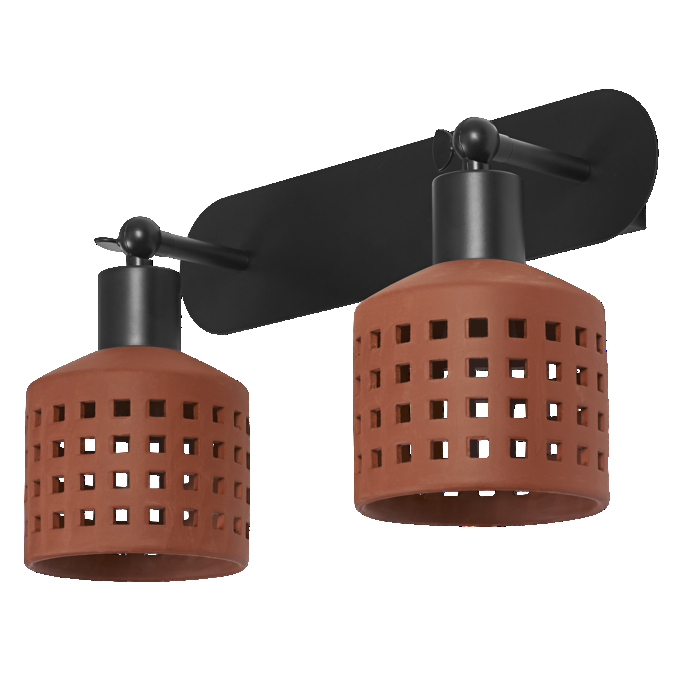

Product image: white background, upright
DECOR CLAY WINDOWS WALL 2XE27
DECOR CLAY WINDOWS WALL 2XE27

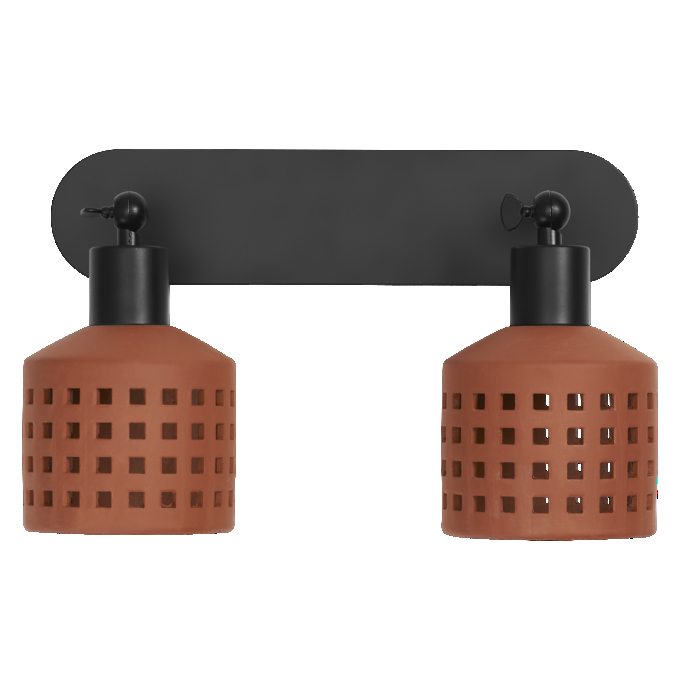

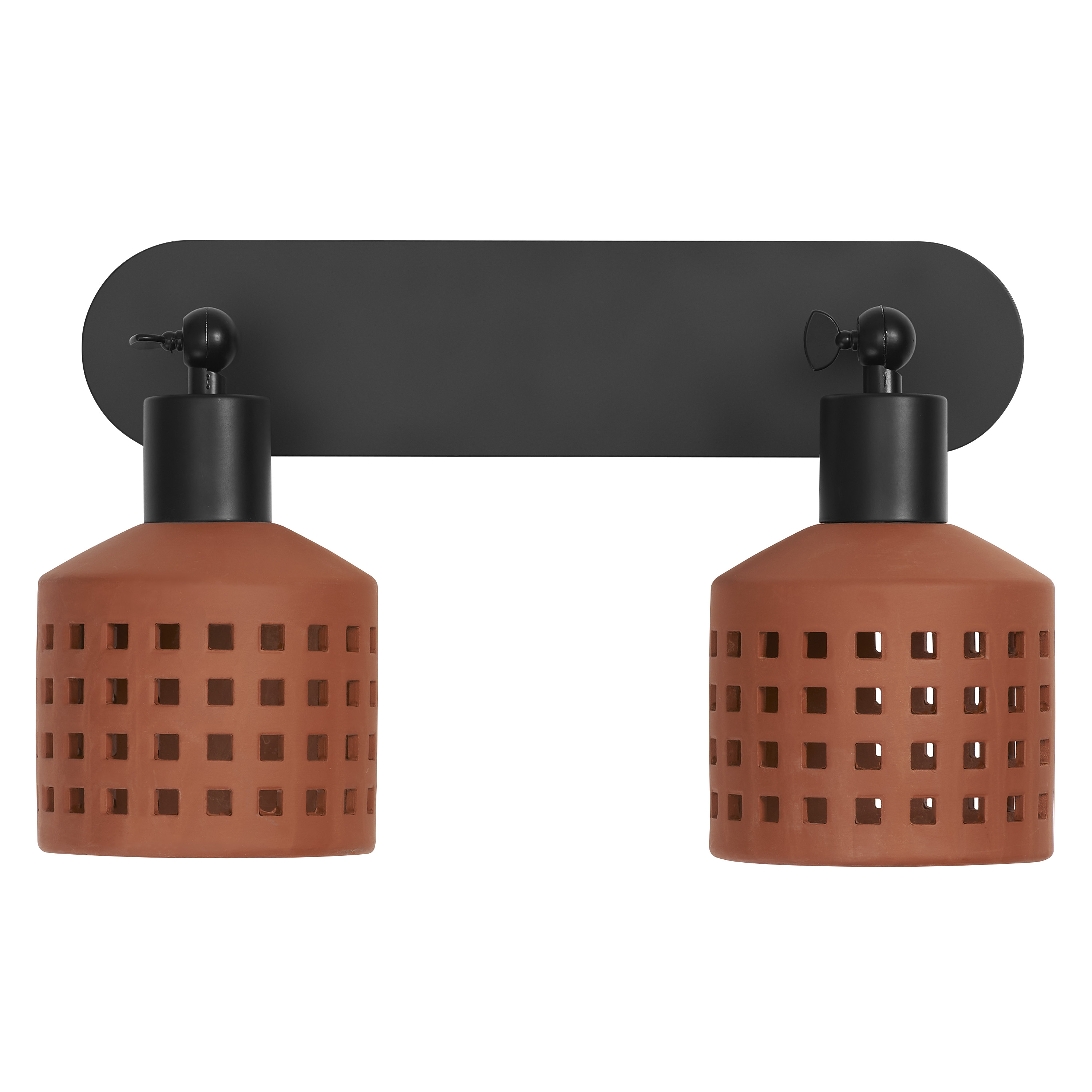

Product image: white background, upright, alternative image
DECOR CLAY WINDOWS WALL 2XE27
DECOR CLAY WINDOWS WALL 2XE27

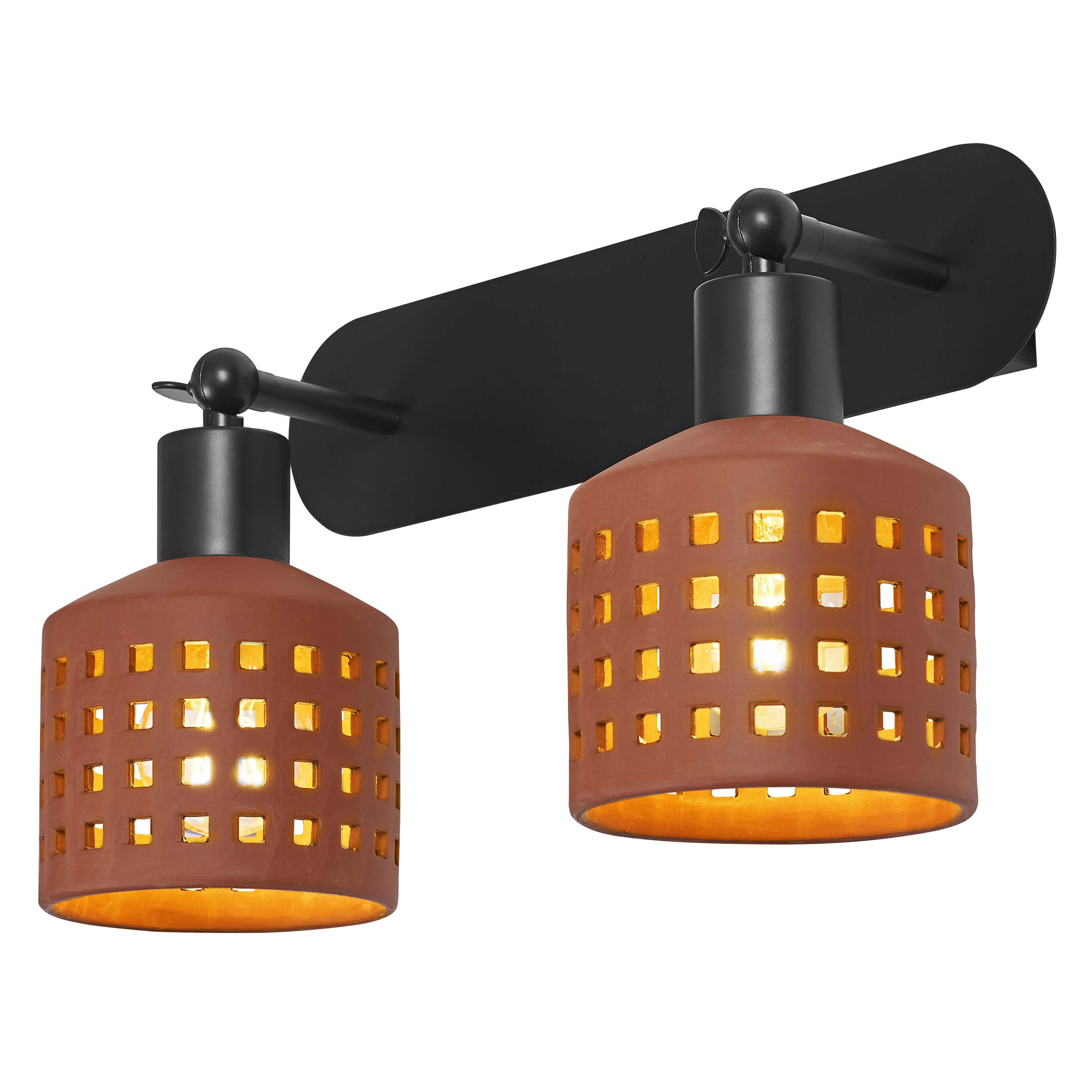

Product image: white background, upright, switched on
