Essentials Damp Proof
Damp Proof Essential 15W 1200mm 4000K
GTIN: 4058075762572
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Suitable for use in dusty and damp outdoor locations thanks to high IP rating
Areas of application
- Basements, garages, warehouses
Product features
- Damp-proof luminaire with LED tube for mains voltage operation
Equipment / Accessories
- LED Tube is delivered with the product
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 15.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 120.000 mA |
| Inrush current time Th50 | 482 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 15 |
| Max. number of luminaires per miniature circuit breaker C16 | 25 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | 86 % |
| Protection class | II |
Photometrical data
| Luminous flux | 1300 lm |
| Total luminous flux of contained light sources | 1650 lm |
| Luminous efficacy | 86 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
| UGR | < 25 |
Dimensions & Weight
| Length | 1261.00 mm |
| Height | 64.00 mm |
| Width | 69.00 mm |
| Product weight | 817.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Plastic |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 12500 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075762572 | Folding box 1 |
69 mm x 1,275 mm x 71 mm | 934.50 g | 6.25 dm³ |
| 4058075762589 | Shipping box 8 |
1,287 mm x 300 mm x 160 mm | 8625.00 g | 61.78 dm³ |
User instruction / safety instructions
DAMP PROOF ESSENTIAL
DAMP PROOF ESSENTIAL
Declarations of conformity
CE Declaration DAMP PROOF ESSENTIAL
CE Declaration DAMP PROOF ESSENTIAL

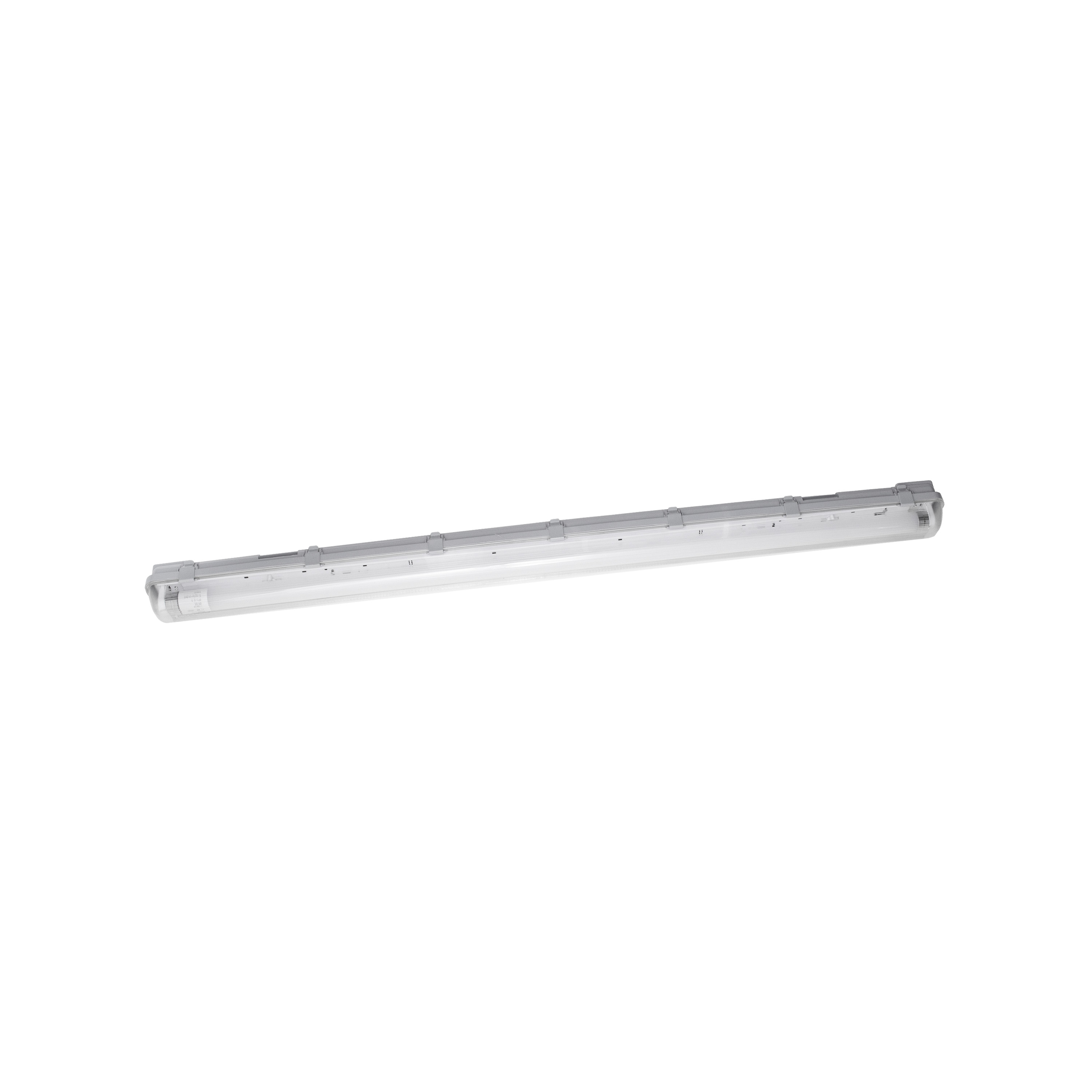

Product image: white background, diagonal
SUBMARINE LED 1X16W 840 120
SUBMARINE LED 1X16W 840 120

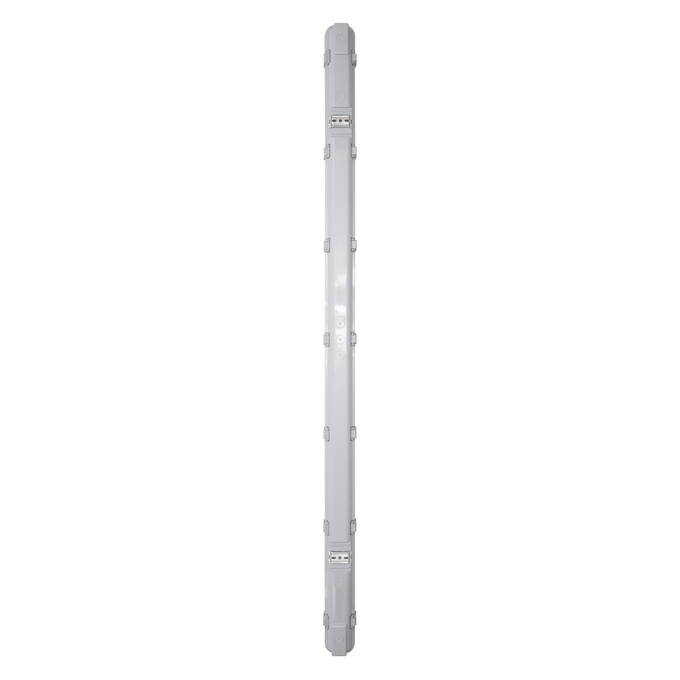

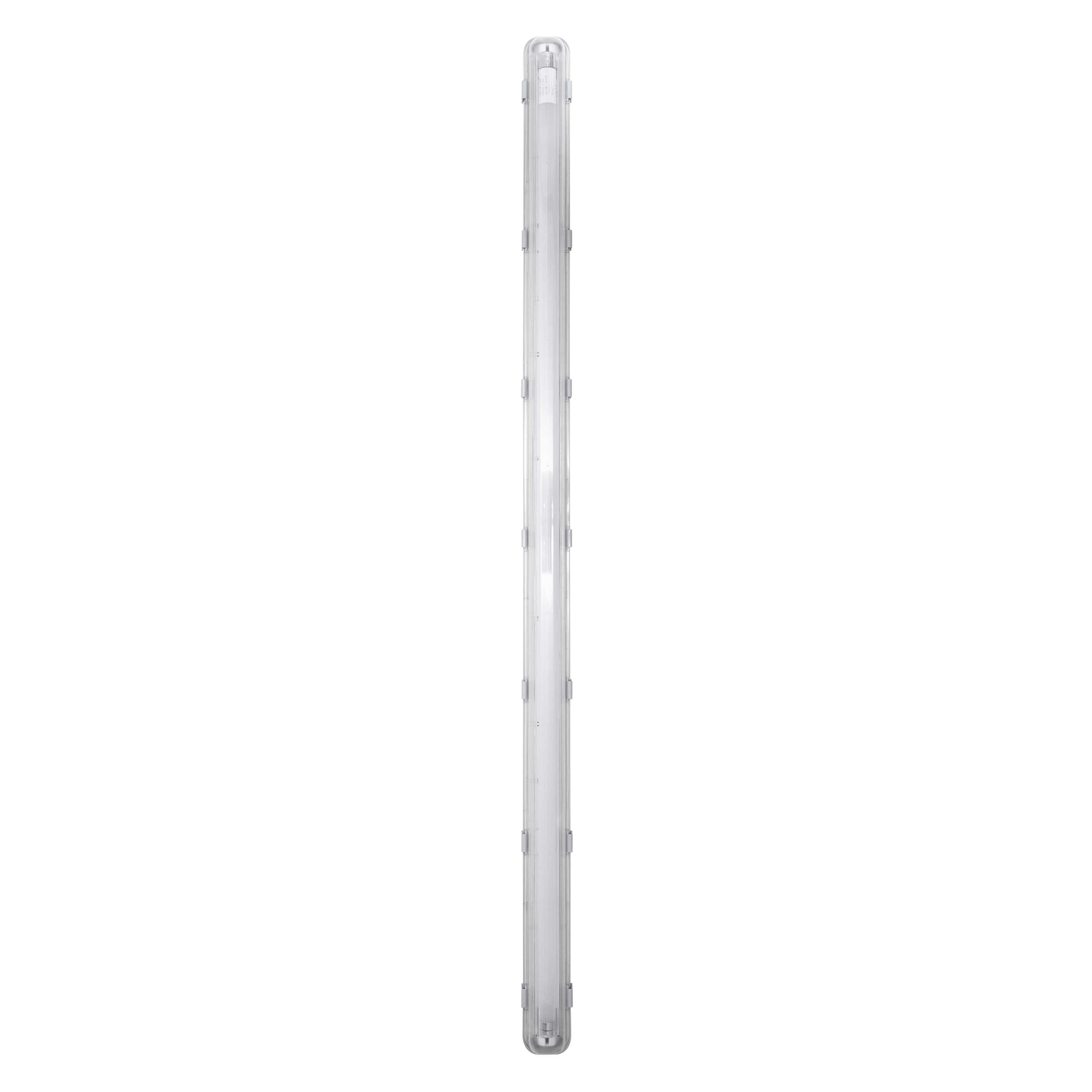

Product image: white background, upright
SUBMARINE LED 1X16W 840 120
SUBMARINE LED 1X16W 840 120

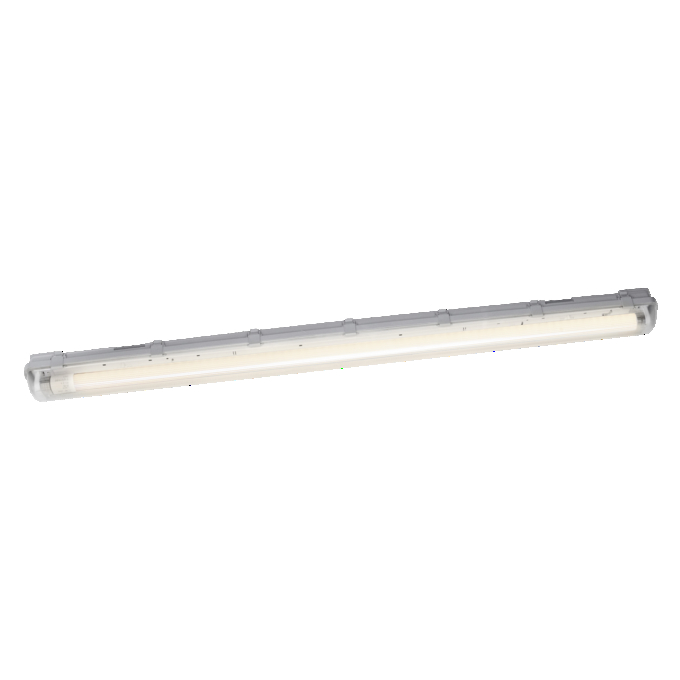

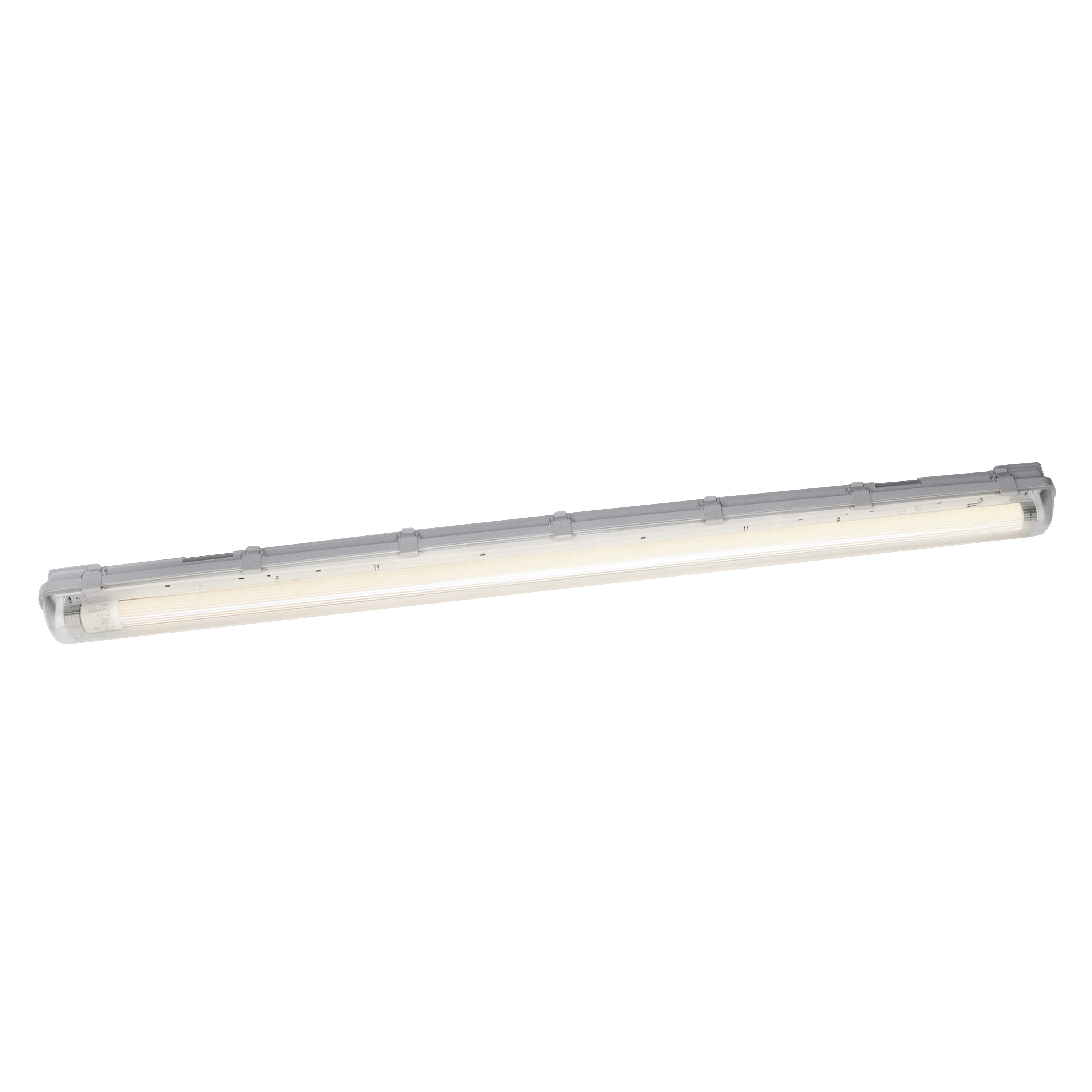

Product image: white background, upright, switched on
DAMP PROOF ESSENTIAL 120CM 1X15W840
DAMP PROOF ESSENTIAL 120CM 1X15W840
Product infographic (application image with text and graphic)
Damp Proof e-Com graphic 1200x1200px 2024 DE
Damp Proof e-Com graphic 1200x1200px 2024 DE

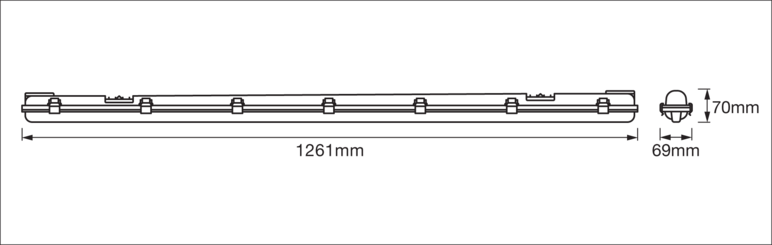

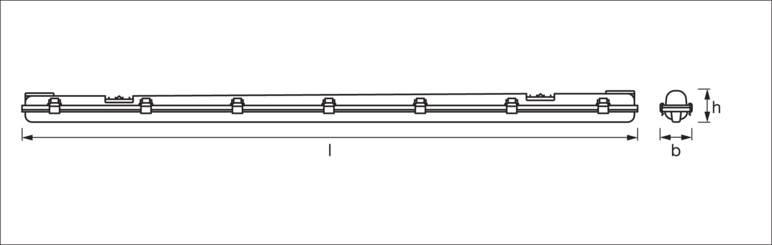

Product line drawing with letters
SUBMARINE LED 1X16W 840 120
SUBMARINE LED 1X16W 840 120
Product line drawing with numbers
SUBMARINE LED 1X16W 840 120
SUBMARINE LED 1X16W 840 120

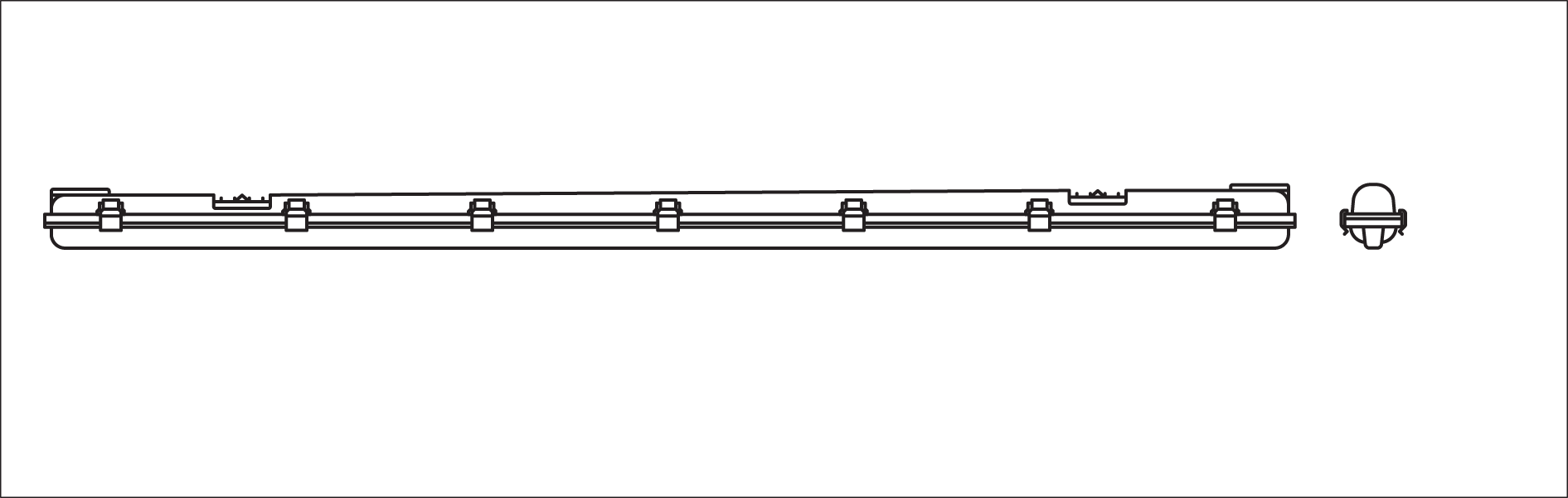

Product line drawing, front, no dimensions
SUBMARINE LED 1X16W 840 120
SUBMARINE LED 1X16W 840 120

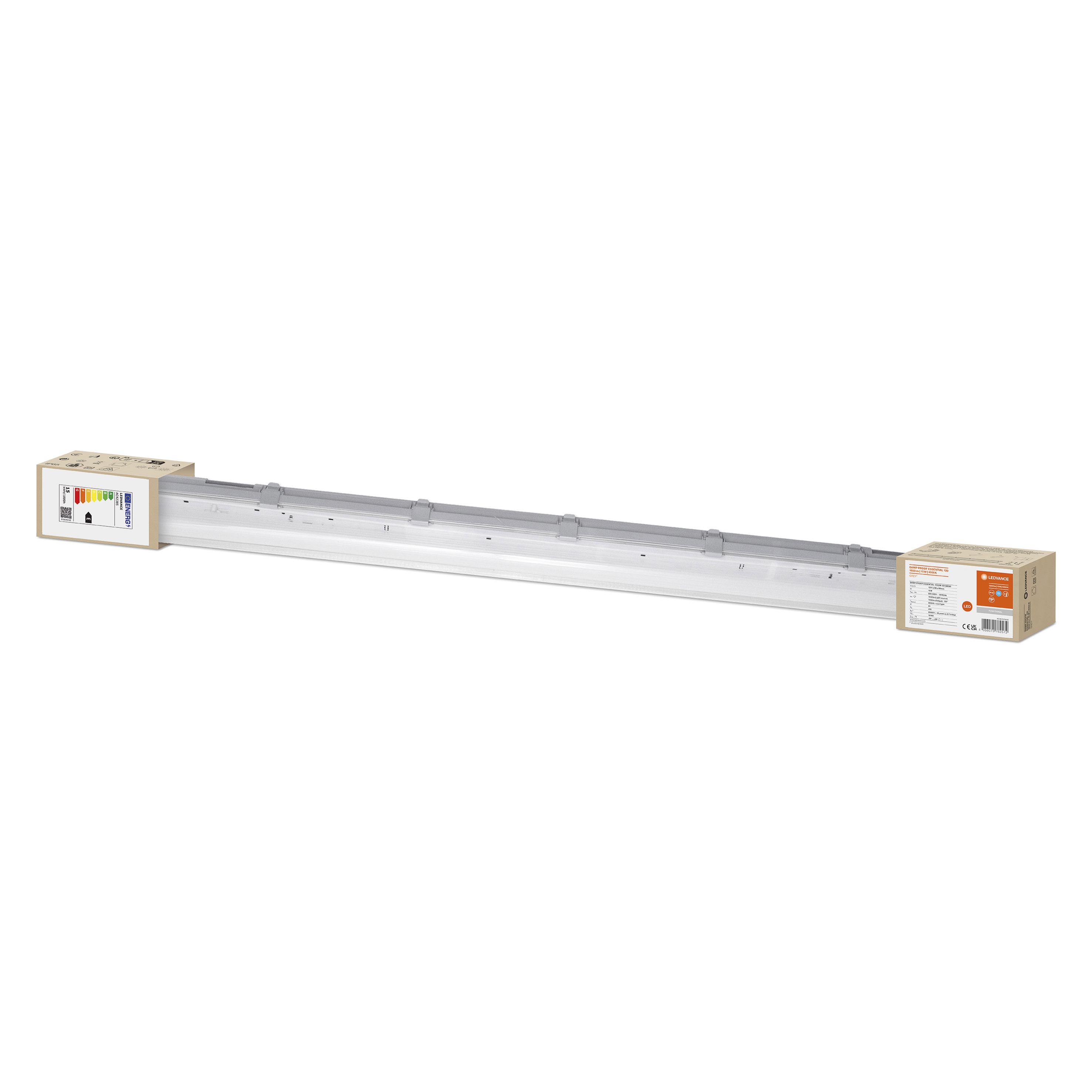

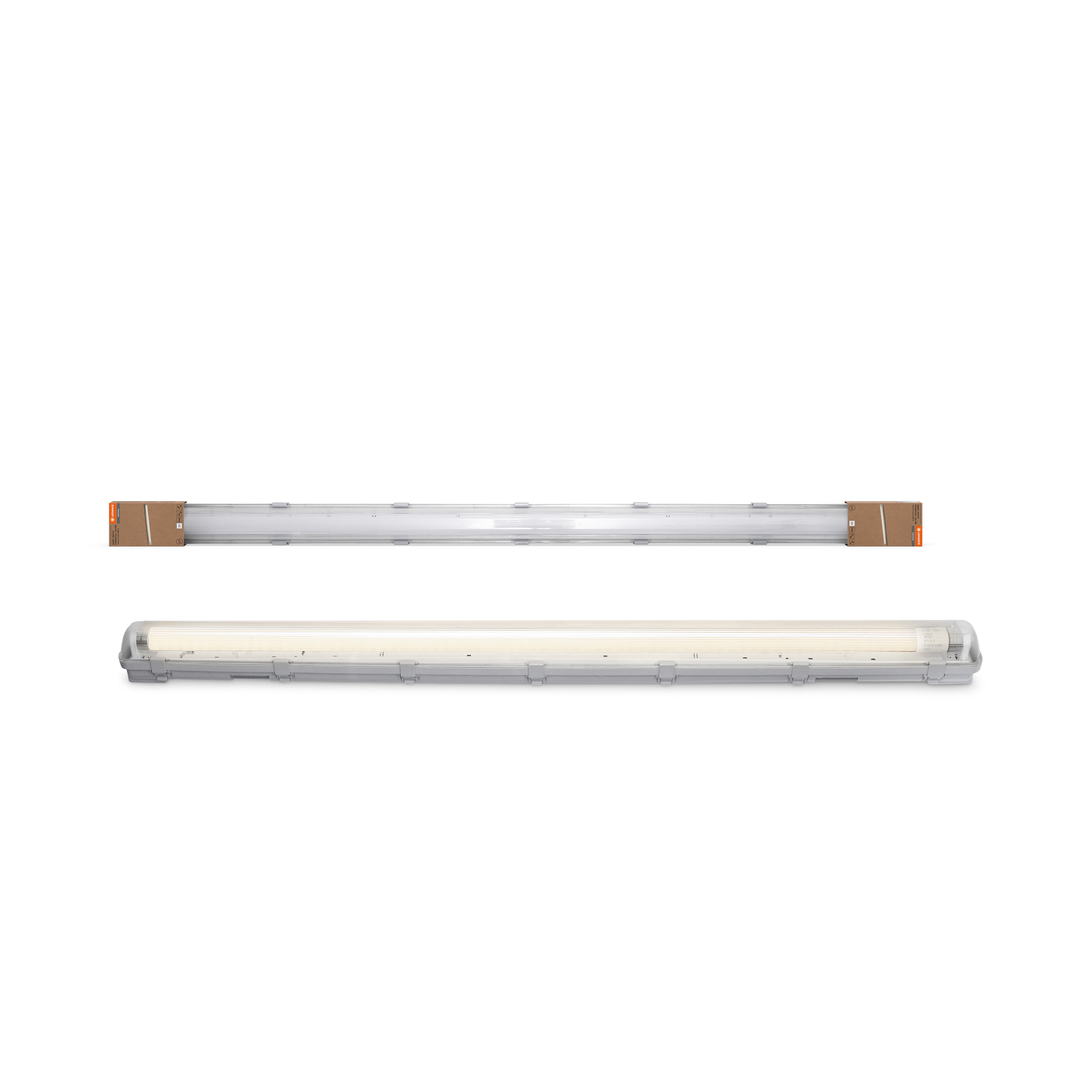

Combo Shot = Product Beauty Shot + Packaging Image
DampProof Essential 1200 1x Lamp MiCh
DampProof Essential 1200 1x Lamp MiCh

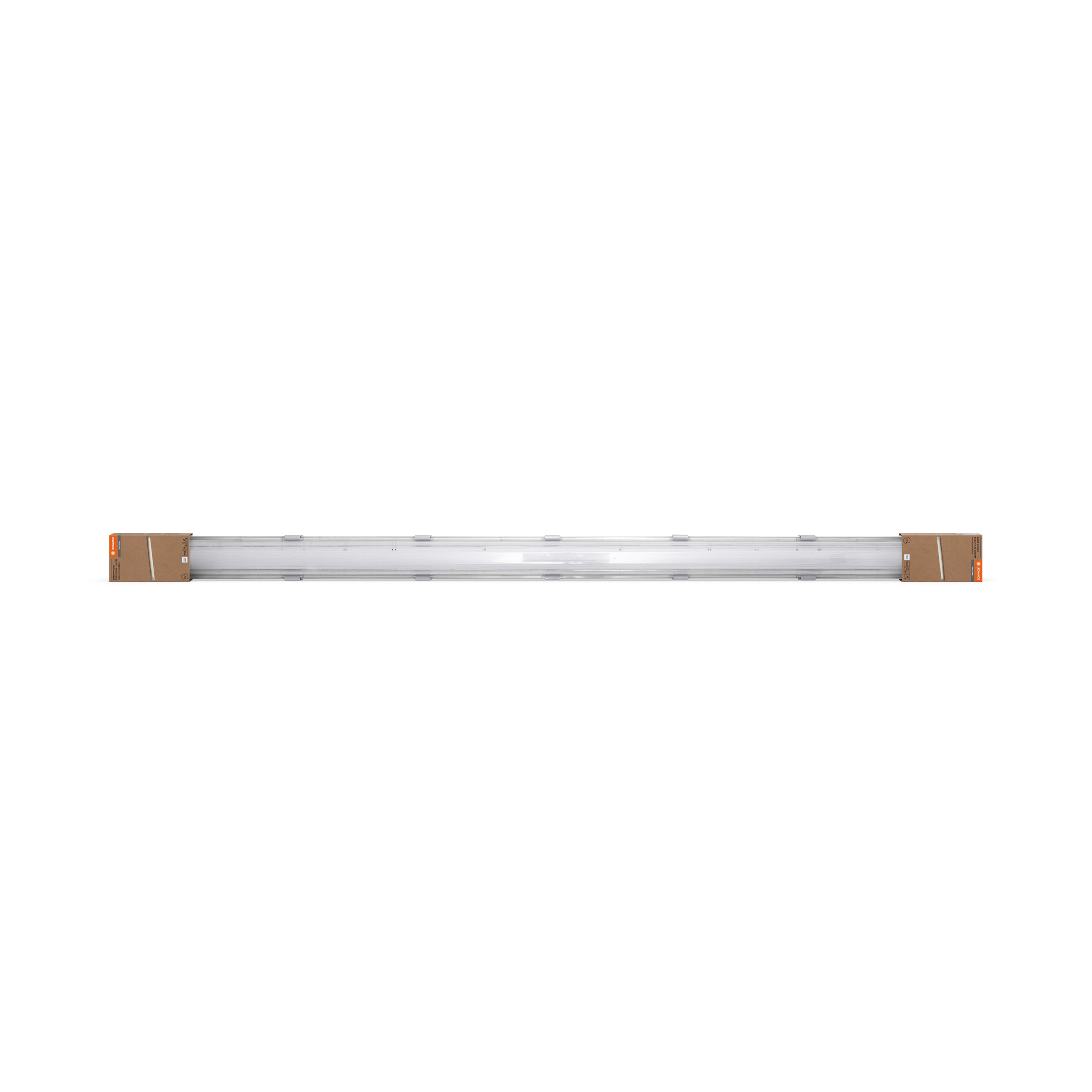

Packaging image, frontal
DampProof Essential 1200 1x Lamp MiCh
DampProof Essential 1200 1x Lamp MiCh
Packaging image, spacial
DampProof Essential 1200 1x Lamp MiCh
DampProof Essential 1200 1x Lamp MiCh

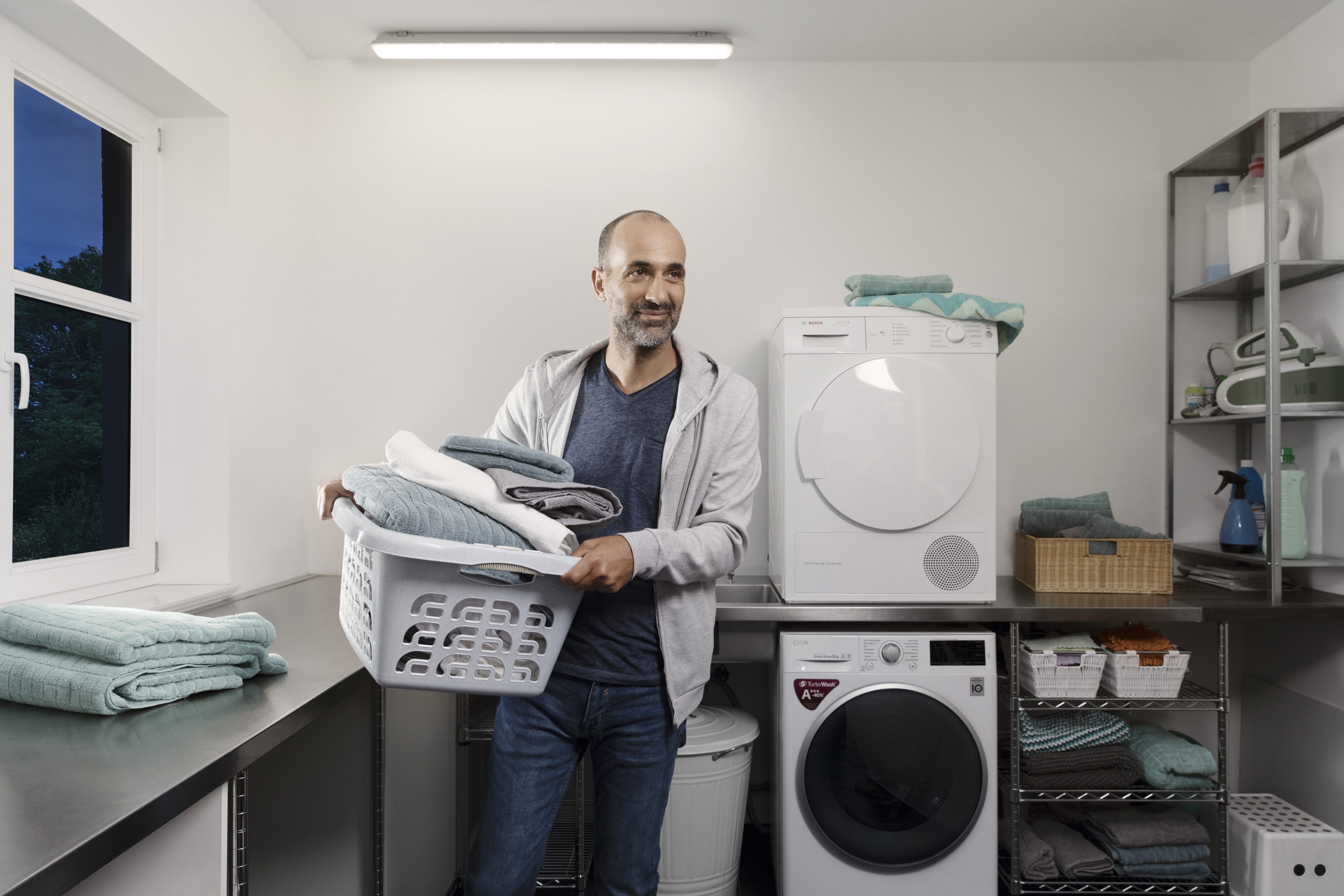

Application pictures
