Orbis Concrete
Orbis Concrete 400MM 18W 830 Click Dim Gray
GTIN: 4099854446733
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Stylish and modern design
- Long lifetime thanks to LED technology
Areas of application
- Indoor
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Type of protection: IP20
- Lifetime up to 30,000 h
- Click-DIM version: dimmable in three steps by repeated switching
- Housing material: concrete
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 18.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 100.000 mA |
| Inrush current time Th50 | 28.4 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 139 |
| Max. number of luminaires per miniature circuit breaker C10 | 86 |
| Max. number of luminaires per miniature circuit breaker C16 | 139 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 70 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 1500 lm |
| Luminous efficacy | 83 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 116 ° |
Dimensions & Weight
| Diameter | 400.00 mm |
| Height | 100.00 mm |
| Product weight | 4120.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Concrete |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Dimmable | Yes |
| Type of dimming | 3 DIM |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854446733 | Folding box 1 |
144 mm x 450 mm x 450 mm | 7310.00 g | 29.16 dm³ |
| 4099854446740 | Shipping box 2 |
468 mm x 306 mm x 475 mm | 14620.00 g | 68.02 dm³ |
User instruction / safety instructions
ORBIS CONCRETE
ORBIS CONCRETE
Legal information
Safety insert G11219301
Safety insert G11219301
Declarations of conformity
ORBIS CONCRETE
ORBIS CONCRETE
Product image: white background, upright
ORBIS CONCRETE 400 18W830 CLICKD GR
ORBIS CONCRETE 400 18W830 CLICKD GR
Product image: white background, upright, alternative image
ORBIS CONCRETE 400 18W830 CLICKD GR
ORBIS CONCRETE 400 18W830 CLICKD GR
Product image: white background, upright, switched on
ORBIS CONCRETE 400 18W830 CLICKD GR
ORBIS CONCRETE 400 18W830 CLICKD GR
Product infographic (application image with text and graphic)
Decor Orbis Material e-Com graphic 1200x1200px 2024 EN
Decor Orbis Material e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
ORBIS CONCRETE 400 18W830 CLICKD
ORBIS CONCRETE 400 18W830 CLICKD
Product line drawing with numbers
ORBIS CONCRETE 400 18W830 CLICKD
ORBIS CONCRETE 400 18W830 CLICKD
Product line drawing, front, no dimensions
ORBIS CONCRETE 400 18W830 CLICKD
ORBIS CONCRETE 400 18W830 CLICKD

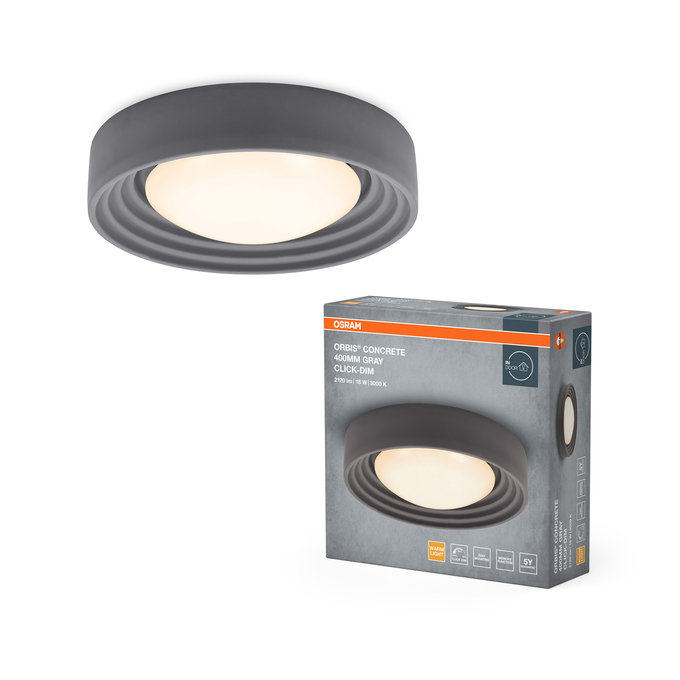

Combo Shot = Product Beauty Shot + Packaging Image
