ORBIS SPIRAL OVAL
Orbis Spiral Oval 485mm 37W White
GTIN: 4099854093517
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Very homogenous light
- Elegant design
Areas of application
- Indoor applications
- Kitchens, living rooms, children's rooms or home offices
Product features
- Decorative domestic lighting
- Ceiling luminaire with advanced LED technology
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 37.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 158.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 81 |
| Max. number of luminaires per miniature circuit breaker C16 | 81 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Electronic control gear (ECG) |
Photometrical data
| Luminous flux | 2200 lm |
| Total luminous flux of contained light sources | 4400 lm |
| Luminous efficacy | 59 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
Dimensions & Weight
| Length | 485.00 mm |
| Height | 56.00 mm |
| Width | 385.00 mm |
| Product weight | 3060.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Silicone |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal, 2-Pole (L,N) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | empty |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854093517 | Folding box 1 |
76 mm x 430 mm x 540 mm | 3409.00 g | 17.65 dm³ |
| 4099854093524 | Shipping box 2 |
450 mm x 170 mm x 565 mm | 7535.00 g | 43.22 dm³ |
User instruction / safety instructions
UI ORBIS SPIRAL OVAL
UI ORBIS SPIRAL OVAL
Declarations of conformity
CE Declaration Orbis Spiral
CE Declaration Orbis Spiral

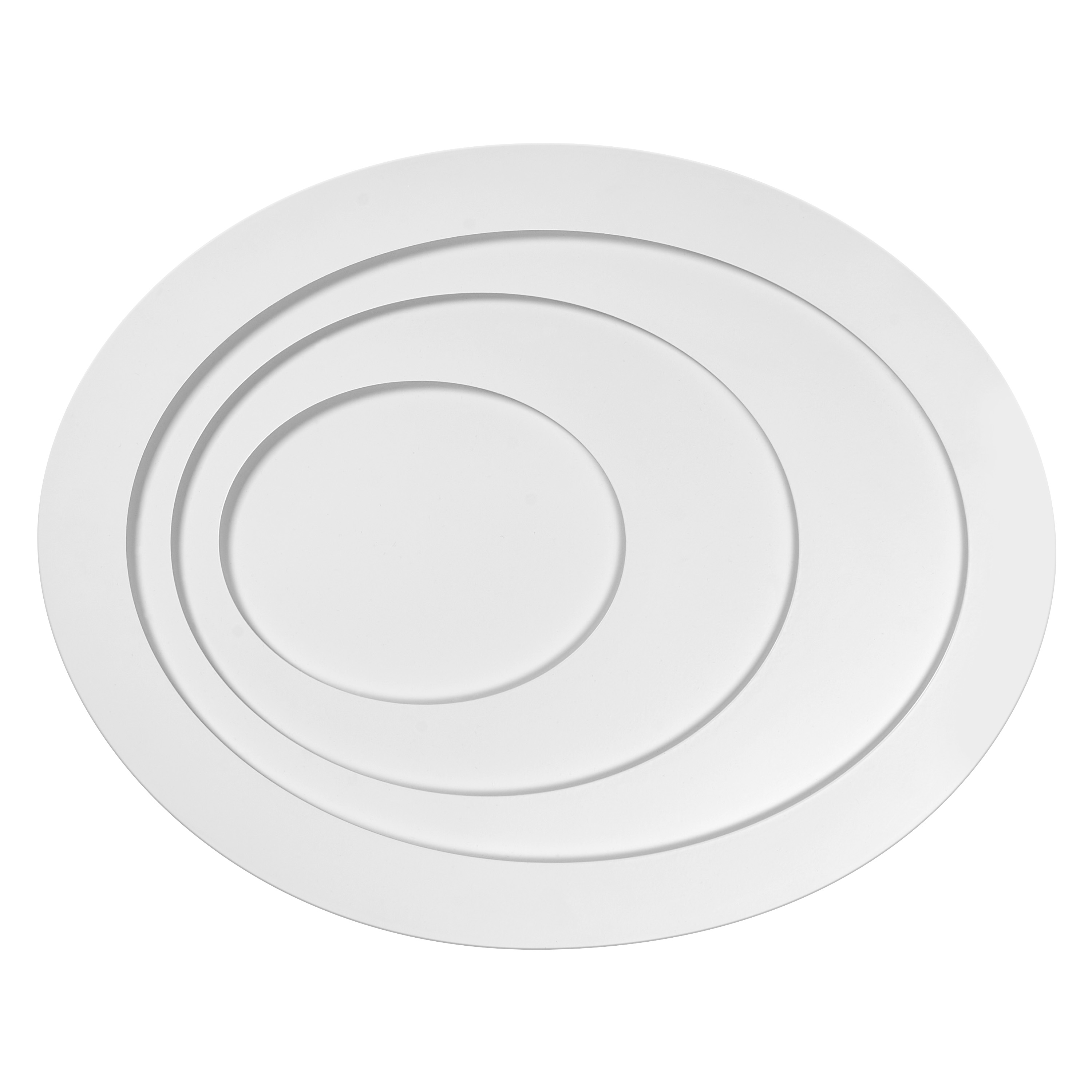

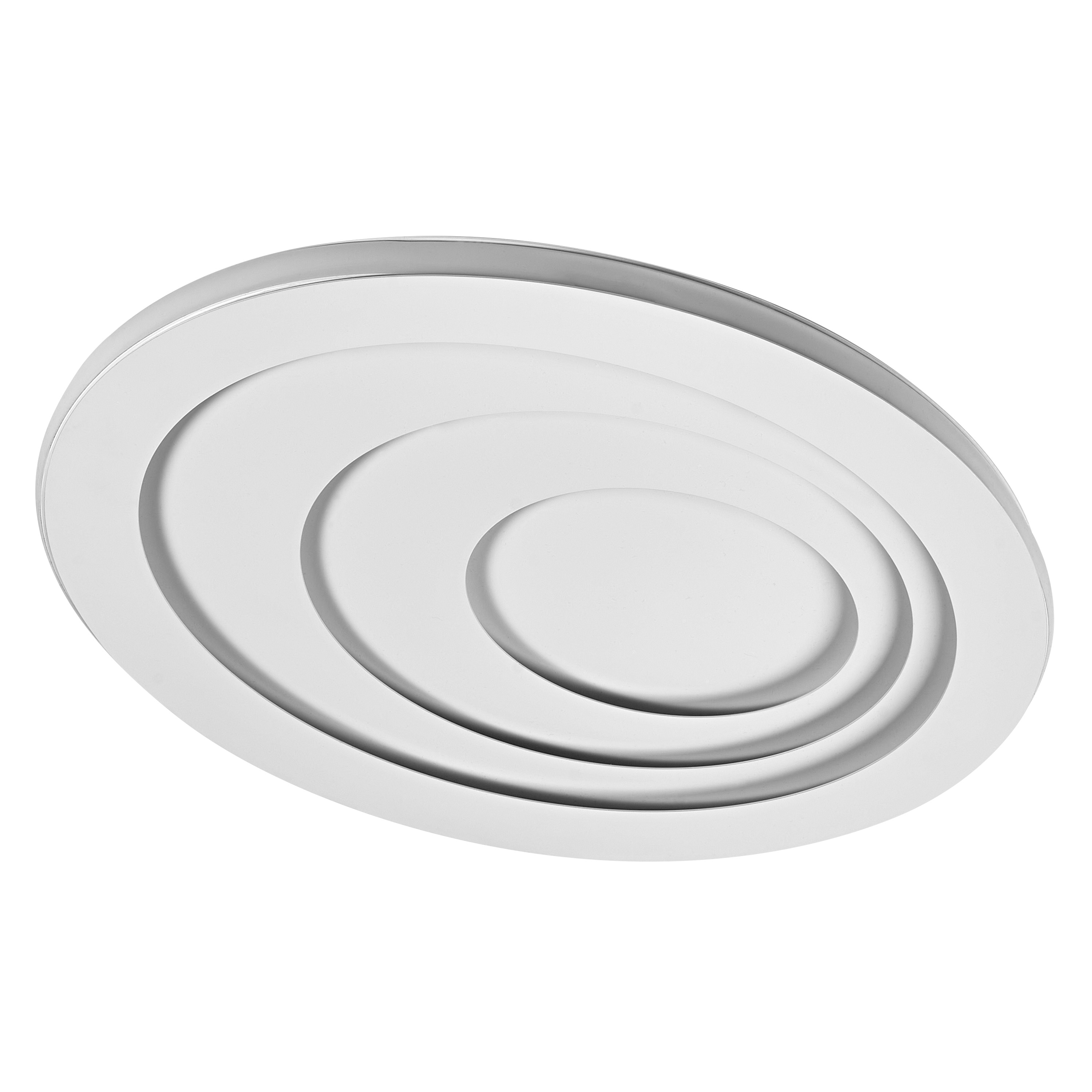

Product image: white background, upright
ORBIS SPIRAL OVAL 485X385MM37W830WT
ORBIS SPIRAL OVAL 485X385MM37W830WT

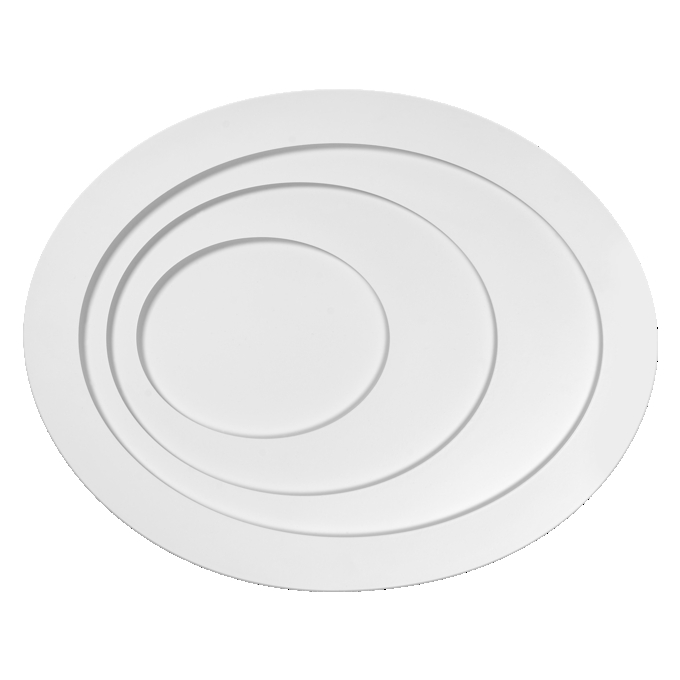

Product image: white background, upright, alternative image
ORBIS SPIRAL OVAL 485X385MM37W830WT
ORBIS SPIRAL OVAL 485X385MM37W830WT

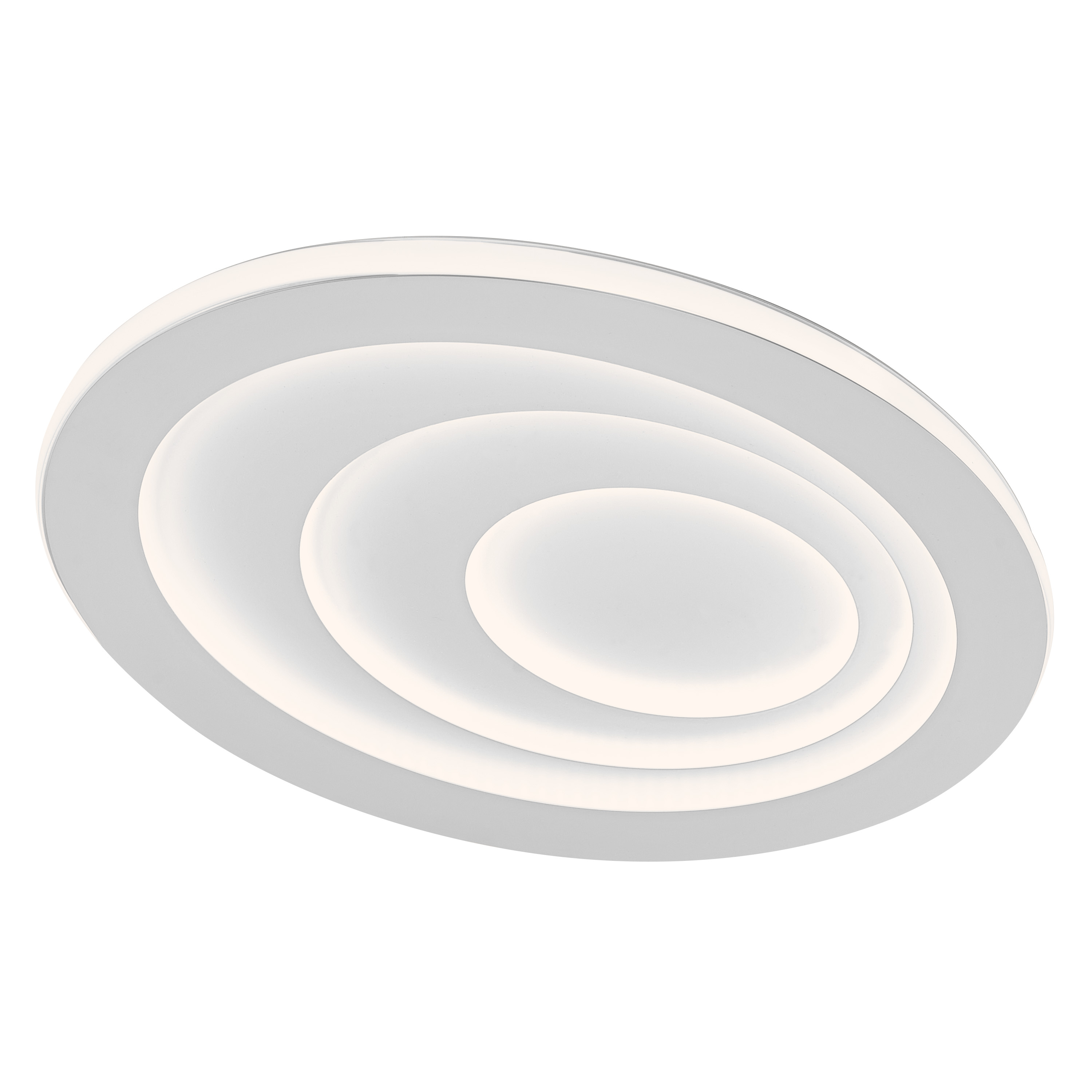

Product image: white background, upright, switched on
ORBIS SPIRAL OVAL 485X385MM37W830WT
ORBIS SPIRAL OVAL 485X385MM37W830WT
Product infographic (application image with text and graphic)
ORBIS non-smart e-Com graphic 1200x1200px 2025 EN
ORBIS non-smart e-Com graphic 1200x1200px 2025 EN
Product line drawing with letters
ORBIS SPIRAL OVAL 485X385MM37W830WT
ORBIS SPIRAL OVAL 485X385MM37W830WT
Product line drawing with numbers
ORBIS SPIRAL OVAL 485X385MM37W830WT
ORBIS SPIRAL OVAL 485X385MM37W830WT
Product line drawing, front, no dimensions
ORBIS SPIRAL OVAL 485X385MM37W830WT
ORBIS SPIRAL OVAL 485X385MM37W830WT
Beauty Shot

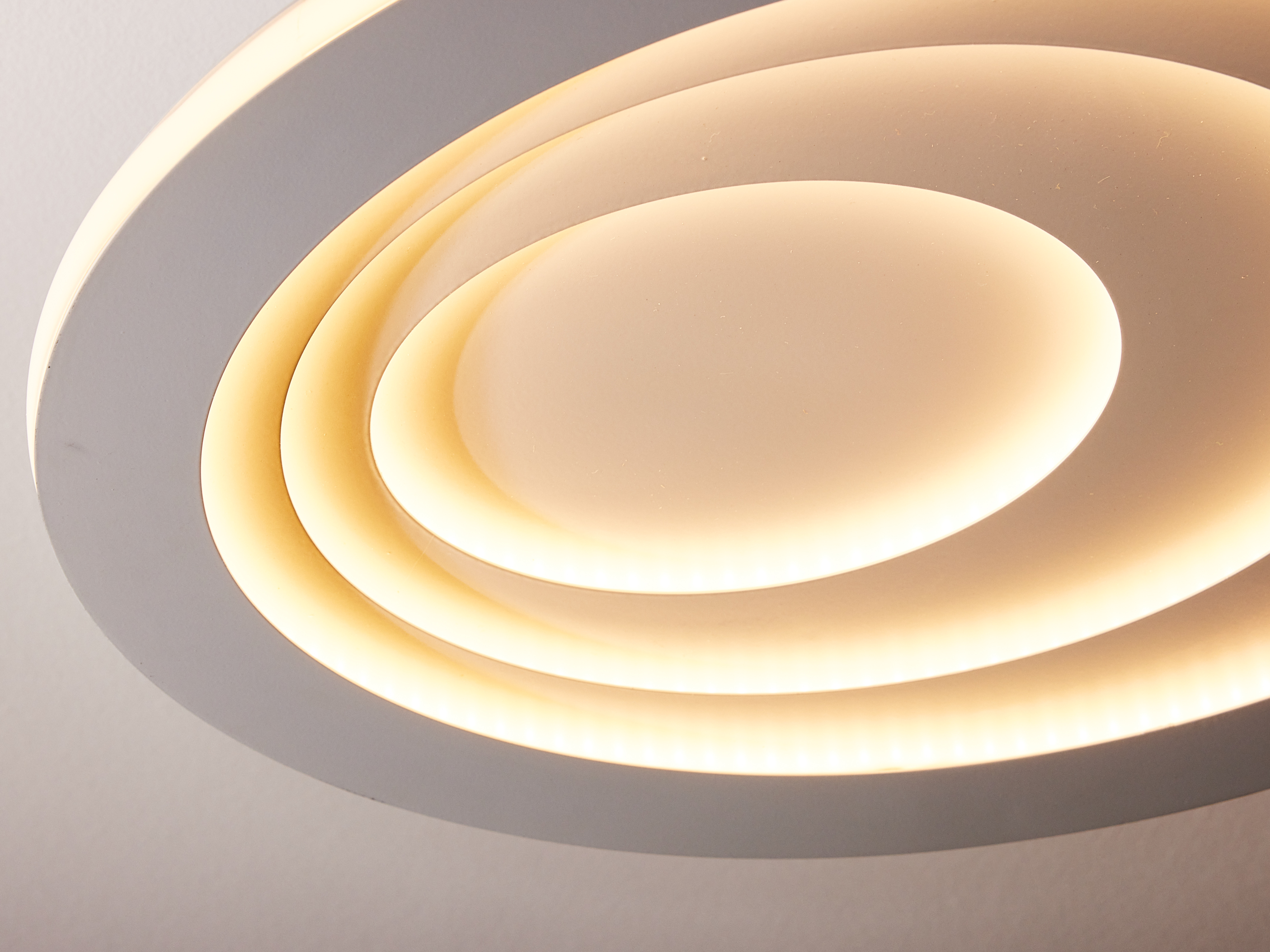

ORBIS SPIRAL OVAL 485MM Close-up
ORBIS SPIRAL OVAL 485MM Close-up

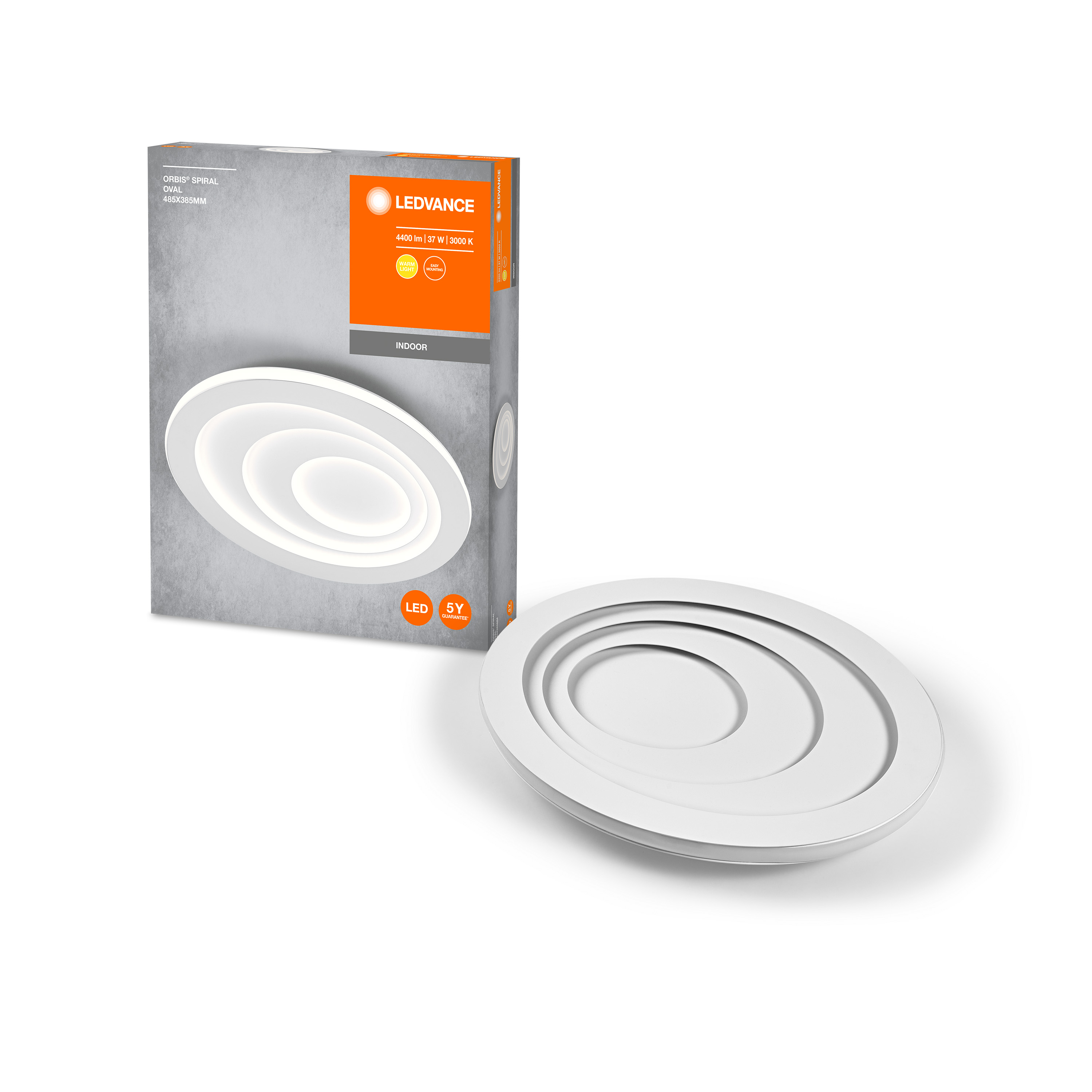

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC OR SPI OV 485 37W WT MiPRC
LUM FC OR SPI OV 485 37W WT MiPRC
Packaging image, frontal
LUM FC OR SPI OV 485 37W WT MiPRC
LUM FC OR SPI OV 485 37W WT MiPRC
Packaging image, spacial
LUM FC OR SPI OV 485 37W WT MiPRC
LUM FC OR SPI OV 485 37W WT MiPRC
Application pictures

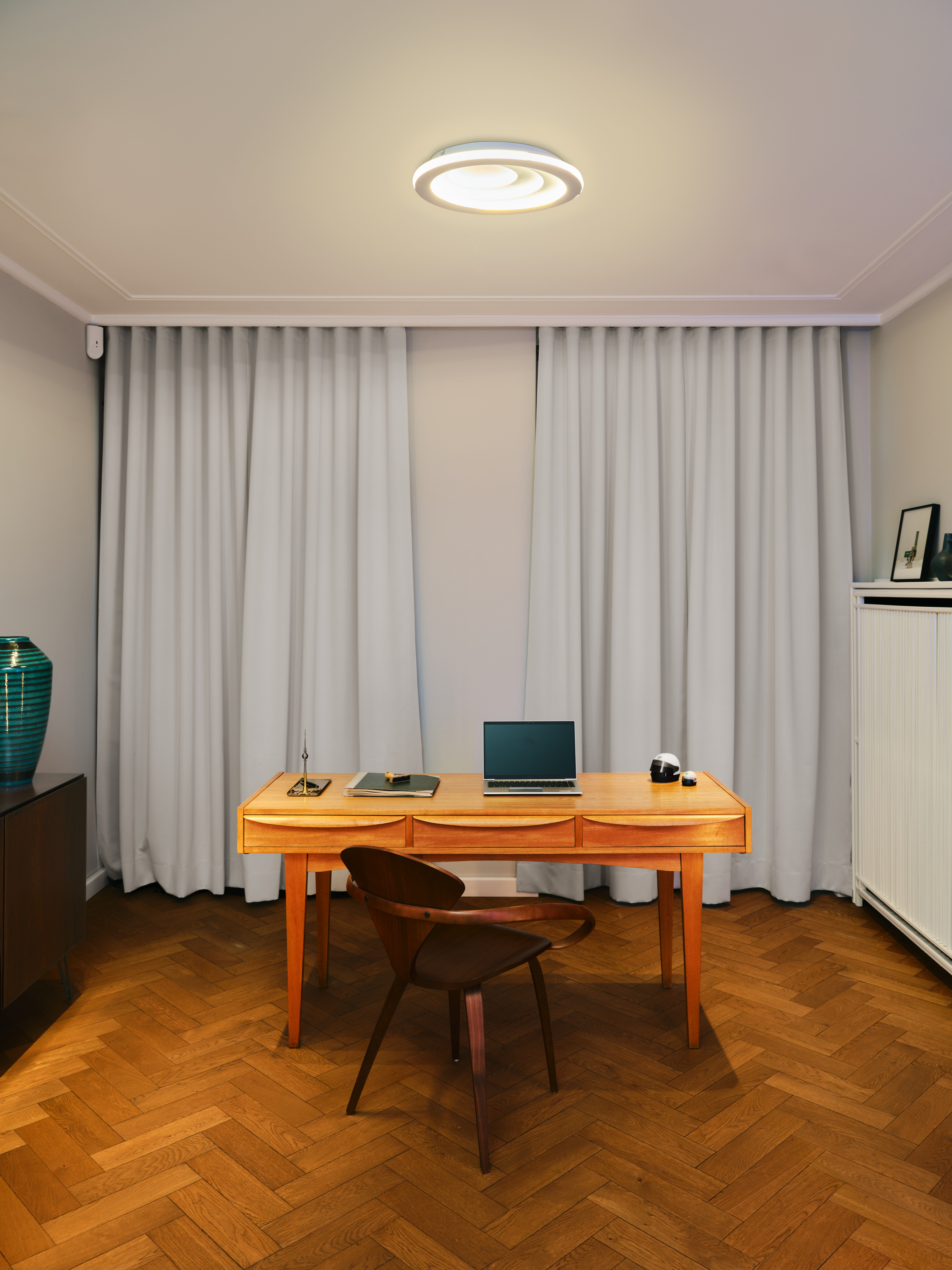

ORBIS SPIRAL OVAL 485MM Ambient
ORBIS SPIRAL OVAL 485MM Ambient
Application pictures Getty

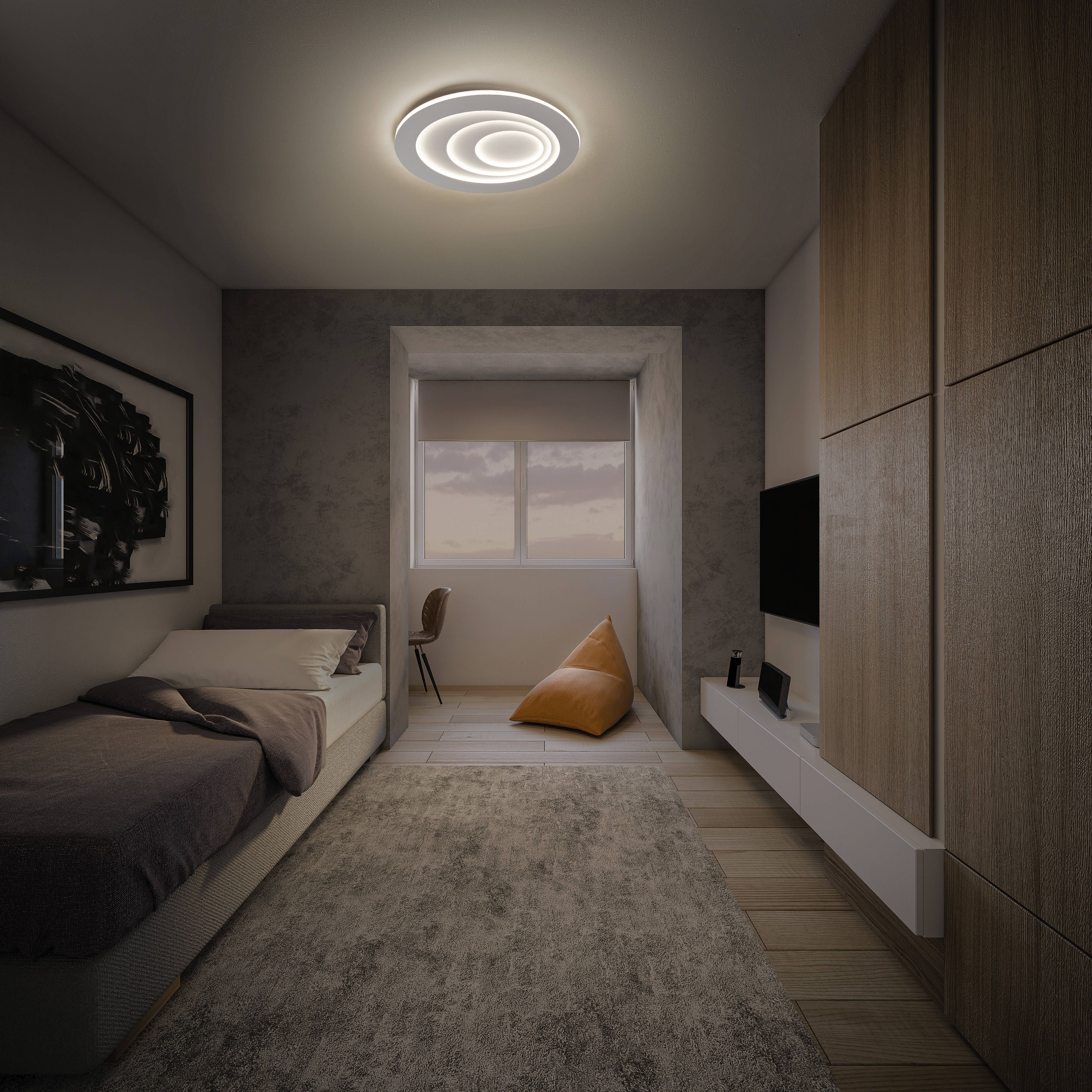

Orbis Spiral oval 720
