ORBIS SPIRAL CLICK DIM
Orbis Spiral Square 360mm 26W Click Dim 830 Grey
GTIN: 4099854640209
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Click dim function by wall switch
- Stylish and modern design
- Long lifetime thanks to LED technology
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Ceiling luminaire with advanced LED technology
- Click-DIM version: dimmable in three steps by repeated switching
- Color temperature: 3,000 K (Warm White)
- Lifetime up to 25,000 h
- Type of protection: IP20
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 26.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 124.000 mA |
| Inrush current | 2.4 A |
| Inrush current time Th50 | 191.7 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 112 |
| Max. number of luminaires per miniature circuit breaker C16 | 112 |
| Power factor λ | > 0.9 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 900 lm |
| Total luminous flux of contained light sources | 3944 |
| Luminous efficacy | 35 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
Dimensions & Weight
| Length | 365.00 mm |
| Height | 56.00 mm |
| Width | 365.00 mm |
| Product weight | 2080.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Metal |
| Cover material | Silicone |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Dimmable | Yes |
| Type of dimming | 3 DIM |
| Mounting type | Surface |
| Mounting location | Ceiling |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Emergency lighting
| Type of emergency operation test | None |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854640209 | Folding box 1 |
76 mm x 420 mm x 420 mm | 3124.00 g | 13.41 dm³ |
| 4099854640216 | Shipping box 4 |
440 mm x 324 mm x 445 mm | 13416.00 g | 63.44 dm³ |
User instruction / safety instructions
Orbis Spiral Square Click DIM
Orbis Spiral Square Click DIM

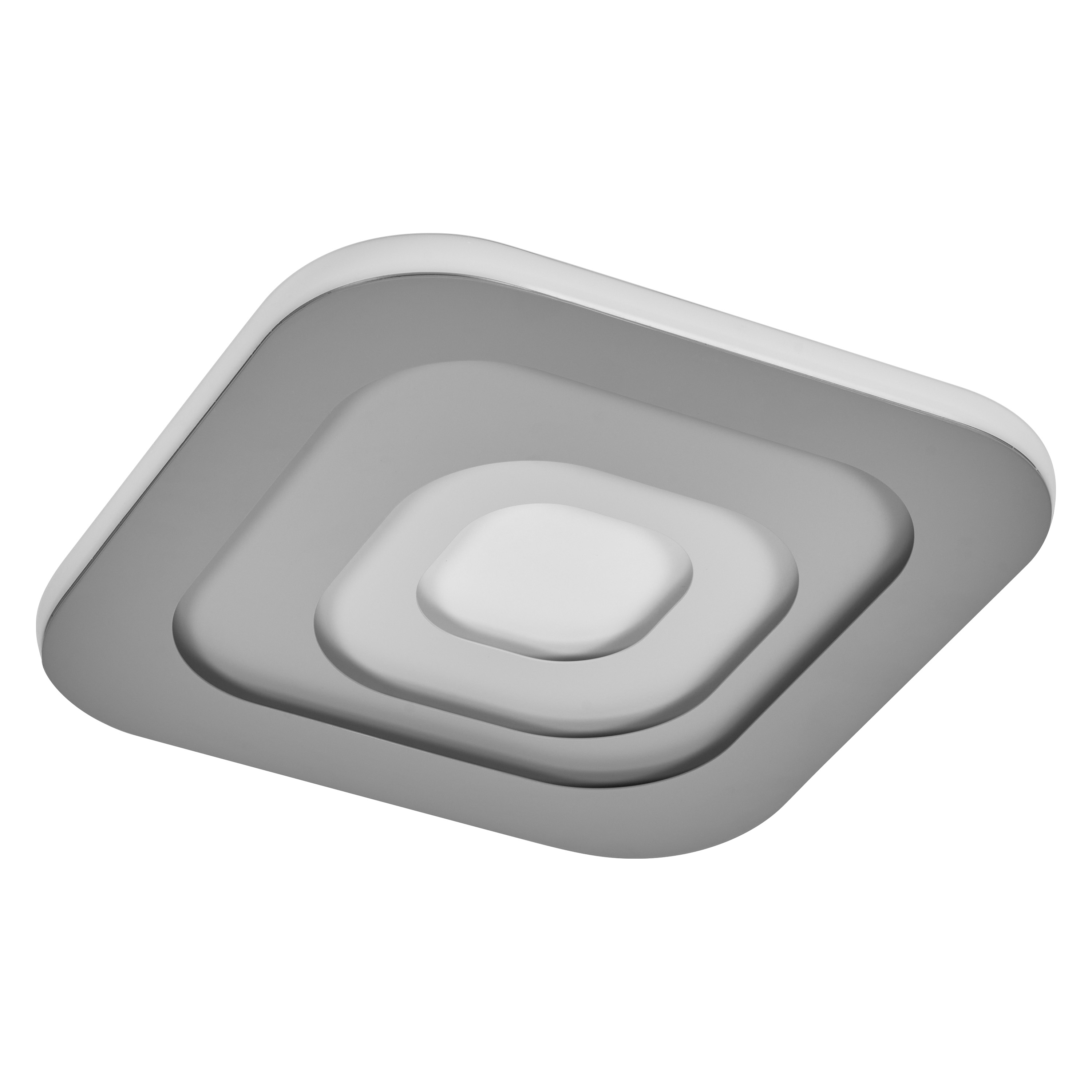

Product image: white background, upright
ORBIS SPIRAL SQ 360 27W830 CLDIM GR
ORBIS SPIRAL SQ 360 27W830 CLDIM GR
Product image: white background, upright, alternative image
ORBIS SPIRAL SQ 360 27W830 CLDIM GR
ORBIS SPIRAL SQ 360 27W830 CLDIM GR

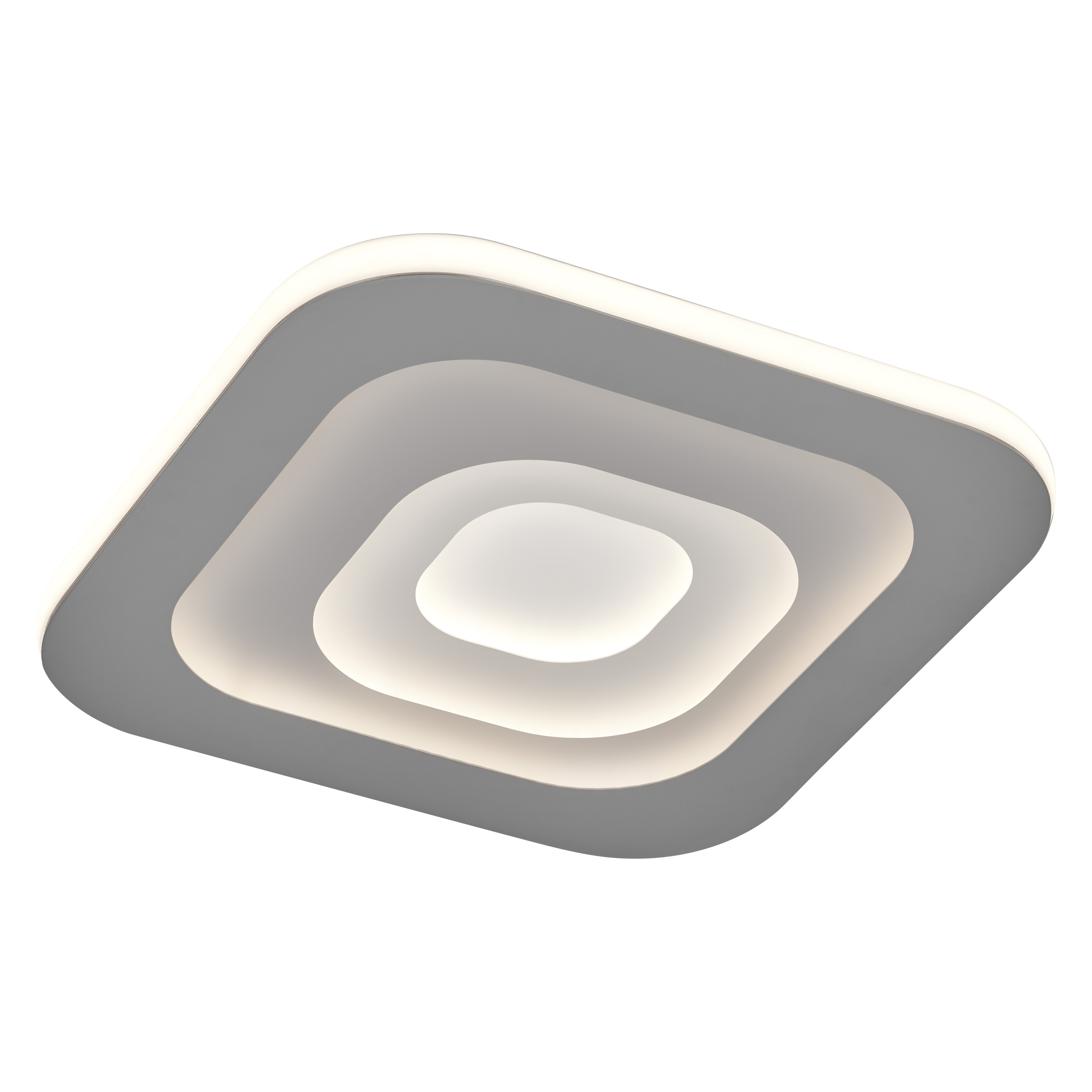

Product image: white background, upright, switched on
ORBIS SPIRAL SQ 360 27W830 CLDIM GR
ORBIS SPIRAL SQ 360 27W830 CLDIM GR
Product line drawing with letters
ORBIS SPIRAL SQ 500 38W830 CLDIM GR
ORBIS SPIRAL SQ 500 38W830 CLDIM GR
Product line drawing with numbers
ORBIS SPIRAL SQ 360 26W830 CLDIM GR
ORBIS SPIRAL SQ 360 26W830 CLDIM GR
Product line drawing, front, no dimensions
ORBIS SPIRAL SQ 500 38W830 CLDIM GR
ORBIS SPIRAL SQ 500 38W830 CLDIM GR

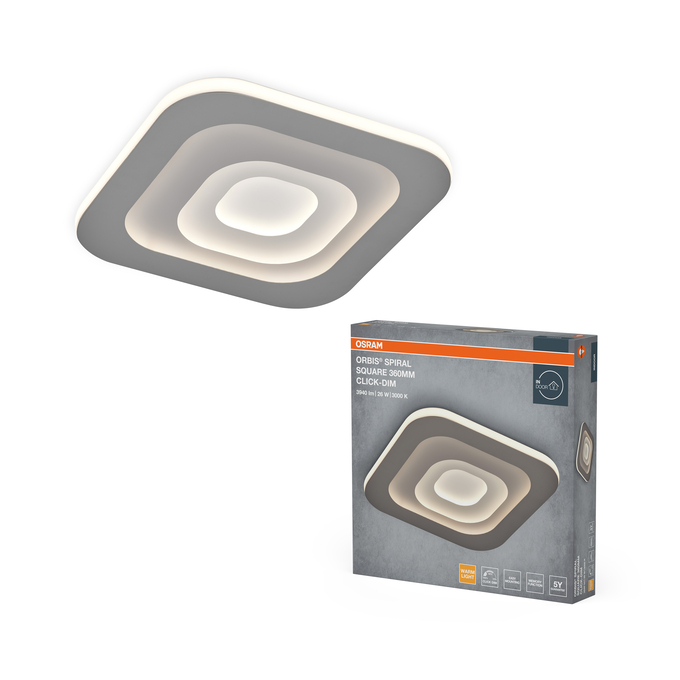

Combo Shot = Product Beauty Shot + Packaging Image
