ORBIS SPIRAL CLICK DIM
Orbis Spiral Oval 360mm 25W Click Dim 830 Grey
GTIN: 4099854613173
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Click dim function by wall switch
- Stylish and modern design
- Long lifetime thanks to LED technology
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Ceiling luminaire with advanced LED technology
- Click-DIM version: dimmable in three steps by repeated switching
- Color temperature: 3,000 K (Warm White)
- Lifetime up to 25,000 h
- Type of protection: IP20
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 25.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 114.000 mA |
| Inrush current | 2.4 A |
| Inrush current time Th50 | 191.7 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 112 |
| Max. number of luminaires per miniature circuit breaker C16 | 112 |
| Power factor λ | > 0.9 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 1000 lm |
| Total luminous flux of contained light sources | 3132 |
| Luminous efficacy | 40 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
Dimensions & Weight
| Length | 300.00 mm |
| Height | 56.00 mm |
| Width | 360.00 mm |
| Product weight | 1557.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Metal |
| Cover material | Silicone |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Dimmable | Yes |
| Type of dimming | 3 DIM |
| Mounting type | Surface |
| Mounting location | Ceiling |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Emergency lighting
| Type of emergency operation test | None |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854613173 | Folding box 1 |
76 mm x 340 mm x 400 mm | 2206.00 g | 10.34 dm³ |
| 4099854613180 | Shipping box 4 |
360 mm x 324 mm x 425 mm | 9624.00 g | 49.57 dm³ |
User instruction / safety instructions
G11240697 Orbis Spiral Oval
G11240697 Orbis Spiral Oval

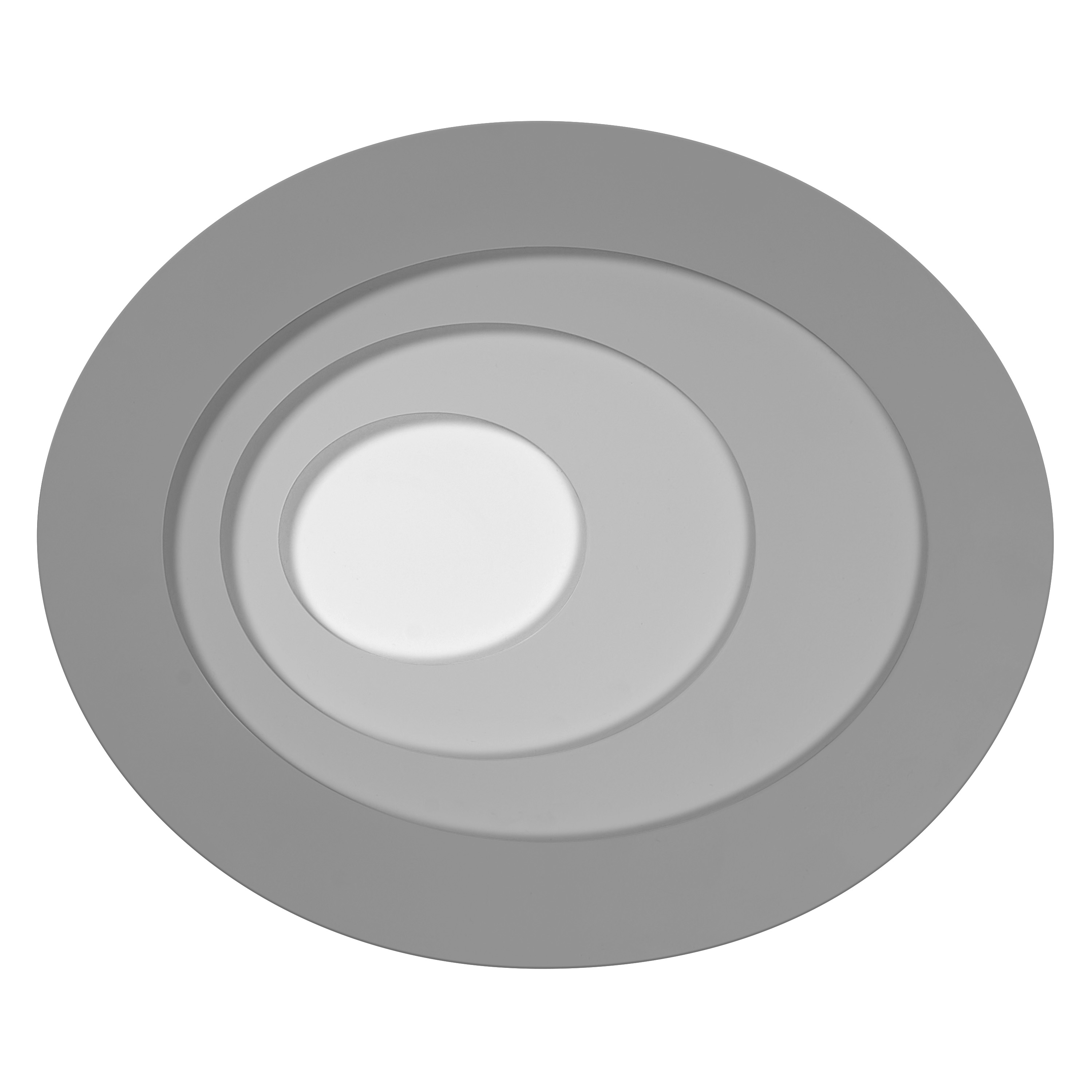

Product image: white background, upright
ORBIS SPIRAL OV 360 25W830 CLDIM GR
ORBIS SPIRAL OV 360 25W830 CLDIM GR

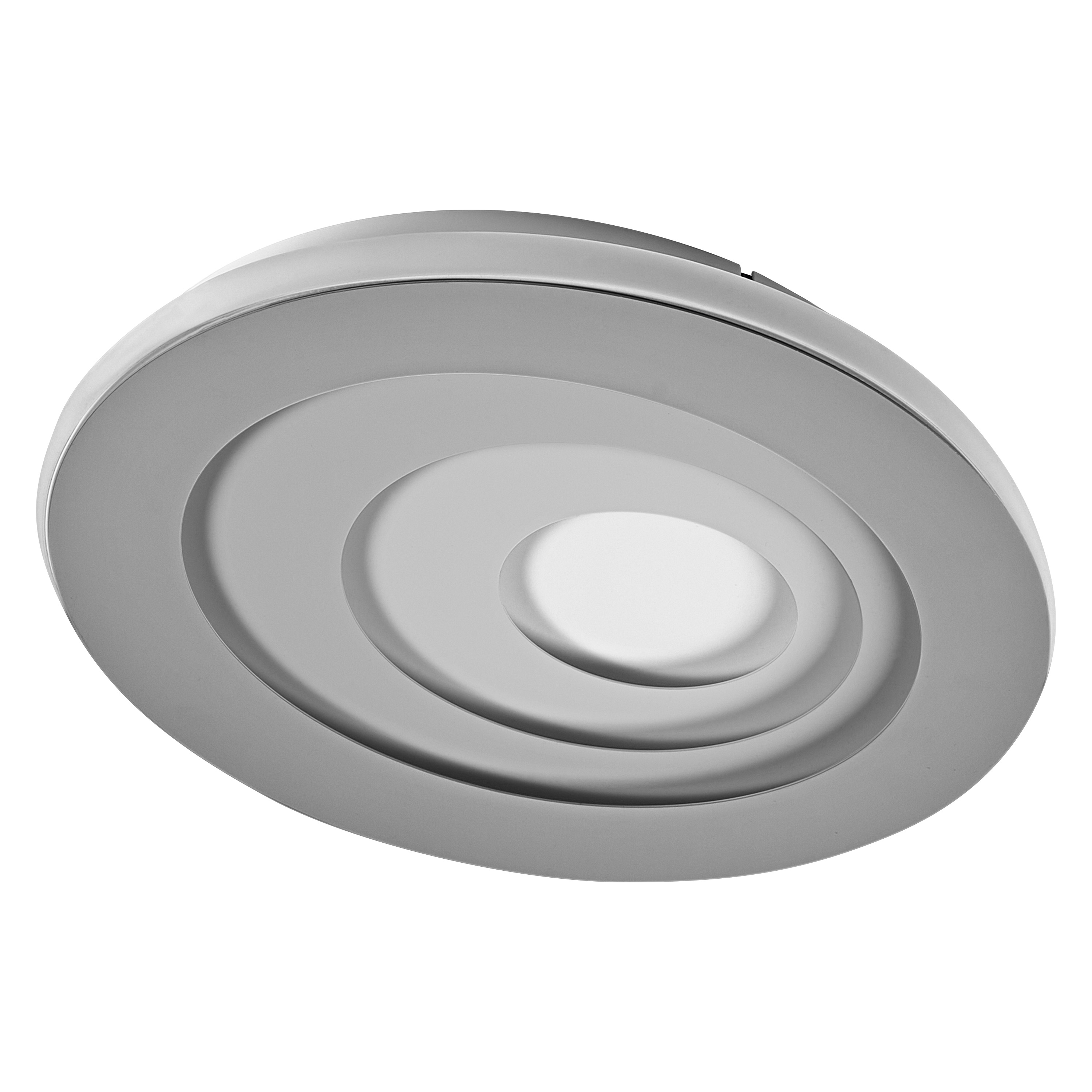

Product image: white background, upright, alternative image
ORBIS SPIRAL OV 360 25W830 CLDIM GR
ORBIS SPIRAL OV 360 25W830 CLDIM GR

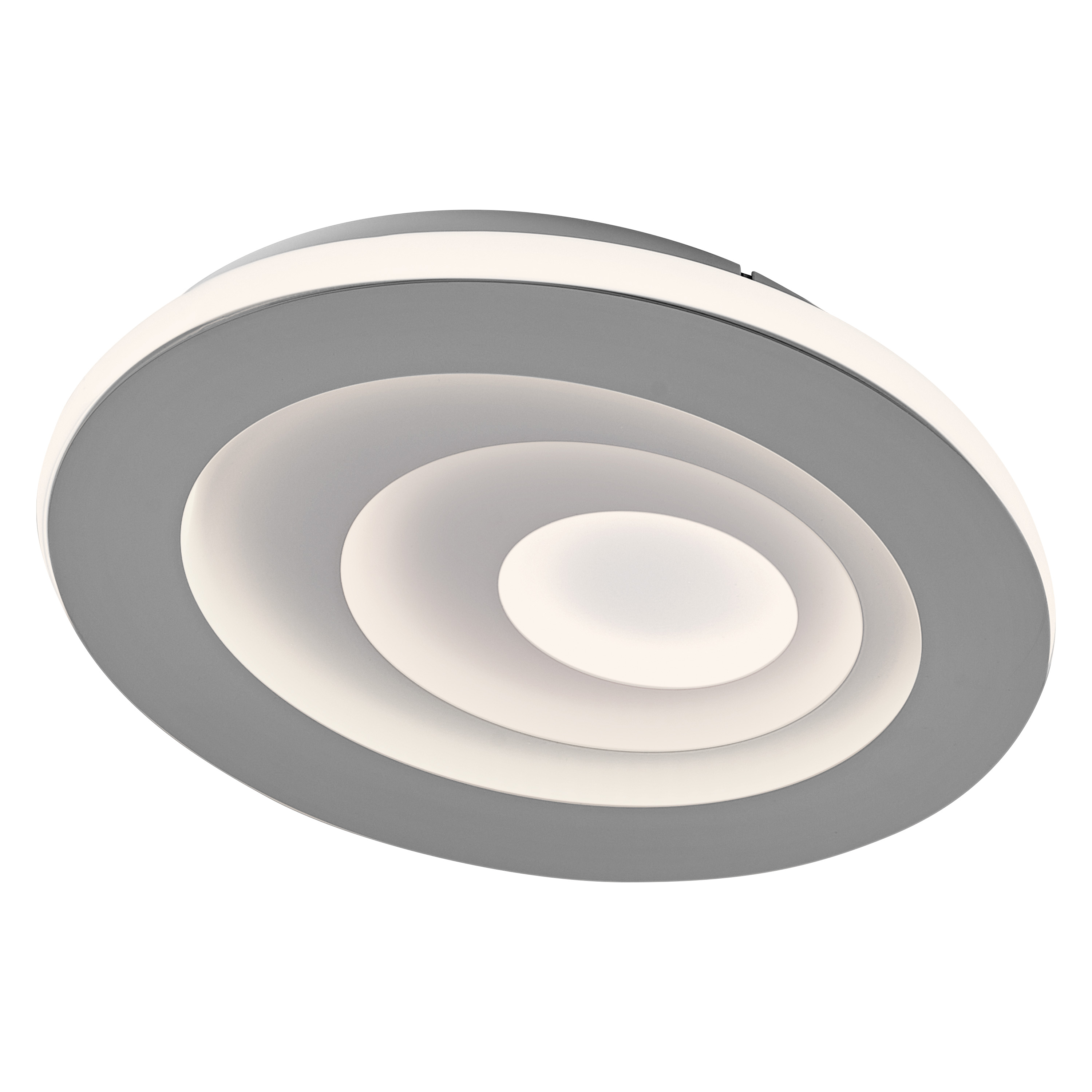

Product image: white background, upright, switched on
