Ceiling fan grill
Ceiling Fan Grill Square 55W CCT White
GTIN: 4099854397677
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Airflow suitable for 13-20 m²
- Set color temperature according to daytime and usage (dining, relaxing, social events...)
- Set light output from 0-100% for personal comfort
- Pleasant use during sleeping phase (low noise on low level speed)
- Aesthetic appearance of a ceiling luminaire
- Summer / winter mode
- 5 years guarantee
Areas of application
- Indoor
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Airflow: max 700 m³/h
- Speed levels: 1 - 6 steps
- Timer: 1 h / 2 h / 4 h
- Control unit: remote control
- Motor type: DC
- Adjustable color temperature via Tunable White: 3,000…6,500 K
- Lumen source: 4200 lm
- Dimmable
- Type of protection: IP20
Equipment / Accessories
- Mounting screws and dowels included
- Safety rope
- Requires 2xAAA batteries (not included)
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 55.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 230.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 320 |
| Max. number of luminaires per miniature circuit breaker C16 | 320 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 70 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 3100 lm |
| Total luminous flux of contained light sources | 4200 lm |
| Luminous efficacy | 86 lm/W |
| Color temperature | 3000…6500 K |
| Reference control setting of contained light source (Kelvin) | 3000 K |
| Light color (designation) | Warm White, Cool Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 175.00 ° |
UV & Air cleaning
| Air circulation | 700 |
| Suitable for room space up to | 20 m² |

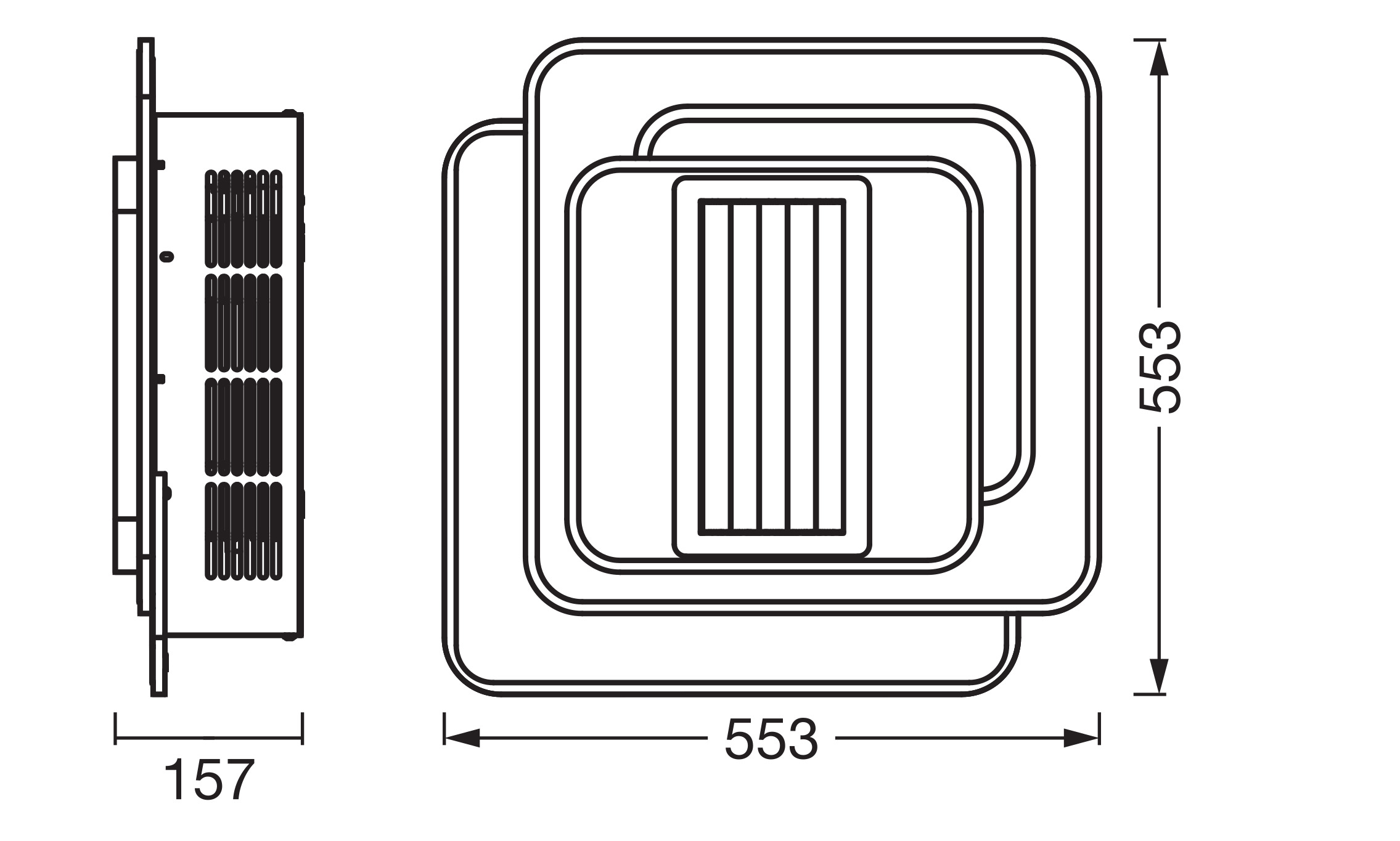

Dimensions & Weight
| Length | 553.00 mm |
| Height | 157.00 mm |
| Width | 553.00 mm |
| Product weight | 6800.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel|Plastic |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Mounting length | 533,00 mm |
| Mounting width | 553 mm |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Emergency lighting
| Type of emergency operation test | None |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from March 2025 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854397677 | Folding box 1 |
630 mm x 630 mm x 214 mm | 8528.00 g | 84.94 dm³ |
| 4099854397684 | Shipping box 1 |
648 mm x 232 mm x 648 mm | 9748.00 g | 97.42 dm³ |
User instruction / safety instructions
Ceiling Fan Grill
Ceiling Fan Grill
Declarations of conformity
CEILING FAN GRILL
CEILING FAN GRILL

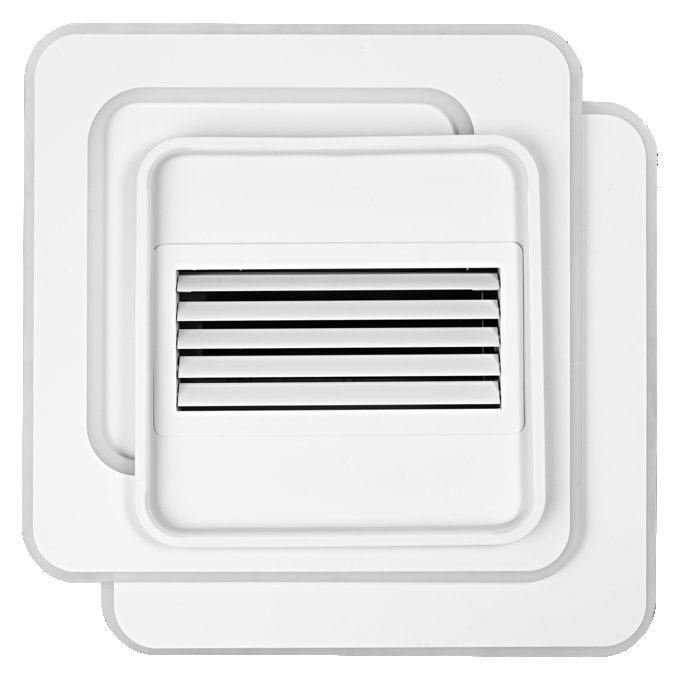

Product image: white background, upright
CEILING FAN GRILL SQUARE CCT WT
CEILING FAN GRILL SQUARE CCT WT

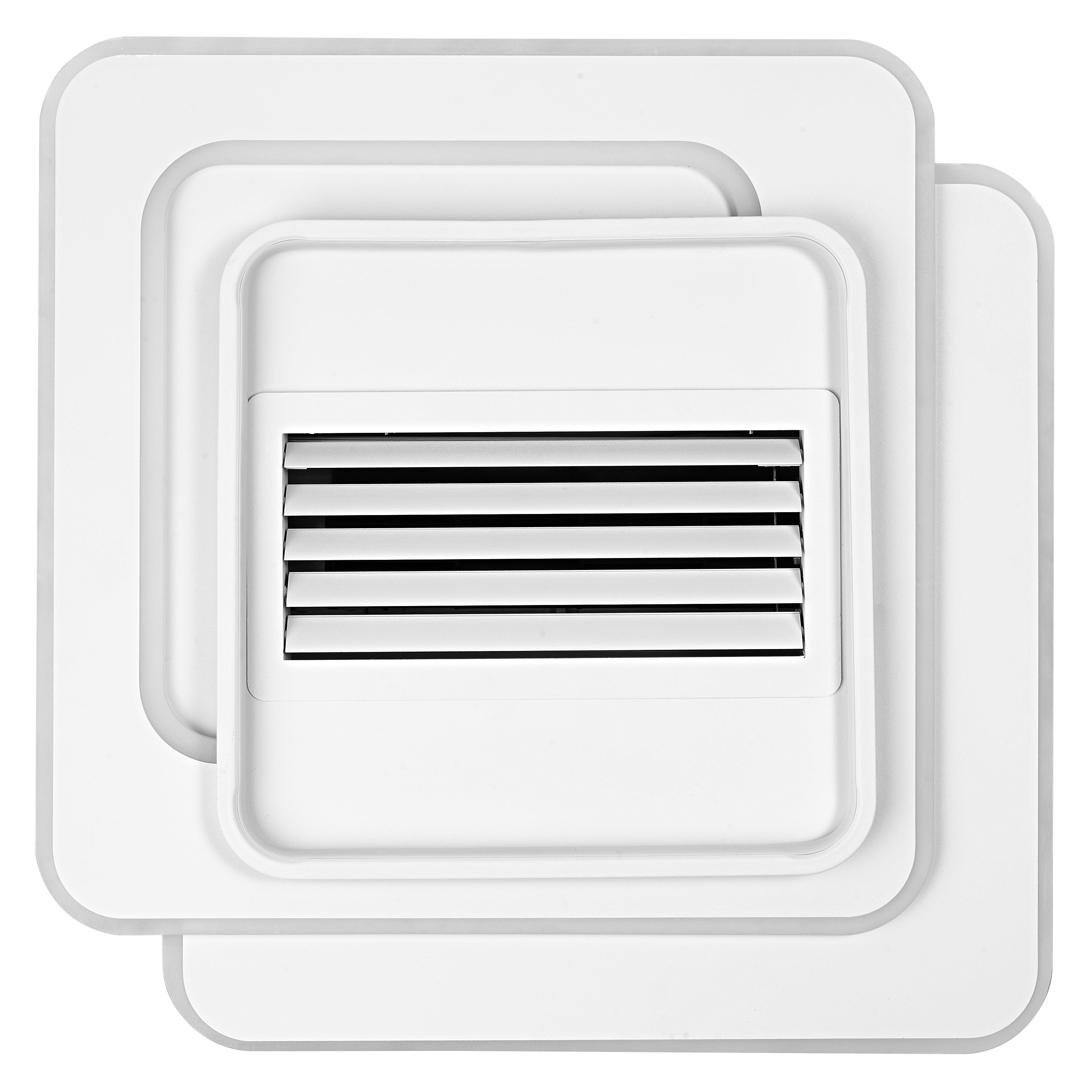

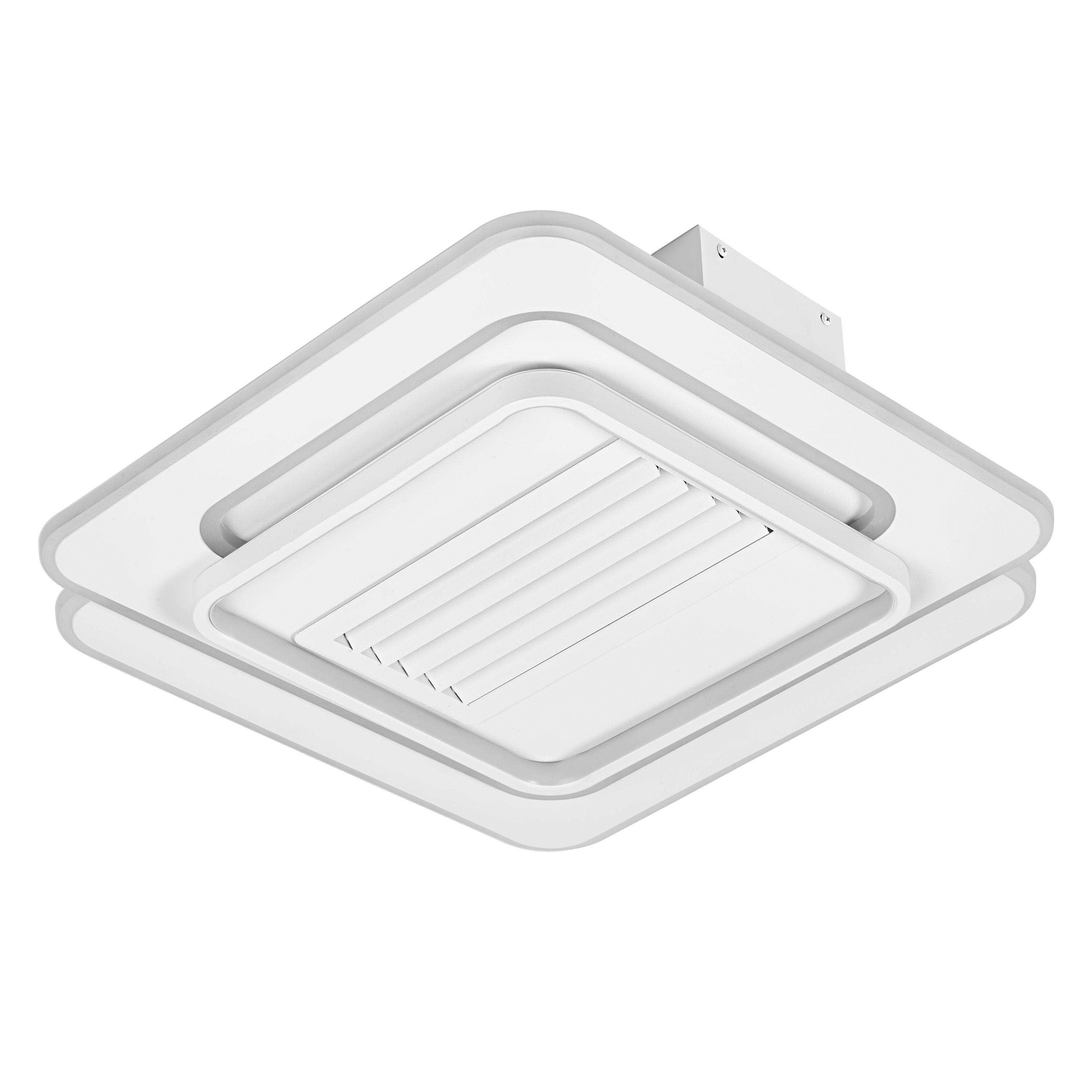

Product image: white background, upright, alternative image
CEILING FAN GRILL SQUARE CCT WT
CEILING FAN GRILL SQUARE CCT WT

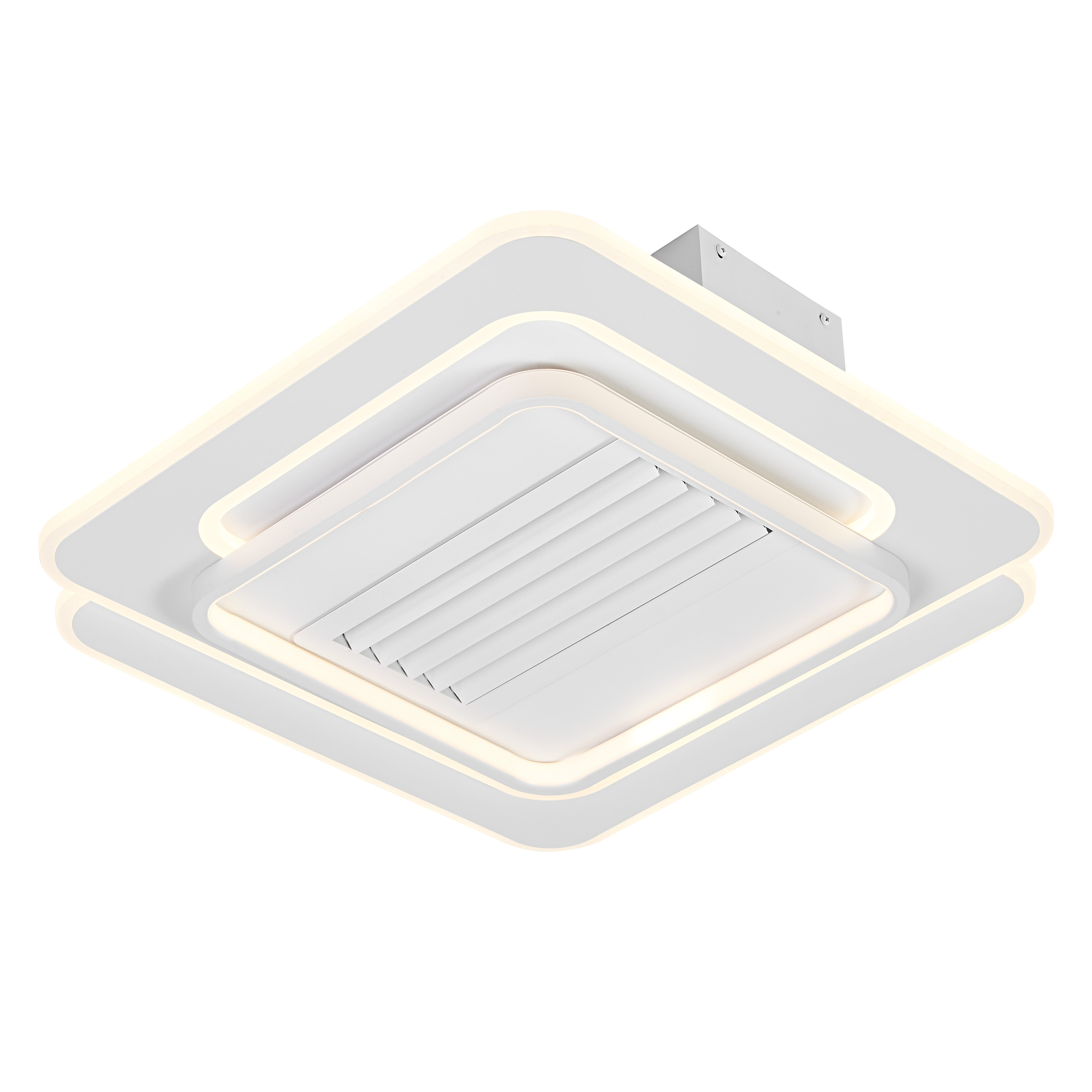

Product image: white background, upright, switched on
CEILING FAN GRILL SQUARE CCT WT
CEILING FAN GRILL SQUARE CCT WT
Product line drawing with letters
CEILING FAN GRILL SQUARE CCT WT
CEILING FAN GRILL SQUARE CCT WT
Product line drawing with numbers
CEILING FAN GRILL SQUARE CCT WT
CEILING FAN GRILL SQUARE CCT WT
Product line drawing, front, no dimensions
CEILING FAN GRILL SQUARE CCT WT
CEILING FAN GRILL SQUARE CCT WT

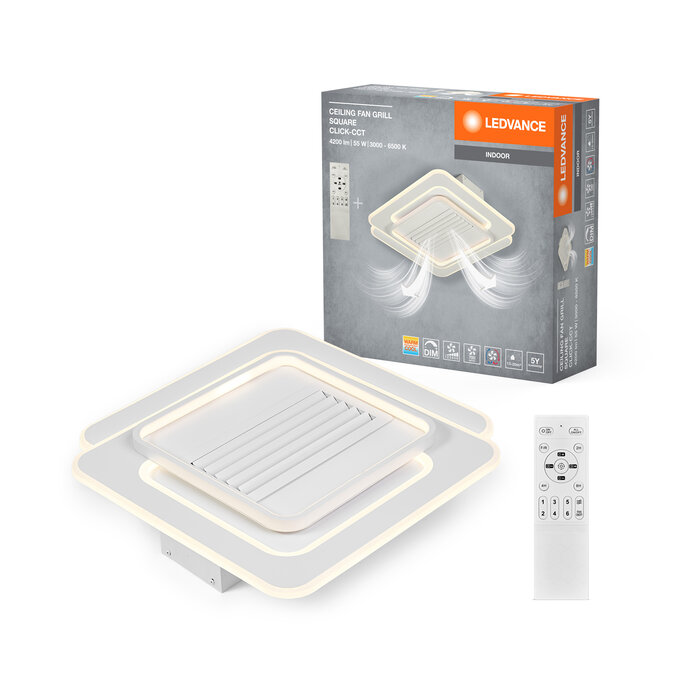

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC FAN GRILL SQ 65W CCT WT
LUM FC FAN GRILL SQ 65W CCT WT
Packaging image, frontal
LUM FC FAN GRILL SQ 65W CCT WT
LUM FC FAN GRILL SQ 65W CCT WT
Packaging image, spacial
LUM FC FAN GRILL SQ 65W CCT WT
LUM FC FAN GRILL SQ 65W CCT WT

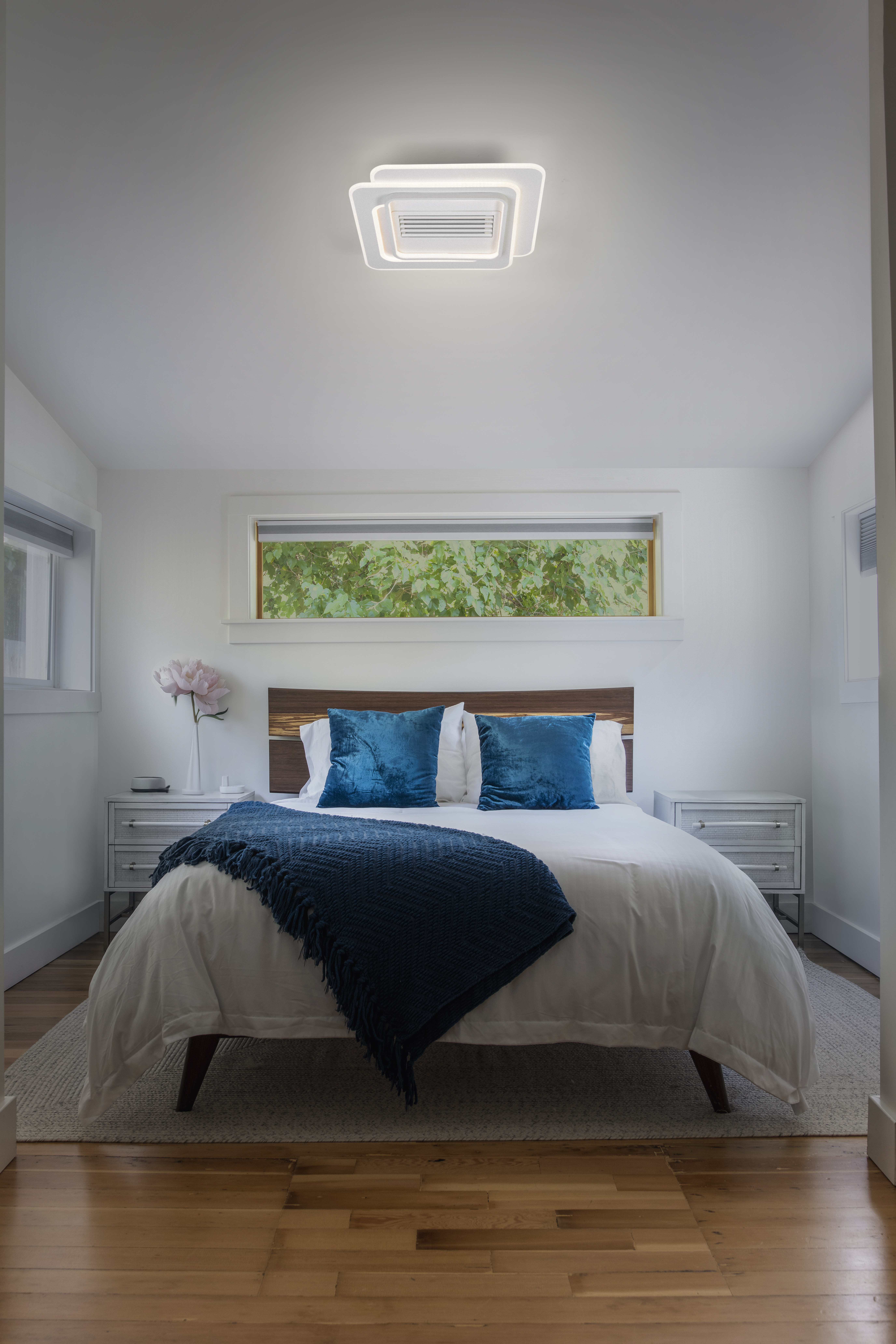

Application pictures Getty
