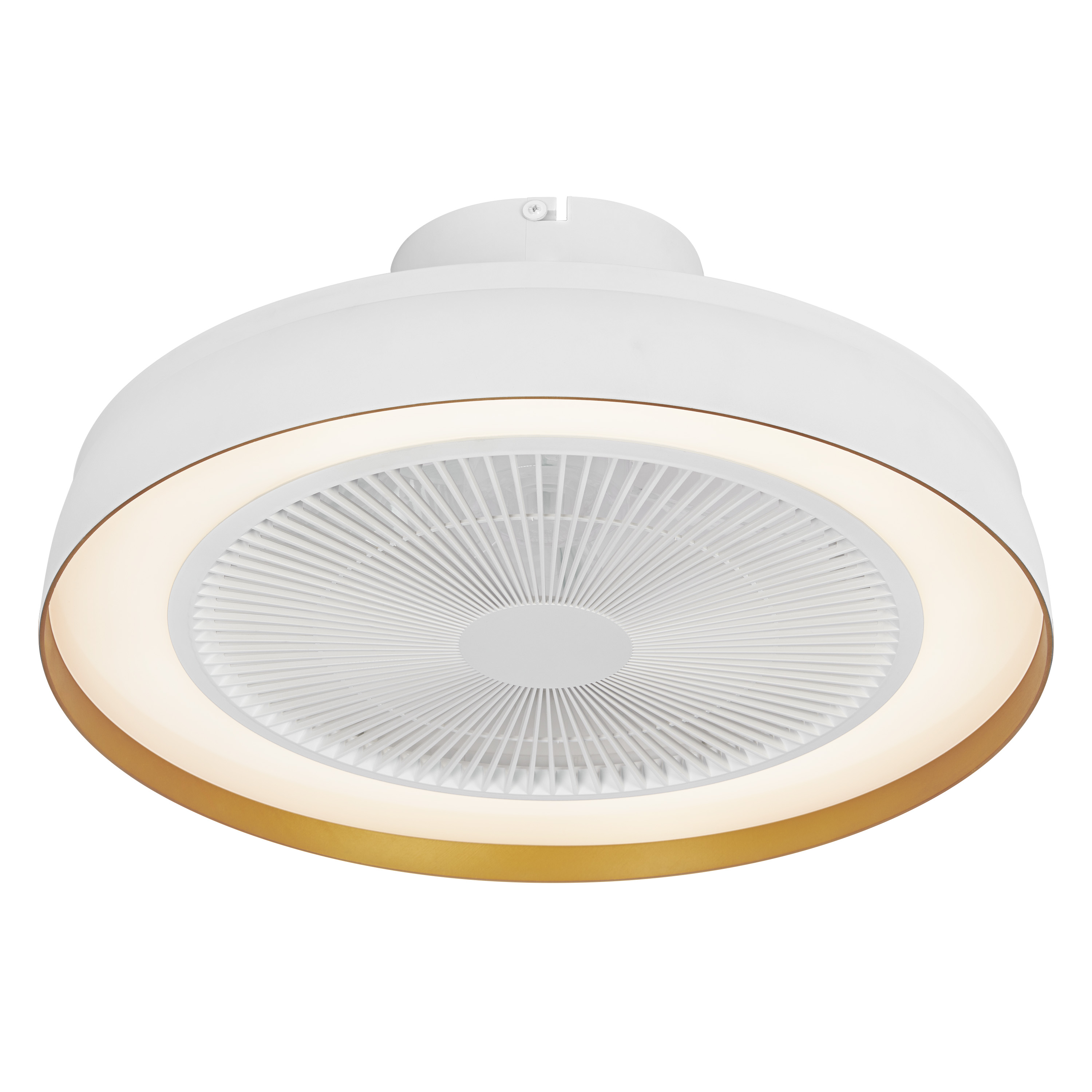

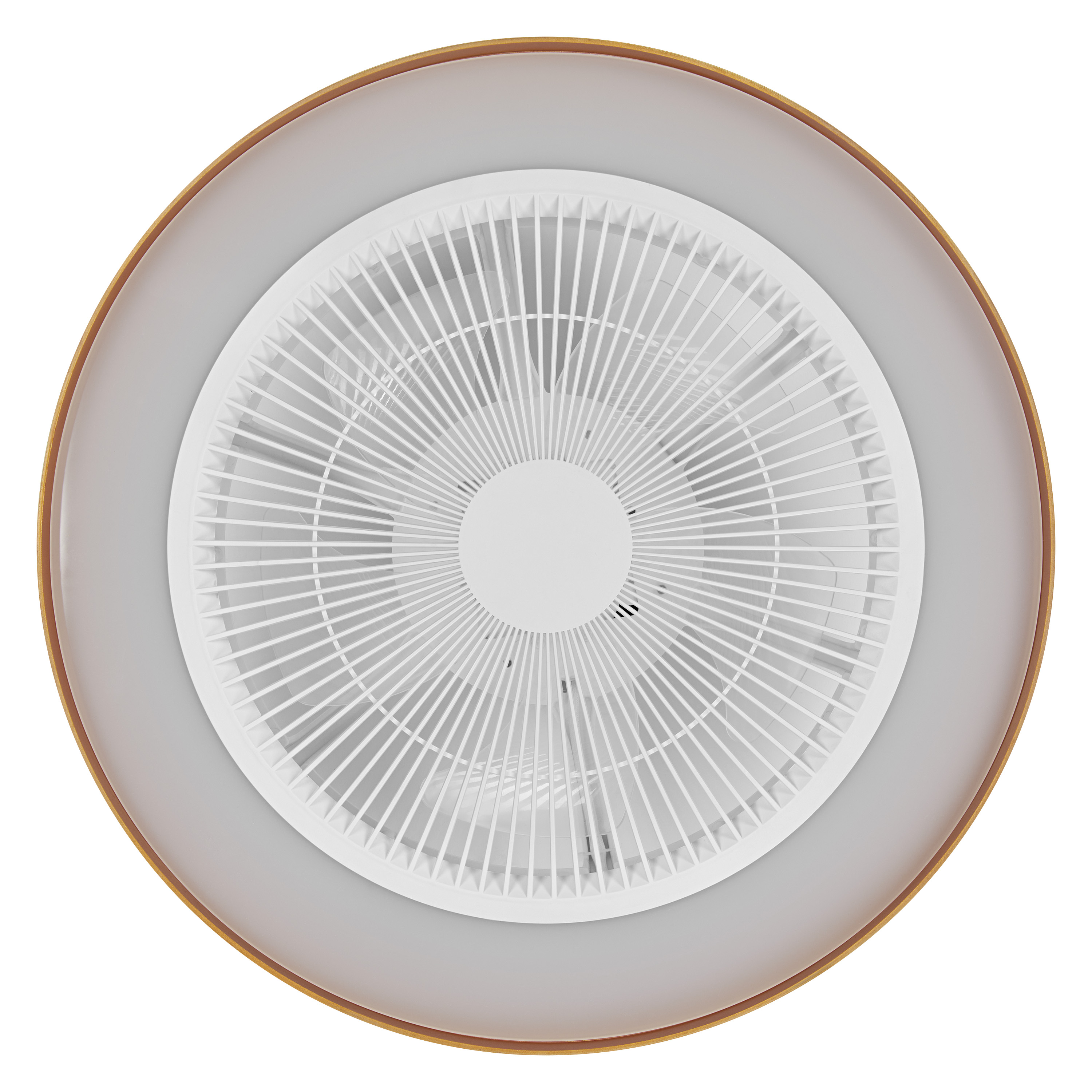

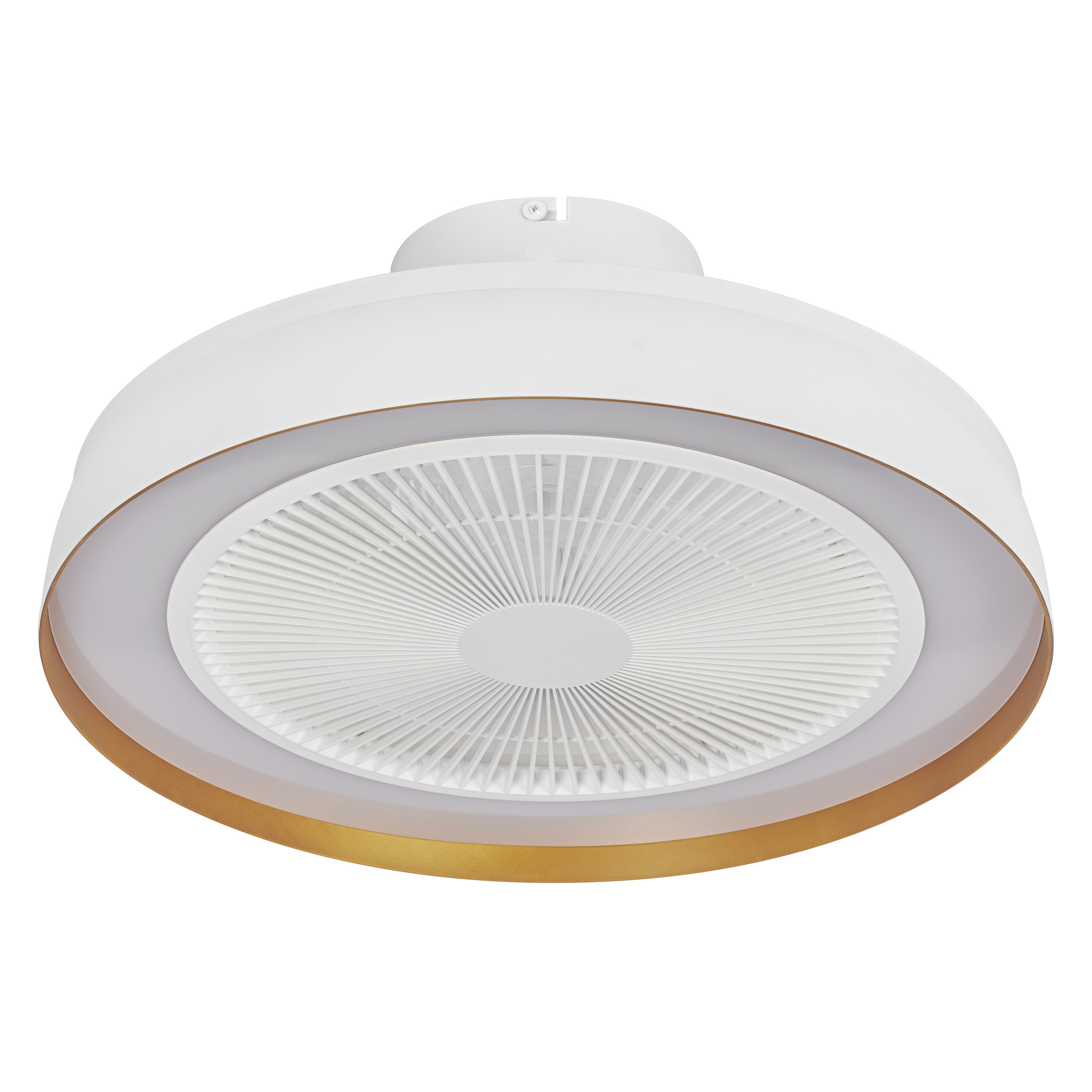

Ceiling Fan Compact 480 49W White

Coming soon

GTIN: 4099854497971 Folding box / 1 Show all packages

Contact sales

Airflow suitable for 13-20 m²
Set color temperature according to daytime and usage (dining, relaxing, social events...)
Set light output from 0-100% for personal comfort
Pleasant use during sleeping phase (low noise on low level speed)
Aesthetic appearance of a ceiling luminaire
Summer / winter mode

Luminaire must be disconnected from mains during installation, maintenance and cover removal
Check wall-ceiling for suitability. If uncertain, seek professional advice.
All electrical connections must be made by a qualified person.
Caution, risk of electric shock.

Nominal wattage	49.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	230.000 mA
Max. number of luminaires per miniature circuit breaker B16	36
Max. number of luminaires per miniature circuit breaker C10	22
Max. number of luminaires per miniature circuit breaker C16	36
Power factor λ	≥ 0.90
Total harmonic distortion	< 20 %
Protection class	II
Operating mode	Mains voltage

Luminous flux	1100 lm
Total luminous flux of contained light sources	3000 lm
Luminous efficacy	40 lm/W
Color temperature	2700…6500 K
Light color (designation)	Warm White, Cool Daylight
Color rendering index Ra	> 80
Standard deviation of color matching	< 6 sdcm
Flickering metric (Pst LM)	≤1.0
Stroboscope effect metric (SVM)	≤0.4
Photobiological safety group acc. to EN62778	RG1
Beam angle	120 °

Suitable for room space up to

20 m²

Product color	White
Housing color	White
Body material	Polyprophylene (PP)
Cover material	Polypropylene (PP)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Lifespan L70/B50 at 25 °C	30000 h ¹⁾
Number of switching cycles	15000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Type of emergency operation test

None

Standards	CE, UKCA
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
Replaceable light source (EPREL)	Not replaceable

Product remark

Available from June 2025

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
