PRODUCT DETAILS

Product benefits
  • Easy and quick installation
Areas of application
  • Living areas
  • For indoor use only
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Flexible, self-adhesive RGB strip
  • Dimmable
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
  • Remote control and battery included
Safety advice
  • Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 19.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 140.000 mA
Inrush current 10 A
Max. number of luminaires per miniature circuit breaker C10 -
Protection class II
Operating mode Electronic control gear (ECG)
Photometrical data
Luminous flux 285 lm
Luminous efficacy 95 lm/W
Light color (designation) Red, Green, Blue
Color rendering index Ra > 80
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 120 °
Dimensions & Weight
Length 5000.00 mm
Height 2.80 mm
Width 10.00 mm
Product weight 276.00 g
Materials & Colors
Product color White
Housing color White
Body material Silicone
Cover material Silicone
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Plug type G (UK)
Type of protection IP54
Dimmable Yes
Type of dimming PWM
Mounting type Surface
Mounting location All surfaces
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 15000 h 1)
Number of switching cycles 7500
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
BATTERY
Type of Battery Li metal button cell battery
Battery size [GMS] CR2025
Number of included batteries 1
Nominal voltage of battery 3 V
Nominal capacity of battery 150 mAh
Emergency lighting
Luminous flux in maintained operation mode -
Certificates & Standards
Standards CE, EAC, UKCA
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075668485 Folding box
1
201 mm x 231 mm x 54 mm 397.00 g 2.51 dm³
4058075686533 Shipping box
16
465 mm x 430 mm x 258 mm 6781.00 g 51.59 dm³
User instruction / safety instructions
FLEX 5M UK RGB
Declarations of conformity
FLEX 5M RGB REM UK

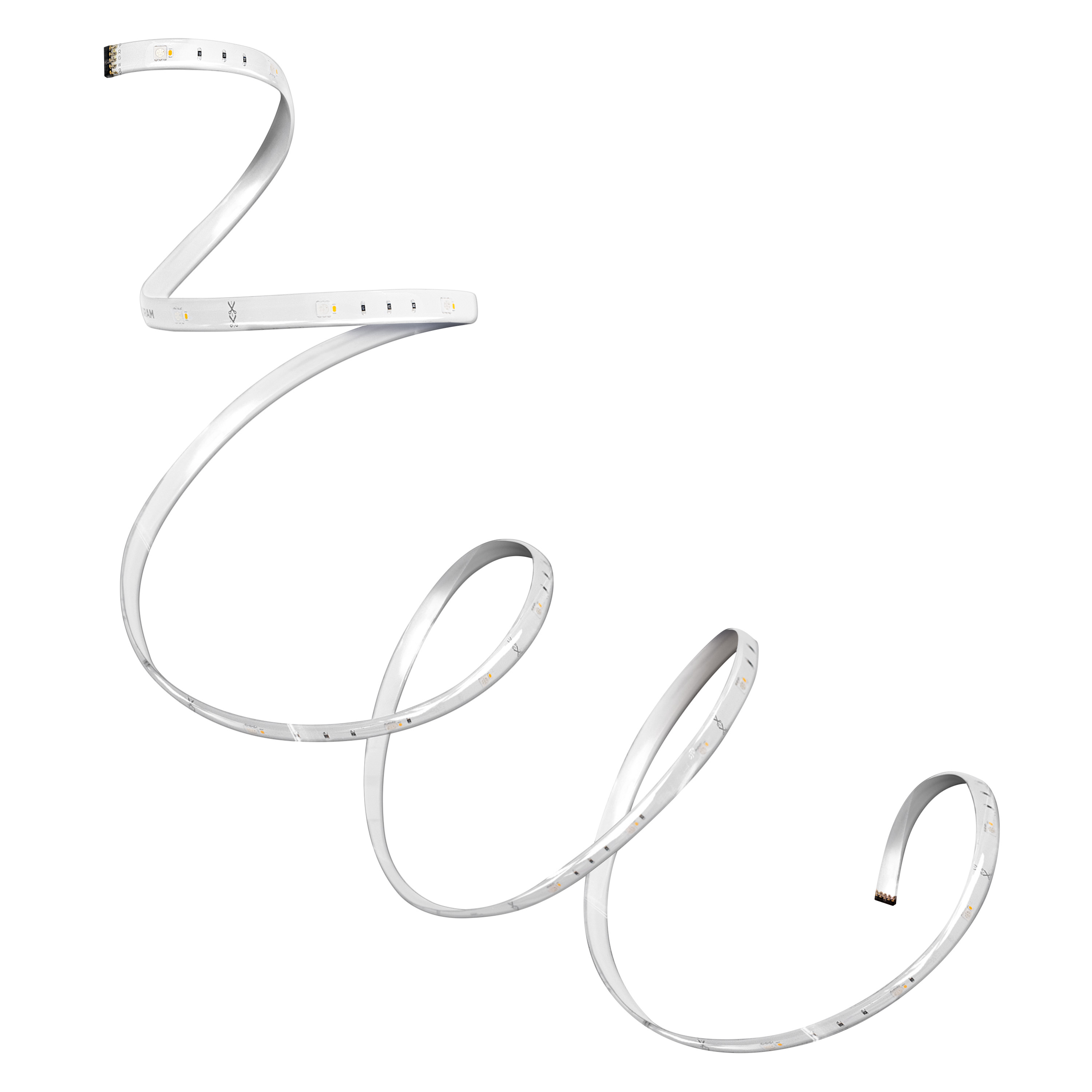

Product image: white background, upright
FLEX 5M RGB REM UK                 LEDV

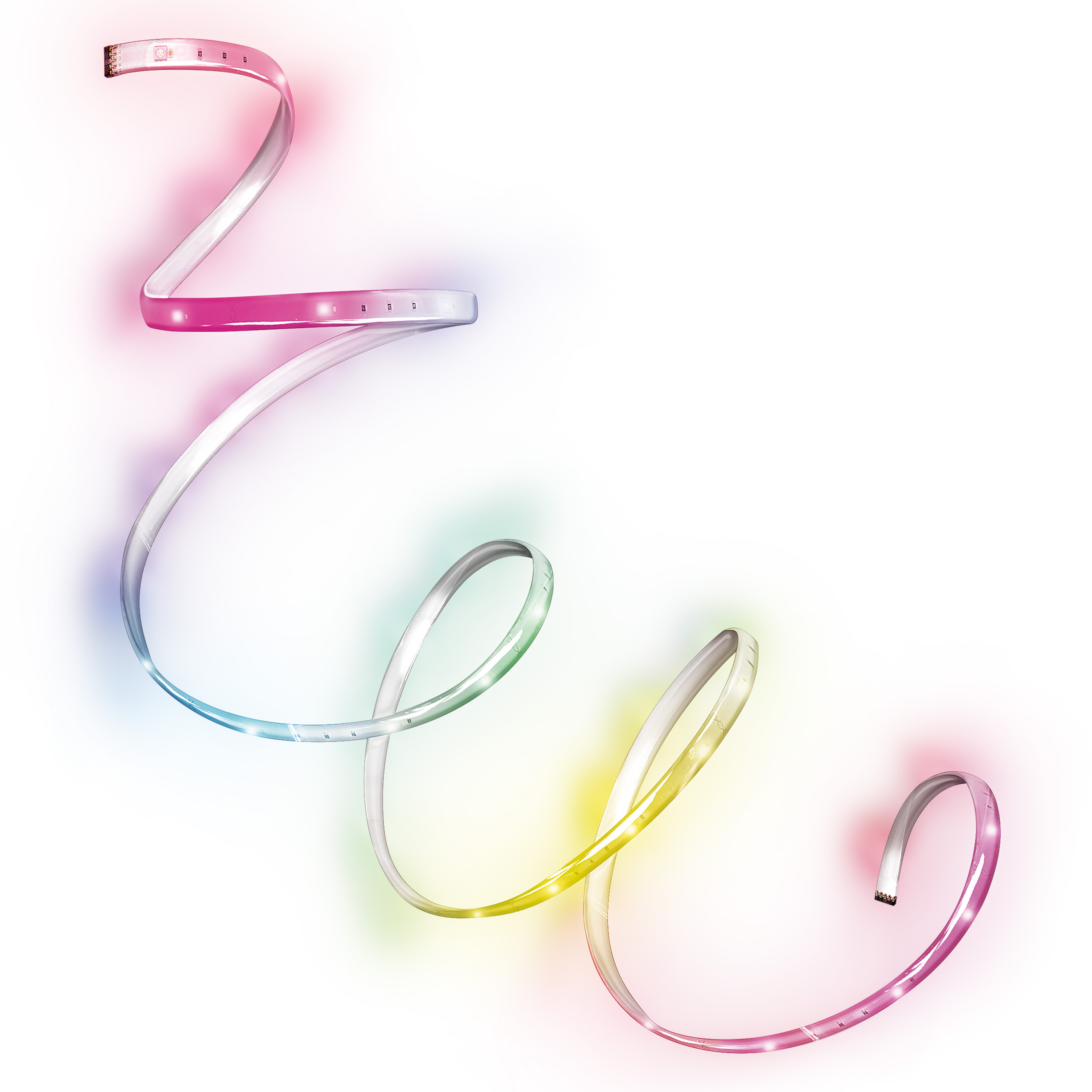

Product image: white background, upright, switched on
FLEX 5M RGB REM UK                 LEDV
Product infographic (application image with text and graphic)
Stripes E-Com Grafik 1200x1200px 2023 EN
Product line drawing with letters
FLEX 5M RGB REM UK                 LEDV
Product line drawing with numbers
FLEX 5M RGB REM UK                 LEDV
Product line drawing, front, no dimensions
FLEX 5M RGB REM UK                 LEDV

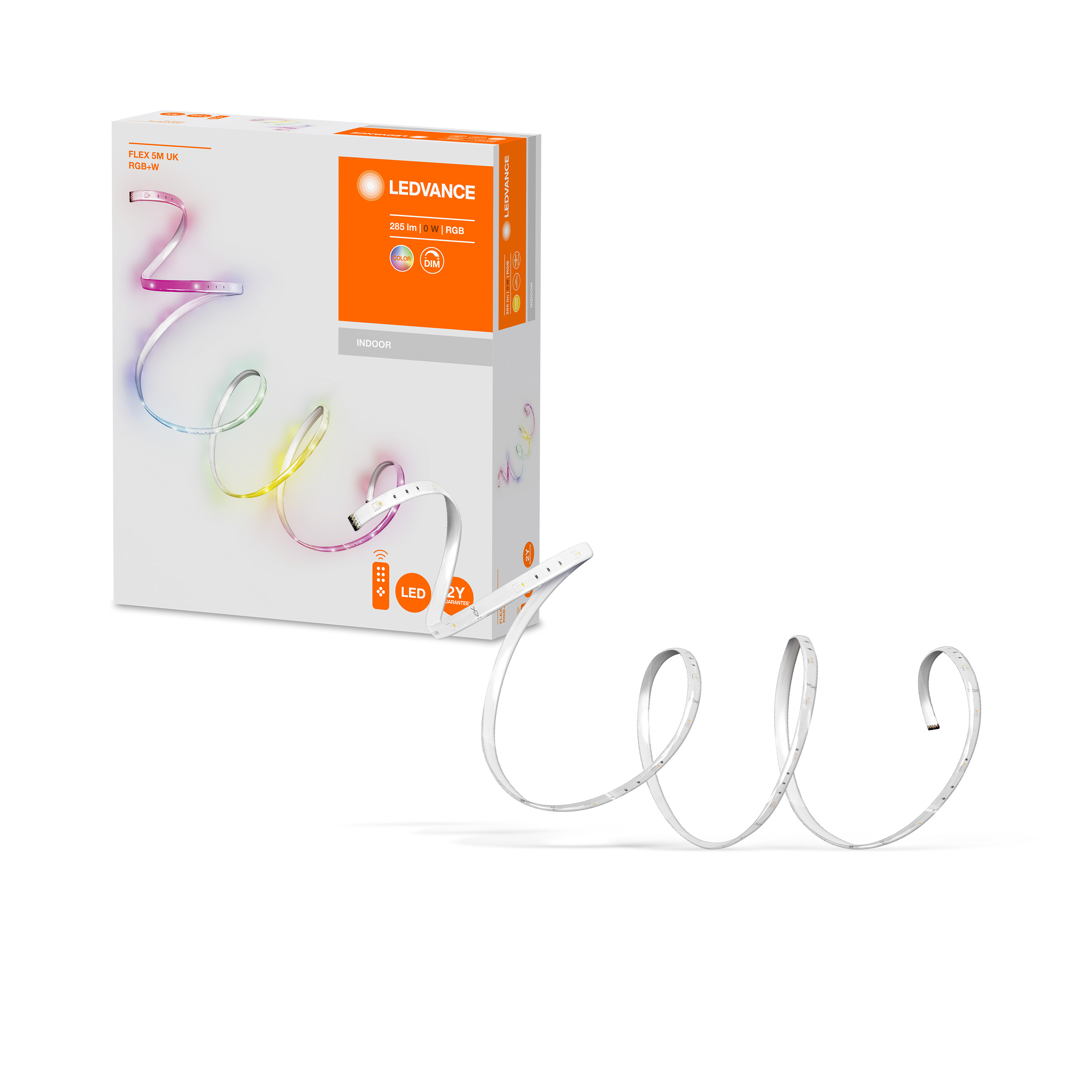

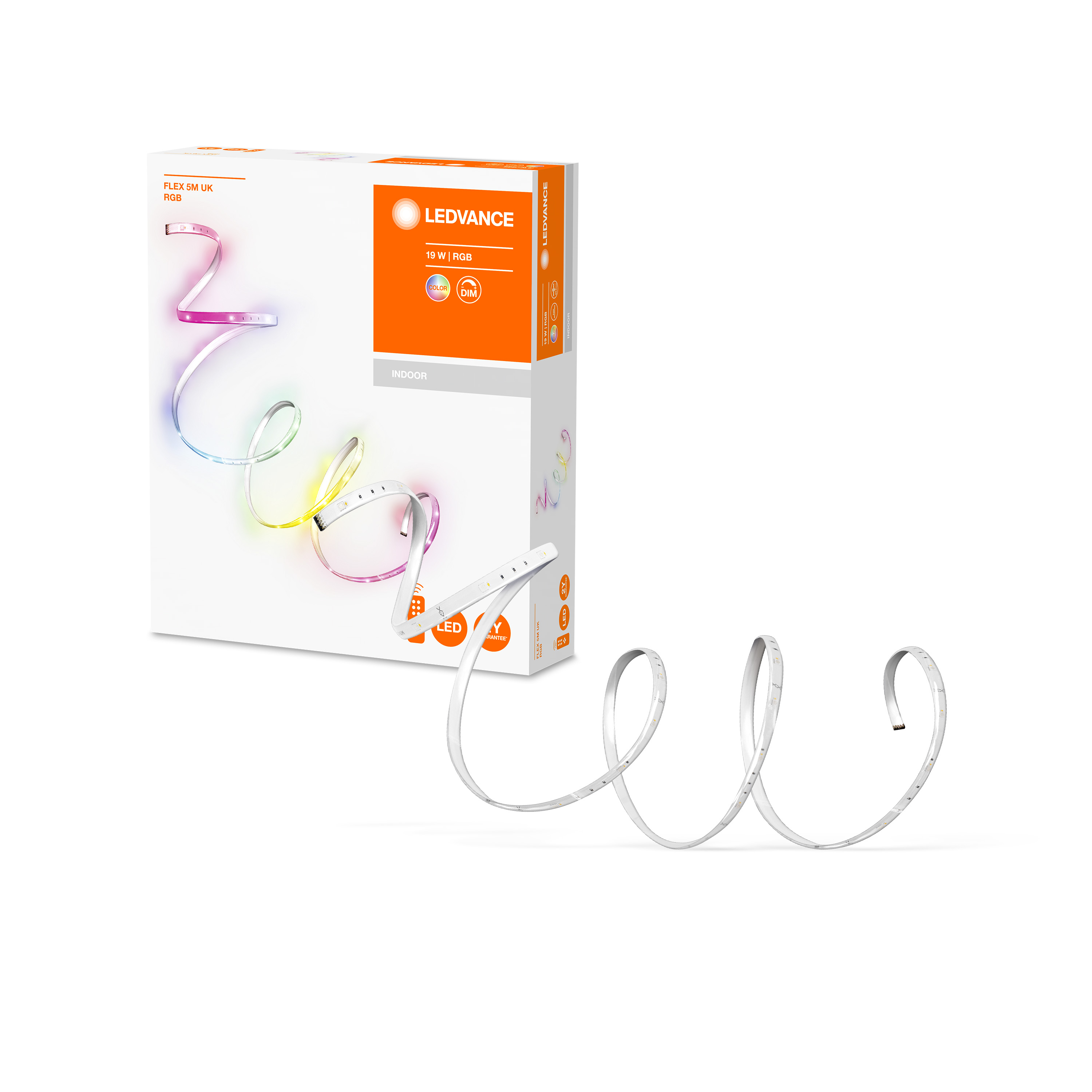

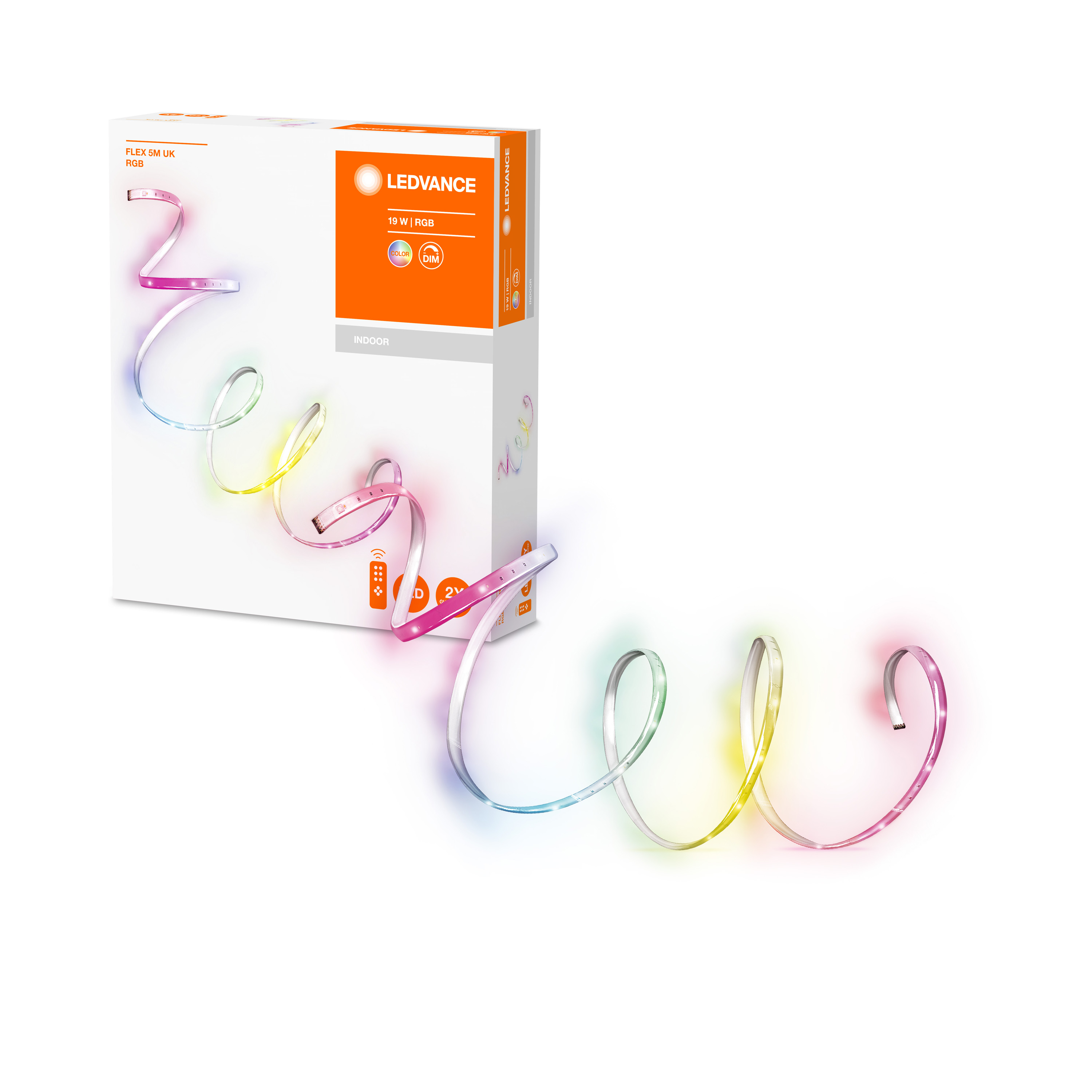

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC FLEX 5M RGB REM UK MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC FLEX 5M RGB REM UK MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC FLEX 5M RGB REM UK MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC FLEX 5M RGB REM UK MiPRC
Packaging image, frontal
LUM FC FLEX 5M RGB REM UK MiPRC
Packaging image, spacial
LUM FC FLEX 5M RGB REM UK MiPRC

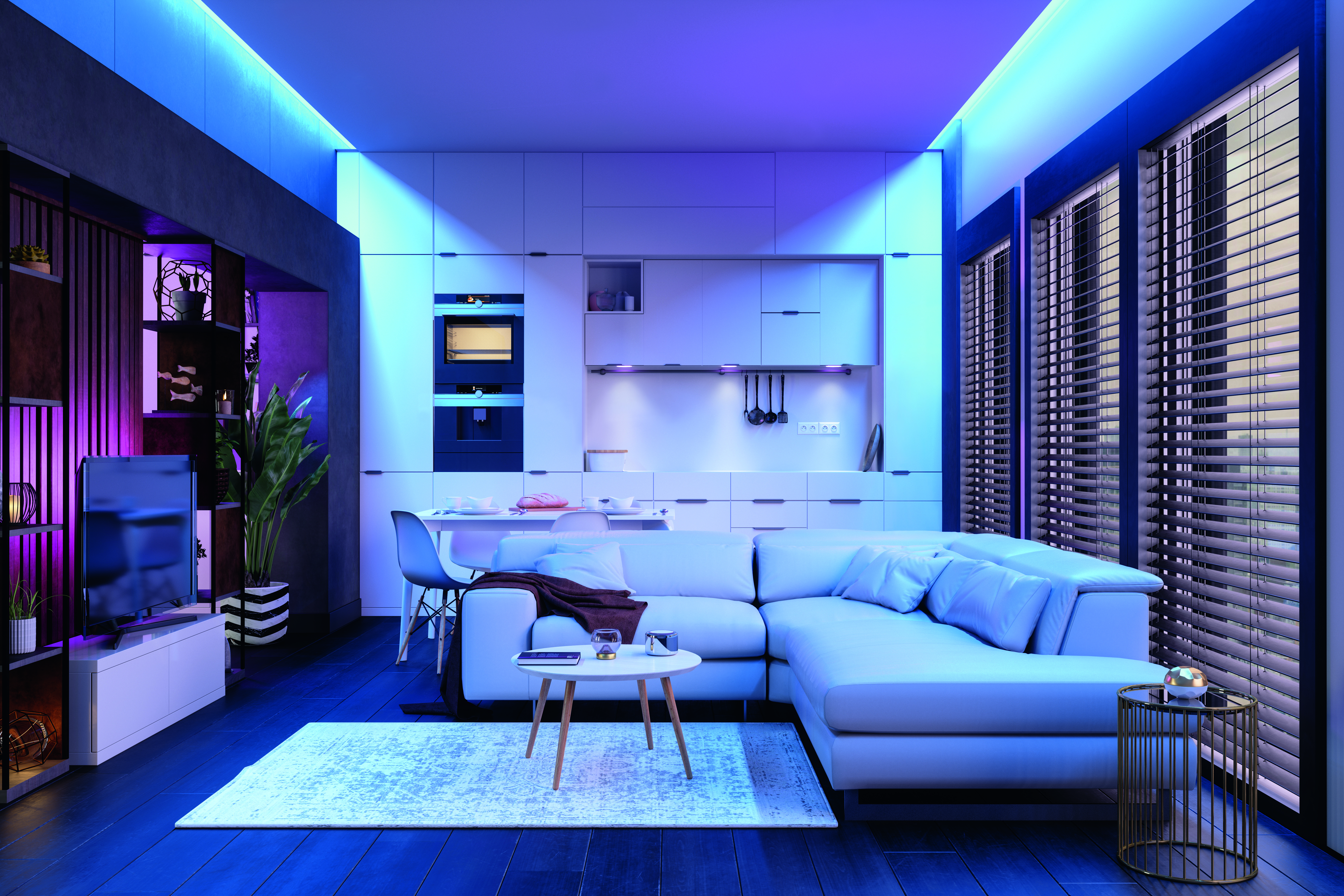

Application pictures Getty
SMART INDOOR WIFI AND NON-SMART FLEX
