LED TUBE T5 HF SHORT
LED TUBE T5 HF L8 SHORT 288 mm 4W 840
GTIN: 4058075823716
Sleeve / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- No bending thanks to glass technology
- Quick, simple and safe replacement without rewiring
- Also suitable for operation at low temperatures
- Please follow all safety advices
Areas of application
- General illumination within ambient temperatures from -20…+45 °C
- Public buildings
- Kitchens
- Under-cabinet lighting
Product features
- Retrofit replacement of existing T5 lamps on HF ballast installations
- Lamp tube made of glass with splinter protection
- High color consistency: ≤ 5 sdcm
- Lifetime up to 30,000 h
- Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
- Type of protection: IP20
- Compatible with many common electronic control gears (see also compatibility list)
Legal advice
- When used to replace a T5 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- Not suitable for emergency lighting.
References / Links
- For current information see www.ledvance.com/osram-led-tube
Electrical data
| Nominal wattage | 4 W |
| Construction wattage | 4.00 W |
| Nominal voltage | 17…40 V |
| Operating mode | Electronic control gear (ECG) 1) |
| Nominal current | 223 mA |
| Type of current | AC |
| Inrush current | 21 A |
| Operating frequency | 25…75 kHz |
| Mains frequency | 25…75 kHz |
| Total harmonic distortion | 130 % |
1) Check ECG compatibility at ledvance.com/compatibility
Photometrical data
| Luminous flux | 400 lm |
| Nominal useful luminous flux 90° | 440 lm |
| Luminous efficacy | 110 lm/W |
| Light color (designation) | Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | 80 |
| Light color | 840 |
| Rated LLMF at 6,000 h | 0.90 |
| Flickering metric (Pst LM) | 1 |
| Stroboscope effect metric (SVM) | 0.4 |
Dimensions & Weight
| Overall length | 302.00 mm |
| Length with base excl. base pins/connection | 288.00 mm |
| Diameter | 18.50 mm |
| Tube diameter | 16 mm |
| Product weight | 42.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C 1) |
| Maximum temperature at tc test point | 60 °C |
| Performance temp. acc. to IEC 62717 | 40 °C 2) |
1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
2) Tp rated. Tp point coincides with Tc point - marked on device
2) Tp rated. Tp point coincides with Tc point - marked on device
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h |
Additional product data
| Base (standard designation) | G5 |
| Mercury-free | Yes |
| Design / version | Frosted |
Certificates & Standards
| Type of protection | IP20 |
| Standards | CE, UKCA, EAC |
| Photobiological safety group acc. to EN62778 | RG0 |
Country-specific categorizations
| Order reference | LEDTUBE T5HF L8 |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | NMLS |
| Light source cap-type (or other electric interface) | G5 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Standby power | 0 W |
| Networked standby power for CLS | 0 W |
| Claim of equivalent power | No |
| Length | 302.00 mm |
| Height | 18.50 mm |
| Width | 18.50 mm |
| Chromaticity coordinate x | 0,382 |
| Chromaticity coordinate y | 0,38 |
| R9 Colour rendering index | 80 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.9 |
| Displacement factor | 0,89 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 1392489,1407630,2199974 |
| Model number | AC46402,AC47862,AC70920 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075823716 | Sleeve 1 |
304 mm x 22 mm x 22 mm | 51.00 g | 0.15 dm³ |
| 4099854077555 | Folding box 10 |
113 mm x 47 mm x 307 mm | 555.00 g | 1.63 dm³ |
| 4058075823723 | Shipping box 10 |
313 mm x 120 mm x 59 mm | 608.00 g | 2.22 dm³ |
User instruction / safety instructions
LED TUBE T5 HF SHORT
LED TUBE T5 HF SHORT
User instruction / safety instructions
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
LED TUBE T5 HF SHORT
LED TUBE T5 HF SHORT
Declarations of conformity
LEDTUBE T5HF L8
LEDTUBE T5HF L8
Product datasheet -> old version of product
LEDTUBET5HFL8SHORT288m m4W840en
LEDTUBET5HFL8SHORT288m m4W840en

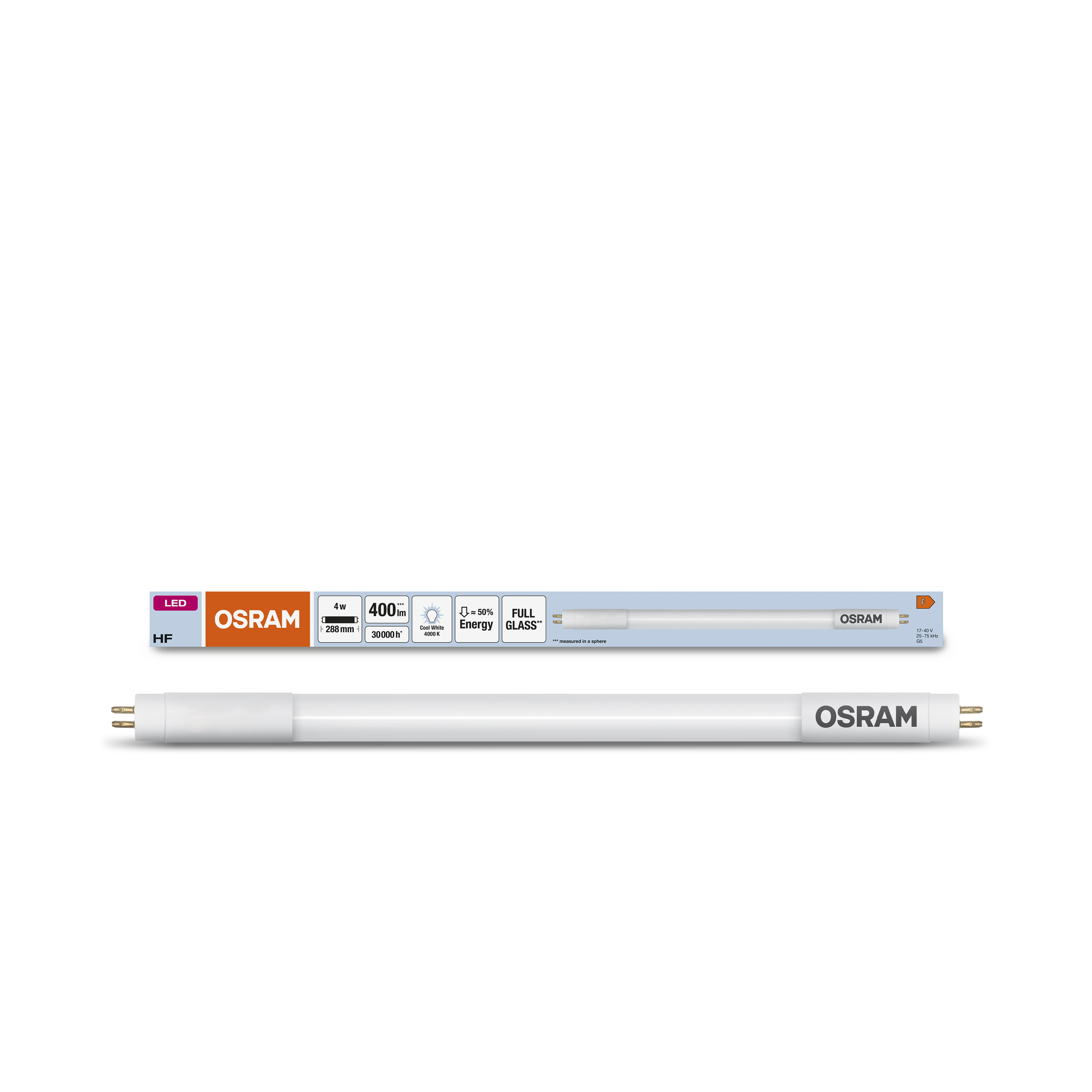

Product image: white background, diagonal with OSRAM logo
T5 OSRAM SubstiTube
T5 OSRAM SubstiTube
Product image: white background, diagonal
LED TUBE T5 AC HF
LED TUBE T5 AC HF
Product image: white background, horizontal, OSRAM logo
LED TUBE T5 Short OSRAM
LED TUBE T5 Short OSRAM
Product image: white background, horizontal, OSRAM logo
T5 OSRAM SubstiTube horizontal
T5 OSRAM SubstiTube horizontal
Product image: white background, horizontal
LED TUBE T5 SHORT
LED TUBE T5 SHORT
Product image: white background, upright, OSRAM logo
LED TUBE T5 Short OSRAM
LED TUBE T5 Short OSRAM
Product image: white background, upright
LED TUBE T5 SHORT
LED TUBE T5 SHORT
Product infographic (application image with text and graphic)
LED TUBE E-Com Grafik 1200x1200px 2023 EN
LED TUBE E-Com Grafik 1200x1200px 2023 EN
Product line drawing with letters
LED TUBE T5 AC HF
LED TUBE T5 AC HF
Product line drawing with numbers
LED TUBE T5 Short 288
LED TUBE T5 Short 288
Product line drawing - technical
LEDTUBE T5 HF_AC
LEDTUBE T5 HF_AC
Combo Shot = Product Beauty Shot + Packaging Image
LEDTUBE T5 HF L8 Short 288 4W 840 G5 MiCh
LEDTUBE T5 HF L8 Short 288 4W 840 G5 MiCh

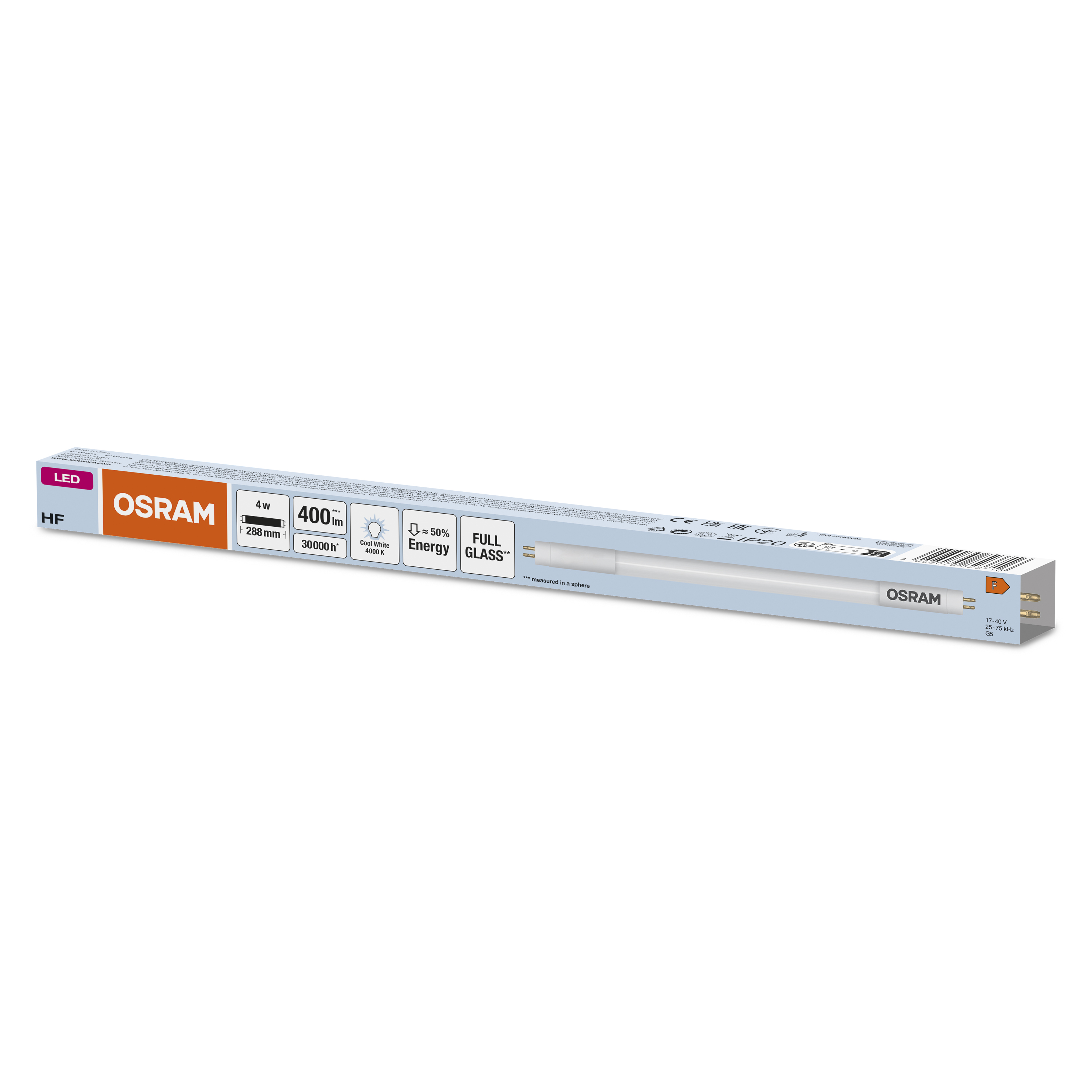

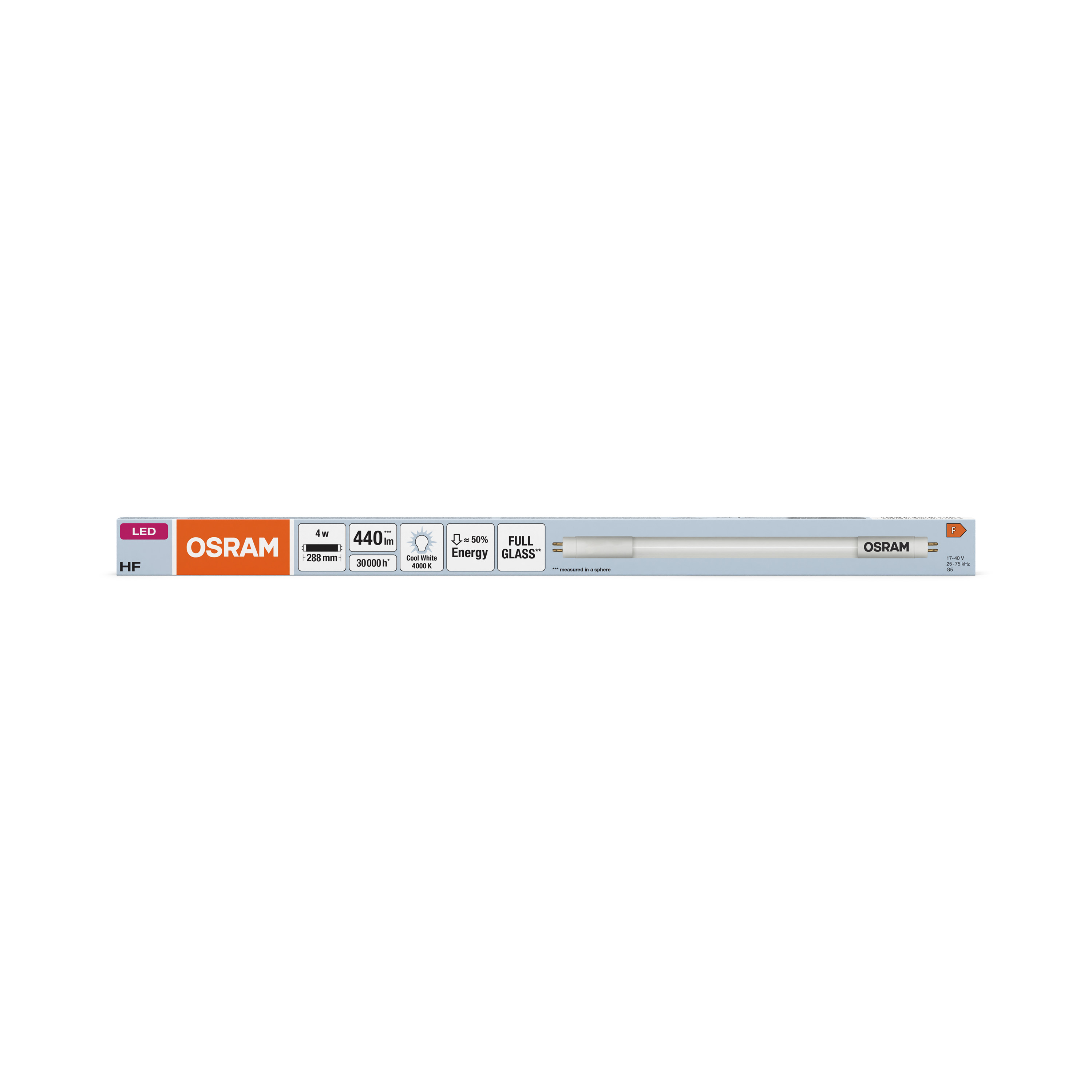

Packaging image, frontal
LEDTUBE T5 HF L8 Short 288 4W 840 G5 MiCh
LEDTUBE T5 HF L8 Short 288 4W 840 G5 MiCh

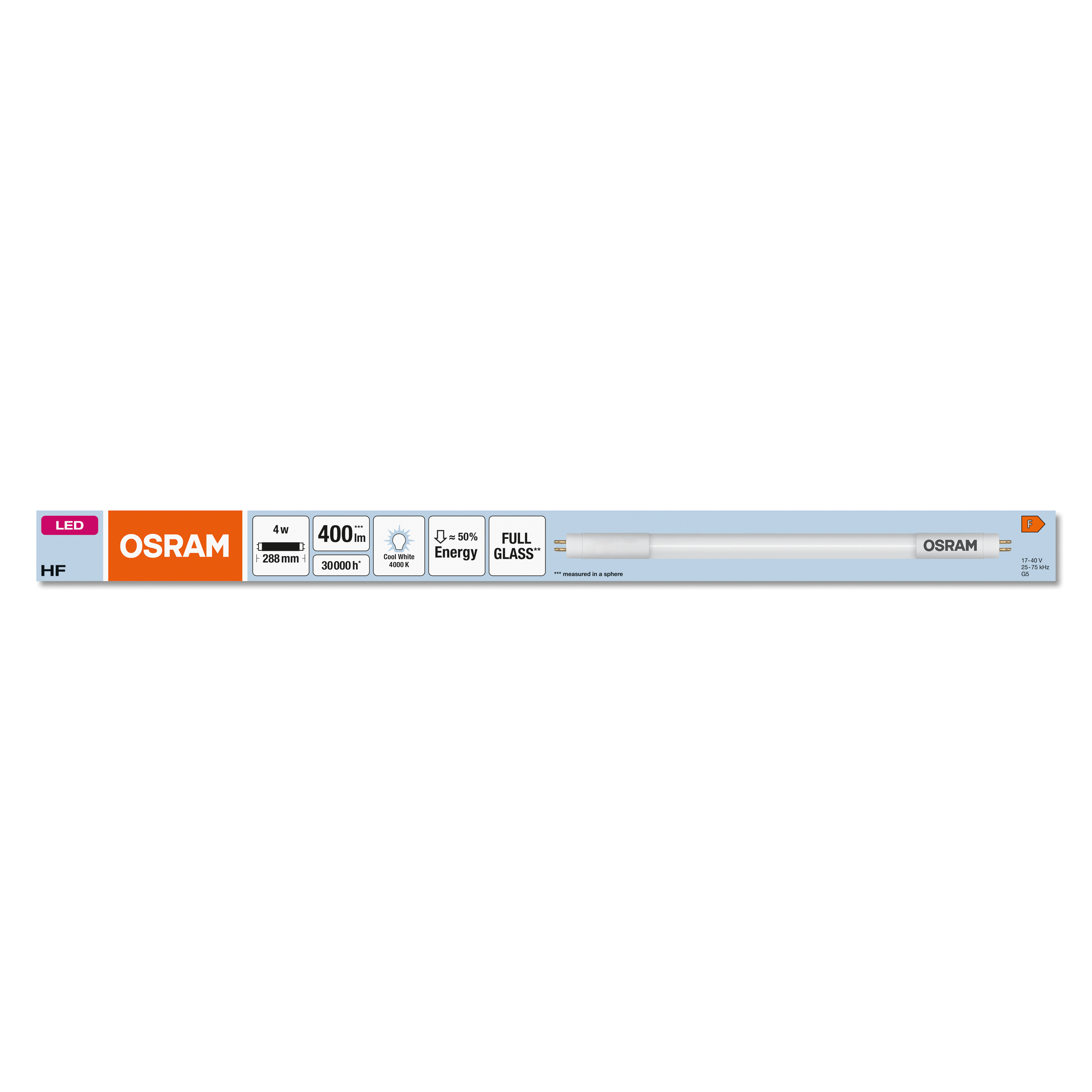

Packaging image, spacial
LEDTUBE T5 HF L8 Short 288 4W 840 G5 MiCh
LEDTUBE T5 HF L8 Short 288 4W 840 G5 MiCh
Energy label
EL-4058075823716-AC478 62
EL-4058075823716-AC478 62
Energy label
EL-4058075823716-AC709 20
EL-4058075823716-AC709 20
IES file (IES)
LEDTUBE T5 HF L8 SHORT 288 4W 840 OSRAM
LEDTUBE T5 HF L8 SHORT 288 4W 840 OSRAM
LDT file (Eulumdat)
LEDTUBE T5 HF L8 SHORT 288 4W 840 OSRAM
LEDTUBE T5 HF L8 SHORT 288 4W 840 OSRAM

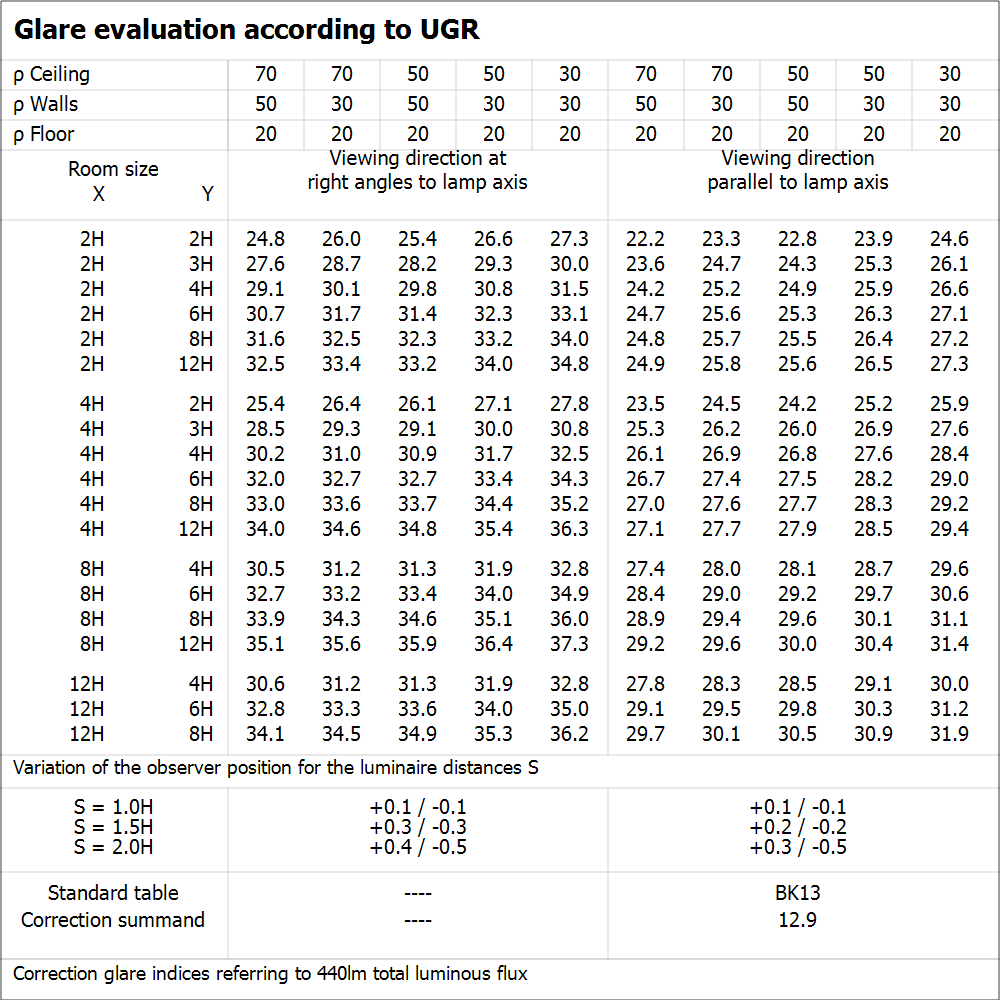

UGR file (UGR table)
