Vintage 1906 Classic A 125 15 Filament DIM 4W 818 Smoke E27

Newer edition available:

Vintage 1906 Classic C 125 15 Filament DIM 4W 818 Smoke E27

Vintage 1906 LED Special Shapes Dimmable

GTIN: 4058075761032 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

Lower energy consumption than incandescent or halogen lamps
Instant 100 % light, no warm-up time
Can be easily fitted instead of ordinary light bulbs
Available in various bulb shapes and diameters

Areas of application

Perfect for decorative installations
Domestic applications
General illumination
Outdoor use in suitable outdoor luminaires only

Product features

LED lamps for line voltage
Lamp made of glass
Lifetime up to 15,000 h
Beam angle: up to 360°
Dimmable
Good quality of light; color rendering index R_a: ≥ 80; constant chromaticity
Can be used directly as luminaire

Safety advice

Do not touch the lamp if broken.
Must not be used if outer bulb is defective.

Electrical data

Nominal wattage	4 W
Construction wattage	4.00 W
Nominal voltage	220…240 V
Operating mode	Mains voltage
Claimed equiv. conventional lamp power	15 W
Nominal current	25 mA
Type of current	AC
Inrush current	0.22 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	2045
Max. lamp number on MCB B16 A	3272
Total harmonic distortion	84.2 %
Power factor λ	> 0.70

Photometrical data

Luminous flux	140 lm
Nominal useful luminous flux 90°	140 lm
Luminous efficacy	35 lm/W
Lumen main.fact.at end of nom.life time	0.93
Light color (designation)	Comfort warm white
Color temperature	1800 K
Color rendering index Ra	≥80
Light color	818
Standard deviation of color matching	≤6 sdcm
Flickering metric (Pst LM)	≤1
Stroboscope effect metric (SVM)	≤0,9

Light technical data

Beam angle	300 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	283.00 mm
Diameter	125.00 mm
Maximum diameter	125 mm
Product weight	375.00 g

Temperatures & operating conditions

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	65 °C

Lifespan

Lifespan L70/B50 at 25 °C	15000 h
Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.93
Rated lamp survival factor at 6,000 h	≥ 0.90

Additional product data

Base (standard designation)	E27
Mercury content	0.0 mg
Design / version	Clear

Capabilities

Dimmable

Yes

Certificates & Standards

Energy efficiency class	G
Energy consumption	4.00 kWh/1000h
Type of protection	IP20
Standards	CE, ROHS, REACH
Photobiological safety group acc. to EN62778	RG0

Country-specific categorizations

Order reference

1906LC125D15 4W

LOGISTICAL DATA

Temperature range at storage

-20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used	LED
Non-directional or directional	NDLS
Mains or non-mains	MLS
Light source cap-type (or other electric interface)	E27
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Standby power	0 W
Networked standby power for CLS	not applicable
Claim of equivalent power	Yes
Length	283.00 mm
Height	125.00 mm
Width	125.00 mm
Chromaticity coordinate x	0,549
Chromaticity coordinate y	0,408
R9 Colour rendering index	1
Beam angle correspondence	SPHERE_360
Survival factor	0,9
Displacement factor	≥0,70
LED light source replaces a fluorescent light source	No
EPREL ID	1212465
Model number	AC42193

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075761032	Folding box 1	149 mm x 149 mm x 349 mm	635.00 g	7.75 dm³
4058075761049	Shipping box 4	318 mm x 318 mm x 376 mm	3221.00 g	38.02 dm³

Declarations of conformity
CL A,C lamp

PDF (306.7 KB)

Product image: white background, diagonal
1906LEDC125D 15 4W/818 230VFILSM E27 4X1 OSRAM

JPG (1.86 MB)

Product image: white background, upright
1906LEDC125D 15 4W/818 230VFILSM E27 4X1 OSRAM

JPG (1.8 MB)

Product infographic (application image with text and graphic)
Vintage Edition 1906 E-Com_Grafik V2 1200x1200px 2023 EN

JPG (809.28 KB)

Product infographic (application image with text and graphic)
Vintage Edition 1906 E-Com Grafik V1 1200x1200px 2023 EN

JPG (629.63 KB)

Product line drawing with letters
1906LEDC125D 15 4W/818 230VFILSM E27 4X1 OSRAM

SVG (11.02 KB)

Product line drawing with numbers
1906LEDC125D 15 4W/818 230VFILSM E27 4X1 OSRAM

SVG (13.66 KB)

Product line drawing - technical
1906LEDC125D 15 4W/818 230VFILSM E27 4X1 OSRAM

SVG (7.07 KB)

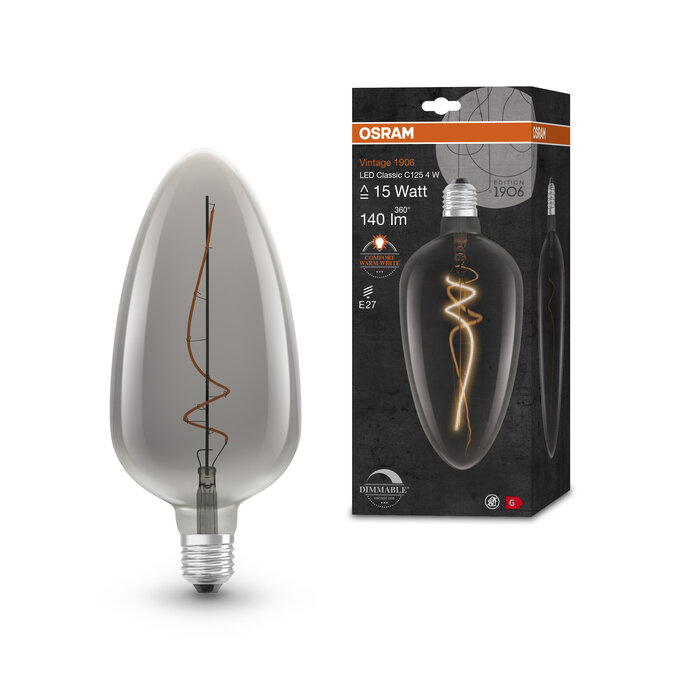

Combo Shot = Product Beauty Shot + Packaging Image
LEDV1906CLAC125DIM4W81 8FILSMOKEE27

JPG (1.86 MB)

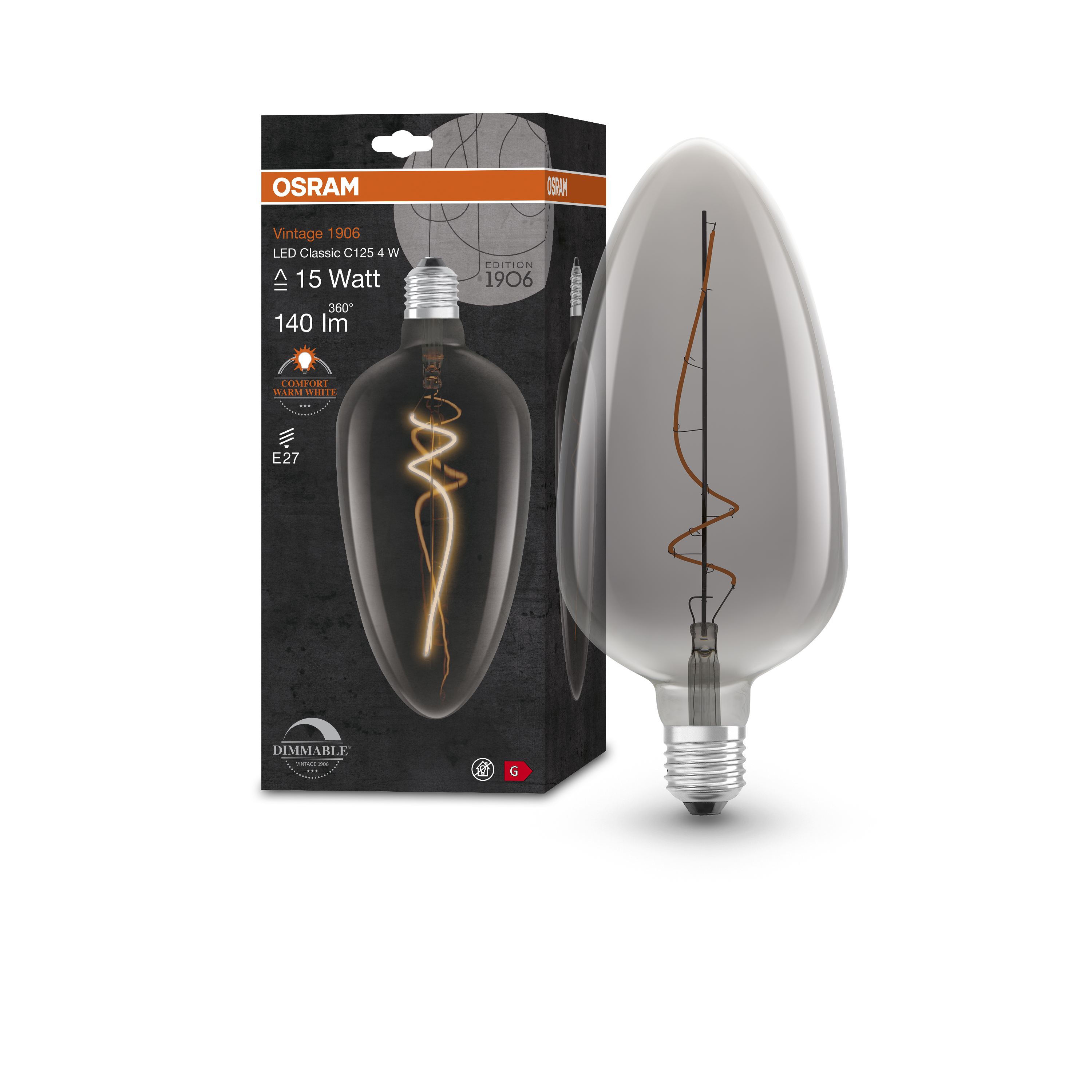

Combo Shot = Product Beauty Shot + Packaging Image
LED V1906 CLA C125 DIM 4W 818 FIL SMOKE E27 MiCh

JPG (1.81 MB)

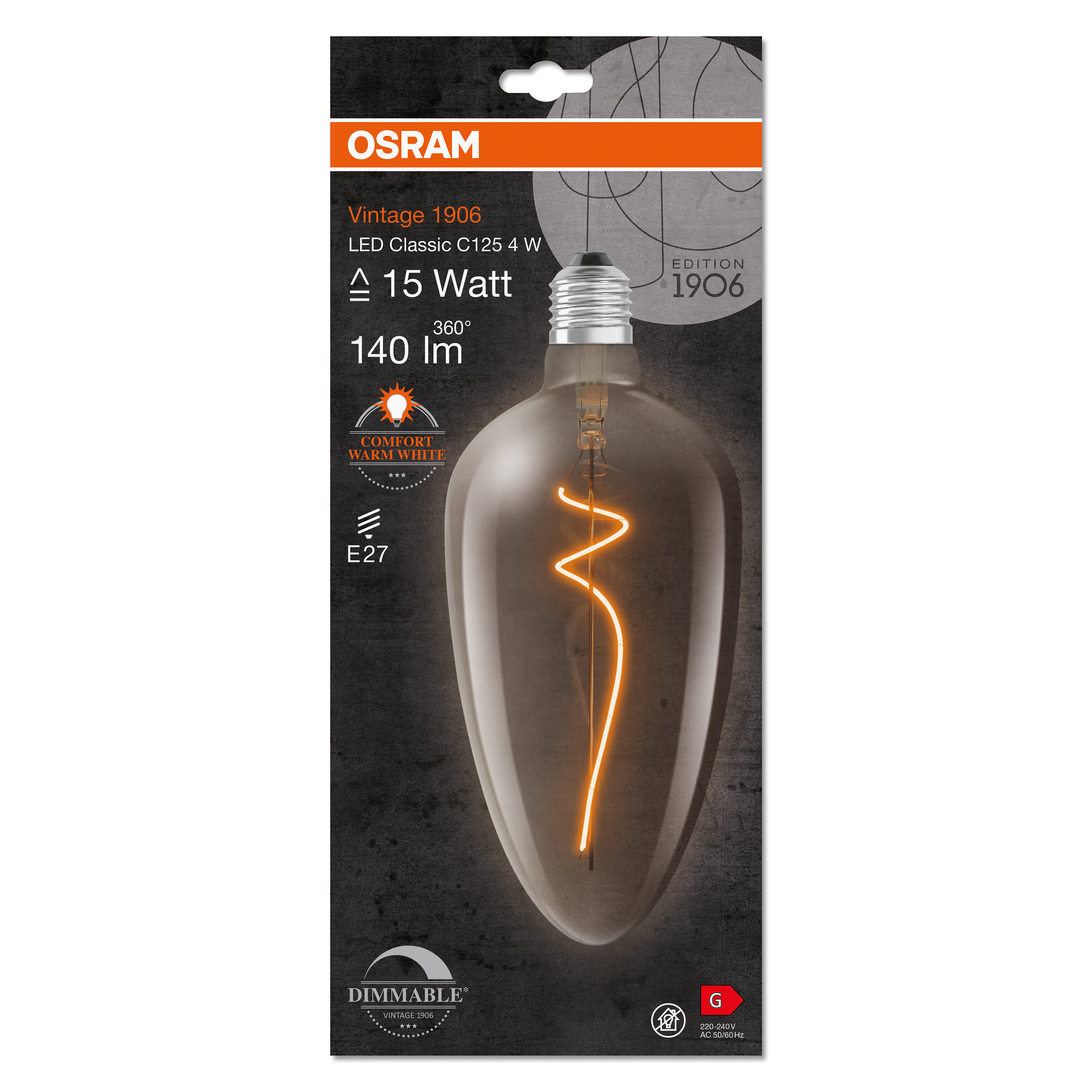

Packaging image, frontal
LED V1906 CLA C125 DIM 4W 818 FIL SMOKE E27 MiCh

JPG (2.41 MB)

Packaging image, spacial
LED V1906 CLA C125 DIM 4W 818 FIL SMOKE E27 MiCh

JPG (2.57 MB)

Energy label
EL-4058075761032-AC421 93

PDF (21.43 KB)

Spectral power distribution
EPREL Data Spectral Diagram LEDr _1800K_Big_Shape_Smoke

JPG (171.63 KB)

Application pictures

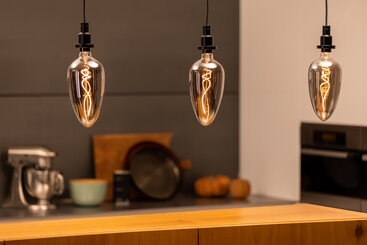

Vintage 1906 CLA 125 DIM SMOKE Kitchen 1

JPG (14.91 MB)

Application pictures
Vintage 1906 CLA 125 DIM SMOKE Kitchen 2

JPG (17.83 MB)

Application pictures
Vintage 1906 CLA 125 DIM SMOKE Close Up

JPG (30.14 MB)

Application pictures Getty
Hospitality_Interior of a fancy restaurant RET

JPG (19.97 MB)

EAN	SEG number	EFO number	ELDAS number
4058075761032	8297982	3764958	941813880

Successor product

Vintage 1906 Classic C 125 15 Filament DIM 4W 818 Smoke E27 Vintage 1906 LED Special Shapes Dimmable

Dimmable LED lamps, vintage edition, special bulb shape
