LED SUPERSTAR CLASSIC A
SST CLAS A 150 21 W/2700 K E27
GTIN: 4052899959200
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- High color consistency thanks to narrow binning
- Easy replacement of classic lamps thanks to compact design
- Instant 100 % light, no warm-up time
Areas of application
- Domestic applications
- General illumination
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional lamps
- Good quality of light; color rendering index CRI 80; constant chromaticity
- High color consistency: ≤ 6 SDCM
- Dimmable (with many common dimmers, see also www.osram-lamps.com/dim)
- Mercury-free lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For dimming conformity see www.ledvance.com/dim
- For further products and actual information concerning LED lamps see www.ledvance.com/ledlamps
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 21 W |
| Construction wattage | 21.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 150 W |
| Nominal current | 100 mA |
| Type of current | AC |
| Inrush current | 4.7 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 45 |
| Max. lamp number on MCB B16 A | 72 |
| Power factor λ | > 0.90 |
Photometrical data
| Luminous flux | 2452 lm |
| Nominal useful luminous flux 90° | 2452 lm |
| Luminous efficacy | 116 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 200 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 143.00 mm |
| Diameter | 67.00 mm |
| Maximum diameter | 67 mm |
| Product weight | 208.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 109 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | Yes |
Certificates & Standards
| Energy efficiency class | A+ 1) |
| Energy consumption | 21.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| ILCOS | DRAA/F-21/827-220-240-E27-60 |
| Order reference | LEDSCLA150D 21W |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E27 |
| Length | 143.00 mm |
| Height | 67.00 mm |
| Width | 67.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899959200 | Folding box 1 |
66 mm x 92 mm x 175 mm | 252.00 g | 1.06 dm³ |
| 4052899959651 | Shipping box 4 |
141 mm x 193 mm x 185 mm | 1071.00 g | 5.03 dm³ |
Declarations of conformity
EC Declaration of Conformity LED Classic A, B, P, Stick Lamps
EC Declaration of Conformity LED Classic A, B, P, Stick Lamps
PRODUCT DATASHEET
SST CLAS A 150 21 W 2700K E27
SST CLAS A 150 21 W 2700K E27
Product image: white background, diagonal with OSRAM logo
684018_CL A 150 20W/827 E27 FR
684018_CL A 150 20W/827 E27 FR
Product image: white background, diagonal
684047_CL A 150 20W/827 E27 FR
684047_CL A 150 20W/827 E27 FR
Product image: white background, upright, OSRAM logo
684028_CL A 150 20W/827 E27 FR
684028_CL A 150 20W/827 E27 FR
Product image: white background, upright
684035_CL A 150 20W/827 E27 FR
684035_CL A 150 20W/827 E27 FR
Product line drawing with letters
683974_CL A 150 20W/827 E27 FR
683974_CL A 150 20W/827 E27 FR

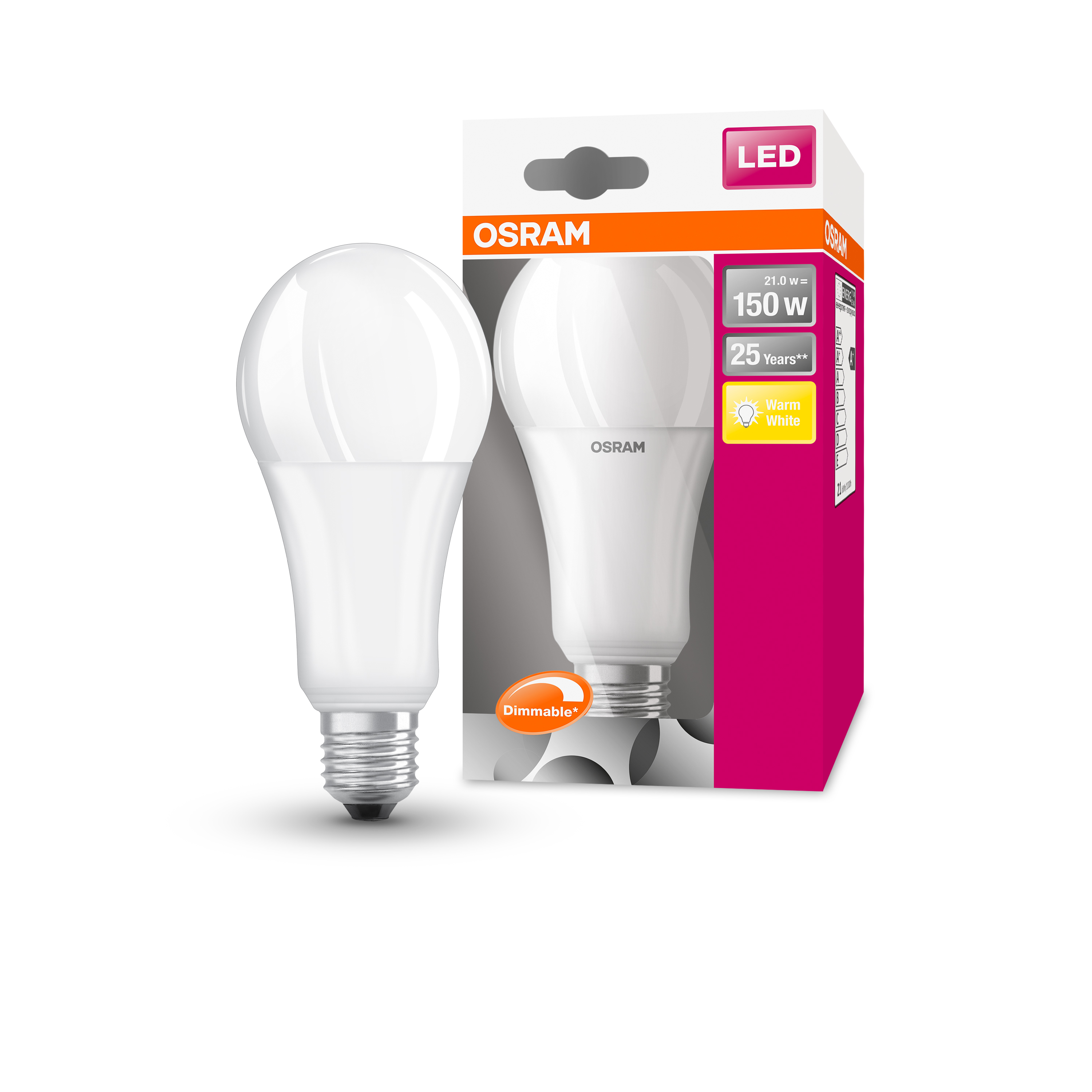

Combo Shot = Product Beauty Shot + Packaging Image
