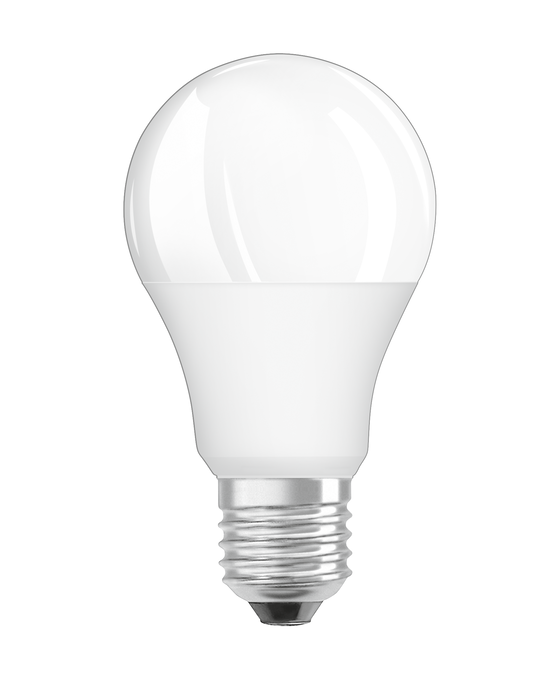

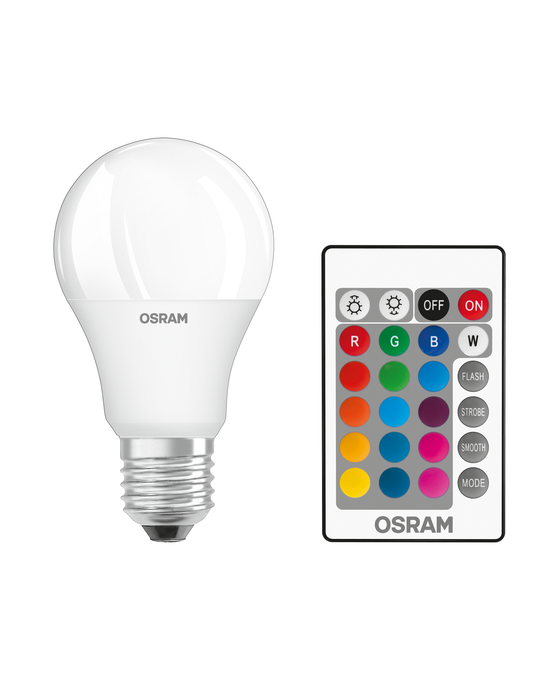

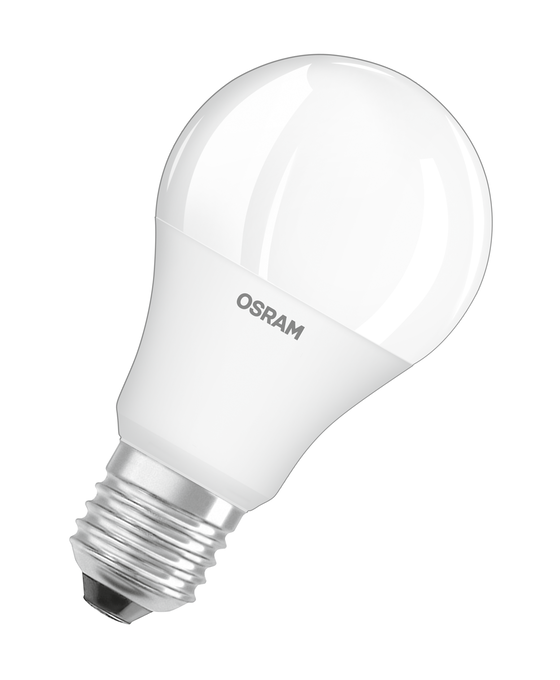

LED Retrofit RGBW lamps with remote control

ST CLAS A 60 RGBW 60 FR 9 W/2700 K E27

GTIN: 4058075045675 Blister / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy installation
  • Lower energy consumption than incandescent or halogen lamps
  • Individual control
  • No app or smartphone required to control the lamp
  • Comfortable and intuitive infrared remote control
  • Switching, dimming in 4 steps and color control with the push of a button
  • Color loops for dynamic color changes
Areas of application
  • Domestic applications
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Lifetime up to 25,000 h
  • Allows for control of colors, saturation and dimming levels
  • Wide range of controllable light colors including white
  • Four dynamic effects: Flash, Strobe, Smooth, Mode
  • Dimmable via remote control
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 60 W
Nominal current 70 mA
Type of current AC
Inrush current 5.2 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 130
Max. lamp number on MCB B16 A 110
Power factor λ > 0.50
Photometrical data
Luminous flux 806 lm
Nominal useful luminous flux 90° 806 lm
Luminous efficacy 89 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Light technical data
Beam angle 200 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 112.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 42.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 80 °C
Lifespan
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
BATTERY
Battery size [GMS] CR2025
Capabilities
Dimmable Yes
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 9.00 kWh/1000h
Type of protection IP20
Standards CE, CB, ERP
Photobiological safety group acc. to EN62778 RG0
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
Order reference LEDSCLA60REM 9W
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E27
Correlated colour temperature type SINGLE_VALUE
Length 112.00 mm
Height 60.00 mm
Width 60.00 mm
EPREL ID 1403226
Model number AC24711
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Additional info can be provided per individual request
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075045675 Blister
1		 67 mm x 140 mm x 185 mm 70.00 g 1.74 dm³
4058075045682 Shipping box
6		 416 mm x 153 mm x 201 mm 682.00 g 12.79 dm³
Declarations of conformity
EC Declaration of Conformity LED Star+RGBW Remote Clas A,B,P,Spot PAR16
PDF (411.08 KB)
PRODUCT DATASHEET
LEDSCLA60REM 9W/827 230VFRE276XBLI1OSRAM
PDF (225.46 KB)
Product image: white background, diagonal with OSRAM logo
LEDSCLA60REM 10W/827 230VFRE27XBLI1OSRAM
TIF (11.53 MB)
Product image: white background, diagonal
LEDSCLA60REM 10W/827 230VFRE27XBLI1OSRAM
TIF (1.17 MB)
Product image: white background, horizontal, OSRAM logo
LEDSCLA60REM 10W/827 230VFRE27XBLI1OSRAM
TIF (51.46 MB)
Product image: white background, horizontal
LEDSCLA60REM 10W/827 230VFRE27XBLI1OSRAM
TIF (27.02 MB)
Product image: white background, upright
LEDSCLA60REM 10W/827 230VFRE27XBLI1OSRAM
TIF (11.54 MB)
Product line drawing with letters
LEDSCLA60REM 10W/827 230VFRE27XBLI1OSRAM
SVG (9.59 KB)
Product line drawing with letters
LEDSCLA60REM 10W/827 230VFRE27XBLI1OSRAM
SVG (45.38 KB)

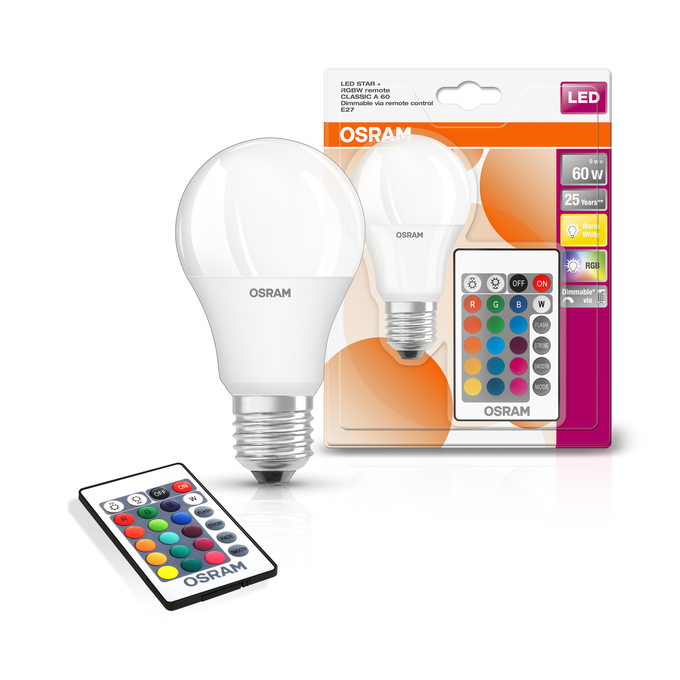

Combo Shot = Product Beauty Shot + Packaging Image
