LED BASE PIN G4 12 V
BASE PIN 10 0.9 W/2700 K G4 CL
GTIN: 4058075093973
Blister / 3
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Lower energy consumption than incandescent or halogen lamps
- Ideal for decorative and free-burning applications
Areas of application
- Atmospheric accent lighting throughout the home
- Shops, hotels and restaurants
- Foyers, offices
- Outdoor use in suitable outdoor luminaires only
Product features
- LED alternative to conventional low voltage lamps
- Mercury-free lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For dimming conformity see www.ledvance.com/dim
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 0.9 W |
| Construction wattage | 0.90 W |
| Nominal voltage | 12 V |
| Operating mode | 12V AC/DC |
| Claimed equiv. conventional lamp power | 10 W |
| Nominal current | 130 mA |
| Type of current | AC/DC |
| Inrush current | 12.3 A |
| Max. lamp number on MCB B10 A | 48 |
| Max. lamp number on MCB B16 A | 61 |
| Total harmonic distortion | < 120 % |
| Power factor λ | 0.50 |
Photometrical data
| Luminous flux | 100 lm |
| Nominal useful luminous flux 90° | 100 lm |
| Luminous efficacy | 111 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 300 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 33.00 mm |
| Diameter | 12 mm |
| Maximum diameter | 12 mm |
| Product weight | 2.6 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 80 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | G4 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Clear |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | A++ 1) |
| Energy consumption | 1.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, CB, EAC |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| ILCOS | DRT/C-0,9/827-220-240-G4-12/33 |
| Order reference | LEDBASEPIN10 CL |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | G4 |
| Length | 33.00 mm |
| Height | 12 mm |
| Width | 12 mm |
| Displacement factor | 0.5 |
| EPREL ID | 1403247 |
| Model number | AC24746 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075093973 | Blister 3 |
37 mm x 140 mm x 120 mm | 19.20 g | 0.62 dm³ |
| 4058075093980 | Shipping box 27 |
345 mm x 153 mm x 136 mm | 305.80 g | 7.18 dm³ |
Declarations of conformity
EC declaration G4 10, G4 20, G4 30, GY6.35 30
EC declaration G4 10, G4 20, G4 30, GY6.35 30
Product image: white background, diagonal with OSRAM logo
LED PIN 10 G4 clear
LED PIN 10 G4 clear
Product image: white background, diagonal
LED PIN 10 G4 clear
LED PIN 10 G4 clear
Product image: white background, upright, OSRAM logo
LED PIN 10 G4 clear
LED PIN 10 G4 clear

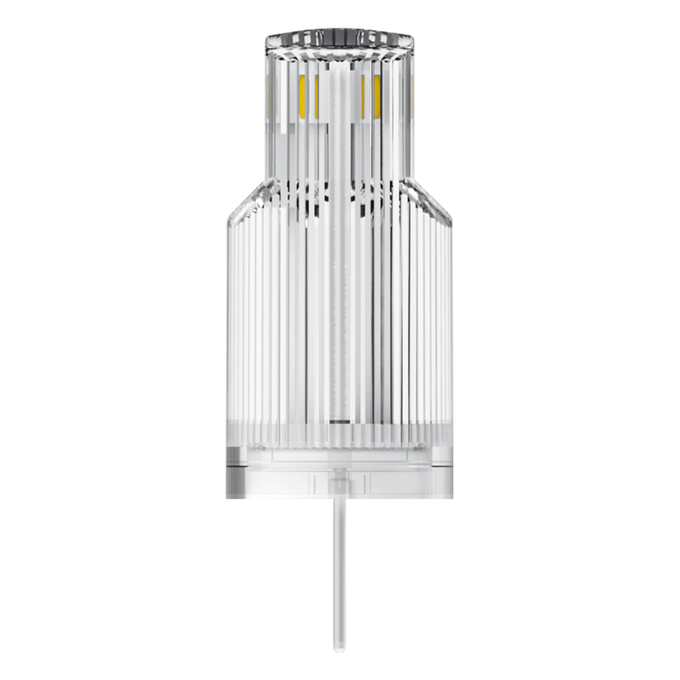

Product image: white background, upright
LED PIN 10 G4 clear
LED PIN 10 G4 clear
Product image: white background, upright, alternative image
LED PIN 10 G4 clear
LED PIN 10 G4 clear
Product line drawing with letters
LED PIN 10 G4 clear
LED PIN 10 G4 clear

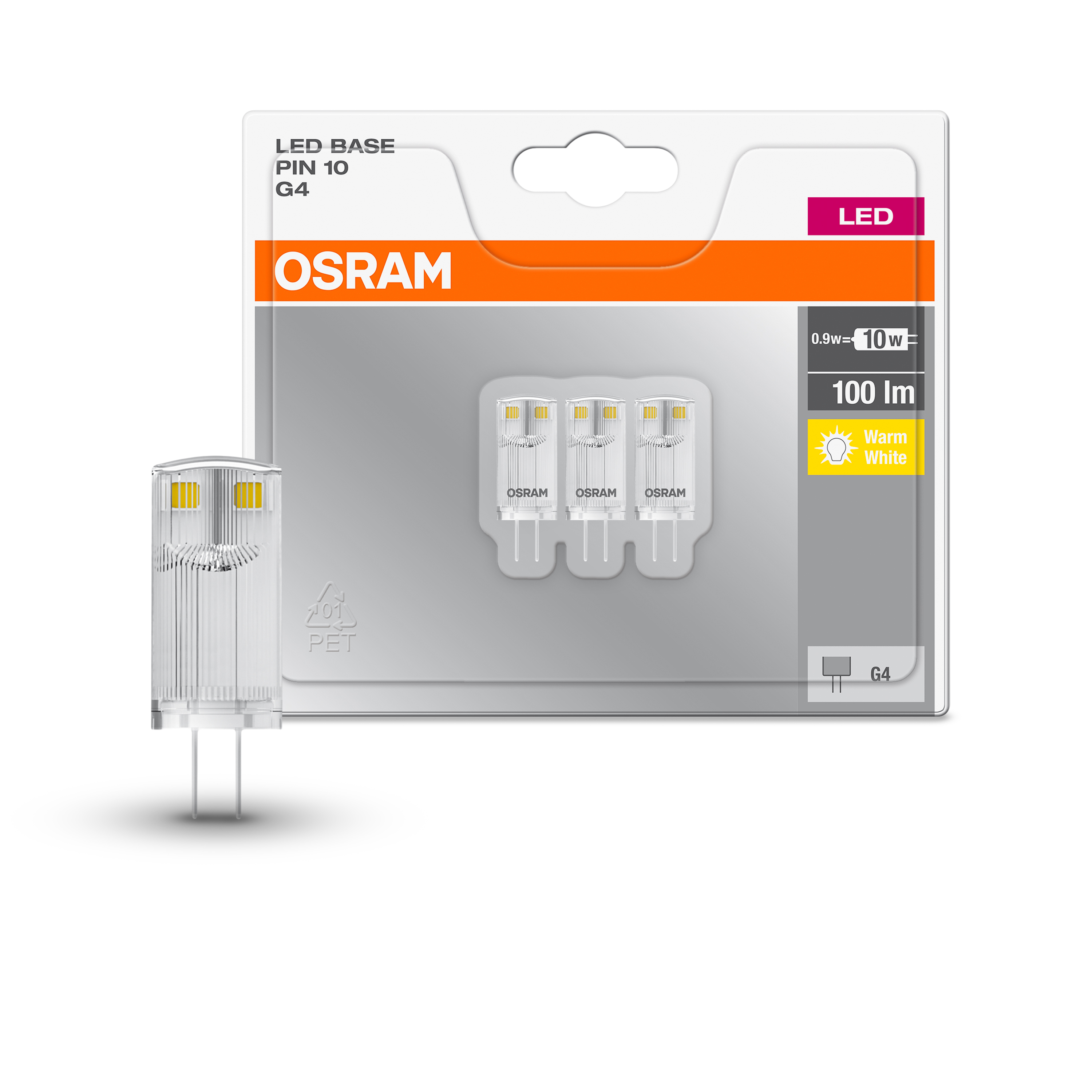

Combo Shot = Product Beauty Shot + Packaging Image
