LED STAR R50
ST R50 60 36 ° 4.3 W/2700 K E14
GTIN: 4058075097247
Blister / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Long lifetime of up to 15,000 h
- Lower energy consumption than incandescent or halogen lamps
- Easy replacement of halogen lamps thanks to compact design
- Instant 100 % light, no warm-up time
Areas of application
- Display cabinets and shop windows
- Museums, art galleries
- Exhibition rooms
- Hospitality
- Residential interiors
- As a downlight for marking walkways, doors, stairs, etc.
- Outdoor use in suitable outdoor luminaires only
Product features
- Professional LED alternative to halogen lamps
- Mercury-free lamps
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
References / Links
- For further products and actual information concerning LED lamps see www.ledvance.com/ledlamps
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 4.3 W |
| Construction wattage | 4.30 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 60 W |
| Nominal current | 34.5 mA |
| Type of current | AC |
| Inrush current | 9.5 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 300 |
| Max. lamp number on MCB B16 A | 400 |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous intensity | 582 cd |
| Luminous flux | 345 lm |
| Nominal useful luminous flux 90° | 345 lm |
| Luminous efficacy | 80 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated peak intensity | 582 cd |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 36 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 85.00 mm |
| Diameter | 50.00 mm |
| Maximum diameter | 50 mm |
| Product weight | 62.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 84 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | E14 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | F 1) |
| Energy consumption | 5.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, EAC |
| Photobiological safety group acc. to EN62778 | RG1 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| Order reference | LEDSR5060 4,3W/ |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E14 |
| Correlated colour temperature type | SINGLE_VALUE |
| Length | 85.00 mm |
| Height | 50.00 mm |
| Width | 50.00 mm |
| EPREL ID | 1402915,1403196 |
| Model number | AC08052,AC24576 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075097247 | Blister 1 |
55 mm x 140 mm x 120 mm | 77.00 g | 0.92 dm³ |
| 4058075097254 | Shipping box 6 |
342 mm x 154 mm x 134 mm | 590.00 g | 7.06 dm³ |
PRODUCT DATASHEET
LEDSR5060 4,3W/827 230VGLE1410XFC1OSRAM
LEDSR5060 4,3W/827 230VGLE1410XFC1OSRAM
Product image: white background, diagonal
LED R50
LED R50
Product image: white background, upright
LED R50
LED R50
Product line drawing with letters
LED R50
LED R50
Product line drawing with numbers
LED R50
LED R50
Product line drawing - technical
LED R50
LED R50

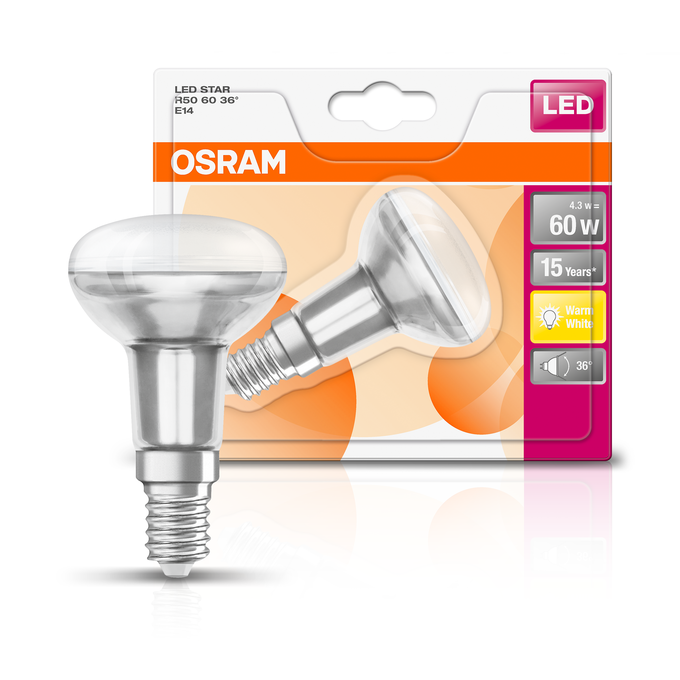

Combo Shot = Product Beauty Shot + Packaging Image
