LED Retrofit CLASSIC P

RF CLAS P 15 CL 1.5 W/2700 K E14

Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Lamps with innovative LED "filament" technology
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Beam angle: up to 300°
  • Lifetime up to 15,000 h
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 1.5 W
Construction wattage 1.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 15 W
Nominal current 12 mA
Type of current AC
Inrush current 2 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Max. lamp number on MCB B10 A 416
Max. lamp number on MCB B16 A 666
Power factor λ > 0.40
Photometrical data
Luminous flux 136 lm
Nominal useful luminous flux 90° 136 lm
Luminous efficacy 90 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Light technical data
Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 77.00 mm
Diameter 45,0 mm
Maximum diameter 45 mm
Product weight 15.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 50 °C
Lifespan
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class F 1)
Energy consumption 2.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG0
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
ILCOS DRBP/C-1,3-827-220-240-E14-45
Order reference LEDSCLP151,5W/8
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E14
Correlated colour temperature type SINGLE_VALUE
Length 77.00 mm
Height 45,0 mm
Width 45,0 mm
EPREL ID 1402955,523090
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075434349 Folding box
1		 46 mm x 49 mm x 130 mm 27.00 g 0.29 dm³
4052899400320 Blister
1		 45 mm x 140 mm x 120 mm 26.00 g 0.76 dm³
4052899400337 Shipping box
6		 285 mm x 153 mm x 132 mm 310.00 g 5.76 dm³
4058075605558 Shipping box
6		 159 mm x 111 mm x 106 mm 252.00 g 1.87 dm³
Declarations of conformity
LED lamps CLA,B,G,P
PDF (223.84 KB)
PRODUCT DATASHEET
LED STAR CL P FIL 15 non-dim 1,5W/827 E14
PDF (234.42 KB)
PRODUCT DATASHEET
STCLASP15CL1.5W2700KE1 4en
PDF (261.33 KB)
Product image: white background, diagonal
542080_LED STAR CLASSIC P25 clear WW E14
TIF (27.23 MB)
Product image: white background, upright
542091_LED STAR CLASSIC P25 clear WW E14
TIF (27.24 MB)
Product line drawing with letters
542128_LED STAR CLASSIC P25 clear WW E14
SVG (11.92 KB)
Product line drawing, front, no dimensions
603609_RFCLP37 4 W/827 E14 clear
SVG (11.77 KB)

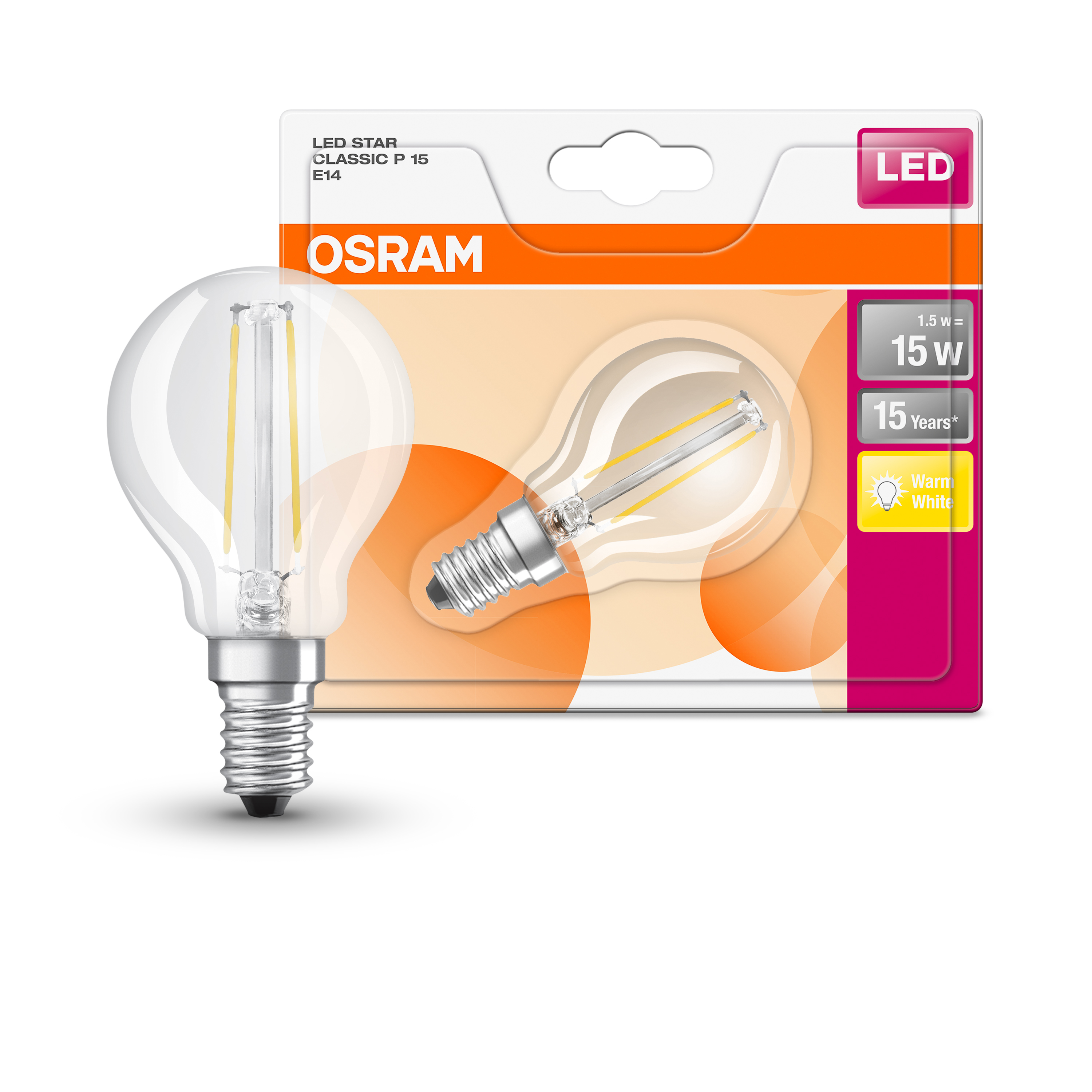

Combo Shot = Product Beauty Shot + Packaging Image
LEDSCLP15 1,4W-827 230VFILE146XBLI1
JPG (1.69 MB)

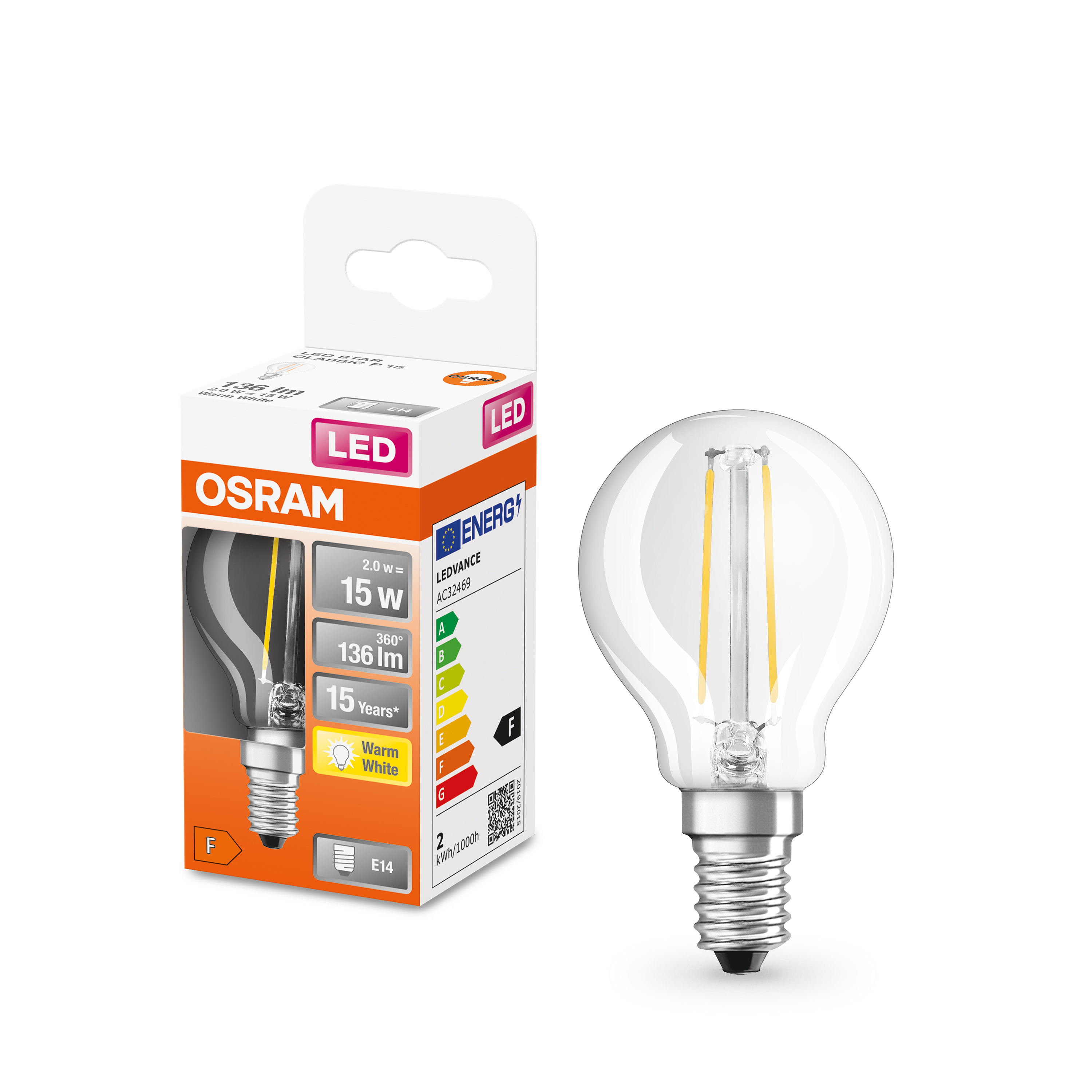

Combo Shot = Product Beauty Shot + Packaging Image
LEDSCLP15 1,5W-827 230V FIL E14 FS1 OSRAM
JPG (1.01 MB)
Packaging image, frontal
LED ST CLP 15 1.6W 827 FIL E14 MiCh Front
TIF (9.02 MB)

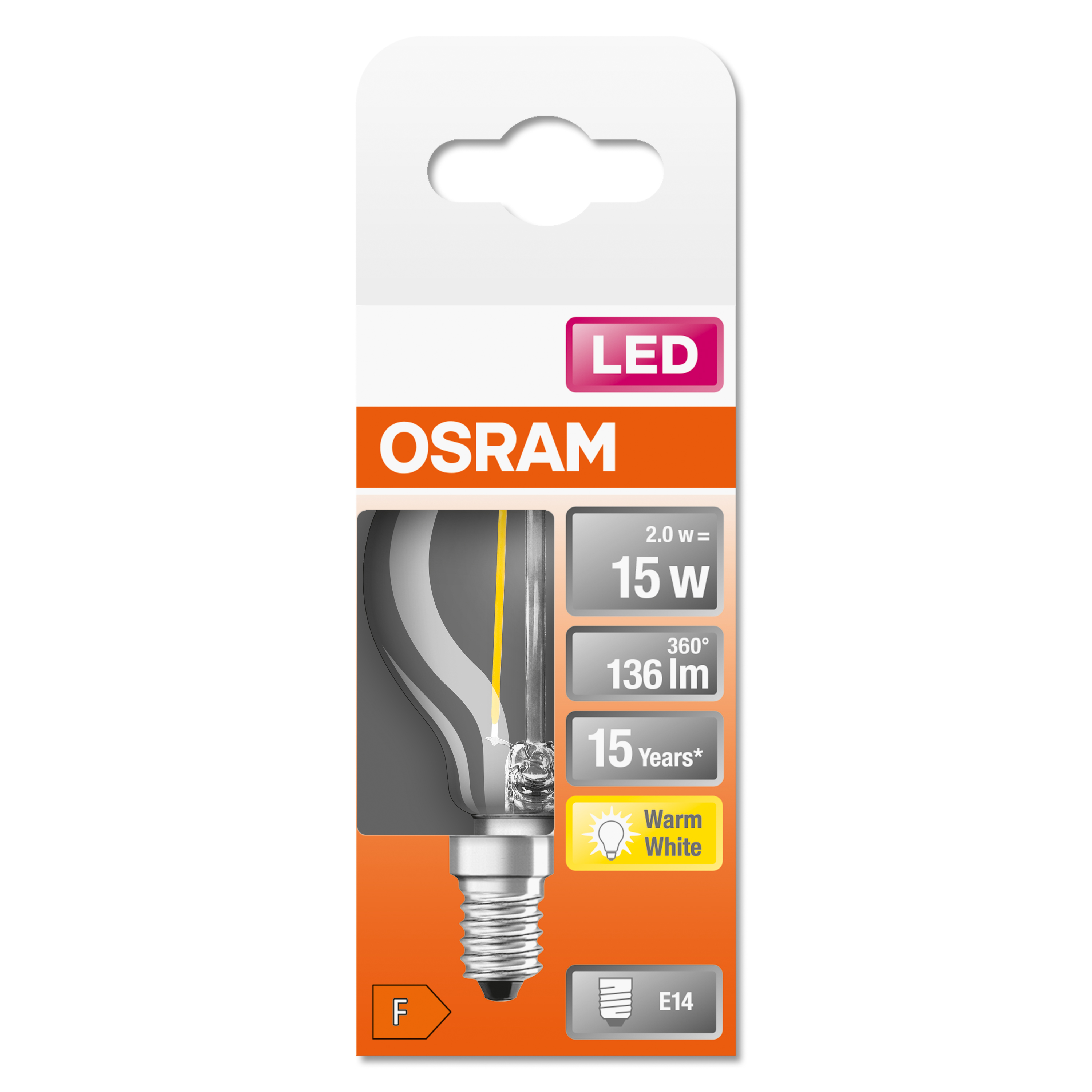

Packaging image, frontal
LED ST CLP 15 1.5W 827 FIL E14 MiCh
TIF (1.28 MB)

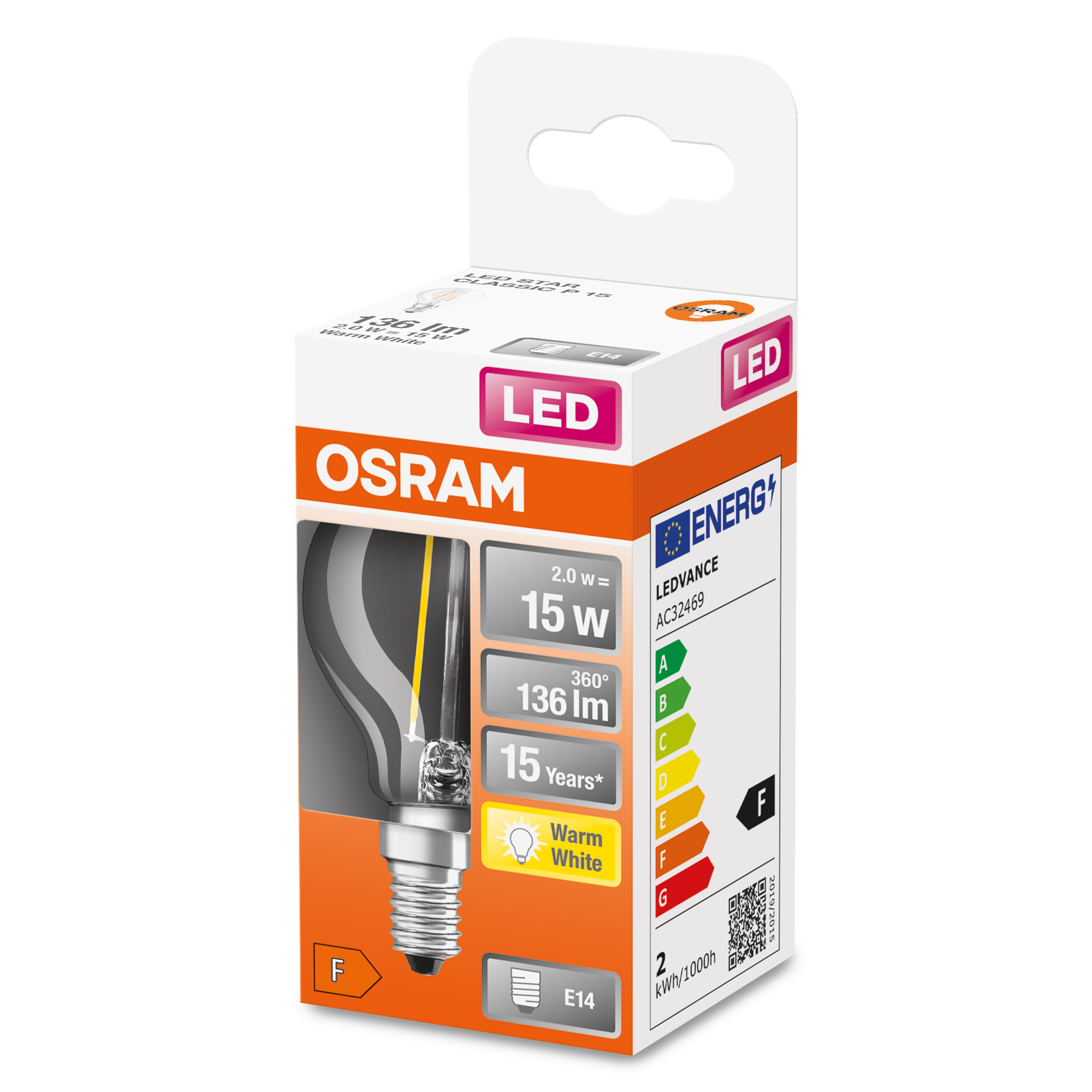

Packaging image, spacial
