LED DAYLIGHT SENSOR CLASSIC A
ST CLAS A 60 9 W/2700 K E27
GTIN: 4058075037595
Blister / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Short payback period thanks to low energy consumption and maintenance costs
- Energy-saving lighting solutions thanks to automatic switch off at daylight (> 20 lux)
- Safety through automatic switch-on at darkness (< 20 lux)
- Lower energy consumption than incandescent or halogen lamps
- Easy replacement of classic lamps thanks to compact design
- Instant 100 % light, no warm-up time
Areas of application
- Outdoor use in suitable outdoor luminaires only
- Wherever constant lighting is necessary at night
Product features
- LED alternative to conventional lamps
- High color consistency: ≤ 6 SDCM
- Mercury-free lamps
- The integrated light sensor detects daylight level every 10 minutes and turns on/off automatically
Safety advice
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Nominal wattage | 9 W |
| Construction wattage | 9.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 60 W |
| Nominal current | 70 mA |
| Type of current | AC |
| Inrush current | 6.6 A |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Max. lamp number on MCB B10 A | 30 |
| Max. lamp number on MCB B16 A | 45 |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 806 lm |
| Nominal useful luminous flux 90° | 806 lm |
| Luminous efficacy | 89 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 240 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 112.00 mm |
| Diameter | 60.00 mm |
| Maximum diameter | 62 mm |
| Product weight | 34.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 96 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Frosted |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | F 1) |
| Energy consumption | 9.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| ILCOS | DRAA/F-8,5/827-220-240-E27-60 |
| Order reference | LEDSCLA60DS 9W/ |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E27 |
| Correlated colour temperature type | SINGLE_VALUE |
| Length | 112.00 mm |
| Height | 60.00 mm |
| Width | 60.00 mm |
| EPREL ID | 1402990 |
| Model number | AC17519 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075037595 | Blister 1 |
61 mm x 140 mm x 120 mm | 57.00 g | 1.02 dm³ |
| 4058075816961 | Shipping box 6 |
381 mm x 153 mm x 136 mm | 486.00 g | 7.93 dm³ |
PRODUCT DATASHEET
LEDSCLA60DS 9W/827 230VFR E27 4X1 OSRAM
LEDSCLA60DS 9W/827 230VFR E27 4X1 OSRAM
Product image: white background, diagonal with OSRAM logo
655306_Clasisc A 40/60/75
655306_Clasisc A 40/60/75
Product image: white background, diagonal
660736_Bargain Classic A60 frosted
660736_Bargain Classic A60 frosted
Product image: white background, upright, OSRAM logo
655301_Clasisc A 40/60/75
655301_Clasisc A 40/60/75
Product image: white background, upright
660747_Bargain Classic A60 frosted
660747_Bargain Classic A60 frosted
Product line drawing with letters
344046_CLASSIC A 60 ADVANCED FROSTED PLANET
344046_CLASSIC A 60 ADVANCED FROSTED PLANET
Product line drawing, front, no dimensions
344047_CLASSIC A 60 ADVANCED FROSTED PLANET
344047_CLASSIC A 60 ADVANCED FROSTED PLANET

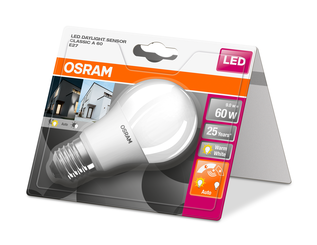

Packaging image, frontal
