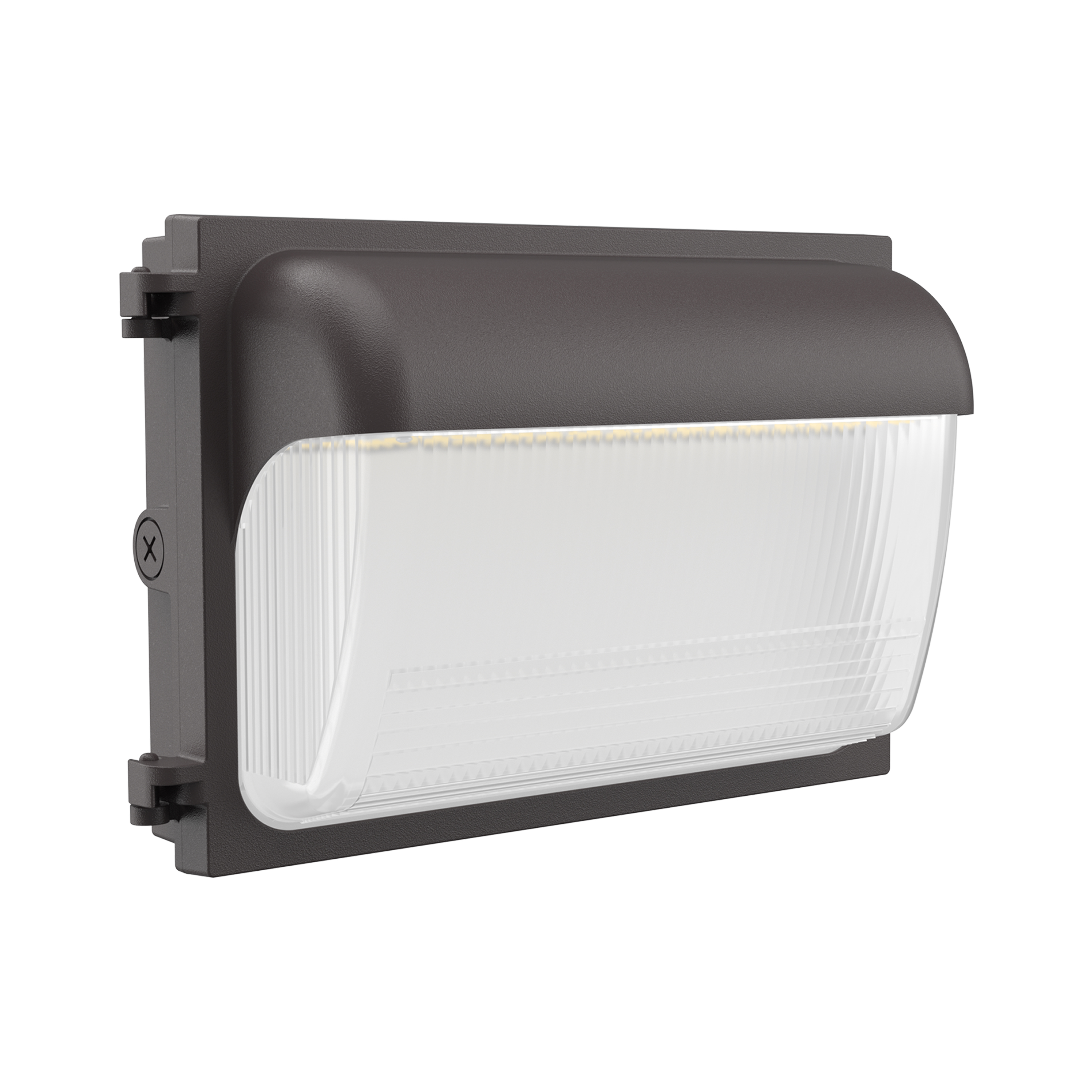

WALLPACK LWLWP120MW 120/100/80/60W TRI white, spacial

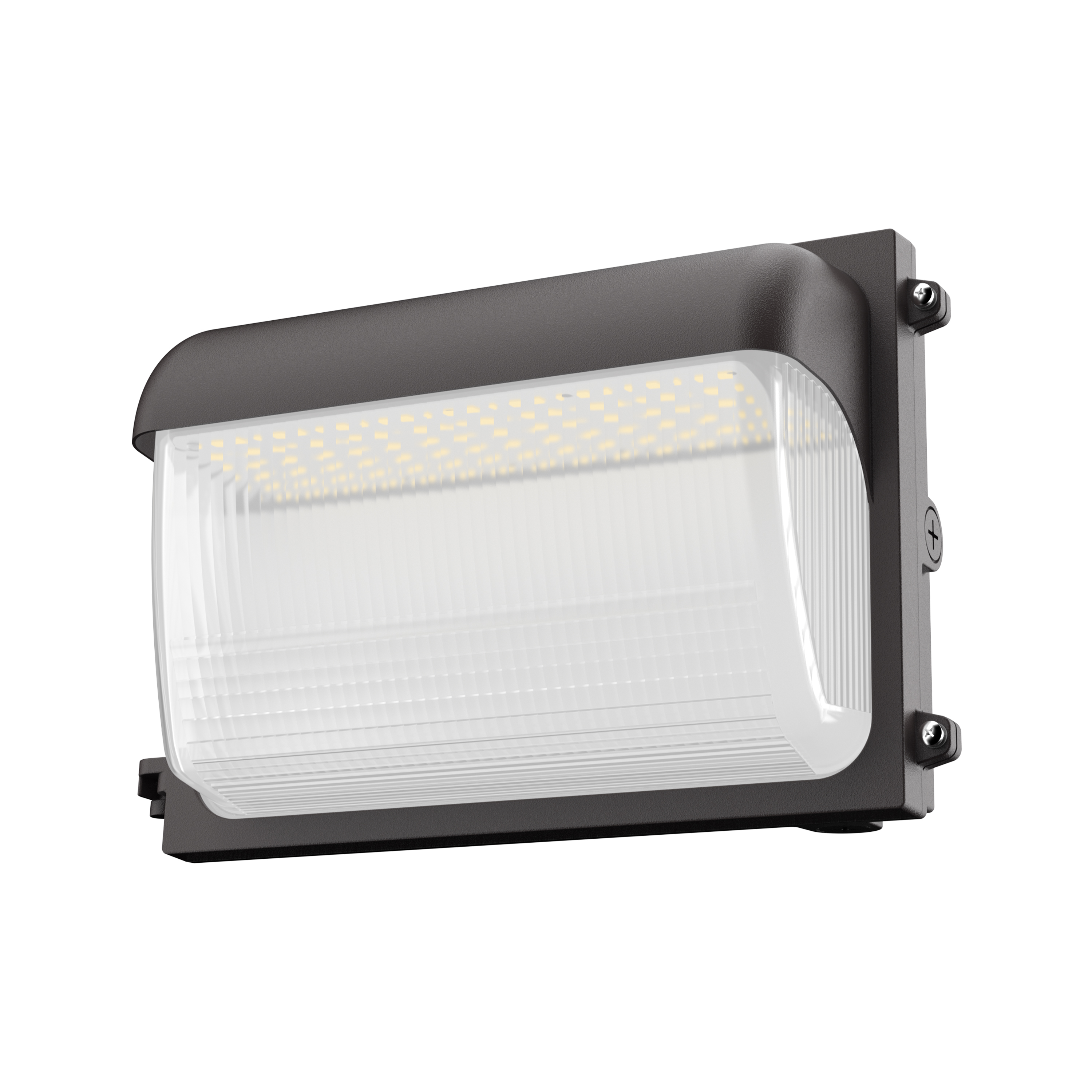

WALLPACK LWLWP120MW 120/100/80/60W TRI white, diagonal

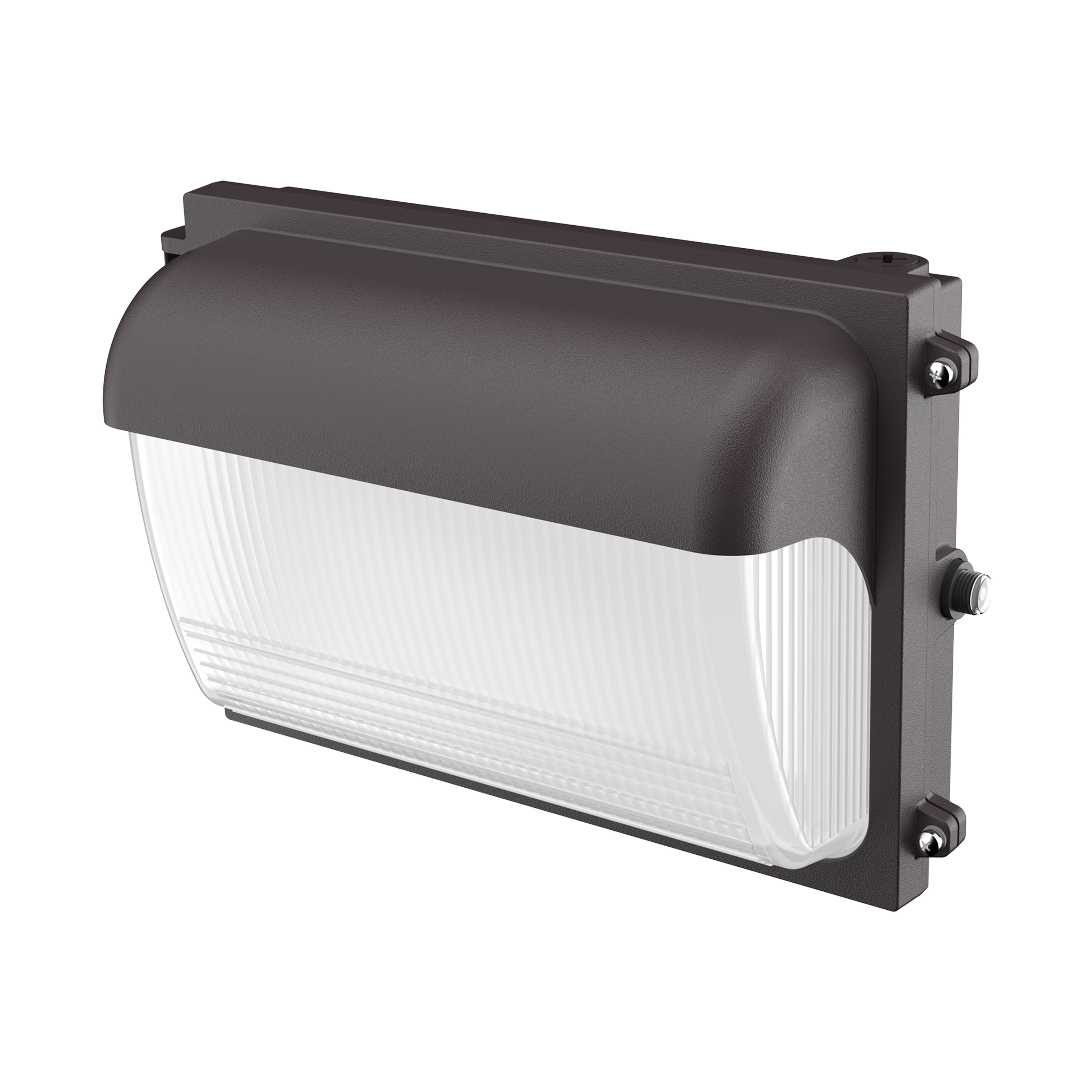

WALLPACK LWLWP120MW 120/100/80/60W TRI white, upright
WALLPACK LWLWP120MW 120/100/80/60W TRI white, profile
WALLPACK WALL LIGHT

WALLPACK LWLWP120MW 120/100/80/60W TRI

GTIN: 4099854523823 Shipping box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Flexible colour temperature for different environments
  • Long-lasting durability and reliable performance
  • Excellent resistance to water and impact
  • Advanced lighting control for adaptability, optional DALI2.0 dimming
  • Easy and quick installation
Areas of application
  • Public areas
  • Construction areas
  • Car parks
  • Commercial buildings
Product features
  • Multi-Watt selectable: 120W/100W/80W/60W
  • Tri Colour selectable: 3000K/4000K/5000K
  • High luminous efficacy: up to 140 lm/W
  • Die-cast aluminum body and tempered glass lens
  • IP65 and IK08 rated
  • Multiple cable entries from rear and side
Electrical data
Nominal wattage 120 W / 100 W / 80 W / 60 W
Nominal voltage 100…277 V
Mains frequency 50…60 Hz
Nominal current 980.000 mA
Inrush current 55 A
Inrush current time Th50 500 µs
Max. number of luminaires per miniature circuit breaker B16 6
Max. number of luminaires per miniature circuit breaker C10 8
Max. number of luminaires per miniature circuit breaker C16 10
Power factor λ > 0.90
Total harmonic distortion < 15 %
Protection class I
Surge capability (L-N) 4 kV
Surge capability (L/N-Ground) 5 kV
Photometrical data
Luminous flux 16800 lm / 14000 lm / 11200 lm / 8400 lm
Luminous efficacy 140 lm/W
Color temperature 3000 K / 4000 K / 5000 K
Light color (designation) Warm White; Cool Daylight; Cool White
Color rendering index Ra > 80
Standard deviation of color matching < 5 sdcm
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4
Beam angle 95 °
Dimensions & Weight
Length 340.00 mm
Height 114.00 mm
Width 240.00 mm
Product weight 3920.00 g
Materials & Colors
Product color Black
Housing color Black
RAL Color (most similar) RAL 9005
Body material Aluminum
Cover material Glass
Glow Wire Test according to IEC 60695-2-12 850 °C
Application & Mounting
Ambient temperature range -30…+50 °C
Temperature range at storage -30…+80 °C
Type of connection Screw terminal
Type of protection IP65/IP65
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Wall mounting
Mounting location Wall
Application environment Outdoor
Mounting length 340 mm
Mounting width 240 mm
Mounting depth 114 mm
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 70000 h 1)
Lifespan L90/B10 at 25 °C 47000 h
Number of switching cycles 50000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 1250 mA
Emergency lighting
Type of emergency operation test None
Certificates & Standards
Standards CE; RCM
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Added function MULTI SELECT
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854523823 Shipping box
1		 394 mm x 286 mm x 167 mm 4285.00 g 18.82 dm³
