PRO CYANOSIS TRI CRI90 UGR19 PANEL

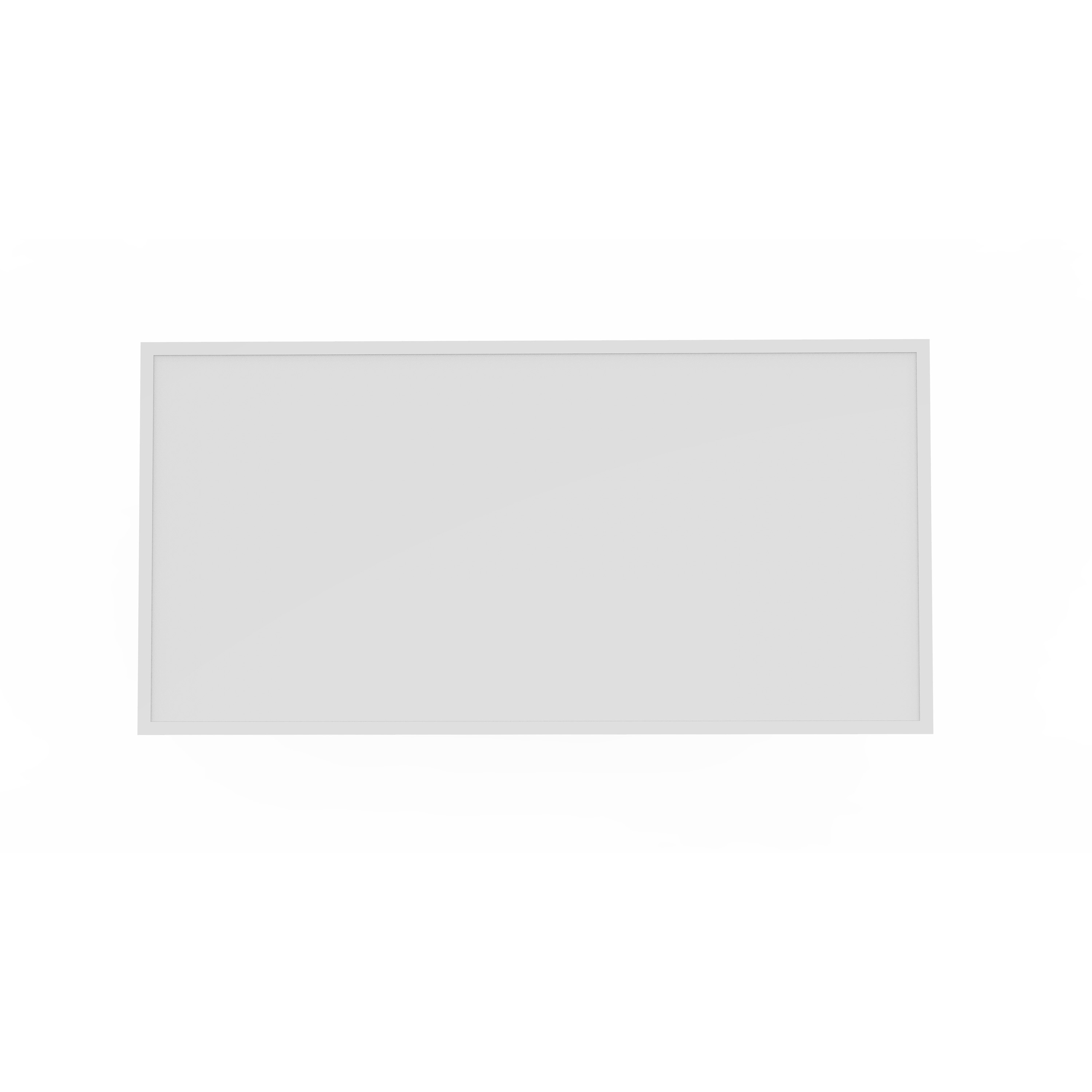

Pro Cyanosis Panel LPANP0612ND 49W TC UGR19
GTIN: 4099854612282
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Three selectable colour settings for versatile and adaptable ambiance
- Various LED driver options to suit any application
- High quality light and low glare design for visual comfort
- Specifically designed for Cyanosis and Green Star standards
Areas of application
- Offices and administrative buildings
- Hospitals
- Healthcare applications
- Reception areas and foyers
- Entrances / Hallways
- Retail spaces
- Hospitality
- Libraries, schools
Product features
- Tri colour selectable: 3000/3500/4000K
- Micro-prismatic diffuser enables a low glare rating of UGR < 19 for enhanced visual comfort
- Experience true-to-life colours with a high CRI > 90
- Maintain colour consistency with SDCM < 3 for 3000 K and 4000 K
- COI<3@4000K is compliant with Cyanosis standard
- Seismic-compliant pre-installed tabs for secure overhead suspension installation
- Driver options: 1-10V driver, phase-cut dimmable driver, and DALI dimmable driver
Electrical data
| Nominal wattage | 49 W 1) |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 1050.000 mA |
| Power factor λ | > 0.9 |
| Protection class | II |
1) Max 49.00 W
Photometrical data
| Luminous flux | 5880 lm |
| Luminous efficacy | 120 lm/W |
| Color temperature | 3000 K/3500 K/4000 K |
| Light color (designation) | Warm White…Neutral White…Cool White |
| Color rendering index Ra | > 90 |
| Standard deviation of color matching | < 3 sdcm 1) |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Beam angle | 90 ° |
| UGR | < 19 |
1) <3 sdcm - 3000K/4000K
Dimensions & Weight
| Length | 595.00 mm |
| Height | 32.00 mm |
| Width | 1195.00 mm |
| Product weight | 3440.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -10…+40 °C |
| Temperature range at storage | -20…+55 °C |
| Type of protection | IP54 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 70000 h 1) |
| Lifespan L90/B10 at 25 °C | 50000 h |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854612282 | Folding box 1 |
1,203 mm x 40 mm x 607 mm | 4170.00 g | 29.21 dm³ |
| 4099854577406 | Shipping box 4 |
1,272 mm x 233 mm x 685 mm | 18338.00 g | 203.02 dm³ |
| Product image | Product name | Product brand | Product component type | GTIN |
|---|---|---|---|---|
|
NON DIM (ON-OFF) LED DRIVER LDR49MW | LEDVANCE | Light control | 4099854612312 |
|
DALI2.0 LED Driver LDR50MWDALI | LEDVANCE | Light control | 4099854612329 |
