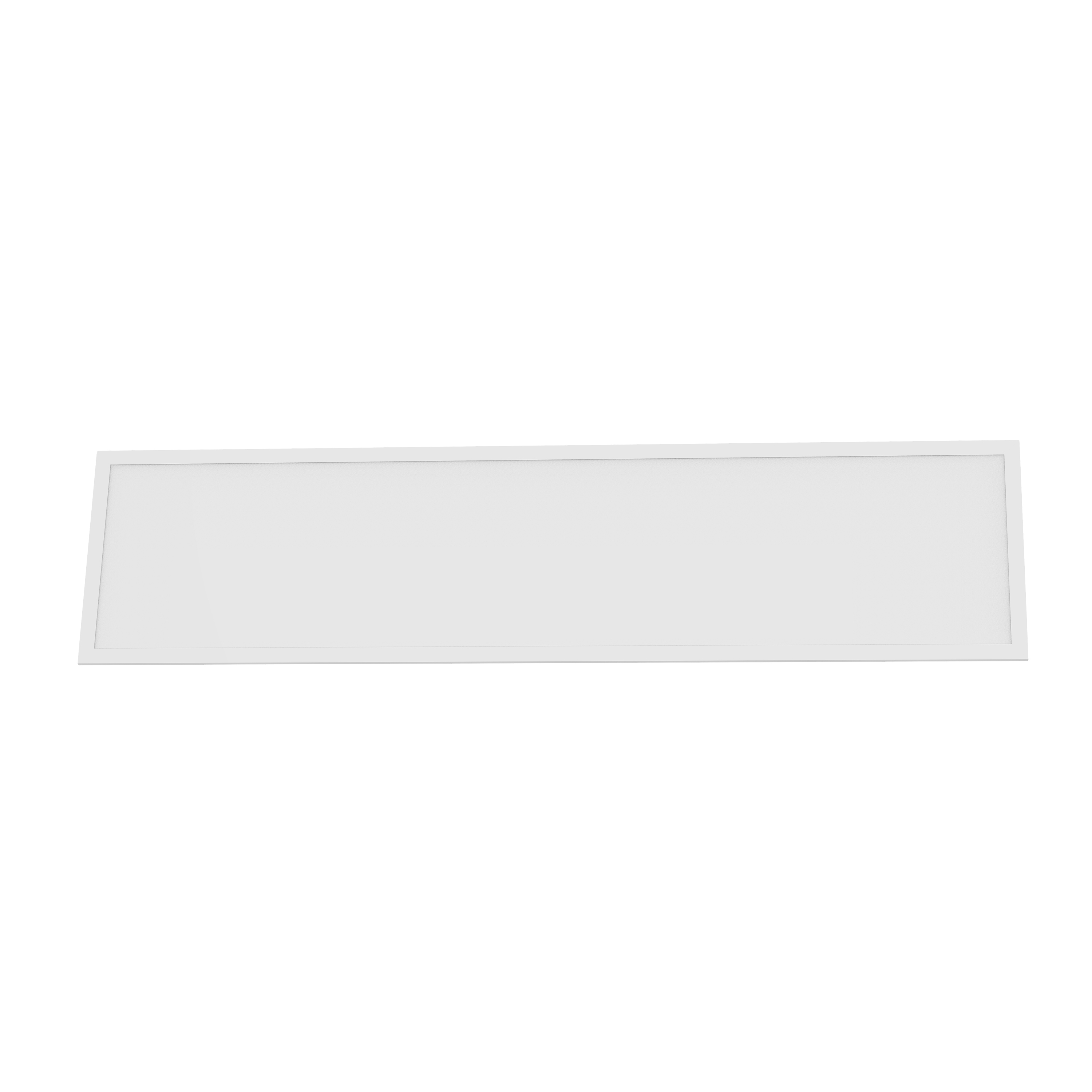

Pro Cyanosis Panel LPANP0312ND 40W TC UGR19 white, spacial
PRO CYANOSIS TRI CRI90 UGR19 PANEL

Pro Cyanosis Panel LPANP0312ND 40W TC UGR19

GTIN: 4099854612152 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Three selectable colour settings for versatile and adaptable ambiance
  • Various LED driver options to suit any application
  • High quality light and low glare design for visual comfort
  • Specifically designed for Cyanosis and Green Star standards
Areas of application
  • Offices and administrative buildings
  • Hospitals
  • Healthcare applications
  • Reception areas and foyers
  • Entrances / Hallways
  • Retail spaces
  • Hospitality
  • Libraries, schools
Product features
  • Tri colour selectable: 3000/3500/4000K
  • Micro-prismatic diffuser enables a low glare rating of UGR < 19 for enhanced visual comfort
  • Experience true-to-life colours with a high CRI > 90
  • Maintain colour consistency with SDCM < 3 for 3000 K and 4000 K
  • COI<3@4000K is compliant with Cyanosis standard
  • Seismic-compliant pre-installed tabs for secure overhead suspension installation
  • Driver options: 1-10V driver, phase-cut dimmable driver, and DALI dimmable driver
Electrical data
Nominal wattage 40 W 1)
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 650.000 mA
Power factor λ > 0.9
Protection class II
1) Max 40.00 W
Photometrical data
Luminous flux 4800 lm
Luminous efficacy 120 lm/W
Color temperature 3000 K/3500 K/4000 K
Light color (designation) Warm White…Neutral White…Cool White
Color rendering index Ra > 90
Standard deviation of color matching < 3 sdcm 1)
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Beam angle 90 °
UGR < 19
1) <3 sdcm - 3000K/4000K
Dimensions & Weight
Length 295.00 mm
Height 32.00 mm
Width 1195.00 mm
Product weight 1680.00 g
Materials & Colors
Product color White
Housing color White
Body material Aluminum
Glow Wire Test according to IEC 60695-2-12 650 °C
Application & Mounting
Ambient temperature range -10…+40 °C
Temperature range at storage -20…+55 °C
Type of protection IP54
Protection class IK (shock resistance) IK03
Dimmable Yes
Mounting type Recessed
Mounting location Ceiling
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 70000 h 1)
Lifespan L90/B10 at 25 °C 50000 h
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854612152 Folding box
1		 1,201 mm x 36 mm x 302 mm 2054.00 g 13.06 dm³
4099854577390 Shipping box
6		 1,272 mm x 270 mm x 385 mm 13630.00 g 132.22 dm³
Product image Product name Product brand Product component type GTIN
NON DIM (ON-OFF) LED DRIVER LDR40MW LEDVANCE Light control 4099854612343
DALI2.0 LED Driver LDR40MWDALI LEDVANCE Light control 4099854612398
PHASE DIM LED DRIVER LDR40WPD 40W 600-1050MA LEDVANCE Light control 4099854612374
User instruction / safety instructions
Pro Cyanosis Panel UI
PDF (1.11 MB)
Product image: white background, spacial
LPANP0312ND
JPG (245.66 KB)
Product line drawing with numbers
LPANP0312ND
SVG (54.77 KB)
IES file (IES)
4099854612152 LPANP0312ND
IES (10.3 KB)
