PANEL PLUS
LDVAL PAN 0612 49W DALI TRI UGR19
GTIN: 4099854247095
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Available in dual wattage version, phase dimming version and DALI version
- High luminous efficacy
- Good glare reduction (UGR < 19)
Areas of application
- Offices, conference rooms
- Reception areas and foyers
- Entrances / Hallways
- Retail
- Hospitality
- Libraries, schools
Product features
- TRI colour in 3000K, 4000K and 5700K
- Beam angle: 90°
- Type of protection: IP54
- High luminous efficacy: up to 120 lm/W
- Pre-wired with flex and plug
- Lifetime up to 50,000 h
Electrical data
| Nominal wattage | 49.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 280.000 mA |
| Power factor λ | > 0.90 |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 5850 lm |
| Luminous efficacy | 120 lm/W |
| Color temperature | 3000 … 5700 K |
| Light color (designation) | Warm White, Cool White, Cool Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 5 sdcm |
| Beam angle | 90 ° |
| UGR | < 19 |
Dimensions & Weight
| Length | 1195.00 mm |
| Height | 34.00 mm |
| Width | 595.00 mm |
| Product weight | 3700.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -10…+40 °C |
| Type of protection | IP54/IP20 |
| Dimmable | Yes |
| Type of dimming | DALI |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting length | 1195.0 mm |
| Mounting width | 595.00 mm |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854247095 | Folding box 1 |
1,251 mm x 42 mm x 603 mm | 4267.00 g | 31.68 dm³ |
| 4099854247101 | Shipping box 4 |
1,272 mm x 192 mm x 630 mm | 18366.00 g | 153.86 dm³ |

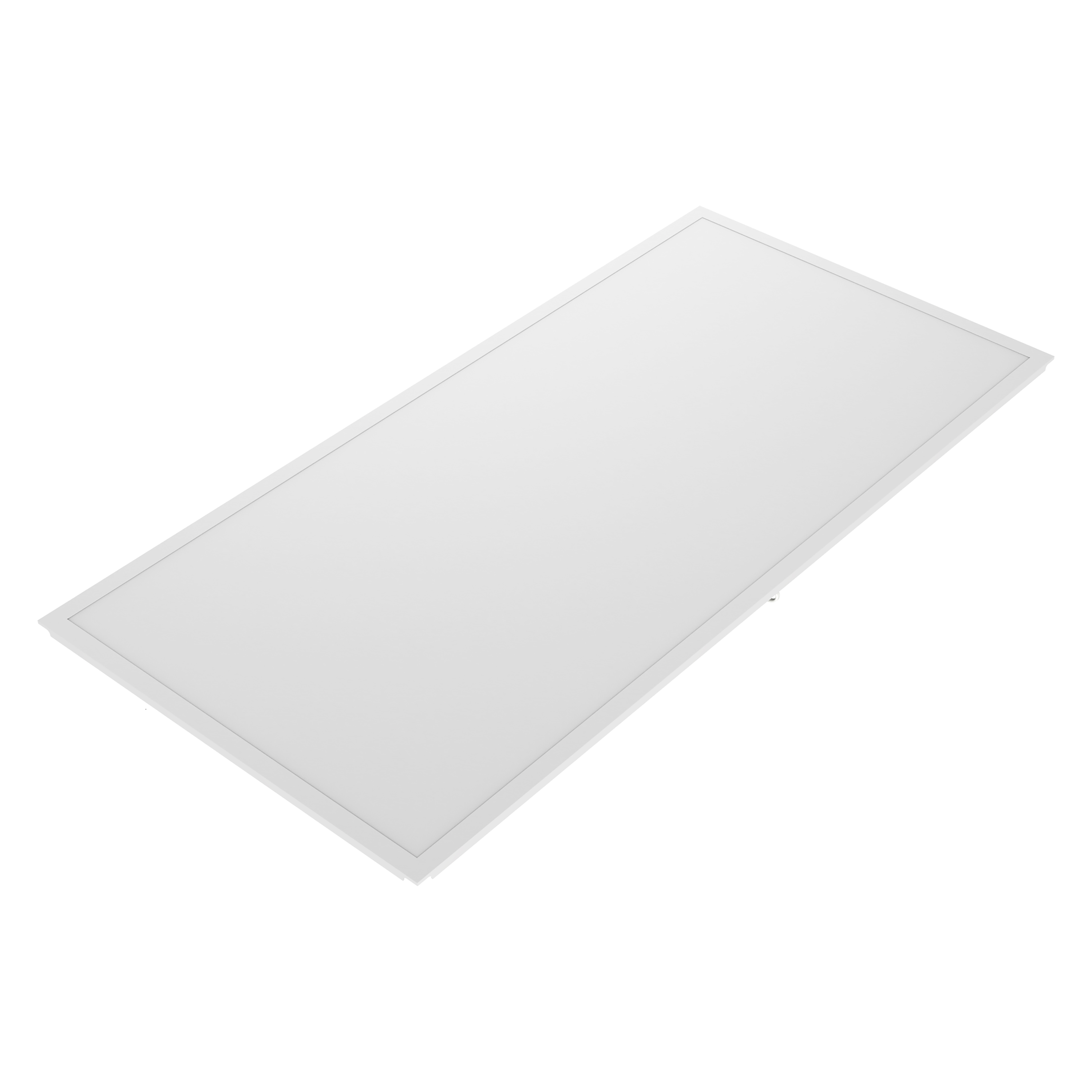

Product image: white background, diagonal
PANEL 600x1200 FRONT
PANEL 600x1200 FRONT
Product line drawing with numbers
LDECO PANEL 0612B 65W H
LDECO PANEL 0612B 65W H
| EAN | AU model number |
|---|---|
| 4099854247095 | LDVPAN061249WTRIDALI |
