LINKABLE BATTEN
LDVAL BATTEN 600 6.5W 840
GTIN: 4099854114991
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Value for money luminaire
- Mercury-free technology
- Accessories for flexible mounting options included
Areas of application
- Offices
- Residential interiors
- Hotels, restaurants, shops
Product features
- Protection class: II
- Color rendering index Ra: ≥ 80
- Type of protection: IP20
- Lifetime up to 15,000 h
Electrical data
| Nominal wattage | 6.50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Power factor λ | > 0.5 |
| Protection class | II |
Photometrical data
| Luminous flux | 650 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Beam angle | 100 ° |
Dimensions & Weight
| Length | 585.00 mm |
| Height | 31.00 mm |
| Width | 20.00 mm |
| Product weight | 175.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Plastic |
Application & Mounting
| Ambient temperature range | -10…+40 °C |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 15000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854114991 | Folding box 1 |
595 mm x 50 mm x 43 mm | 257.00 g | 1.28 dm³ |
| 4099854115004 | Shipping box 30 |
610 mm x 275 mm x 285 mm | 8408.00 g | 47.81 dm³ |

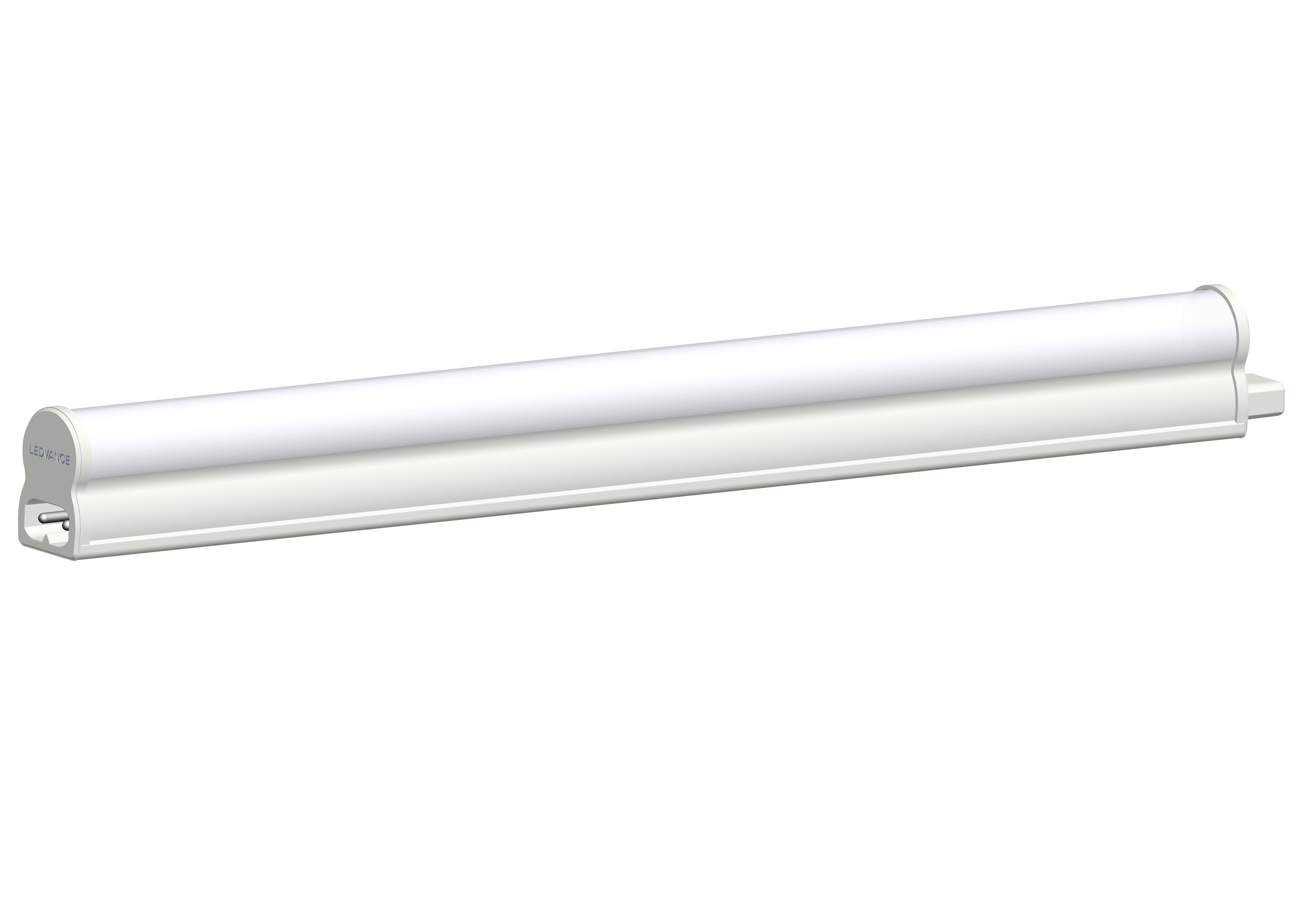

Product image: white background, spacial
Linkable batten
Linkable batten
| EAN | AU model number |
|---|---|
| 4099854114991 | LDVVALBAT2FT840G4 |
