TRI COLOUR MULTI WATTAGE HIGHBAY ACCESSORIES
LDP HB TRI MOTION SENSOR
GTIN: 4099854118197
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Industrial and commercial halls
- Warehouses
- Public areas (stations, stadiums)
- Airports
Dimensions & Weight
| Diameter | 56 mm |
| Height | 28 mm |
| Product weight | 30.00 g |
Application & Mounting
| Ambient temperature range | -30…+50 °C |
| Mounting location | Luminaire |
| Replaceable light source | No |
Lifespan
| Lifespan L90/B10 at 25 °C | 50000 h |
Sensor
| Type of sensor | Motion |
| Sensor technology | Microwave |
| Sensor controlled switching time | 10 s … 30 min |
| Detection range of motion sensor | 6…15 m |
| Detection threshold of daylight sensor | 10…100 lx |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854118197 | Folding box 1 |
58 mm x 58 mm x 41 mm | 41.00 g | 0.14 dm³ |
| 4099854118203 | Shipping box 50 |
315 mm x 135 mm x 232 mm | 2290.00 g | 9.87 dm³ |

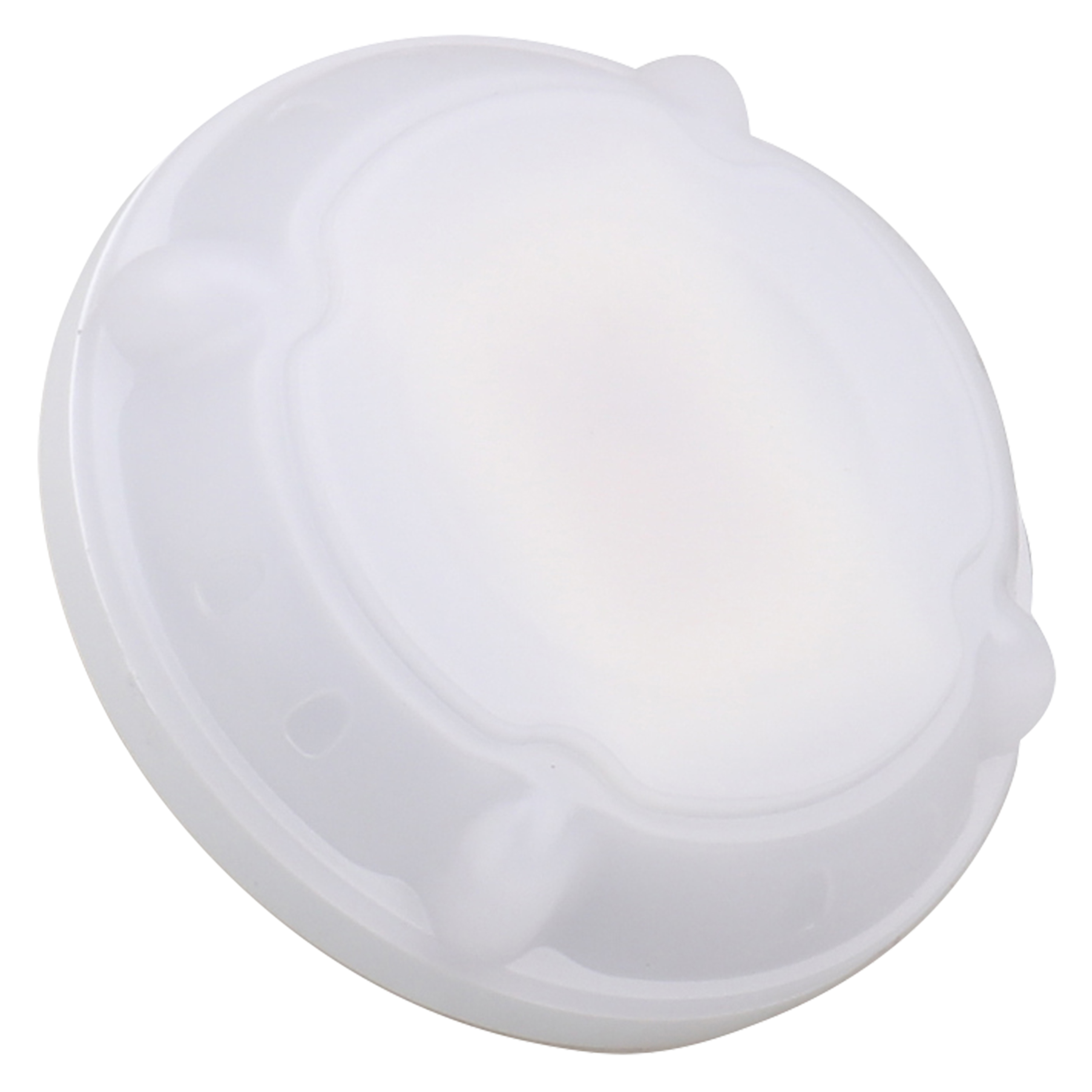

Product image: white background, spacial
LDP HB TRI SENSOR
LDP HB TRI SENSOR
Product line drawing with numbers
LDP HB TRI SENSOR
LDP HB TRI SENSOR
| EAN | AU model number |
|---|---|
| 4099854118197 | LDVHBTMS |
