TRI COLOUR MULTI WATTAGE HIGHBAY

LDP HB TRI 60-80-100W TRI

GTIN: 4099854115622 Shipping box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • UV resistant PC lens offer a durable service
Areas of application
  • Industrial and commercial halls
  • Warehouses
  • Public areas (stations, stadiums)
  • Airports
Product features
  • High luminous efficacy: up to 150 lm/W
  • DALI version available
  • Power factor: ≥ 0.9
  • Color rendering index Ra: ≥ 80
  • Type of protection: IP65
  • Impact resistance: IK08
  • Long lifetime up to 50,000 h
  • Die-cast aluminum housing
Electrical data
Nominal wattage 100.00 W
Nominal voltage 100…277 V
Mains frequency 50…60 Hz
Protection class I
Photometrical data
Luminous flux 14000 lm
Luminous efficacy 140 lm/W
Color rendering index Ra ≥80
Beam angle 90 °
Dimensions & Weight
Diameter 280.00 mm
Height 146.00 mm
Product weight 2235.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Aluminum
Mercury content 0.0 mg
Application & Mounting
Type of protection IP65
Dimmable Yes
Type of dimming 1-10V
Replaceable light source No
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854115622 Shipping box
1		 305 mm x 305 mm x 137 mm 2685.00 g 12.74 dm³

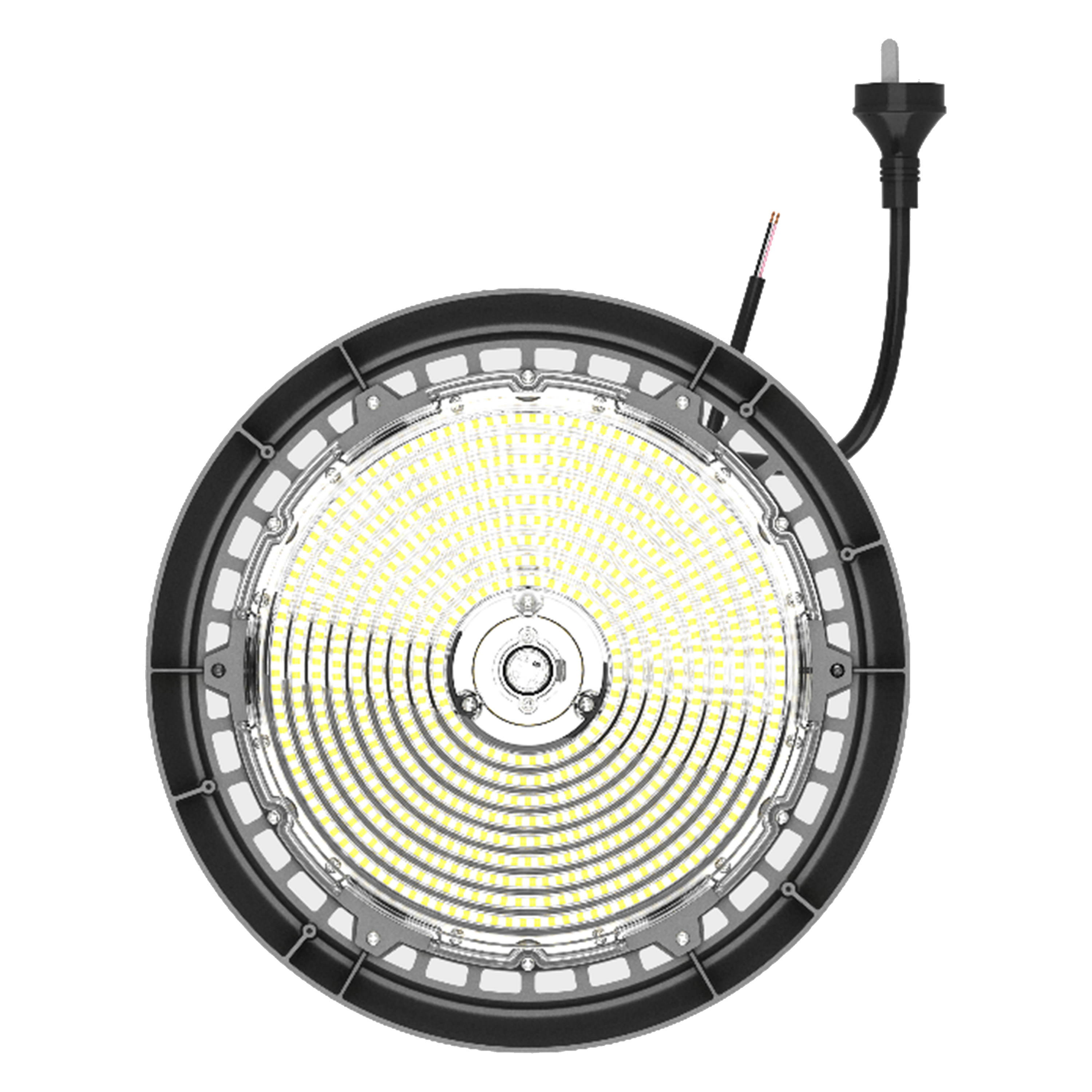

Product image: white background, upright
LDP HB TRI
JPG (1.92 MB)

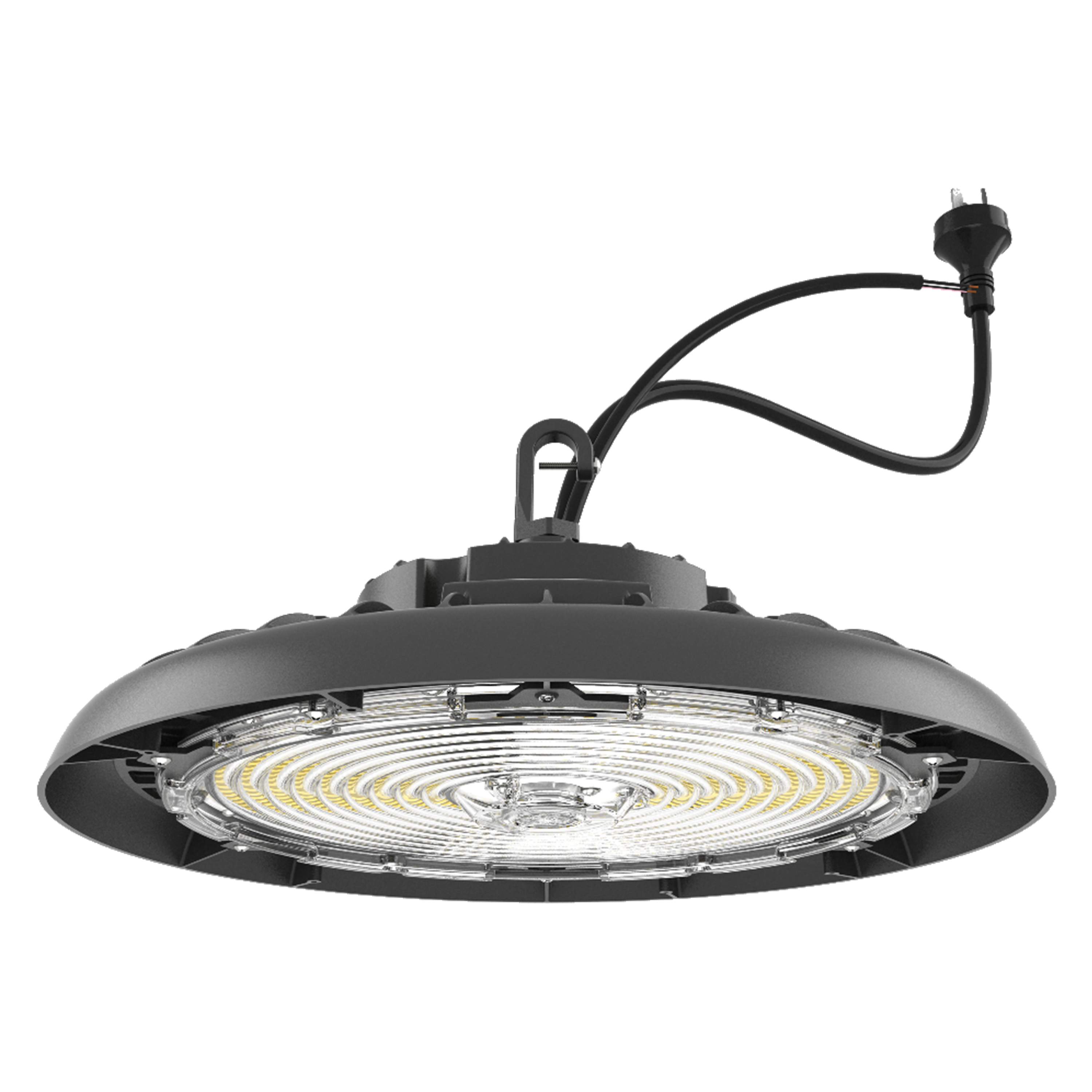

Product image: white background, spacial
LDP HB TRI
JPG (1.4 MB)

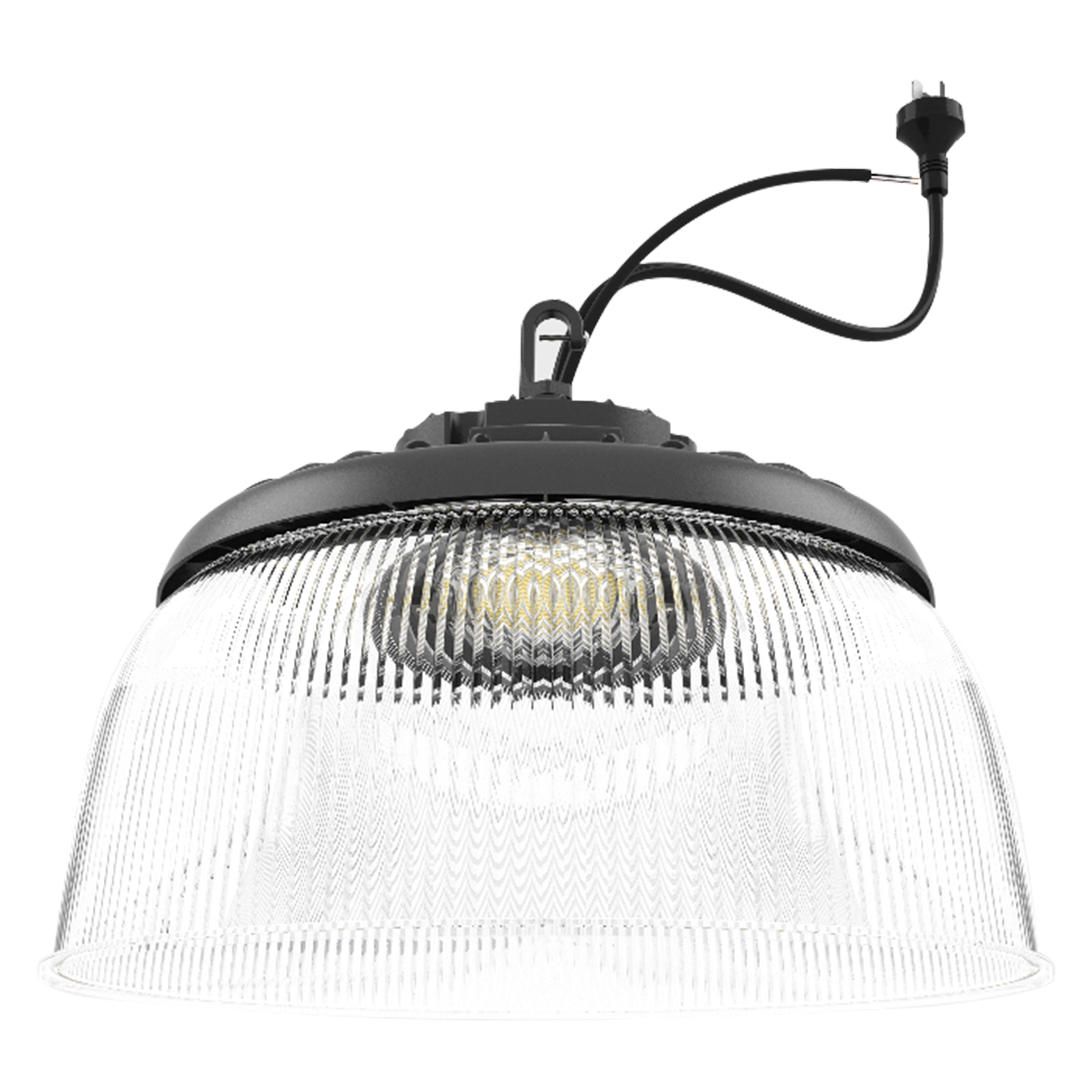

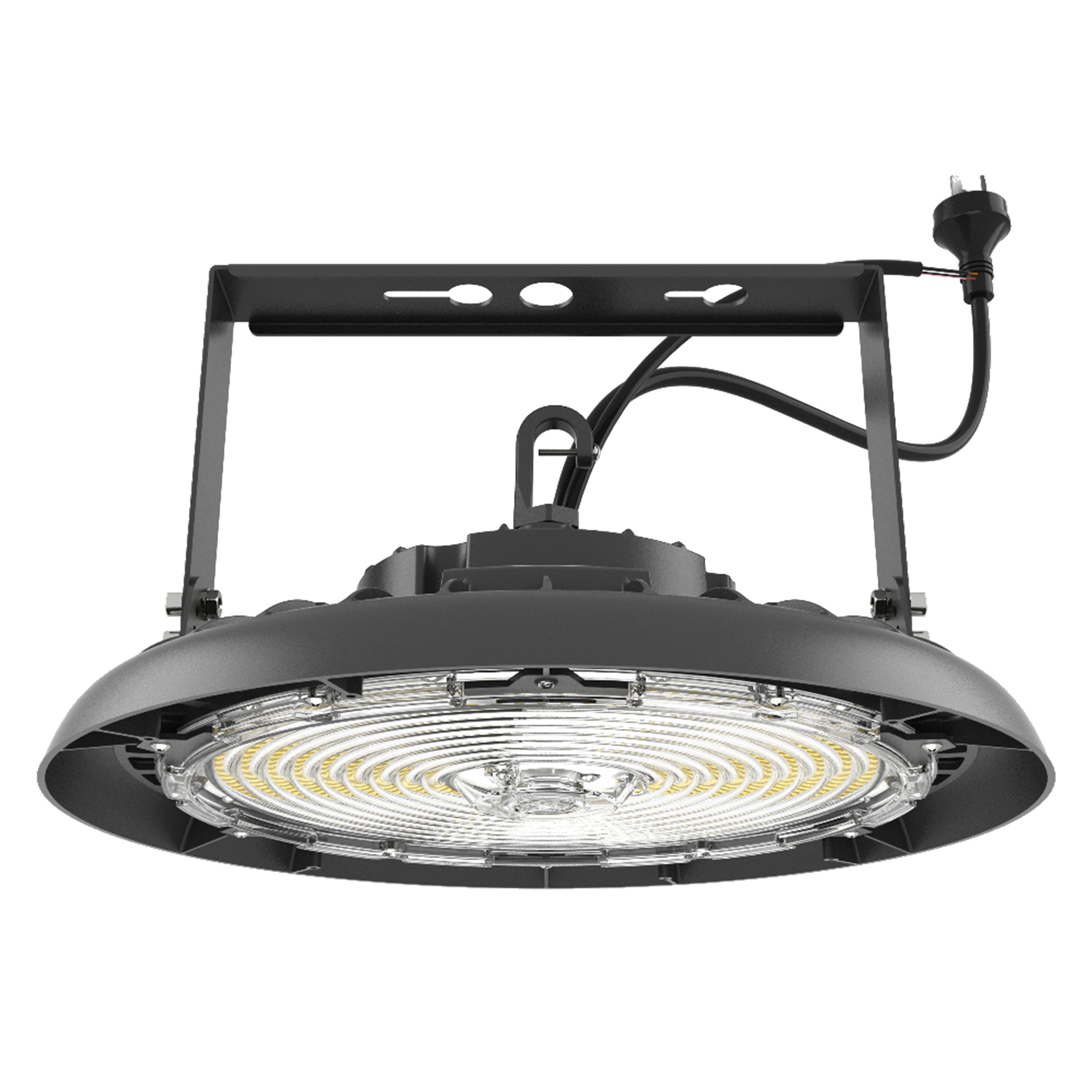

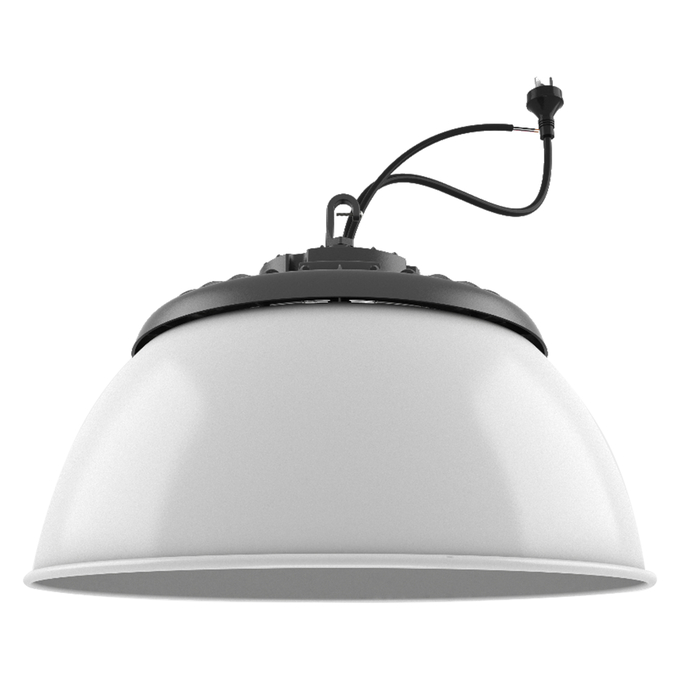

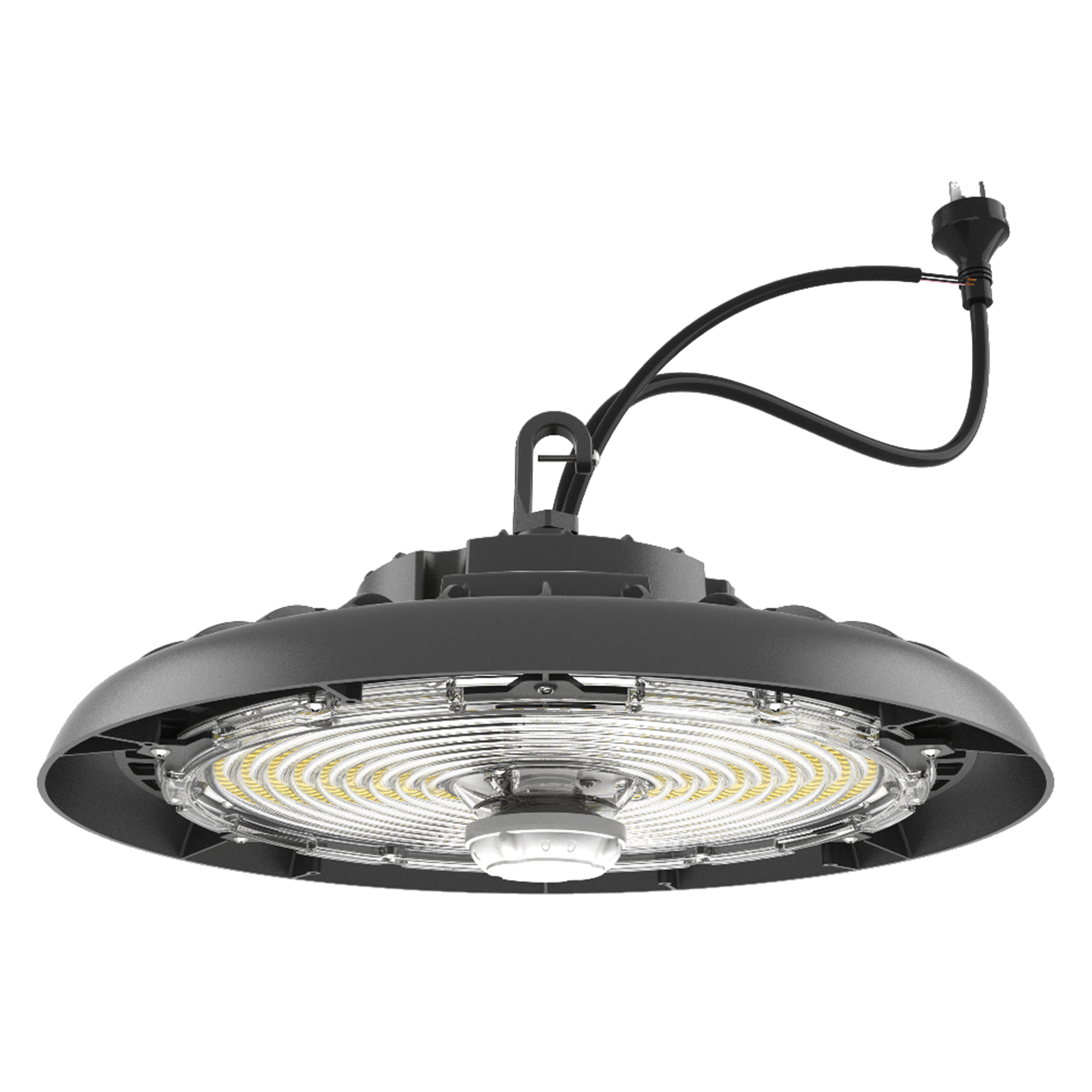

Product image: white background, with accessory, alternative image
LDP HB TRI
JPG (1.64 MB)
Product image: white background, with accessory, alternative image
LDP HB TRI
JPG (1.53 MB)
Product image: white background, with accessory, alternative image
LDP HB TRI
JPG (1.32 MB)
Product image: white background, with accessory, alternative image
LDP HB TRI
JPG (1.39 MB)
EAN AU model number
4099854115622 LDVHB60-100WTRI
