TRI COLOUR MULTI WATTAGE FLOODLIGHT MID POWER
FLOODLIGHT 120-160-200W TRI
GTIN: 4099854122064
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Public areas
- Outdoor applications
- Gardens
- Pathway lighting
- Storage rooms
- Garages
Product features
- TRI CCT (3000K/4000K/6500K)
- High luminous efficacy: up to 140 lm/W
- Type of protection: IP65
- Impact resistance: IK07
- Surge protection: up to 6 kV (L/N-PE), 4 kV (L-N)
- Aluminium housing
- Pre-wired with mains cable
- Marine grade coating of 800-hour salt spray test
- Lifetime up to 50,000 h
Electrical data
| Nominal wattage | 120 W / 160 W / 200 W |
| Nominal voltage | 110…277 V |
| Mains frequency | 50/60 Hz |
| Power factor λ | > 0.90 |
Photometrical data
| Luminous flux | 18200 lm / 23500 lm / 28000 lm |
| Luminous efficacy | 140 lm/W |
| Color temperature | 3000 K / 4500 K / 6500 K |
| Light color (designation) | Warm White, Cool White, Cool Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤5 sdcm |
| Beam angle | 55 ° x 100 ° |
Dimensions & Weight
| Length | 390.00 mm |
| Height | 58.00 mm |
| Width | 306.00 mm |
| Product weight | 4100.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
Application & Mounting
| Ambient temperature range | -30…+50 °C |
| Type of protection | IP65 |
| Dimmable | No |
| Mounting type | Surface |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854122064 | Folding box 1 |
447 mm x 87 mm x 362 mm | 4462.00 g | 14.08 dm³ |
| 4099854122071 | Shipping box 2 |
465 mm x 195 mm x 390 mm | 9419.00 g | 35.36 dm³ |

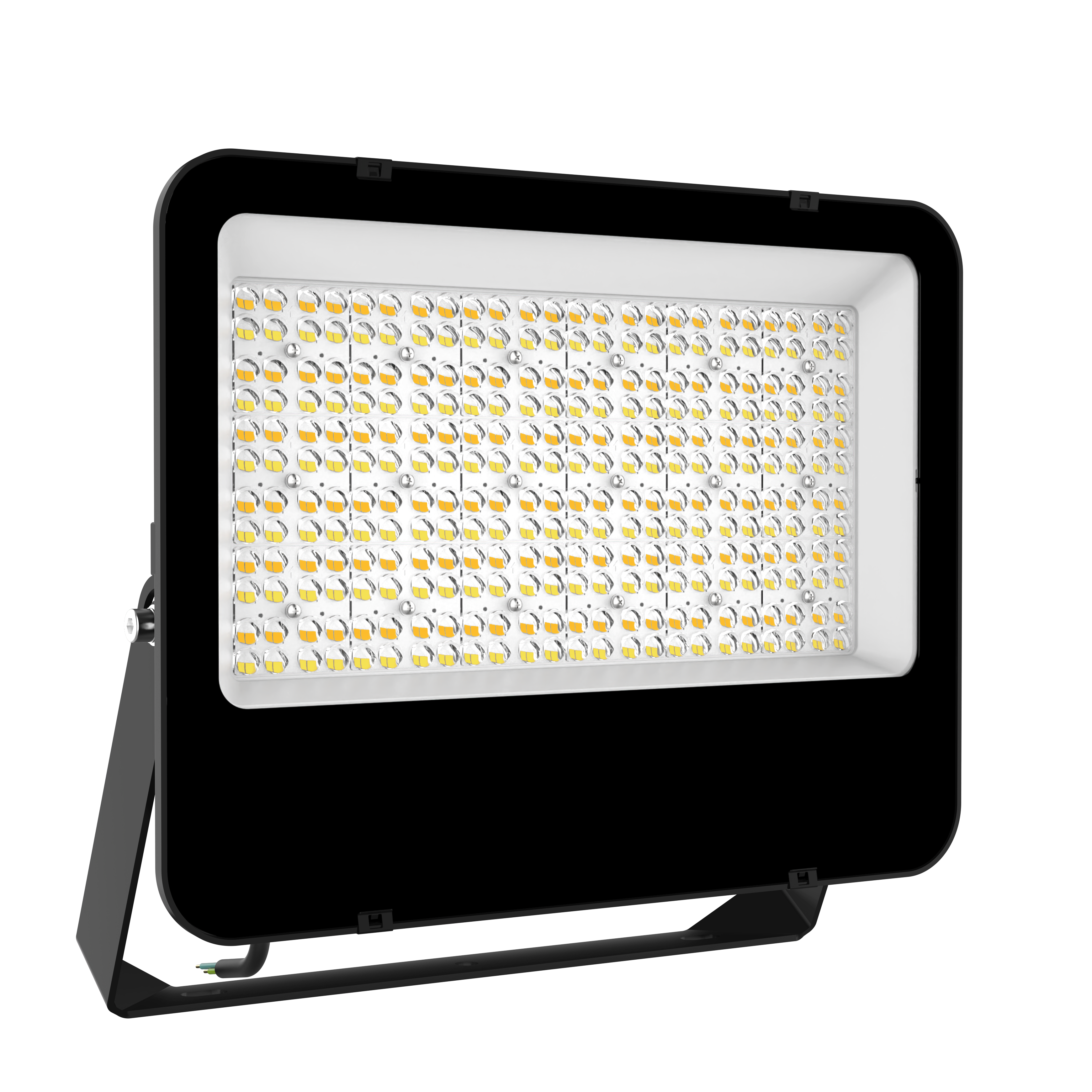

Product image: white background, diagonal
LDVAL FL ASYM 120-160-200W
LDVAL FL ASYM 120-160-200W
| EAN | AU model number |
|---|---|
| 4099854122064 | LDVFL120-200WASYTRI |
