FLOODLIGHT MAX

FL MAX POWER SUPPLY P 900W

GTIN: 4099854203008 Shipping box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Available in standard version and remote driver version
Areas of application
  • Public areas
  • Construction areas
  • Car parks
  • Sports facilities
  • Commercial lighting
Product features
  • Available with wattage: 600W, 900W, 1200W
  • Color temperature: 5700 K
  • 1…10 V dimming control
  • Available with 10°, 30° and 60° symmetric beam angles, as well as 50°x110° asymmetric light distribution
  • Type of protection: IP66
  • Impact resistance: IK08
  • Die-cast aluminum housing
  • Lifetime: up to 100,000 h
Electrical data
Nominal wattage 900.00 W
Nominal voltage 200…277 V
Mains frequency 50…60 Hz
Protection class I
Dimensions & Weight
Length 270.00 mm
Height 166.00 mm
Width 447.00 mm
Product weight 10500.00 g
Materials & Colors
Cover material Aluminium
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -30…+50 °C
Temperature range at storage -40…+70 °C
Type of protection IP67
Protection class IK (shock resistance) IK08
Dimmable No
Replaceable light source No
Certificates & Standards
Standards CB, EMC, ROHS, SASO
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854203008 Shipping box
1		 502 mm x 353 mm x 222 mm 13250.00 g 39.34 dm³

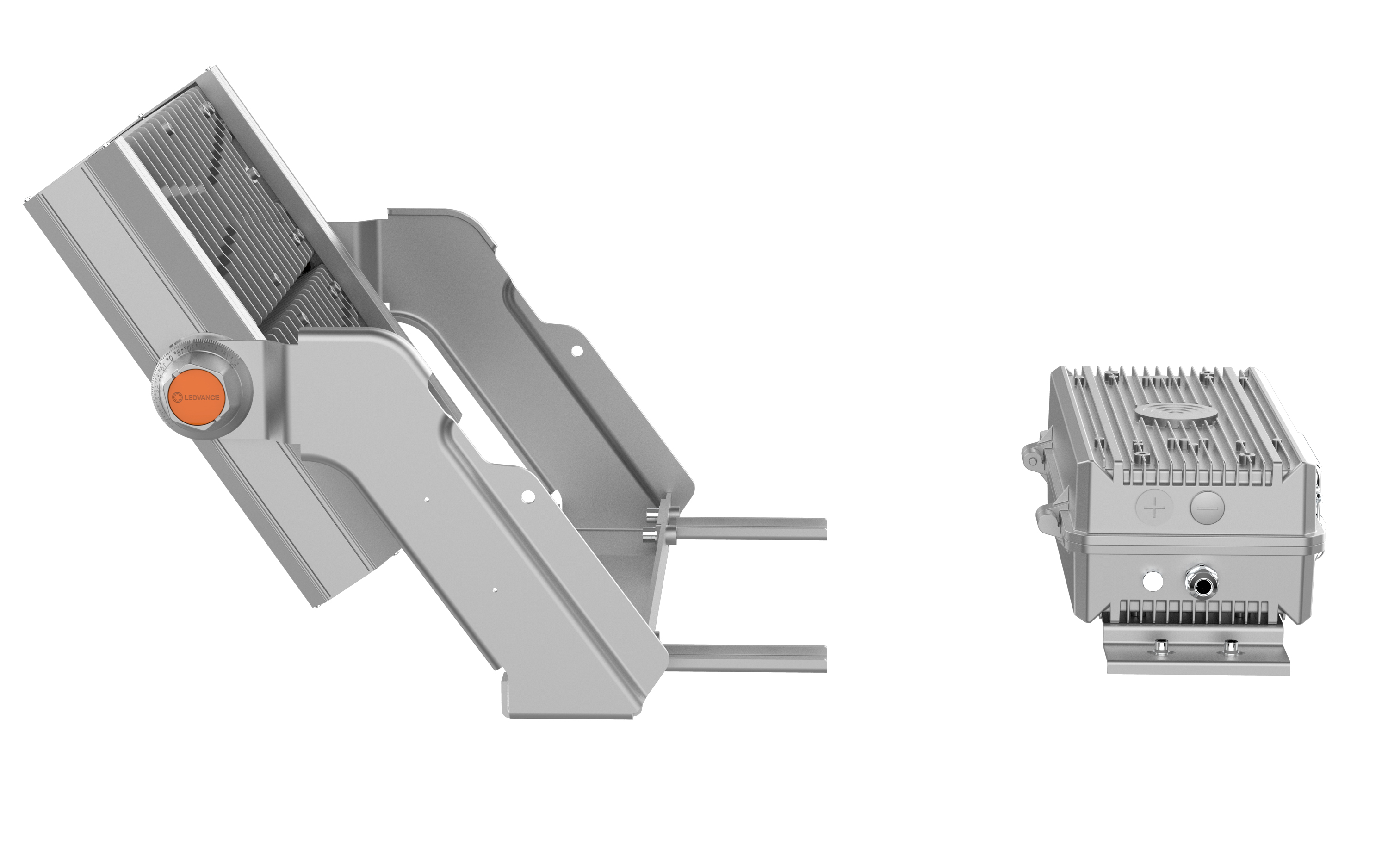

Product image: white background, spacial
FL MAX POWER SUPPLY
JPG (1.04 MB)

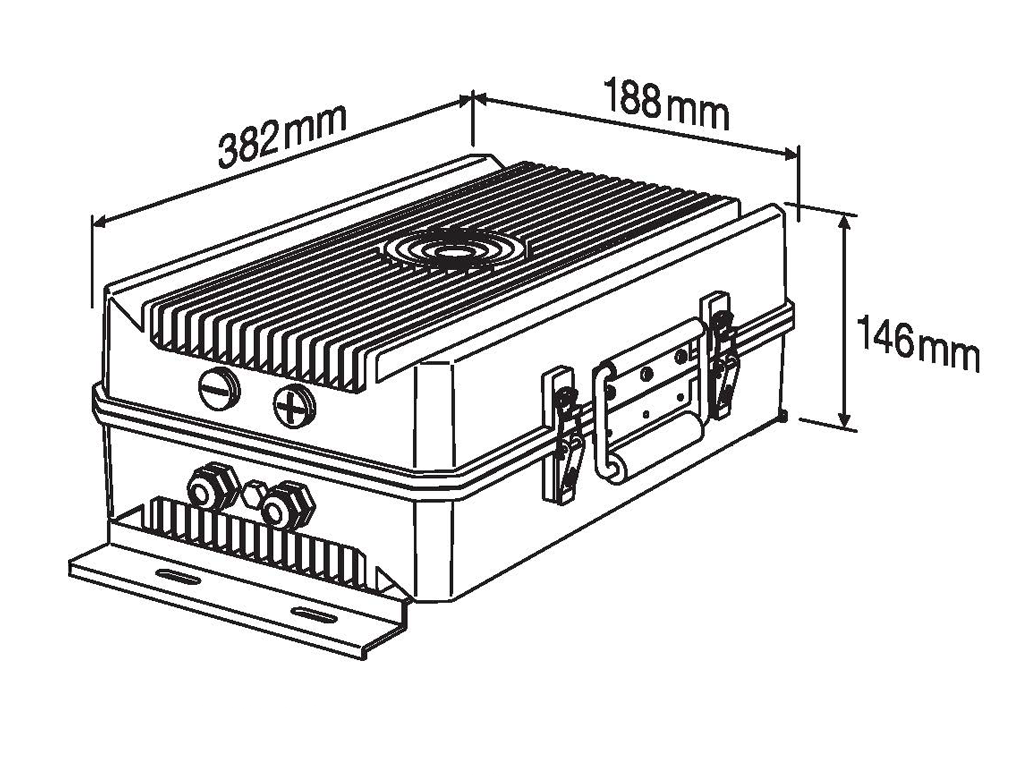

Product line drawing with numbers
FL MAX POWER SUPPLY P 900W/1200W
PNG (471.76 KB)
EAN AU model number
4099854203008 LDVFLPS900W
