LED VALUE MULTIPOWER FLOODLIGHT
LED VALUE FLOODLIGHT 300W 4000K 30DEG IP66
GTIN: 4099854148255
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Low maintenance costs thanks to long lifetime 50,000 hrs @ 35 ℃
- Energy savings thanks to system efficacy of up to 150 lm/W
Areas of application
- Sports grounds and outdoor facilities
- Area lighting
- Public areas
Product features
- Input voltage: 100 - 277V AC
- Available with selectable wattage: 210 W/250 W/300 W in 300 W version
- Available with selectable wattage: 330 W/420 W/500 W in 500 W version
- Standard CCT: 6500 K and 4000 K
- Color rendering index Ra: ≥ 80
- Power factor: ≥ 0.9
- Lifetime up to 50,000 h
- Type of protection: IP66
- Impact resistance: IK08
Electrical data
| Nominal wattage | 300.00 W |
| Nominal voltage | 100…277 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 1.96…5 A |
| Inrush current time Th50 | 1800 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 3 |
| Max. number of luminaires per miniature circuit breaker C16 | 6 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 42000 lm |
| Luminous efficacy | 140 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 5 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 30 ° |
Dimensions & Weight
| Length | 432.00 mm |
| Height | 105.00 mm |
| Width | 445.00 mm |
| Product weight | 6600.00 g |
| Cable length | 500 mm |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 750 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -30…+50 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall, Pole |
| Mounting width | 300 mm |
| Adjustable | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Number of switching cycles | 30000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CB, EMC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854148255 | Shipping box 1 |
582 mm x 457 mm x 192 mm | 8228.00 g | 51.07 dm³ |
User instruction / safety instructions
LDV FL
LDV FL

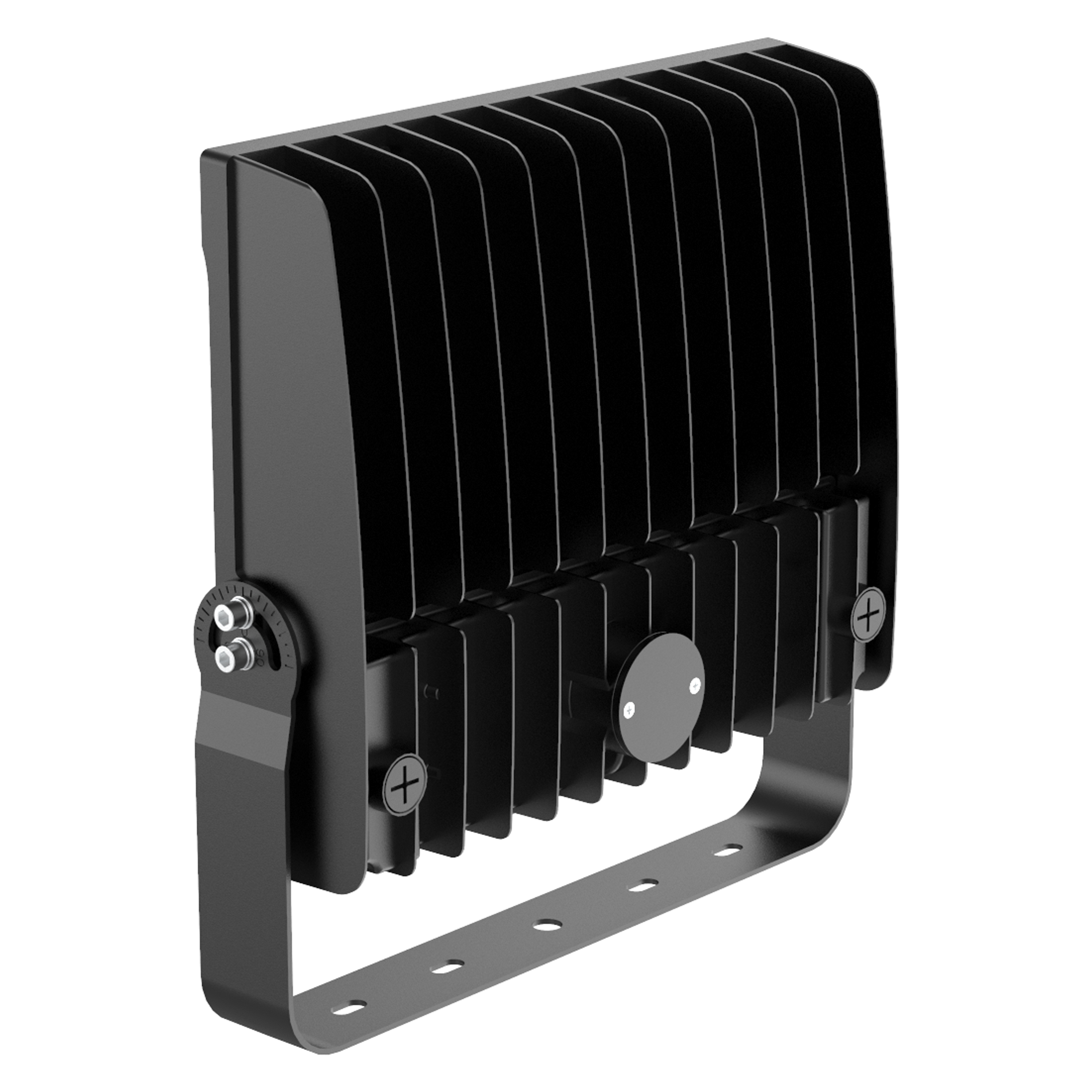

Product image: white background, diagonal with LEDVANCE logo
FLOODLIGHT MULTIPOWER 300 W
FLOODLIGHT MULTIPOWER 300 W

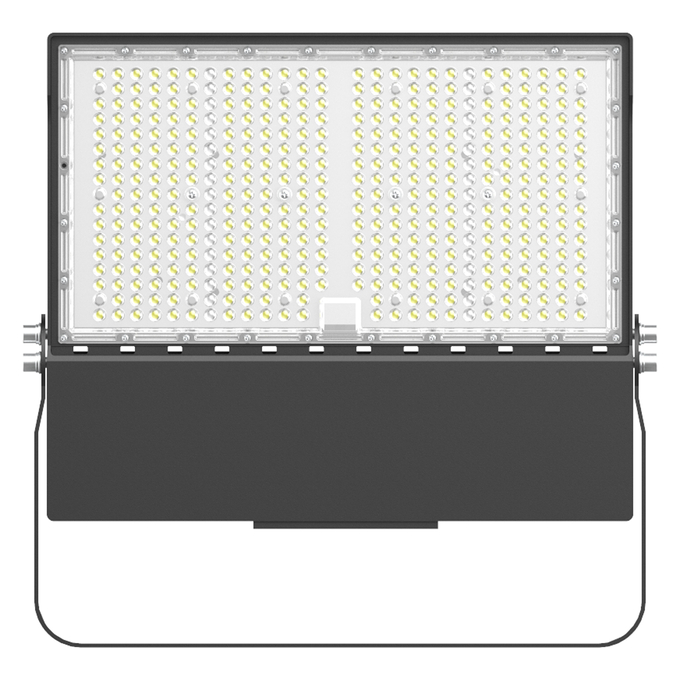

Product image: white background, upright LEDVANCE logo
floodlight miltipower 300w
floodlight miltipower 300w

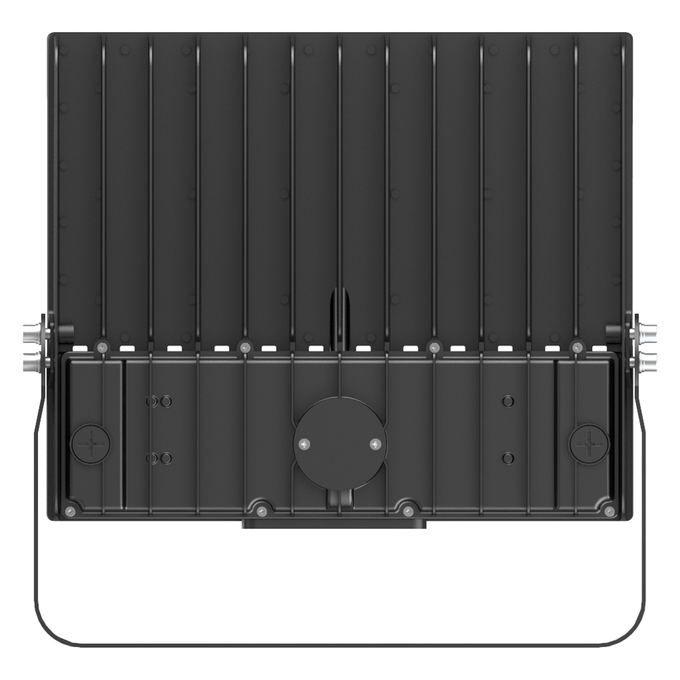

Product image: white background, upright
LDV FL 210-250-300W
LDV FL 210-250-300W

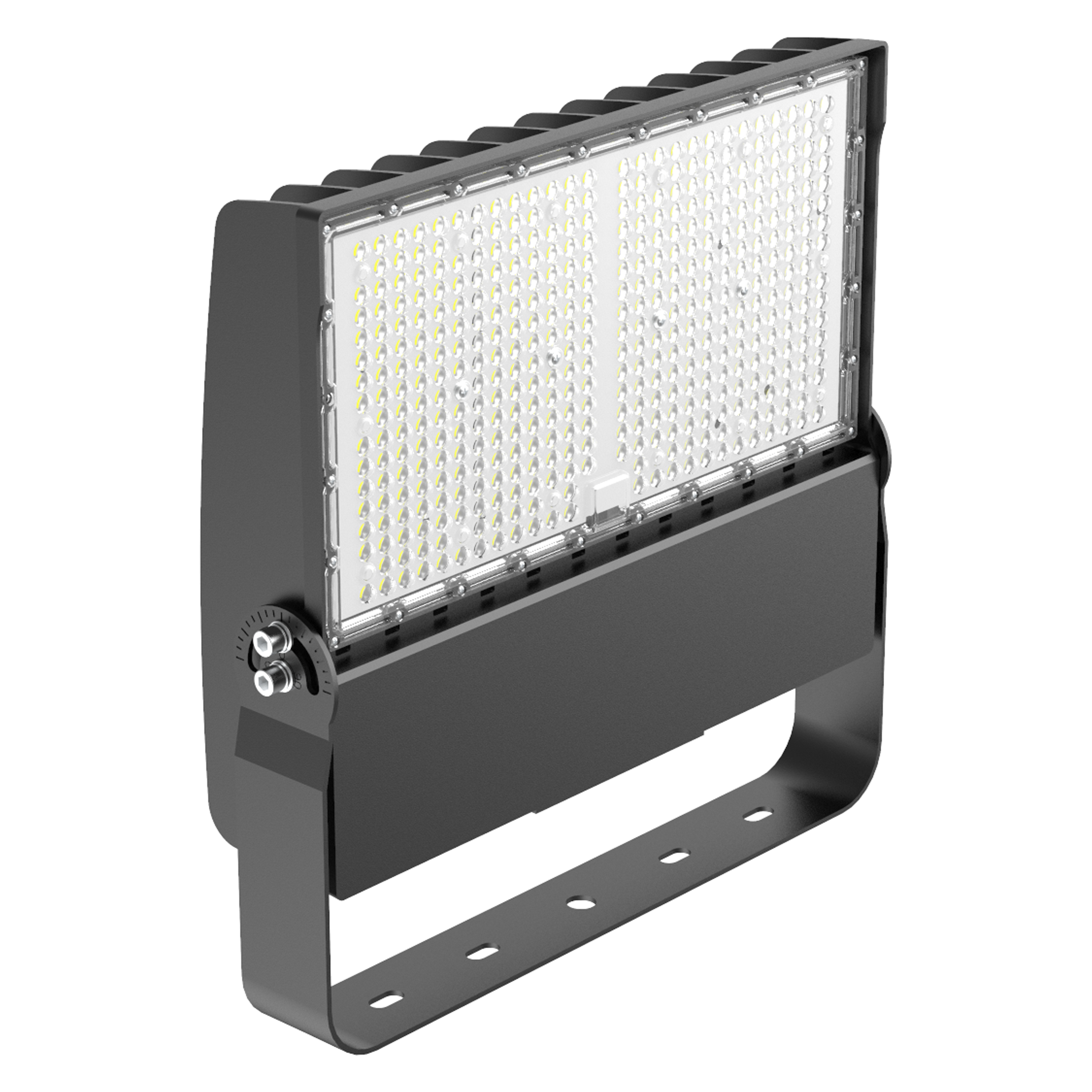

Product image: white background, spacial
LDV FL 210-250-300W
LDV FL 210-250-300W
IES file (IES)
LDV FL 210-250-300W 30D 840
LDV FL 210-250-300W 30D 840
| EAN | AU model number |
|---|---|
| 4099854148255 | LDVFL300W30840 |
