NEW

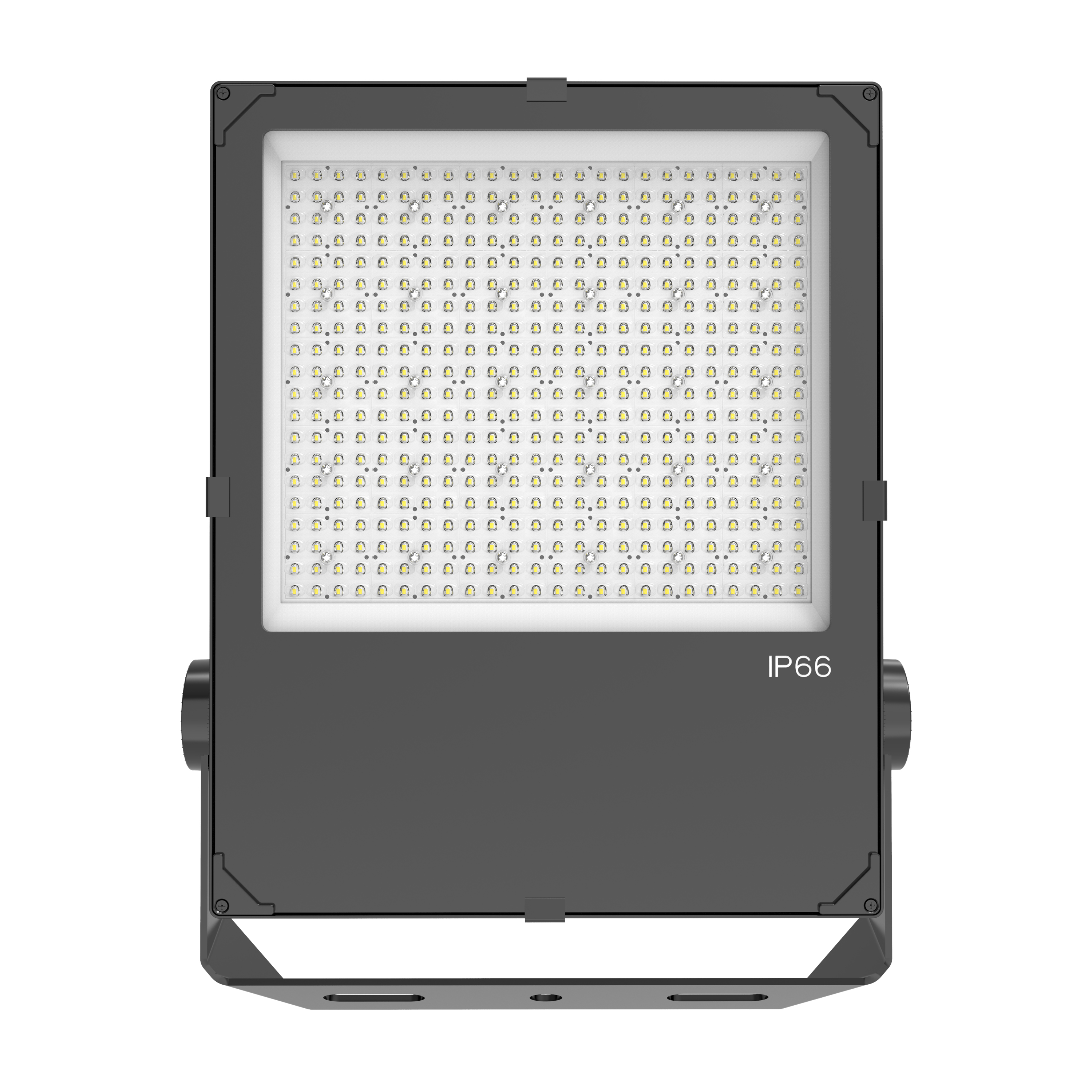

MAXPRO FLOODLIGHT
MAXPRO FL LFLMP300MW 300/200/150W 5000K
GTIN: 4099854526558
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Bright, robust and durable
- Highly versatile due to selectable power steps (Multi Lumen) on the housing
- 5 years guarantee
- Durable: robust, corrosion-resistant luminaire housing
Areas of application
- Industrial lighting (e.g. manufacturing plants, logistic centers, warehouses)
- Sports facilities
- City roads, industrial roads, parking lots
- Tunnels, underpasses
Product features
- Multi Power and Multi lumen, power selectable
- Luminous efficacy: 160 lm/W
- Corrosion-resistant casing made of powder-coated die-cast aluminum
- Asymmetric light distribution for area lighting
- Flicker free
- Input voltage: 110…277 V
- Surge protection: up to 6 kV (L-N), 6 kV (L/N-PE)
- Overtemperature protection: Thermal management at high tc temperatures
Electrical data
| Nominal wattage | 300 W / 200 W / 150 W |
| Nominal voltage | 110…277 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 1310.000 mA |
| Inrush current | 120 A |
| Inrush current time Th50 | 316 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 3 |
| Max. number of luminaires per miniature circuit breaker C10 | 3 |
| Max. number of luminaires per miniature circuit breaker C16 | 5 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 18 % |
| Protection class | I |
| Surge capability (L-N) | > 6 kV |
| Surge capability (L/N-Ground) | > 6 kV |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 48000 lm / 32000 lm / 24000 lm |
| Luminous efficacy | 160 lm/W |
| Color temperature | 5000 K |
| Light color (designation) | White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | < 6 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 60 ° x 135 ° |
Dimensions & Weight
| Length | 423.00 mm |
| Height | 71.00 mm |
| Width | 542.00 mm |
| Product weight | 10300.00 g |
| Cable length | 1500 mm |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Glass |
| Light emitting surface material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall, Pole, Floor, Ceiling |
| Application environment | Outdoor |
| Adjustable | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 36000 h 1) |
| Lifespan L90/B10 at 25 °C | 74 000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 1302 mA |
| ECG - Output ripple current | < 5 % |
Certificates & Standards
| Standards | CB, RCM |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854526558 | Shipping box 1 |
595 mm x 455 mm x 125 mm | 11400.00 g | 33.84 dm³ |
User instruction / safety instructions
MAXPRO FLOODLIGHT ASYM 60X135
MAXPRO FLOODLIGHT ASYM 60X135
Product image: white background, spacial
MAXPRO FLOODLIGHT ASYM 60X135 300/200/150W 5000K
MAXPRO FLOODLIGHT ASYM 60X135 300/200/150W 5000K
Product line drawing with numbers
MAXPRO FLOODLIGHT ASYM 60X135 300/200/150W 5000K
MAXPRO FLOODLIGHT ASYM 60X135 300/200/150W 5000K
Catalog info 1
MaxPro FL Bracket
MaxPro FL Bracket
IES file (IES)
MAXPRO FLOODLIGHT ASYM 60X135 300/200/150W 5000K
MAXPRO FLOODLIGHT ASYM 60X135 300/200/150W 5000K
| EAN | AU model number |
|---|---|
| 4099854526558 | LFLMP300MW |
