SUPERSTAR GIMBAL FLUSH DOWNLIGHT
SUPERSTAR GIMBAL FLUSH DLG11WWH 11W TC WH
GTIN: 4099854690792
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Three selectable colour temperatures and aimable design for versatile and adaptable ambiance
- Provides comfortable, flicker-free illumination for visual comfort
- Long lasting and energy efficient
Areas of application
- Residential interiors
- Hallways
- Offices
- Conference rooms
- Reception areas
- Retail stores
- Hospitality venues
- Hotels
Product features
- Tri colour selectable: 3000K/4000K/5700K
- High luminous efficacy: up to 100 lm/W
- ±30° gimbal mechanism to direct light exactly where it’s needed
- Dimmable, flicker-free illumination provides enhanced visual comfort
- IC-4 compliant for safe installation in insulated ceilings with no clearance
- 5-year warranty and a 50,000+ hours lifespan
- DALI 2.0 optional for advanced dimming and control integration
Electrical data
| Nominal wattage | 11.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 60.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 39 |
| Max. number of luminaires per miniature circuit breaker C16 | 66 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 1100 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 3000 K / 4000 K / 5700 K |
| Light color (designation) | Warm White; Cool White; Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 5 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 90 ° |
Dimensions & Weight
| Diameter | 110.00 mm |
| Length | 110.00 mm |
| Height | 46.00 mm |
| Width | 110.00 mm |
| Product weight | 370.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Type of connection | Plug type I |
| Type of protection | IP44/IP20 |
| Dimmable | Yes |
| Type of dimming | PHASE CUT |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 90 mm |
| Mounting depth | 46 mm |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 70000 h 1) |
| Lifespan L90/B10 at 25 °C | 45000 h |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854690792 | Folding box 1 |
125 mm x 62 mm x 120 mm | 405.00 g | 0.93 dm³ |
| 4099854519758 | Shipping box 50 |
645 mm x 325 mm x 255 mm | 20950.00 g | 53.45 dm³ |
User instruction / safety instructions
LDVAL GB SPOT 11W TRI DIM
LDVAL GB SPOT 11W TRI DIM

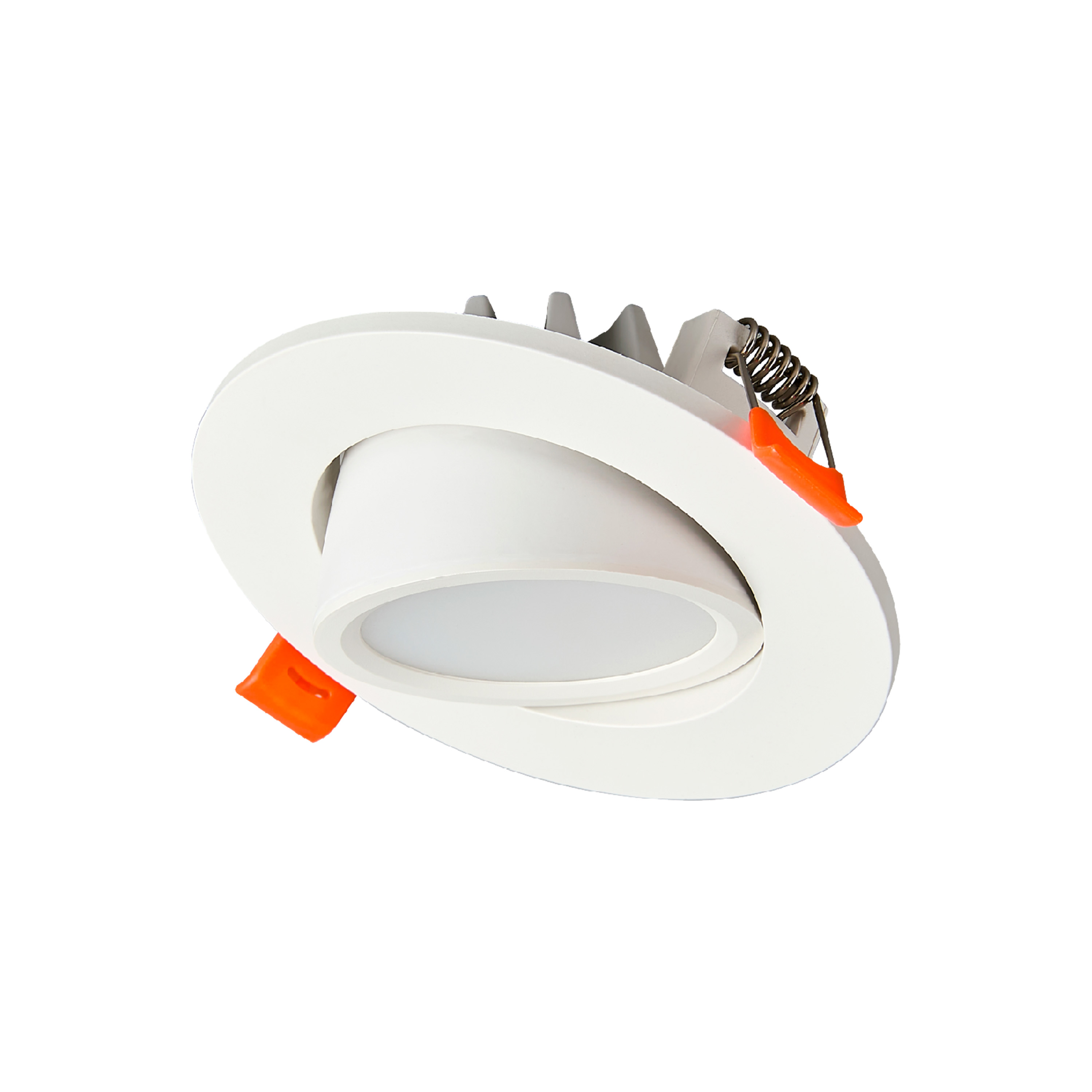

Product image: white background, diagonal
LDVAL GB SPOT 11W TRI DIM WH
LDVAL GB SPOT 11W TRI DIM WH

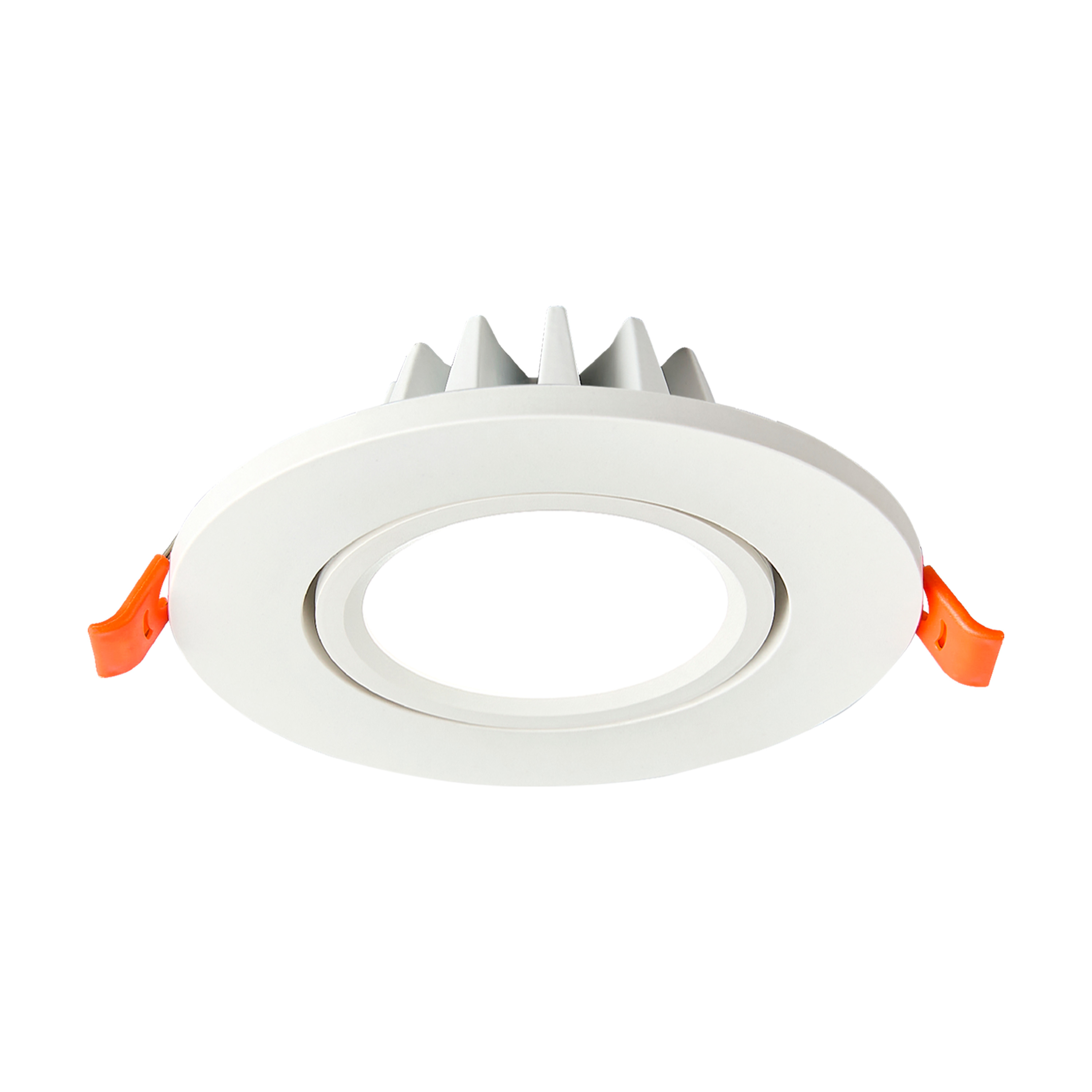

Product image: white background, upright
LDVAL GB SPOT 11W TRI DIM WH
LDVAL GB SPOT 11W TRI DIM WH
Product line drawing with numbers
LDVAL GB SPOT 11W TRI DIM
LDVAL GB SPOT 11W TRI DIM
IES file (IES)
LDVAL GB SPOT 11W TRI DIM WH
LDVAL GB SPOT 11W TRI DIM WH
| EAN | AU model number |
|---|---|
| 4099854690792 | DLG11WWH |
