NEW
PENTALITE SLIM DOWNLIGHT RECESSED
PENTALITE SL DL LDLS8WRWH 8W 5CCT WH R
GTIN: 4099854582462
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Five selectable colour temperatures for versatile and adaptable ambiance
- Creates a smooth, seamless transition from trim to ceiling
- Provides comfortable, flicker-free illumination for visual comfort
- Adapts to various ceiling types
- Complements any interior décor with stylish colour options
Areas of application
- Residential areas
- Hospitality
- Retail spaces
- Commercial Areas
Product features
- 5-colour selectable: 3000K/4000K/5000/5700/6500K
- Ultra-slim profile for low-clearance ceilings
- Chamfered engineered edge
- Sturdy spring-loaded clips
- Flicker-free remote driver
- Flush or recessed design
- White or black finishes
Electrical data
| Nominal wattage | 8.00 W |
| Nominal voltage | 220…240 V |
| Nominal current | 43.000 mA |
| Inrush current | 6.28 A |
| Inrush current time Th50 | 20 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 36 |
| Max. number of luminaires per miniature circuit breaker C10 | 37 |
| Max. number of luminaires per miniature circuit breaker C16 | 61 |
| Power factor λ | 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 800 lm |
| Luminous efficacy | 100 lm/W |
| Light color (designation) | Warm White, Cool White, Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 4 sdcm |
| Beam angle | 100 ° |
Dimensions & Weight
| Diameter | 110.00 mm |
| Length | 110.00 mm |
| Height | 40.00 mm |
| Width | 110.00 mm |
| Product weight | 196.00 g |
| Cable length | 1000 mm |
Materials & Colors
| Product color | White |
| Housing color | White |
| RAL Color (most similar) | RAL 9016 |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -20…+80 °C |
| Type of protection | IP54/IP20 |
| Dimmable | Yes |
| Mounting type | Recessed |
| Replaceable light source | No |
Lifespan
| Lifespan L90/B10 at 25 °C | 50000 h |
Control gear
| Output current | 100 mA |
Certificates & Standards
| Standards | RCM, CE |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854582462 | Folding box 1 |
115 mm x 65 mm x 115 mm | 217.00 g | 0.86 dm³ |
| 4099854520013 | Shipping box 40 |
479 mm x 365 mm x 256 mm | 9187.00 g | 44.76 dm³ |
User instruction / safety instructions
User Instruction PENTALITE SLIM DOWNLIGHT 8W
User Instruction PENTALITE SLIM DOWNLIGHT 8W

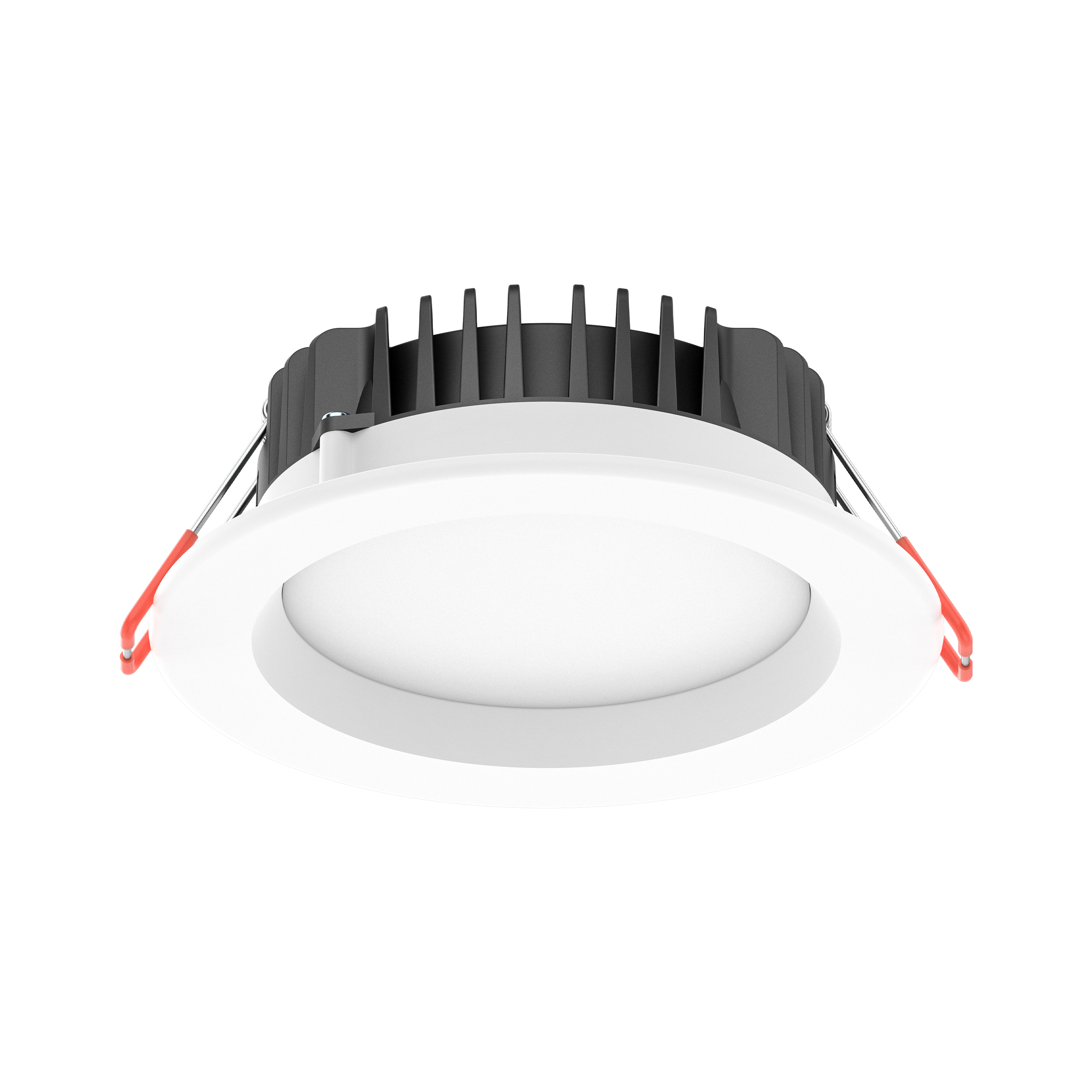

Product image: white background, upright
LDLS8WRWH
LDLS8WRWH
Product line drawing with numbers
PENTALITE SL DL LDLS8WR
PENTALITE SL DL LDLS8WR
IES file (IES)
LDLS8WRWH
LDLS8WRWH
| EAN | AU model number |
|---|---|
| 4099854582462 | LDLS8WRWH |
