DALI2.0 LED DRIVER
DALI2.0 LED Driver LDR12MWDALI
GTIN: 4099854910203
Folding box / 1
Show all packages
5-year warranty
PRODUCT DETAILS
Product benefits
- Flexible dip switch current settings on device in 50mA steps
- Push-DIM application for easy control
- Flicker-free dimming
- High quality dimming of 1…100 % by amplitude dimming
- 5 years guarantee
Areas of application
- Applicable for luminaires of protection classes I and II
- For indoor SELV installations
- Offices, shopping centers, hospitals, restaurants, hotels
Product features
- Multiple output current selectable
- Input Voltage: 220-240VAC, 176-280VDC
- Quick and easy current setting via Dip-Switch
- Lifetime up to 50,000 hours
- Operated with Safety extra-low voltage (SELV): < 60 V
Electrical data
| Nominal wattage | 12.00 W |
| Nominal output power | 12/10/8/6 W |
| Nominal voltage | 220…240 V |
| Nominal output voltage | 24…42 V |
| Input voltage range | 220…240 V |
| Input voltage AC | 198…264 V |
| Input voltage DC | 176…280 V |
| U-OUT (working voltage) | 60 V |
| Type of current | DC |
| Nominal current | 0.1 A |
| Nominal output current | 150 mA; 200 mA; 250 mA; 300 mA |
| Inrush current | 4.65 A |
| Output current tolerance | 5 % 1) |
| Output ripple current (120 Hz) | 3 % |
| Mains frequency | 0/50/60 Hz |
| Total harmonic distortion | < 10 % |
| Power factor λ | > 0.95 |
| ECG efficiency | 90 % |
| Surge capability (L-N) | 1 kV |
| Galvanic isolation | SELV |
| Operating frequency | 0/50/60 Hz |
| Power loss in stand-by mode | ≤0.3 W |
| Flickering metric (Pst LM) | <1 |
1) +/- @ 150 mA
Photometrical data
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
Dimensions & Weight
| Length | 98.00 mm |
| Width | 43.00 mm |
| Height | 22.00 mm |
| Cable cross-section, input side | 0.5…1.5 mm² |
| Cable cross-section, output side | 0.5…1.5 mm² |
| Prewired | Yes |
| Product weight | 80.00 g |
Colors & materials
| Casing material | Plastic |
| Body material | Plastic |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
| Maximum temperature at tc test point | 85 °C |
| Temperature range in operation | -20…+45 °C |
Lifespan
| Lifespan L80/B10 at tp rated | 50,000 h |
Additional product data
| Encapsulated | Yes |
Capabilities
| Dimmable | Yes |
| Dimming interface | DALI-2; Push-DIM |
| Dimming range | 1…100 % |
| Overheating protection | Yes |
| No-load proof | Yes |
| Suitable for emergency lighting | Yes |
Certificates & Standards
| Approval marks – approval | CE; RCM |
| Protection class | II |
| Type of protection | IP20 |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854910203 | Folding box 1 |
60 mm x 50 mm x 150 mm | 160.00 g | 0.45 dm³ |
| 4099854880124 | Shipping box 50 |
325 mm x 270 mm x 325 mm | 8650.00 g | 28.52 dm³ |
User instruction / safety instructions
DALI2.0 LED DRIVER LDR12MWDALI
DALI2.0 LED DRIVER LDR12MWDALI

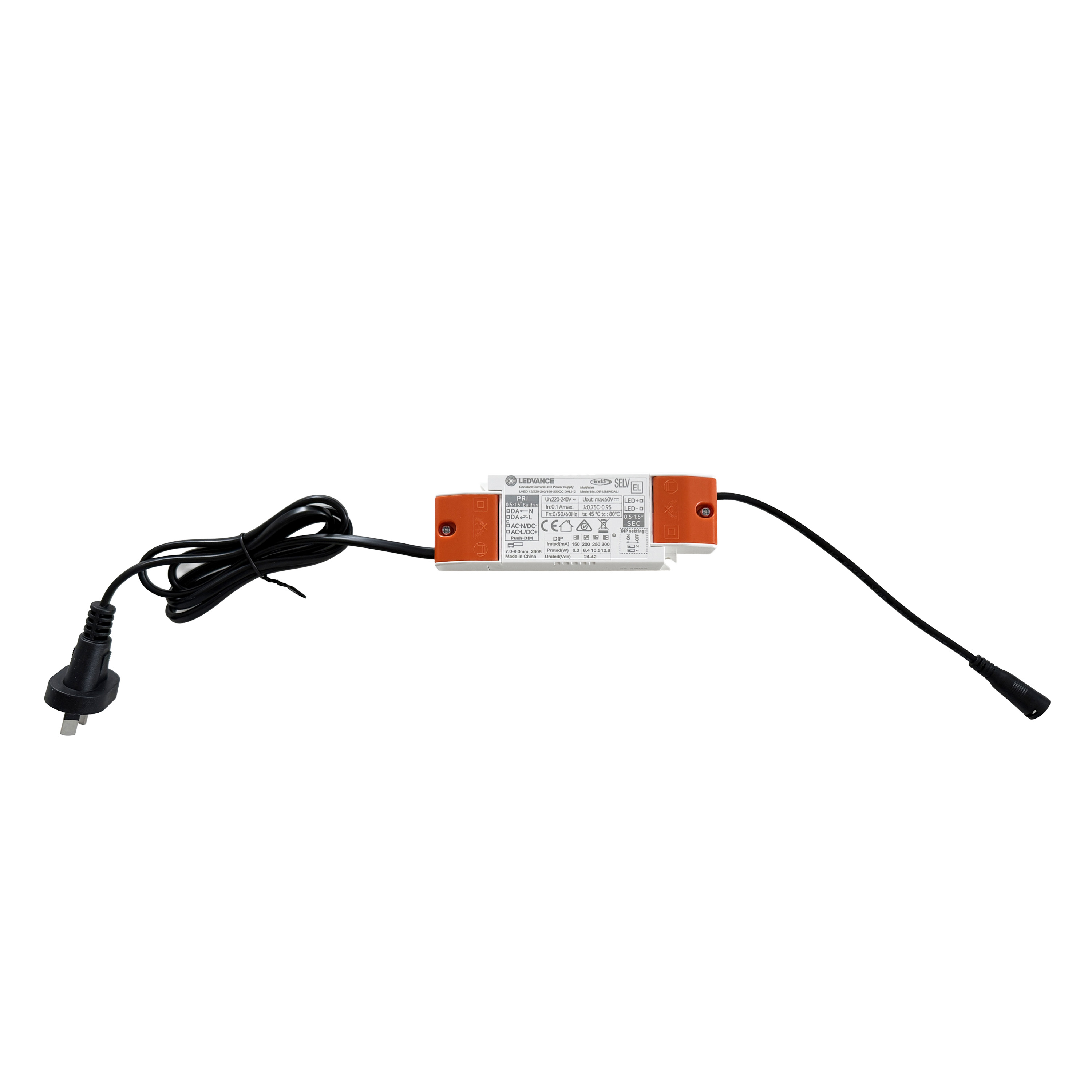

Product image: white background, spacial
