LED VALUE CLASSIC B

LED VALUE CLAS B 4.9 W/2700 K E14

GTIN: 4058075673427 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Simple direct replacement for conventional incandescent lamps
  • Instant 100 % light, no warm-up time
Areas of application
  • General illumination
  • Domestic applications
  • Chandeliers
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional lamps
  • Not dimmable
  • Good color rendering CRI ≥ 80 and color stability throughout the life of the lamp
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 4.9 W
Construction wattage 4.90 W
Nominal voltage 220…240 V
Nominal current 42 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Photometrical data
Luminous flux 470 lm
Luminous efficacy 95 lm/W
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Dimensions & Weight
Overall length 100.00 mm
Diameter 37.00 mm
Product weight 15.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Additional product data
Base (standard designation) E14
Certificates & Standards
Type of protection IP20
Photobiological safety group acc. to EN62778 RG0
Country-specific categorizations
Order reference LVCLB40 4,9W/82
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E14
Length 100.00 mm
Height 37.00 mm
Width 37.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075673427 Folding box
1		 51 mm x 51 mm x 123 mm 33.00 g 0.32 dm³
4058075673434 Shipping box
10		 266 mm x 109 mm x 137 mm 453.00 g 3.97 dm³
4099854256721 Shipping box
10		 266 mm x 109 mm x 137 mm 403.00 g 3.97 dm³

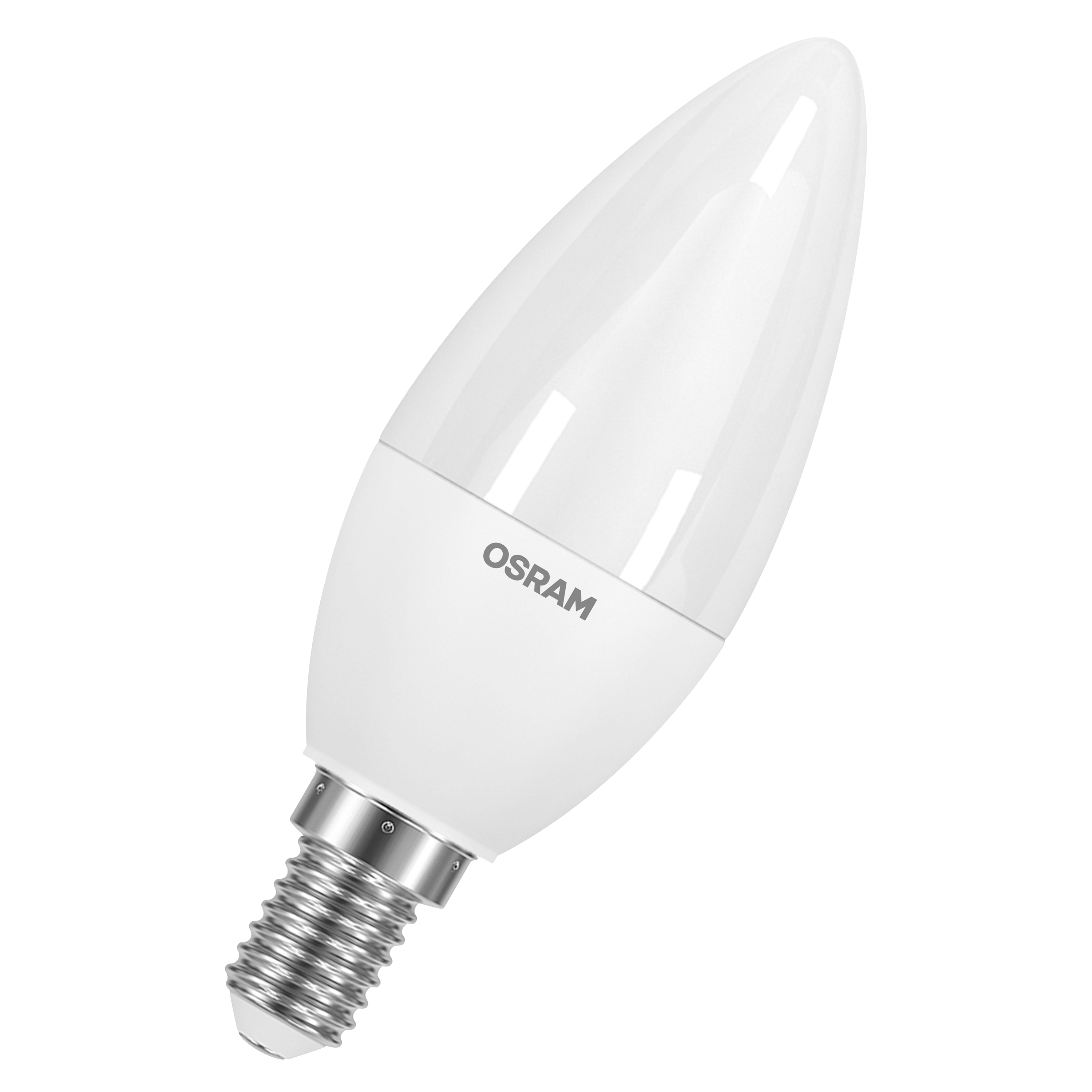

Product image: white background, diagonal with OSRAM logo
LV CLAB 40 FR E14
JPG (1.16 MB)

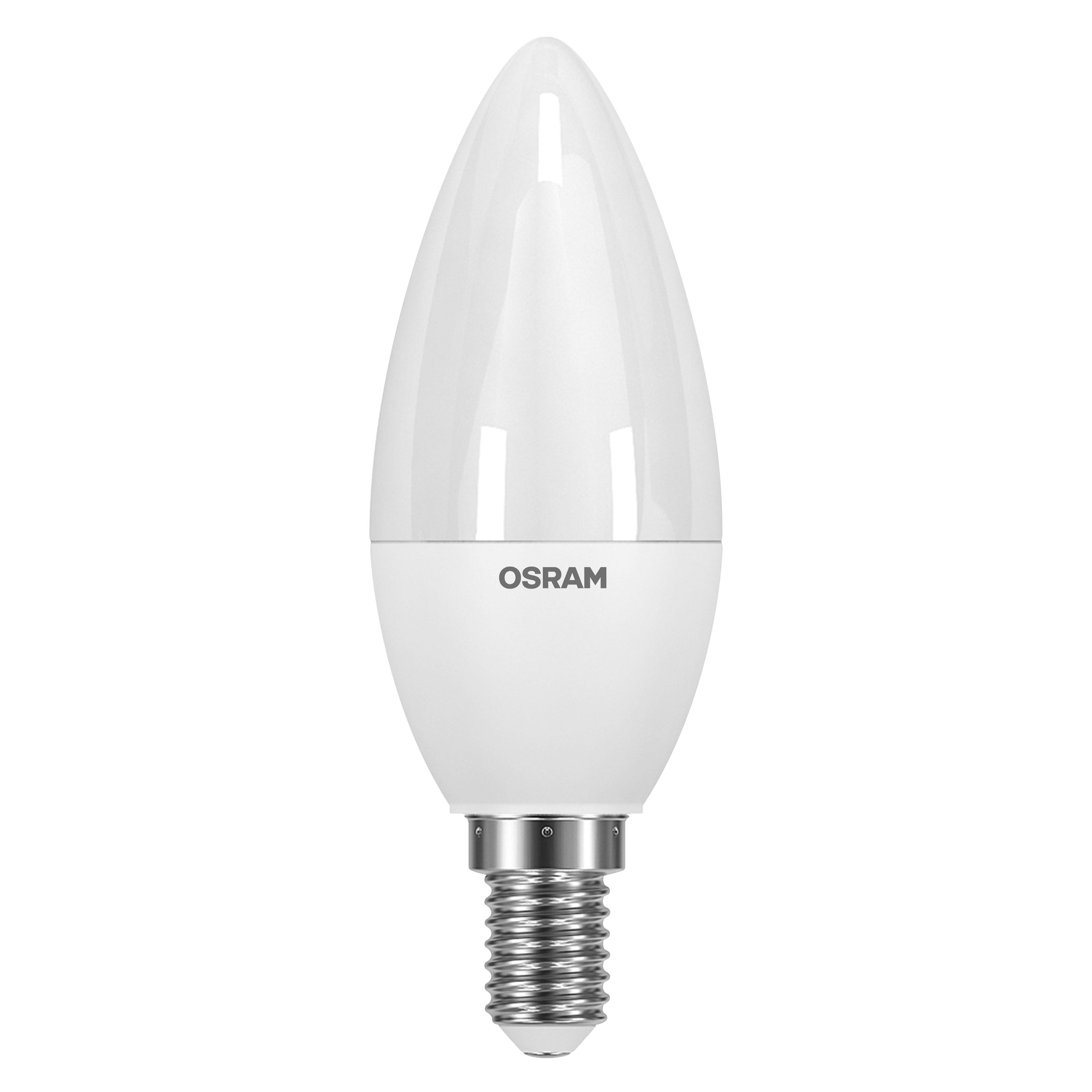

Product image: white background, upright, OSRAM logo
LV CLAB 40 FR E14
JPG (1.03 MB)
Product line drawing with letters
LED CLASSIC_B_ 60_FROSTED_E14
SVG (7.74 KB)
Product line drawing - technical
LED CLASSIC_B_ 60_FROSTED_E14
SVG (4.82 KB)
