LED PERFORMANCE STICK TRI CCT

LED CCT SELECTABLE STICK 7 W/3000 K / 4500 K / 6500 K E14

GTIN: 4099854083167 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • TRI Colour 3000K/4500K/6500K
  • LED lamps with innovative TruWave Technology™
  • Support sleep/wake cycle thanks mimic of the natural light spectrum
  • The balanced blue light spectrum can support attention, reaction time and mood
  • Low energy consumption
Areas of application
  • All domestic rooms, especially where the lamps are visible
  • Wherever compact and efficient lamps are needed
  • Where the lamps need to last a long time or have to withstand frequent on/off switching
Product features
  • Color rendering index Ra: ≥ 80
  • Lifetime up to 15,000 h
  • Mercury-free lamps
Electrical data
Nominal wattage 7 W
Construction wattage 7.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 48 W
Nominal current 50 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50
Photometrical data
Luminous flux 700 lm
Nominal useful luminous flux 90° 700 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Color temperature 3000 K / 4500 K / 6500 K
Color rendering index Ra > 80
Light color 830/845/865
Standard deviation of color matching ≤6 sdcm
Light technical data
Beam angle 170 °
Starting time < 0.5 s
Dimensions & Weight
Overall length 110.00 mm
Diameter 40.00 mm
Maximum diameter 40 mm
Product weight 38.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Lifespan
Number of switching cycles 100000
Additional product data
Base (standard designation) E14
Mercury content 0.0 mg
Capabilities
Dimmable No
Certificates & Standards
Type of protection IP20
Standards CB
Photobiological safety group acc. to EN62778 RG1
Country-specific categorizations
Order reference LPSTICK 7W/830/
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E14
Length 110.00 mm
Height 40.00 mm
Width 40.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854083167 Folding box
1		 42 mm x 42 mm x 113 mm 55.00 g 0.20 dm³
4099854083174 Shipping box
10		 226 mm x 96 mm x 134 mm 608.00 g 2.91 dm³

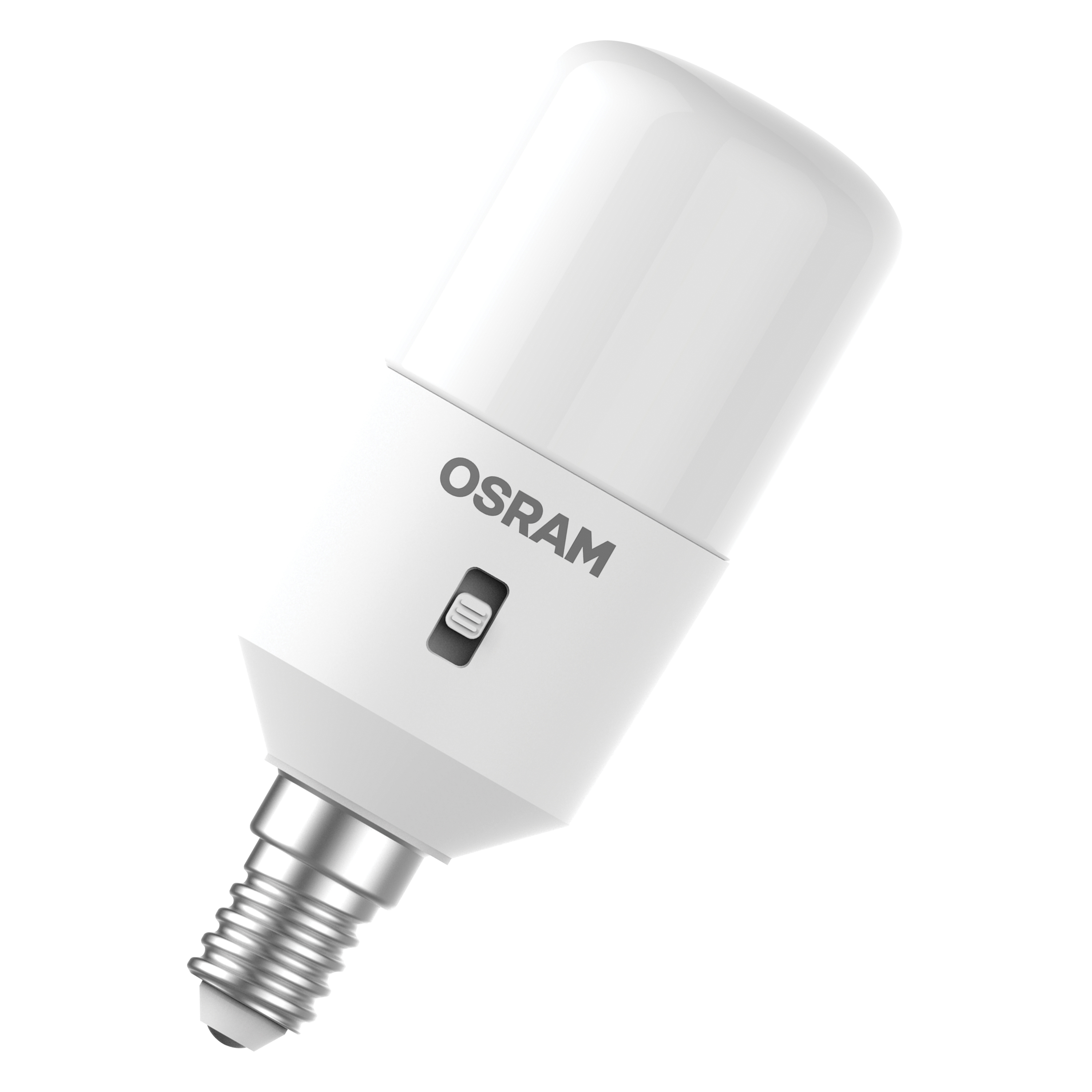

Product image: white background, diagonal with OSRAM logo
LED PSTICK 7W/830/845/865240VE14
JPG (1.18 MB)

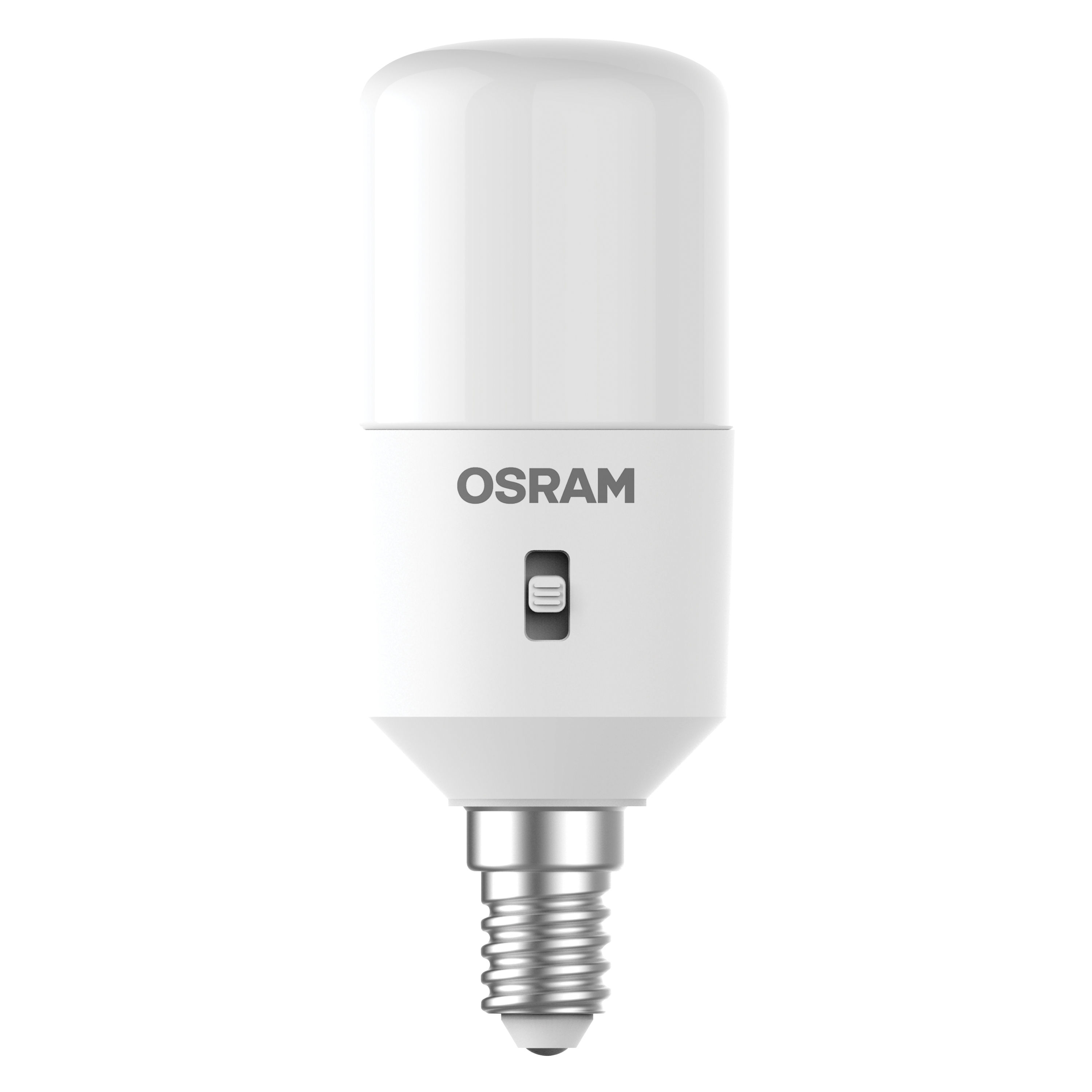

Product image: white background, upright, OSRAM logo
