LED PERFORMANCE STICK TRI CCT

LED CCT SELECTABLE STICK 7 W/3000 K / 4500 K / 6500 K

GTIN: 4099854083204 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • TRI Colour 3000K/4500K/6500K
  • LED lamps with innovative TruWave Technology™
  • Support sleep/wake cycle thanks mimic of the natural light spectrum
  • The balanced blue light spectrum can support attention, reaction time and mood
  • Low energy consumption
Areas of application
  • All domestic rooms, especially where the lamps are visible
  • Wherever compact and efficient lamps are needed
  • Where the lamps need to last a long time or have to withstand frequent on/off switching
Product features
  • Color rendering index Ra: ≥ 80
  • Lifetime up to 15,000 h
  • Mercury-free lamps
Electrical data
Nominal wattage 7 W
Construction wattage 7.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 48 W
Nominal current 50 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50
Photometrical data
Luminous flux 700 lm
Nominal useful luminous flux 90° 700 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Color temperature 3000 K / 4500 K / 6500 K
Color rendering index Ra > 80
Light color 830/845/865
Standard deviation of color matching ≤6 sdcm
Light technical data
Beam angle 170 °
Starting time < 0.5 s
Dimensions & Weight
Overall length 109.00 mm
Diameter 40.00 mm
Maximum diameter 40 mm
Product weight 38.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Lifespan
Number of switching cycles 100000
Additional product data
Mercury content 0.0 mg
Capabilities
Dimmable No
Certificates & Standards
Type of protection IP20
Standards CB
Photobiological safety group acc. to EN62778 RG1
Country-specific categorizations
Order reference LPSTICK 7W/830/
Energy labelling regulation data acc EU 2019/2015
Length 109.00 mm
Height 40.00 mm
Width 40.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854083204 Folding box
1		 42 mm x 42 mm x 113 mm 55.00 g 0.20 dm³
4099854083211 Shipping box
10		 226 mm x 96 mm x 134 mm 608.00 g 2.91 dm³

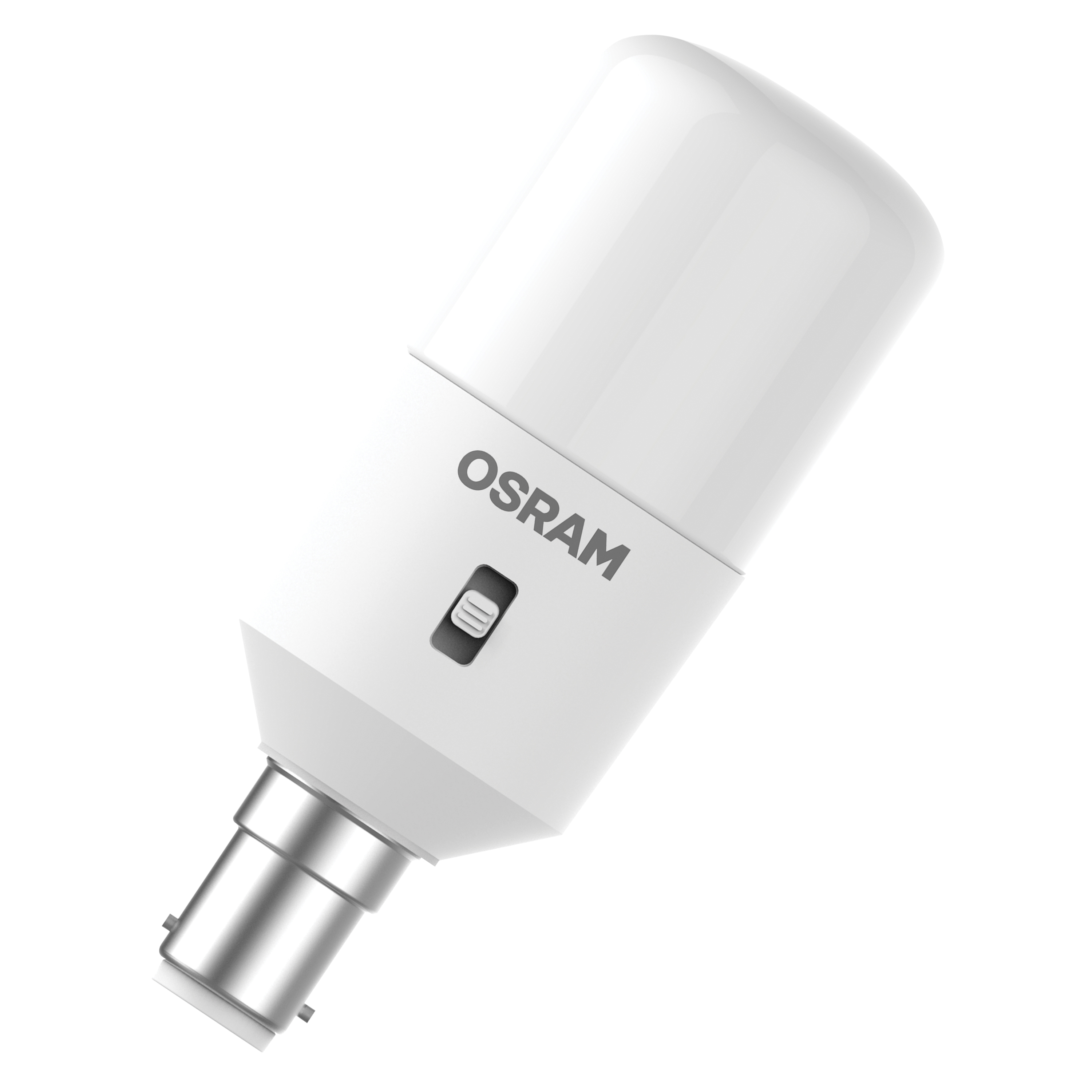

Product image: white background, diagonal with OSRAM logo
LED PSTICK 7W/830/845/865240VB15
JPG (1.2 MB)

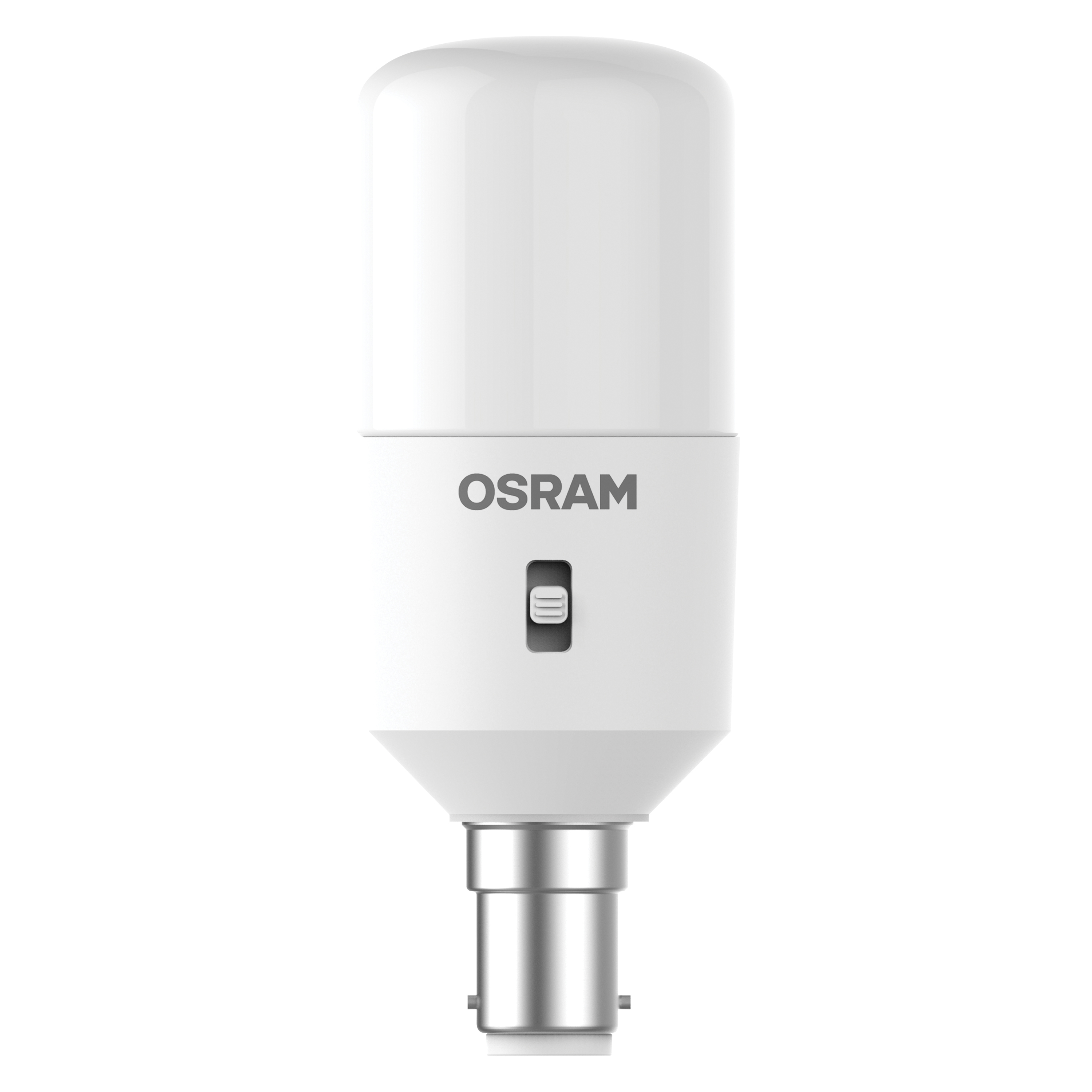

Product image: white background, upright, OSRAM logo
