LED PERFORMANCE STICK TRI CCT
LED CCT SELECTABLE STICK 7 W/3000 K / 4500 K / 6500 K
GTIN: 4099854082146
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- TRI Colour 3000K/4500K/6500K
- LED lamps with innovative TruWave Technology™
- Support sleep/wake cycle thanks mimic of the natural light spectrum
- The balanced blue light spectrum can support attention, reaction time and mood
- Low energy consumption
Areas of application
- All domestic rooms, especially where the lamps are visible
- Wherever compact and efficient lamps are needed
- Where the lamps need to last a long time or have to withstand frequent on/off switching
Product features
- Color rendering index Ra: ≥ 80
- Lifetime up to 15,000 h
- Mercury-free lamps
Electrical data
| Nominal wattage | 7 W |
| Construction wattage | 7.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 48 W |
| Nominal current | 50 mA |
| Type of current | AC |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 700 lm |
| Nominal useful luminous flux 90° | 700 lm |
| Luminous efficacy | 100 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Color temperature | 3000 K / 4500 K / 6500 K |
| Color rendering index Ra | > 80 |
| Light color | 830/845/865 |
| Standard deviation of color matching | ≤6 sdcm |
Light technical data
| Beam angle | 170 ° |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 109.00 mm |
| Diameter | 40.00 mm |
| Maximum diameter | 40 mm |
| Product weight | 38.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
Lifespan
| Number of switching cycles | 100000 |
Additional product data
| Mercury content | 0.0 mg |
Capabilities
| Dimmable | No |
Certificates & Standards
| Type of protection | IP20 |
| Standards | CB |
| Photobiological safety group acc. to EN62778 | RG1 |
Country-specific categorizations
| Order reference | LPSTICK 7W/830/ |
Energy labelling regulation data acc EU 2019/2015
| Length | 109.00 mm |
| Height | 40.00 mm |
| Width | 40.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854082146 | Folding box 1 |
42 mm x 42 mm x 113 mm | 55.00 g | 0.20 dm³ |
| 4099854082153 | Shipping box 10 |
226 mm x 96 mm x 134 mm | 608.00 g | 2.91 dm³ |

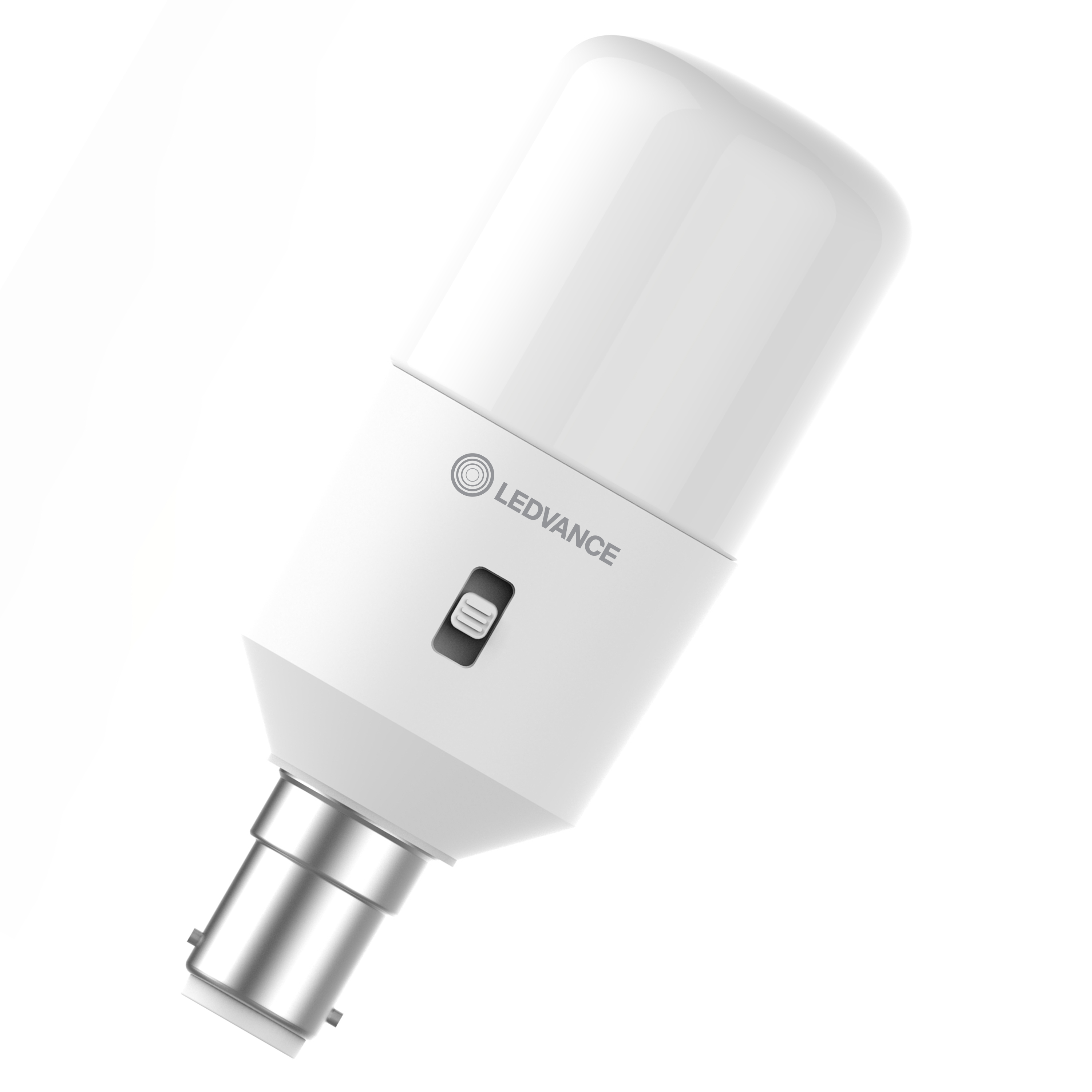

Product image: white background, diagonal with LEDVANCE logo
LPSTICK 7W 830 845 865 240V B15
LPSTICK 7W 830 845 865 240V B15

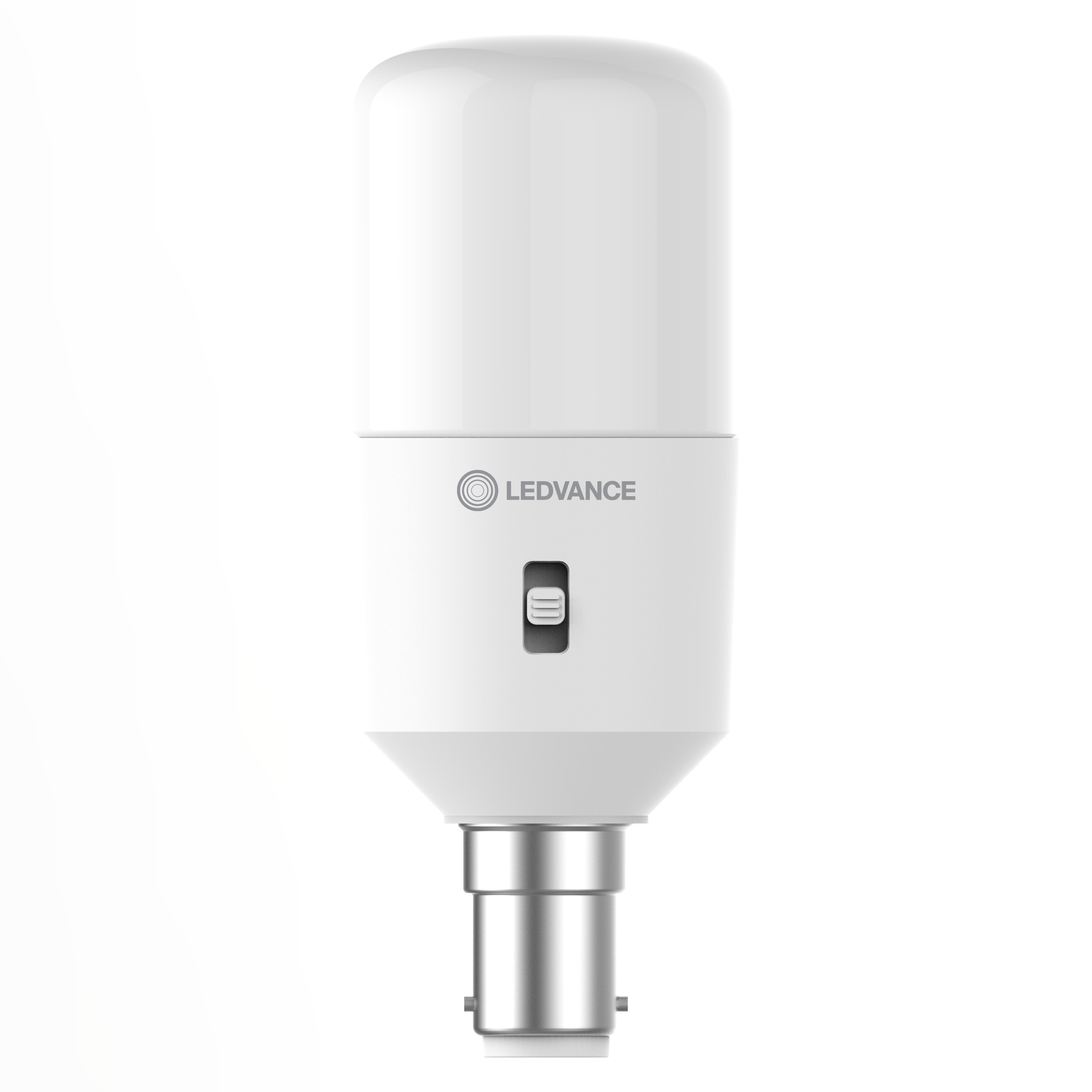

Product image: white background, upright LEDVANCE logo
LPSTICK 7W 830 845 865 240V B15
LPSTICK 7W 830 845 865 240V B15
Product line drawing with numbers
LPSTICK 7W 830 845 865 240V B15
LPSTICK 7W 830 845 865 240V B15
IES file (IES)
LPSTICK 7W 830845865 240V-3000K
LPSTICK 7W 830845865 240V-3000K
LDT file (Eulumdat)
LPSTICK 7W 830845865 240V-3000K
LPSTICK 7W 830845865 240V-3000K
Light distribution curve type polar
LPSTICK 7W 830845865 240V-3000K
LPSTICK 7W 830845865 240V-3000K
| EAN | AU model number |
|---|---|
| 4099854082146 | LDVSTK7WTRIB15 |
