LED PERFORMANCE LAMPS WITH CLASSIC BULBS TRI CCT
LED CCT SELECTABLE CLA 8 W/3000 K / 4500 K / 6500 K B22
GTIN: 4099854082023
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- TRI Colour 3000K/4500K/6500K
- LED lamps with innovative TruWave Technology™
- Support sleep/wake cycle thanks mimic of the natural light spectrum
- The balanced blue light spectrum can support attention, reaction time and mood
- Low energy consumption
Areas of application
- Domestic applications
- General illumination
- Outdoor applications only in suitable luminaires
Product features
- Color rendering index Ra: ≥ 80
- Lifetime up to 15,000 h
- Mercury-free lamps
Electrical data
| Nominal wattage | 8 W |
| Construction wattage | 8.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 60 W |
| Nominal current | 59 mA |
| Type of current | AC |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Power factor λ | > 0.50 |
Photometrical data
| Luminous flux | 800 lm |
| Nominal useful luminous flux 90° | 800 lm |
| Luminous efficacy | 100 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Color temperature | 3000 K / 4500 K / 6500 K |
| Color rendering index Ra | > 80 |
| Light color | 830/845/865 |
| Standard deviation of color matching | ≤6 sdcm |
Light technical data
| Beam angle | 150 ° |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 108.00 mm |
| Diameter | 60.00 mm |
| Maximum diameter | 60 mm |
| Product weight | 44.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
Lifespan
| Number of switching cycles | 100000 |
Additional product data
| Base (standard designation) | B22 |
| Mercury content | 0.0 mg |
Capabilities
| Dimmable | No |
Certificates & Standards
| Type of protection | IP20 |
| Standards | CB |
| Photobiological safety group acc. to EN62778 | RG1 |
Country-specific categorizations
| Order reference | LPCLA 8W/830/84 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | B22 |
| Length | 108.00 mm |
| Height | 60.00 mm |
| Width | 60.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854082023 | Folding box 1 |
62 mm x 62 mm x 113 mm | 65.00 g | 0.43 dm³ |
| 4099854082030 | Shipping box 10 |
326 mm x 135 mm x 132 mm | 747.00 g | 5.81 dm³ |

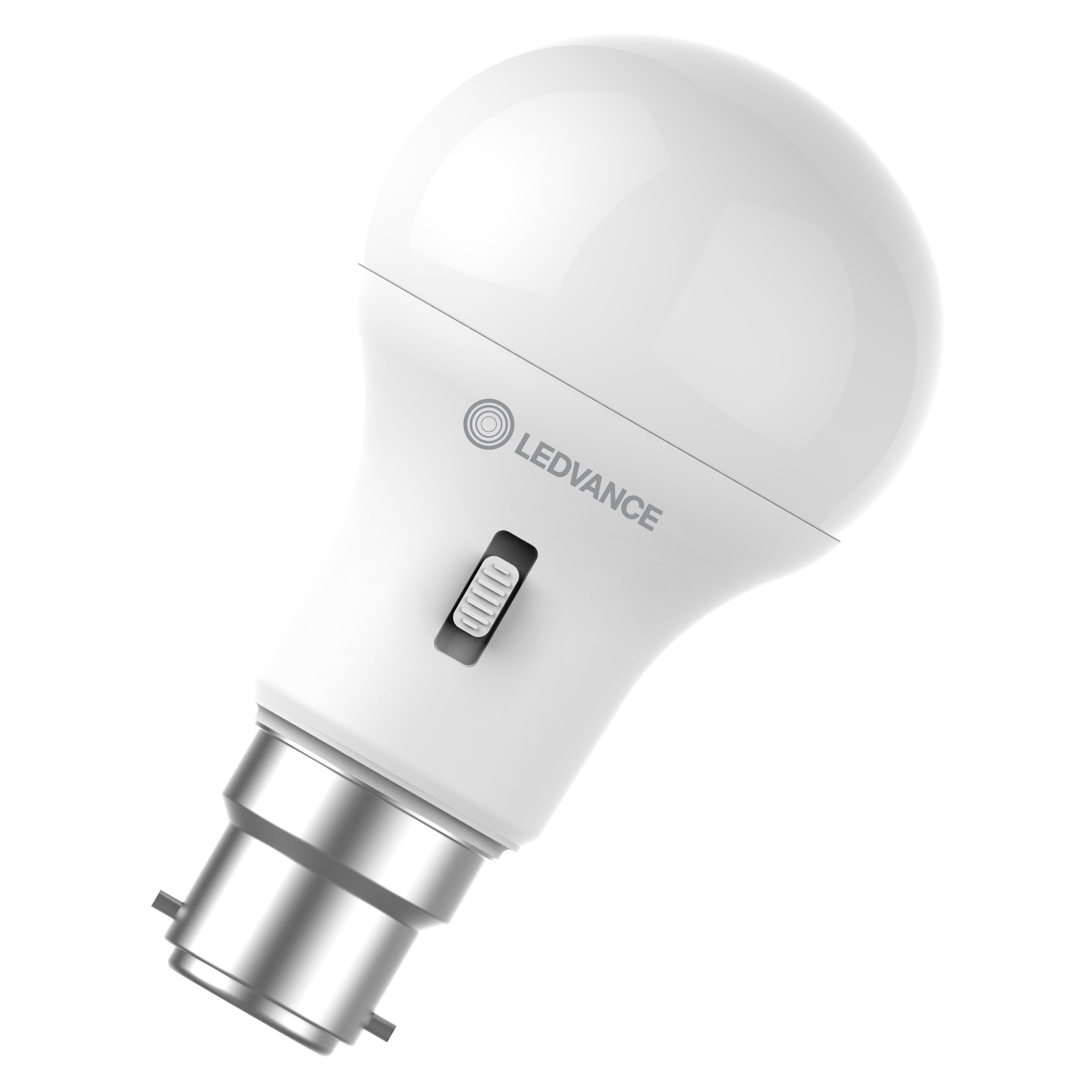

Product image: white background, diagonal with LEDVANCE logo
LPCLA 8W 830 845 865 240V B22
LPCLA 8W 830 845 865 240V B22

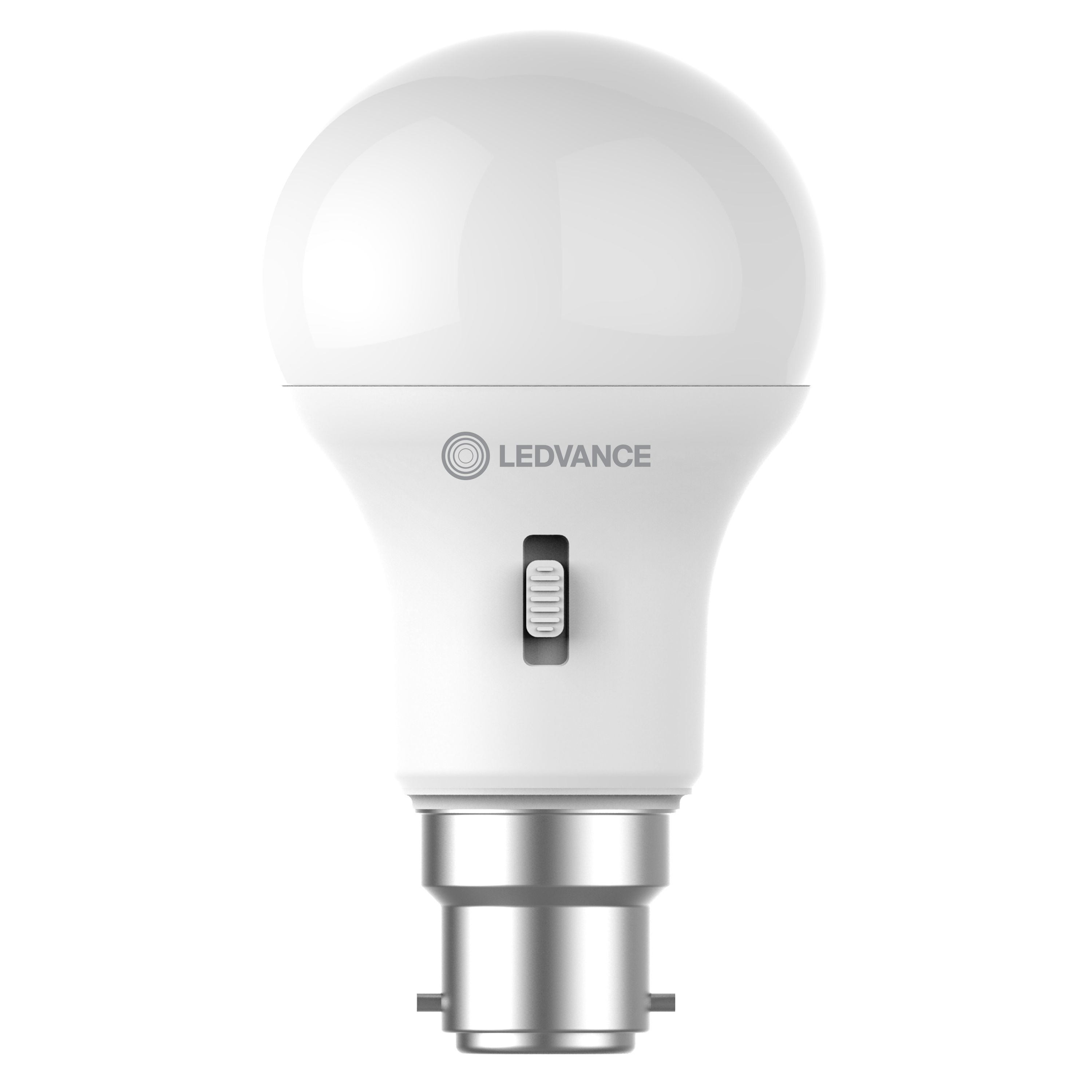

Product image: white background, upright LEDVANCE logo
LPCLA 8W 830 845 865 240V B22
LPCLA 8W 830 845 865 240V B22
Product line drawing with numbers
LPCLA 8W 830 845 865 240V B22
LPCLA 8W 830 845 865 240V B22
IES file (IES)
LPCLA 8W 830845865 240V-3000K
LPCLA 8W 830845865 240V-3000K
LDT file (Eulumdat)
LPCLA 8W 830845865 240V-3000K
LPCLA 8W 830845865 240V-3000K
Light distribution curve type polar
LPCLA 8W 830845865 240V-3000K
LPCLA 8W 830845865 240V-3000K
| EAN | AU model number |
|---|---|
| 4099854082023 | LDVCLA8WTRIB22 |
