LED PERFORMANCE STICK
LED PERFORMANCE STICK 11 W/4000 K B22d DIM
GTIN: 4058075732193
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Creation of the preferred light ambience thanks to dimming
- Wide beam angle: 200°
- Instant 100 % light, no warm-up time
- Stylish and modern design
- No UV and near-IR radiation in the light beam
- Reliable operation thanks to brand quality
Areas of application
- Suitable for indoor applications.
- Replacement for conventional compact fluorescent lamps with wattage 11 W, 15 W and 24 W
Product features
- Dimmable (with many common dimmers, see also www.ledvance.com/dim)
- Long lifetime up to 25,000 h
- Mercury-free lamps
- Input voltage: 220…240 VAC
- Storage temperature from -20 °C to up to +80 °C, up to 95 % relative humidity
- Operating temperature from -20 °C to up to +35 °C, up to 95 % relative humidity
Electrical data
| Nominal wattage | 11 W |
| Construction wattage | 11.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 75 W |
| Nominal current | 55 mA |
| Type of current | AC |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Power factor λ | > 0.70 |
Photometrical data
| Luminous flux | 1050 lm |
| Nominal useful luminous flux 90° | 1050 lm |
| Luminous efficacy | 95 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | ≥80 |
| Light color | 840 |
| Standard deviation of color matching | ≤6 sdcm |
Light technical data
| Beam angle | 200 ° |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 121.00 mm |
| Diameter | 46.00 mm |
| Maximum diameter | 46 mm |
| Product weight | 35.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+30 °C |
Lifespan
| Number of switching cycles | 100000 |
Additional product data
| Base (standard designation) | B22d |
| Mercury content | 0.0 mg |
Capabilities
| Dimmable | Yes |
Certificates & Standards
| Type of protection | IP20 |
| Standards | CB, SAA |
Country-specific categorizations
| Order reference | LP STICKDIM11W/ |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | B22d |
| Length | 121.00 mm |
| Height | 46.00 mm |
| Width | 46.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075732193 | Folding box 1 |
47 mm x 47 mm x 121 mm | 48.00 g | 0.27 dm³ |
| 4058075732209 | Shipping box 10 |
246 mm x 103 mm x 138 mm | 577.00 g | 3.50 dm³ |

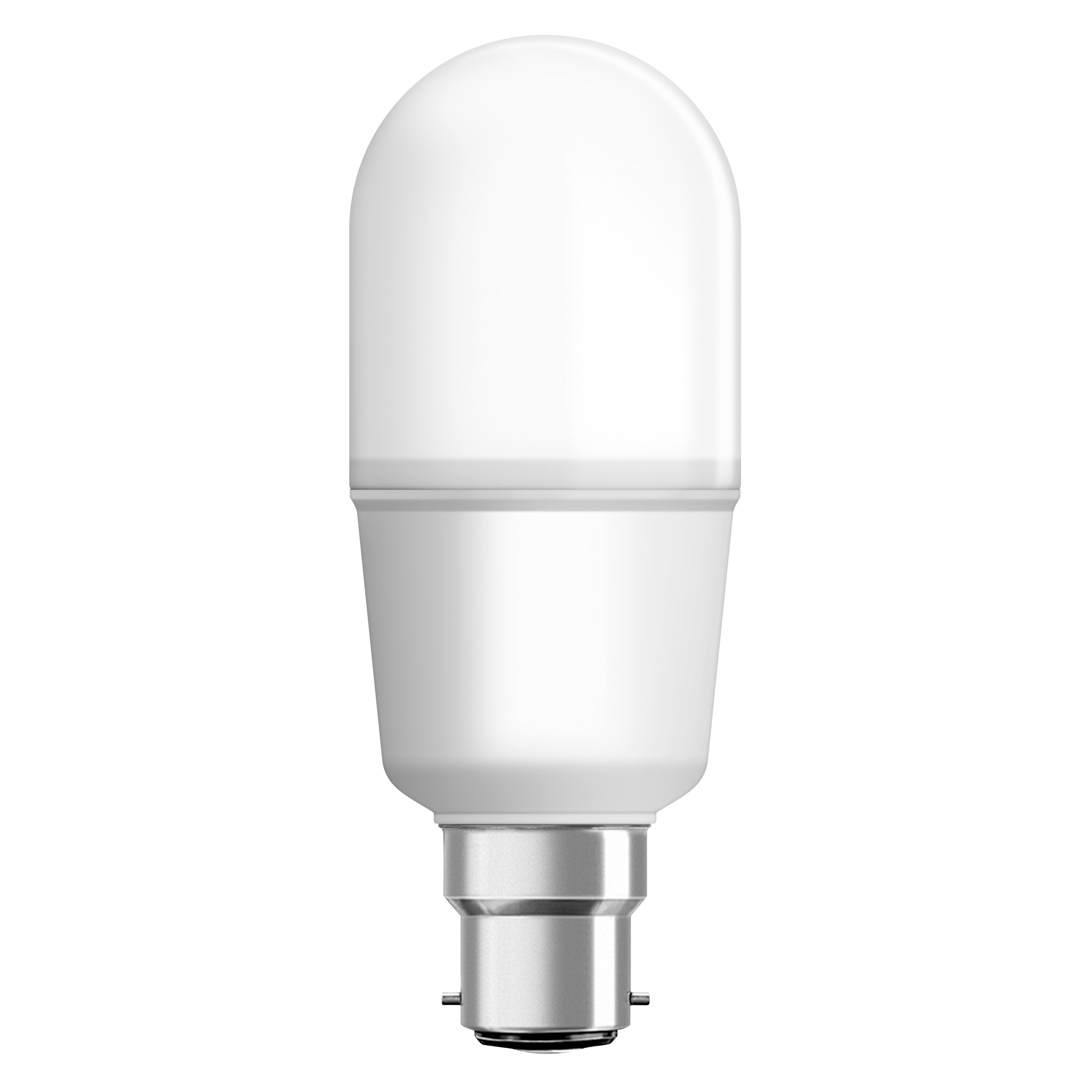

Product image: white background, diagonal
LED STICK PFM DIM 11 W B22D
LED STICK PFM DIM 11 W B22D
Product image: white background, upright
LED STICK PFM DIM 11 W B22D
LED STICK PFM DIM 11 W B22D
Product line drawing, front, no dimensions
LSTICK T FR B22d
LSTICK T FR B22d
| EAN | AU model number |
|---|---|
| 4058075732193 | LDVSTK11W840B22 |
