LED VALUE CLASSIC P

LED VALUE CLAS P 4.7 W/2700 K E14

GTIN: 4058075673649 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor applications only in suitable luminaires
Product features
  • Color rendering index Ra: ≥ 80
  • Not dimmable
  • Mercury-free lamps
Electrical data
Nominal wattage 4.7 W
Construction wattage 4.70 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 43 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50
Photometrical data
Luminous flux 470 lm
Luminous efficacy 100 lm/W
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Light technical data
Beam angle 150 °
Starting time ≤ 0.5 s
Dimensions & Weight
Overall length 82.00 mm
Diameter 45.00 mm
Maximum diameter 45 mm
Product weight 20.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Lifespan
Number of switching cycles 100000
Additional product data
Base (standard designation) E14
Mercury content 0.0 mg
Capabilities
Dimmable No
Certificates & Standards
Type of protection IP20
Photobiological safety group acc. to EN62778 RG0
Country-specific categorizations
Order reference LVCLP40 4,7W/82
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E14
Length 82.00 mm
Height 45.00 mm
Width 45.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075673649 Folding box
1		 51 mm x 51 mm x 107 mm 37.00 g 0.28 dm³
4058075673656 Shipping box
10		 266 mm x 109 mm x 121 mm 494.00 g 3.51 dm³
4099854256936 Shipping box
10		 266 mm x 109 mm x 121 mm 494.00 g 3.51 dm³

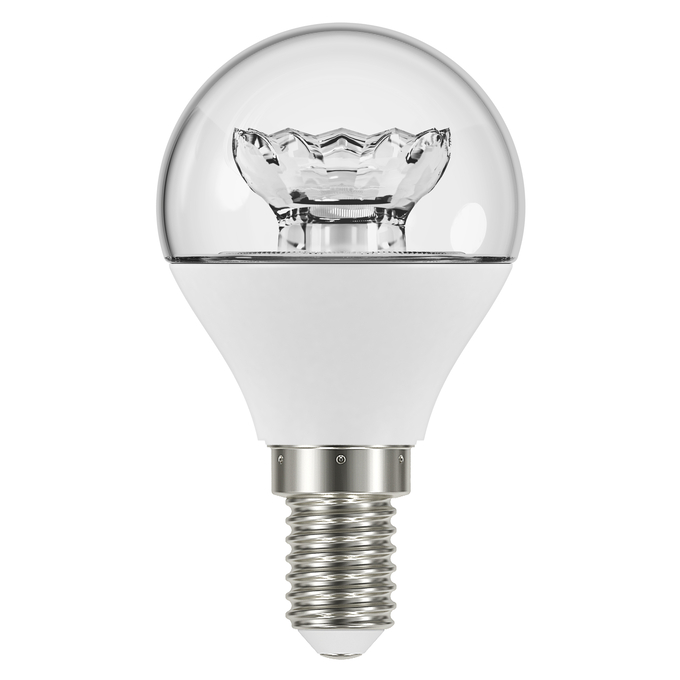

Product image: white background, diagonal
