LED PERFORMANCE CLASSIC A DIMMABLE

LED PFM CLAS A 9 W/2700 K B22d FR DIM

GTIN: 4058075215351 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • Low energy consumption
  • High color consistency thanks to narrow binning
  • Easy replacement of classic lamps thanks to compact design
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
  • Good quality of light
  • Reliable operation thanks to brand quality
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor applications only in suitable luminaires
Product features
  • Long lifetime up to 25,000 h
  • Color rendering index Ra: ≥ 80
  • High color consistency: < 6 SDCM
  • Luminous efficacy: up to 117 lm/W
  • Mercury-free lamps
  • Operating temperature from -20 °C to up to +40 °C, up to 95 % relative humidity
Electrical data
Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 60 W
Nominal current 45 mA
Type of current AC
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ > 0.70
Photometrical data
Luminous flux 806 lm
Luminous efficacy 89 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Light technical data
Beam angle 240 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 107.00 mm
Diameter 61.50 mm
Product weight 84.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Rated ambient temp.w.max.luminous 40.0 °C
Lifespan
Number of switching cycles 100000
Additional product data
Base (standard designation) B22d
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Suitable for indoor Yes
Dimmable Yes
Country-specific categorizations
Order reference LPCLADIM 9W/827
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) B22d
Length 107.00 mm
Height 61.50 mm
Width 61.50 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075215351 Folding box
1		 64 mm x 64 mm x 131 mm 101.00 g 0.54 dm³
4058075215368 Shipping box
10		 332 mm x 138 mm x 147 mm 1164.00 g 6.73 dm³

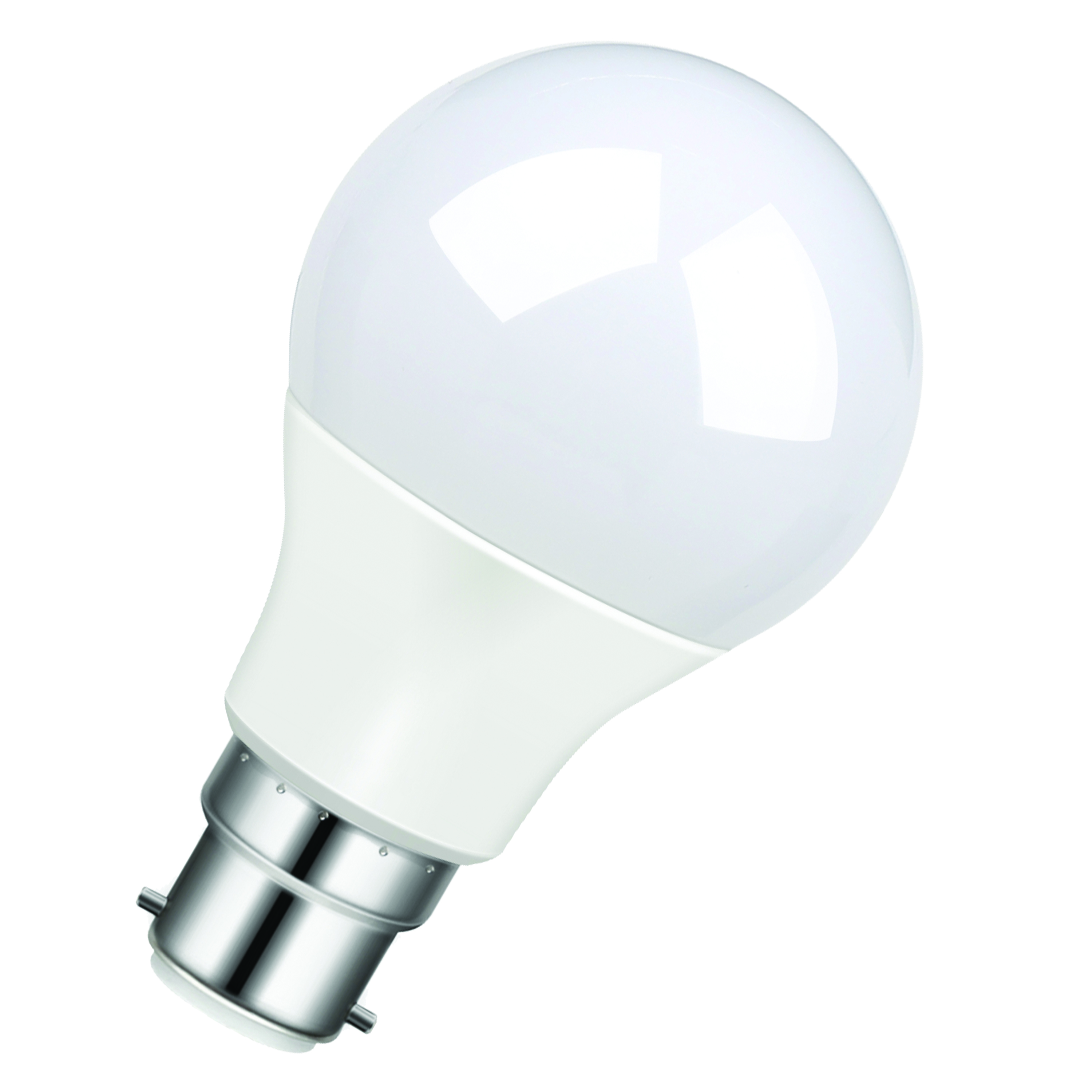

Product image: white background, diagonal
LED PFM CLAS A FR B22d
JPG (2.08 MB)

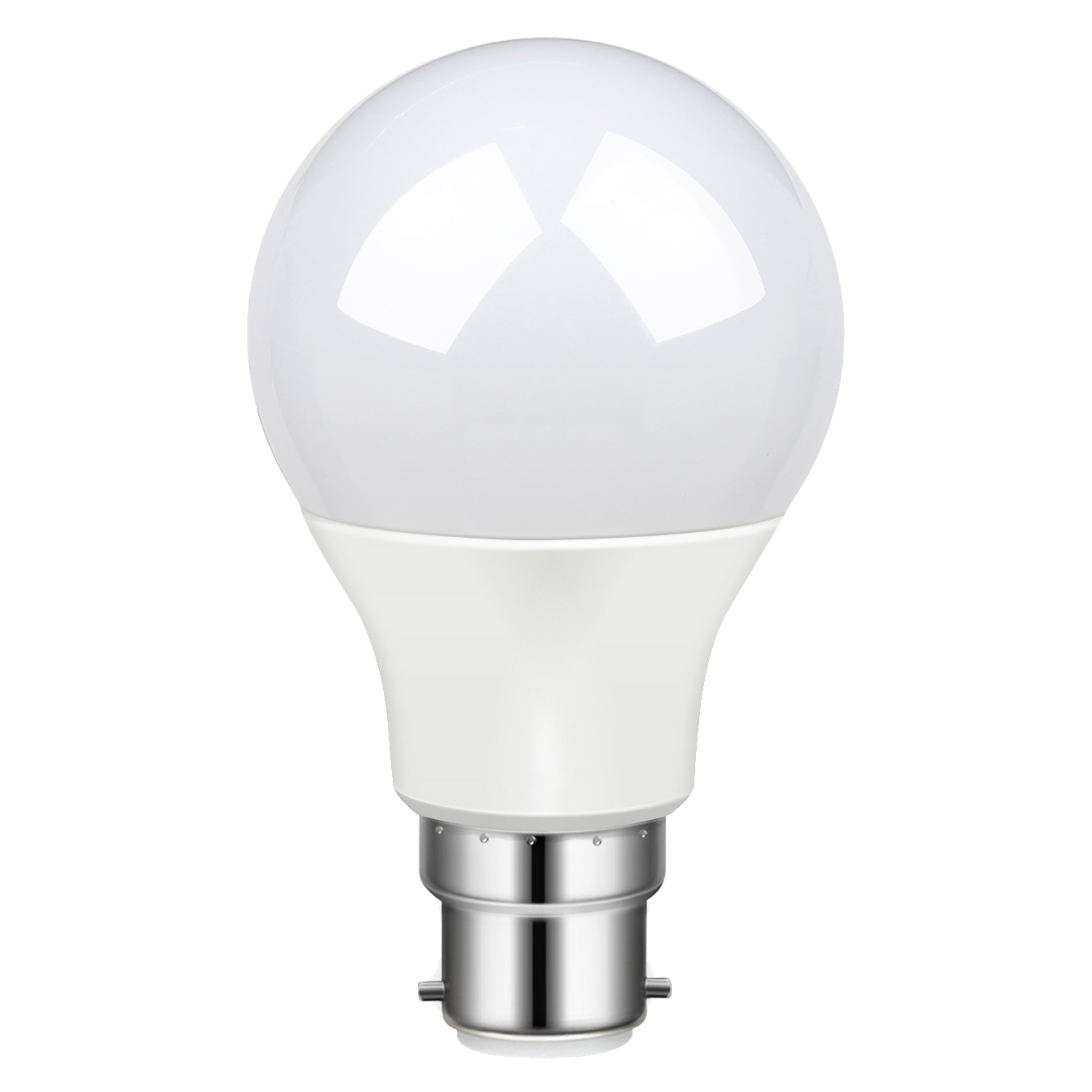

Product image: white background, upright
