LED PERFORMANCE CLASSIC A DIMMABLE
LED PFM CLAS A 9 W/6500 K E27 FR DIM
GTIN: 4058075215337
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Very high dimmer compatibility, see also www.ledvance.com/dim
- Low energy consumption
- High color consistency thanks to narrow binning
- Easy replacement of classic lamps thanks to compact design
- Instant 100 % light, no warm-up time
- No UV and near-IR radiation in the light beam
- Good quality of light
- Reliable operation thanks to brand quality
Areas of application
- Domestic applications
- General illumination
- Outdoor applications only in suitable luminaires
Product features
- Long lifetime up to 25,000 h
- Color rendering index Ra: ≥ 80
- High color consistency: < 6 SDCM
- Luminous efficacy: up to 117 lm/W
- Mercury-free lamps
- Operating temperature from -20 °C to up to +40 °C, up to 95 % relative humidity
Electrical data
| Nominal wattage | 9 W |
| Construction wattage | 9.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 60 W |
| Nominal current | 45 mA |
| Type of current | AC |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Power factor λ | 0.80 |
Photometrical data
| Luminous flux | 806 lm |
| Nominal useful luminous flux 90° | 806 lm |
| Luminous efficacy | 89 lm/W |
| Light color (designation) | Cool Daylight |
| Color temperature | 6500 K |
| Color rendering index Ra | ≥80 |
| Light color | 865 |
| Standard deviation of color matching | ≤6 sdcm |
Light technical data
| Beam angle | 240 ° |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 108.00 mm |
| Diameter | 61.50 mm |
| Product weight | 80.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
Lifespan
| Number of switching cycles | 100000 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Product remark | All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
Capabilities
| Dimmable | Yes |
Country-specific categorizations
| Order reference | LPCLADIM 9W/865 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E27 |
| Length | 108.00 mm |
| Height | 61.50 mm |
| Width | 61.50 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075215337 | Folding box 1 |
64 mm x 64 mm x 131 mm | 97.00 g | 0.54 dm³ |
| 4058075215344 | Shipping box 10 |
332 mm x 138 mm x 147 mm | 1124.00 g | 6.73 dm³ |
| 4058075378070 | Shipping box 10 |
315 mm x 131 mm x 126 mm | 1023.00 g | 5.20 dm³ |

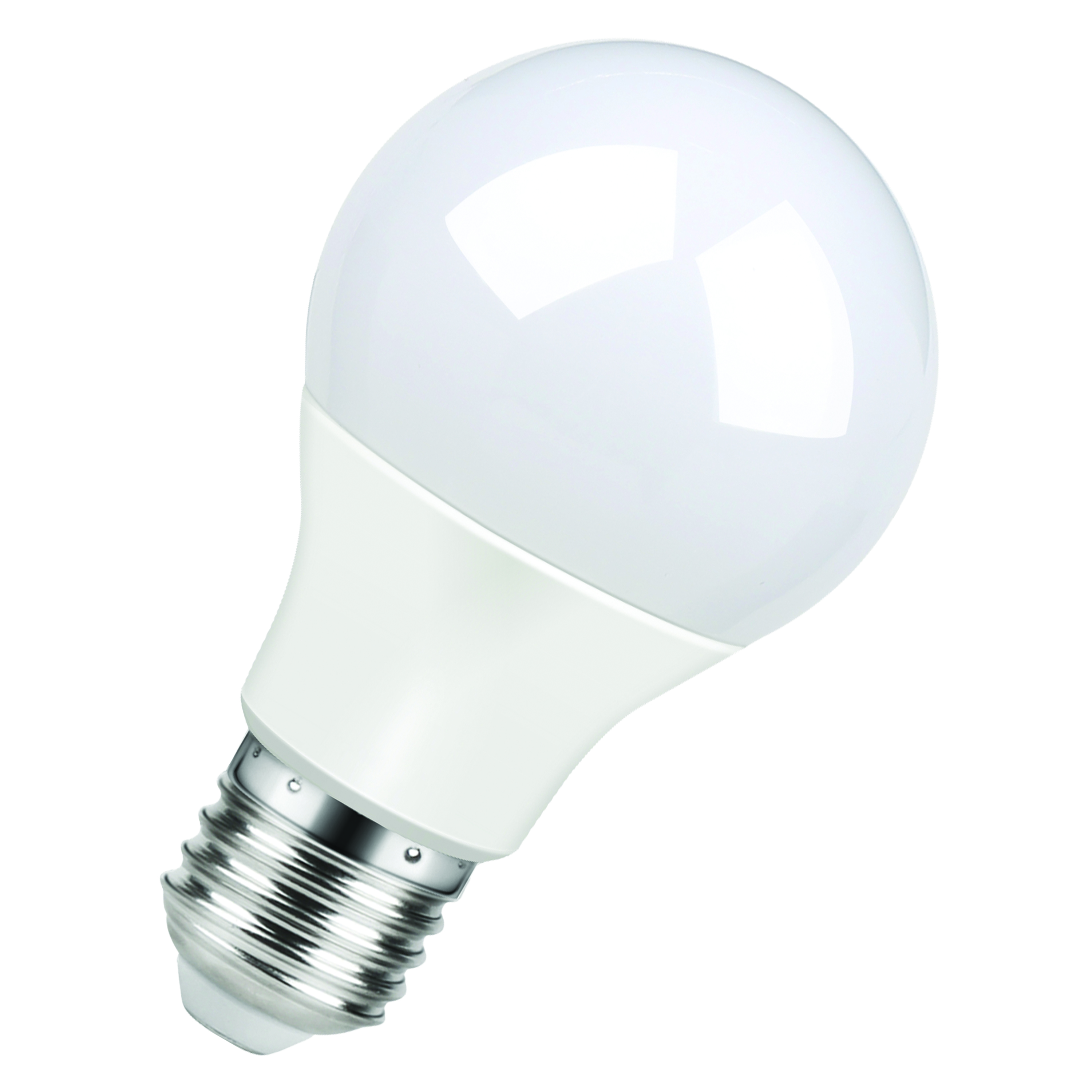

Product image: white background, diagonal
LED PFM CLAS A FR E27
LED PFM CLAS A FR E27

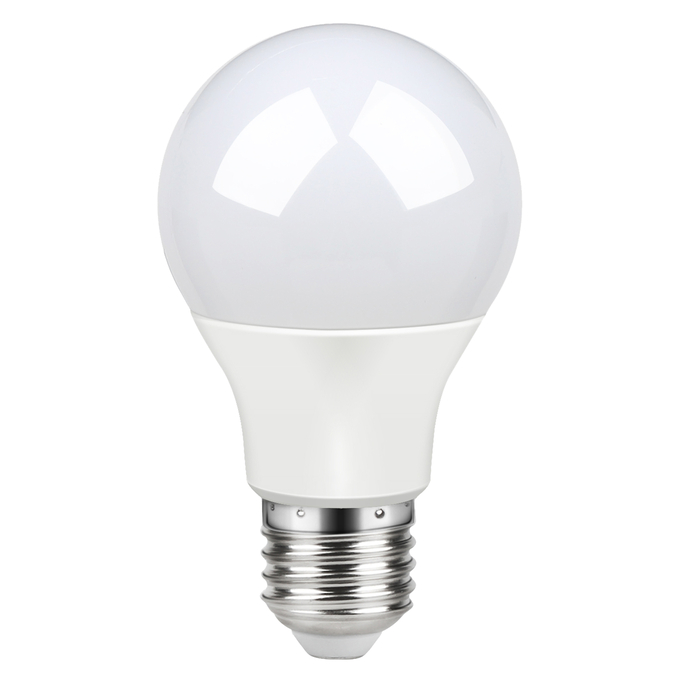

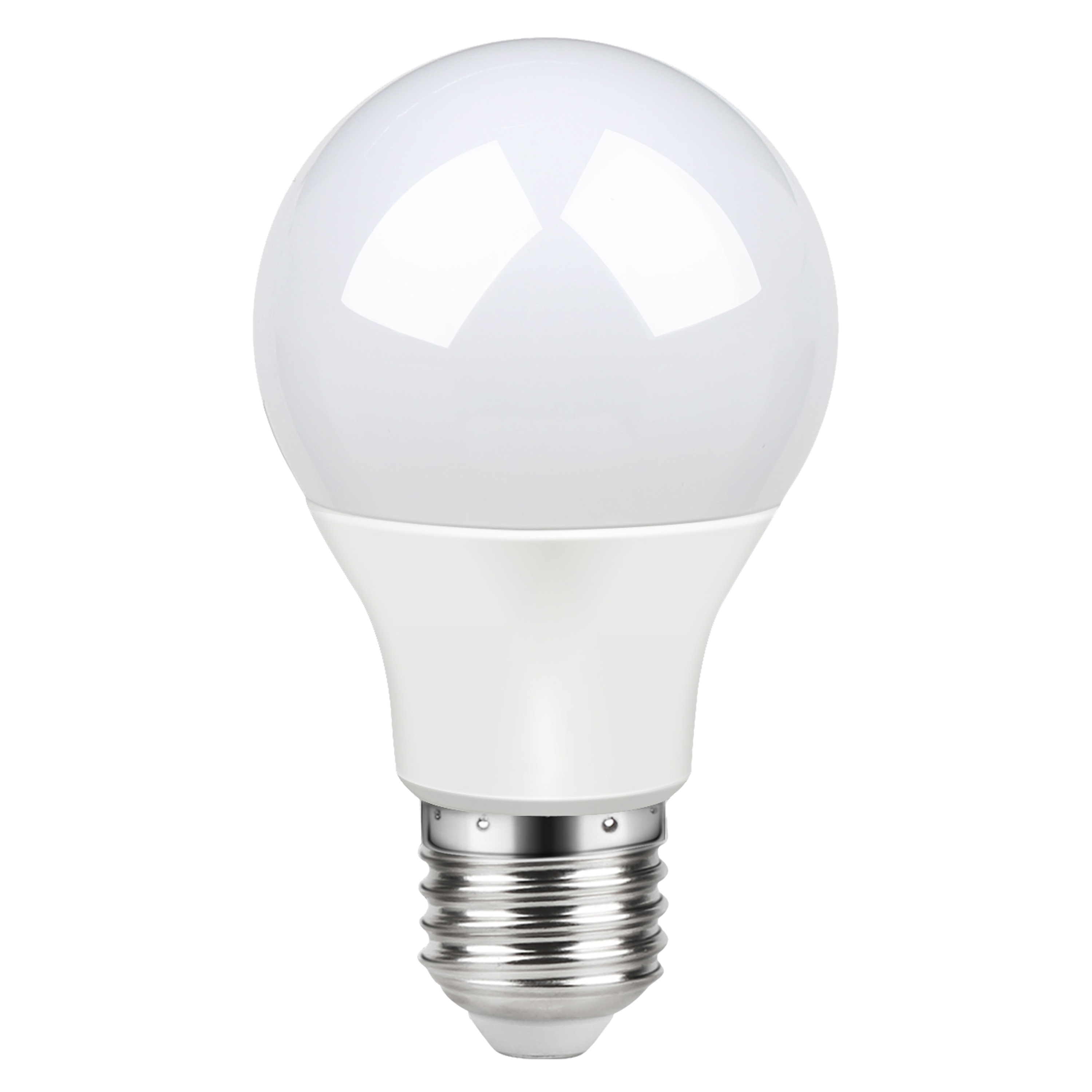

Product image: white background, upright
LED PFM CLAS A FR E27
LED PFM CLAS A FR E27
Product line drawing, front, no dimensions
LV CLA75 10 W E27
LV CLA75 10 W E27
IES file (IES)
LED PFM CLA 9W 6500K DIM
LED PFM CLA 9W 6500K DIM
| EAN | AU model number |
|---|---|
| 4058075215337 | OSRCLA9W865E27DIM |
