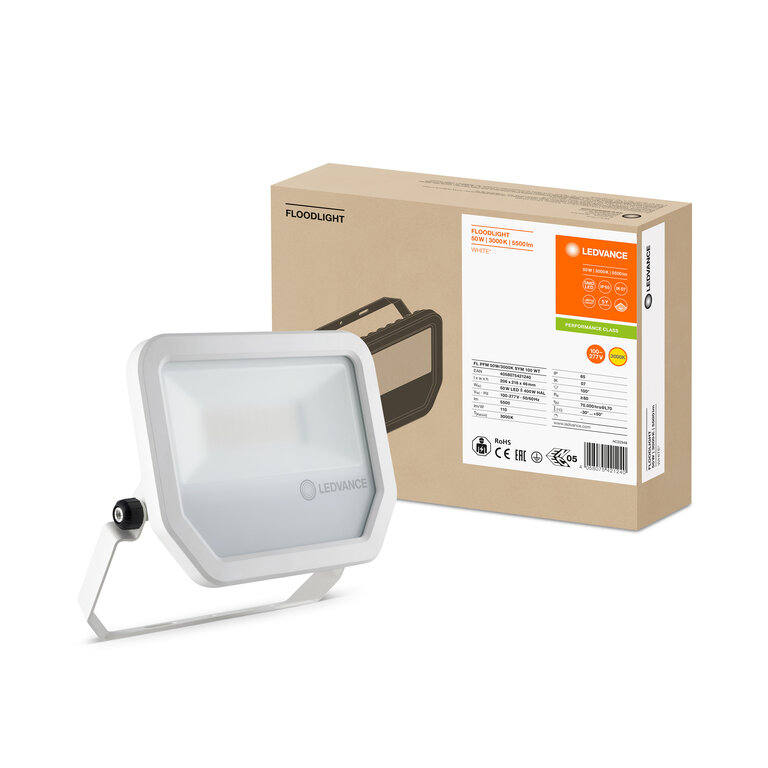

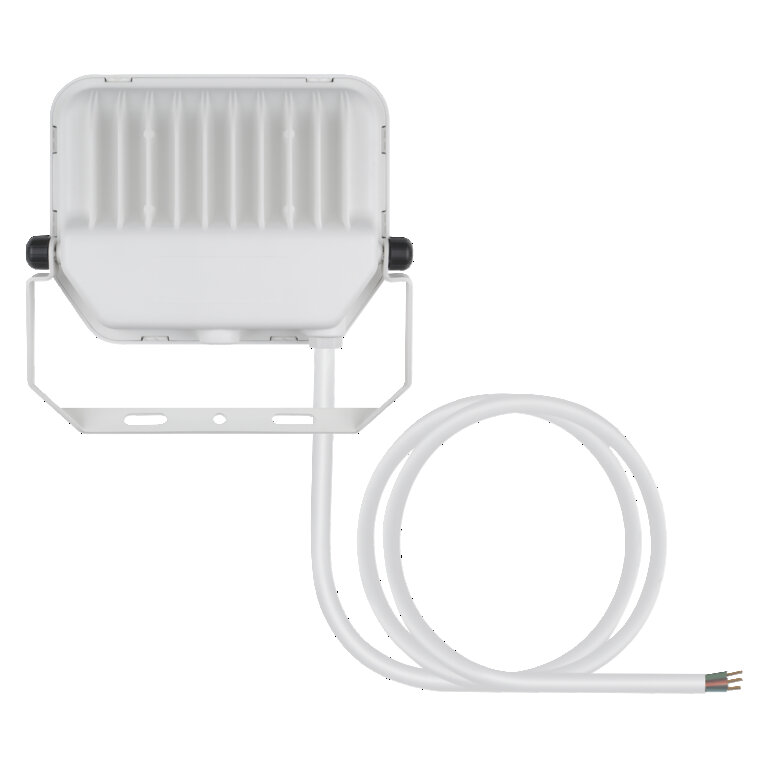

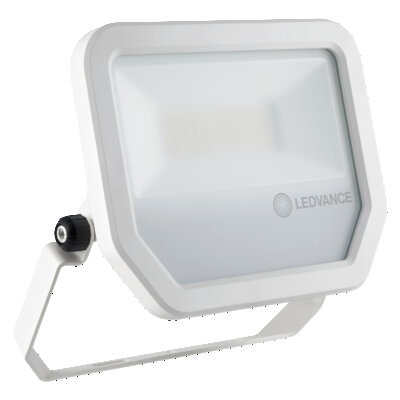

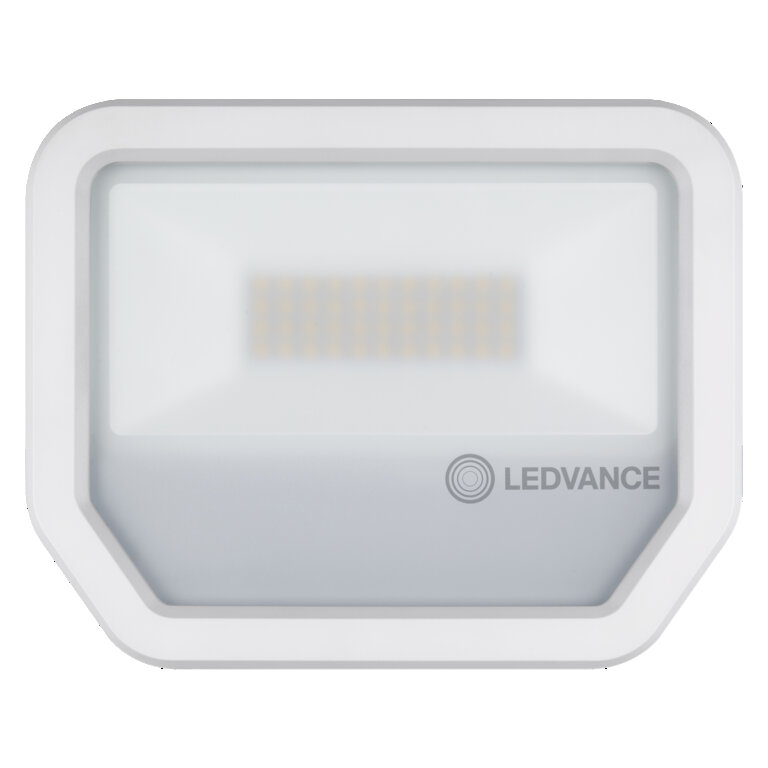

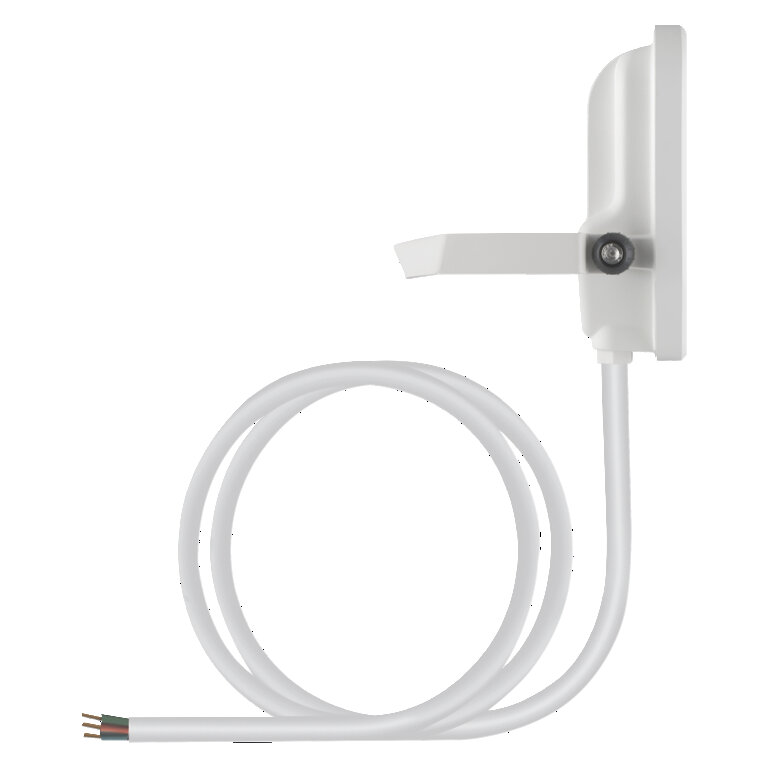

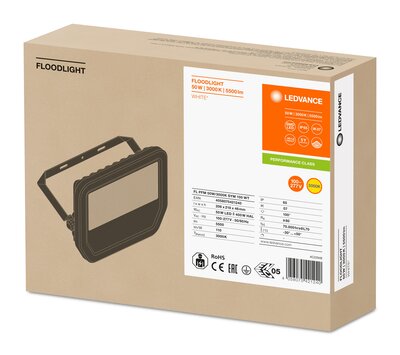

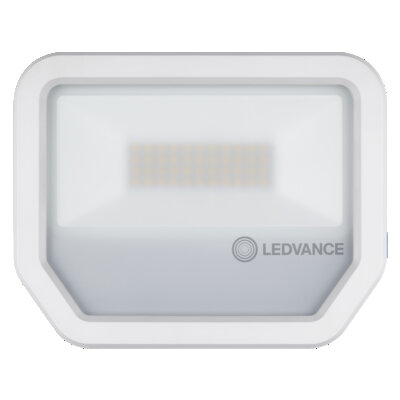

FLOODLIGHT 50 W

Product description	Nominal wattage	Number of switching cycles	Beam angle	Luminous flux	Dimmable
FL PFM 50 W 3000 K SYM 100 WT	50.00 W	100000	100 ° x 100 °	5500 lm	No
FL PFM 50 W 3000 K SYM 100 BK	50.00 W	100000	100 ° x 100 °	5500 lm	No
FL PFM 50 W 4000 K SYM 100 BK	50.00 W	100000	100 ° x 100 °	6000 lm	No
FL PFM 50 W 4000 K SYM 100 WT	50.00 W	100000	100 ° x 100 °	6000 lm	No
FL PFM 50 W 6500 K SYM 100 WT	50.00 W	100000	100 ° x 100 °	6000 lm	No
FL PFM 50 W 6500 K SYM 100 BK	50.00 W	100000	100 ° x 100 °	6000 lm	No

Nominal wattage	50.00 W
Nominal voltage	100…277 V
Mains frequency	50…60 Hz
Nominal current	236 mA
Inrush current	9.9 A
Inrush current time T_h50	51 µs
Max. number of luminaires per miniature circuit breaker B16	38
Max. number of luminaires per miniature circuit breaker C10	28
Max. number of luminaires per miniature circuit breaker C16	44
Power factor λ	> 0.90
Total harmonic distortion	< 20 %
Protection class	I
Operating mode	Integrated LED driver

Luminous flux	5500 lm
Luminous efficacy	110 lm/W
Color temperature	3000 K
Light color (designation)	Warm White
Color rendering index Ra	≥80
Standard deviation of color matching	≤5 sdcm
Luminous intensity	-
Flickering metric (Pst LM)	-
Stroboscope effect metric (SVM)	-
Photobiological safety group acc. to EN62778	RG1
Photobiological safety group acc. to EN62471	RG1
Beam angle	100 ° x 100 °

Product color	White
Housing color	White
RAL Color (most similar)	RAL 9003
Body material	Aluminum
Light emitting surface material	Glass
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Ambient temperature range	-30…+50 °C
Temperature range at storage	-40…+70 °C
Type of connection	Cable, 3-pole
Type of protection	IP65
Protection class IK (shock resistance)	IK07
Dimmable	No
Mounting type	Surface
Mounting location	Wall, Ceiling, Floor
Application environment	Outdoor
Adjustable	Yes
With light source	Yes
Replaceable light source	No

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Output current	460 mA
ECG - Output ripple current	< 50 %

Standards	CE, CB, ENEC, EAC, RoHS, EPD
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
EPD	LEDV-00009-V01.01-EN
Replaceable light source (EPREL)	Not replaceable

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits

Areas of application

Product features

Safety advice

All electrical connections must be made by a qualified person.
The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
Terminal block not included. Installation must be made by a qualified person.
Caution, risk of electric shock.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

References / Links

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075421240	Folding box 1	224 mm x 67 mm x 181 mm	1107.00 g	2.72 dm³
4058075421257	Shipping box 8	462 mm x 284 mm x 207 mm	9480.00 g	27.16 dm³

EAN	SEG number	STK number	EFO number	ELDAS number
4058075421240	7766602	4508135	3242465	941506050

FL PFM 50 W 3000 K SYM 100 WT
