Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| FL COMP V 90W 830 SYM 100 BK | 90.00 W | 100000 | 100 ° x 100 ° | 8100 lm | No |
| FL COMP V 90W 840 SYM 100 BK | 90.00 W | 100000 | 100 ° x 100 ° | 9000 lm | No |
| FL COMP V 90W 865 SYM 100 BK | 90.00 W | 100000 | 100 ° x 100 ° | 9000 lm | No |
| Nominal wattage | 90.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 434 mA |
| Inrush current | 7.9 A |
| Inrush current time Th50 | 1.9 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C10 | 15 |
| Max. number of luminaires per miniature circuit breaker C16 | 23 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 8100 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 5 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 100 ° x 100 ° |

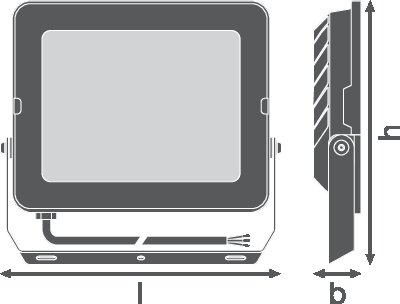

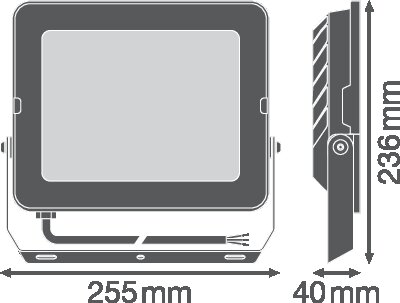

| Length | 236.00 mm |
| Height | 40.00 mm |
| Width | 255.00 mm |
| Product weight | 1520.00 g |
| Cable length | 1000 mm |
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Tempered glass |
| Light emitting surface material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -30…+45 °C |
| Temperature range at storage | -40…+70 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall, Pole, Floor |
| Application environment | Outdoor |
| Adjustable | Yes |
| LED module replaceable | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 35000 h 1) |
| Lifespan L90/B10 at 25 °C | 25000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CE, CB, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075574984 | Folding box 1 |
78 mm x 302 mm x 280 mm | 1703.00 g | 6.60 dm³ |
| 4058075574991 | Shipping box 2 |
325 mm x 178 mm x 312 mm | 3877.00 g | 18.05 dm³ |
| EAN | STK number |
|---|---|
| 4058075574984 | 4529780 |
