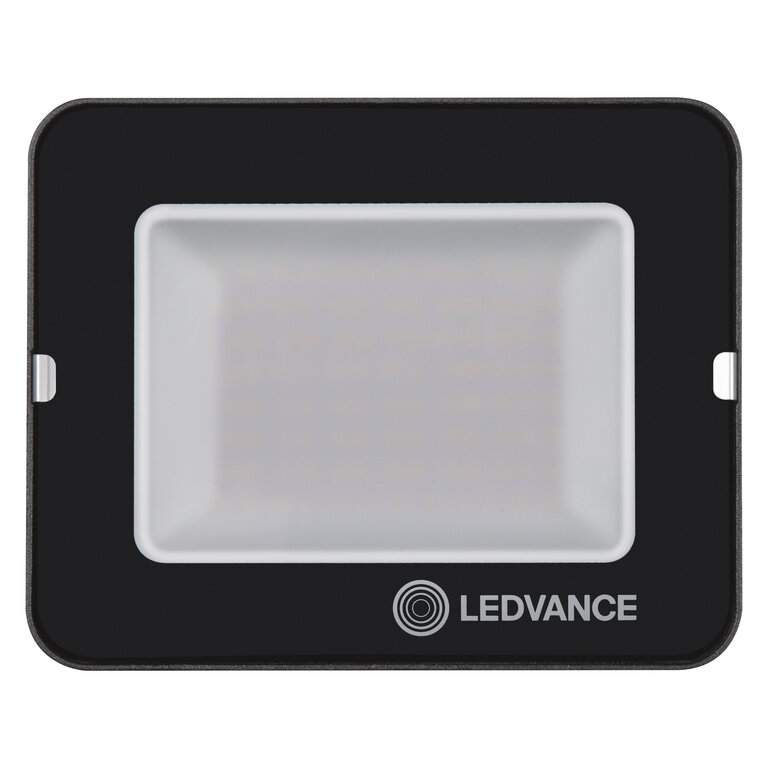

FLOODLIGHT COMPACT 50W

FLOODLIGHT COMPACT 50W

Choose your product version

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
FL COMP V 50W 830 SYM 100 BK 50.00 W 100000 100 ° x 100 ° 4500 lm No

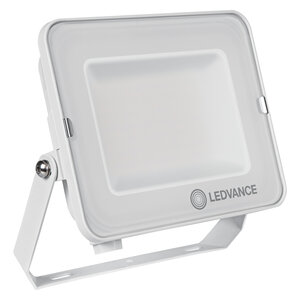

FL COMP V 50W 830 SYM 100 WT 50.00 W 100000 100 ° x 100 ° 4500 lm No
FL COMP V 50W 840 SYM 100 WT 50.00 W 100000 100 ° x 100 ° 5000 lm No
FL COMP V 50W 840 SYM 100 BK 50.00 W 100000 100 ° x 100 ° 5000 lm No
FL COMP V 50W 865 SYM 100 WT 50.00 W 100000 100 ° x 100 ° 5000 lm No
FL COMP V 50W 865 SYM 100 BK 50.00 W 100000 100 ° x 100 ° 5000 lm No

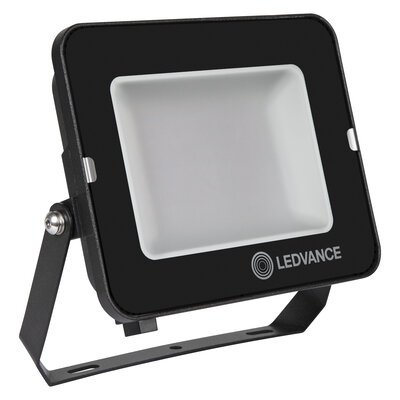

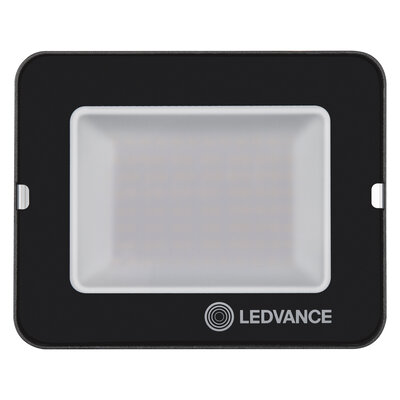

FL COMP V 50W 830 SYM 100 BK

Product benefits
  • Robust, yet light and compact design
  • Safe and very uniform illumination, due to frosted and tempered glass diffuser
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Energy savings of up to 90 % compared to halogen lamp floodlights
  • 3 years guarantee

PRODUCT DETAILS

Electrical data

Nominal wattage 50.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 242 mA
Inrush current 5.2 A
Inrush current time Th50 1 µs
Max. number of luminaires per miniature circuit breaker B16 36
Max. number of luminaires per miniature circuit breaker C10 26
Max. number of luminaires per miniature circuit breaker C16 42
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 4500 lm
Luminous efficacy 90 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching < 5 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 100 ° x 100 °

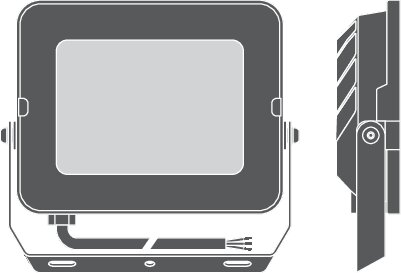

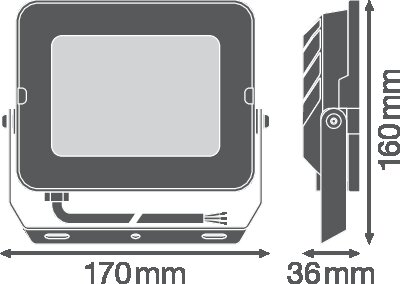

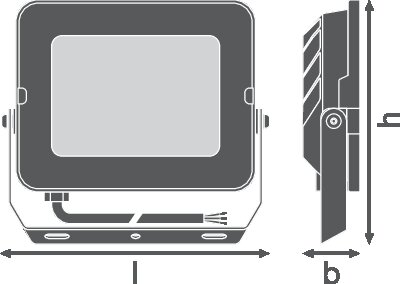

Dimensions & Weight

Length 160.00 mm
Height 36.00 mm
Width 170.00 mm
Product weight 560.00 g
Cable length 1000 mm

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Tempered glass
Light emitting surface material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+45 °C
Temperature range at storage -40…+70 °C
Type of connection Cable, 3-pole
Type of protection IP65
Protection class IK (shock resistance) IK06
Dimmable No
Mounting type Surface
Mounting location Pole, Floor
Application environment Outdoor
Adjustable Yes
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 35000 h 1)
Lifespan L90/B10 at 25 °C 25000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

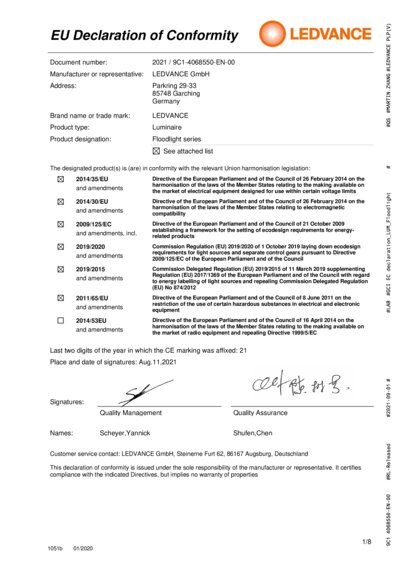

Standards CE, CB, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Product benefits
  • Robust, yet light and compact design
  • Safe and very uniform illumination, due to frosted and tempered glass diffuser
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Energy savings of up to 90 % compared to halogen lamp floodlights
  • 3 years guarantee
Areas of application
  • Replacement for floodlights with halogen lamps
  • Outdoor use (IP65)
  • Public areas
  • Building facades
  • Gardens, balconies and other outdoor areas
  • Construction areas
Product features
  • Reflector-based, symmetric light distribution with 100° x 100° beam angle

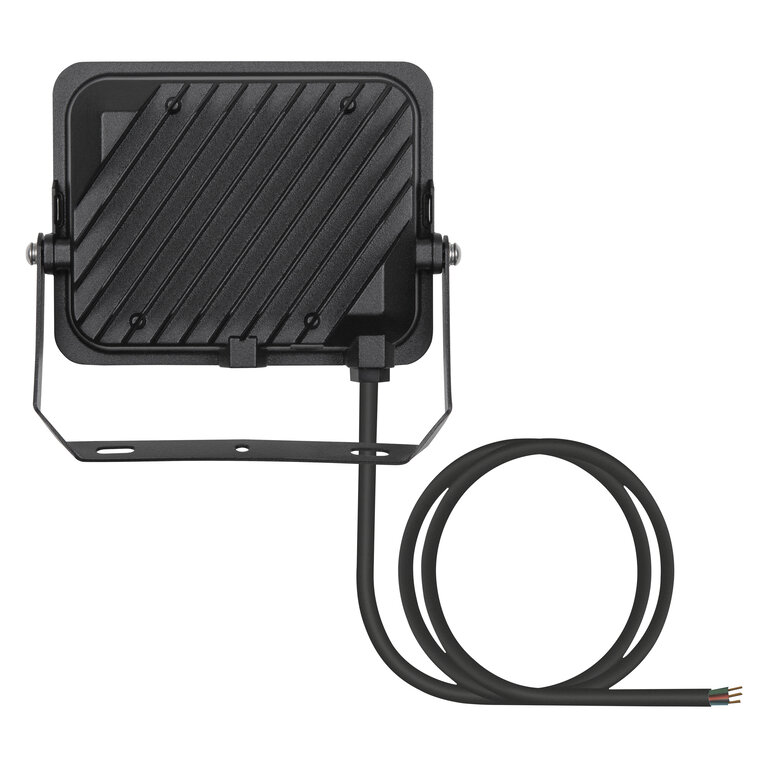

  • Mounting bracket with 30° angle and wide rotation area

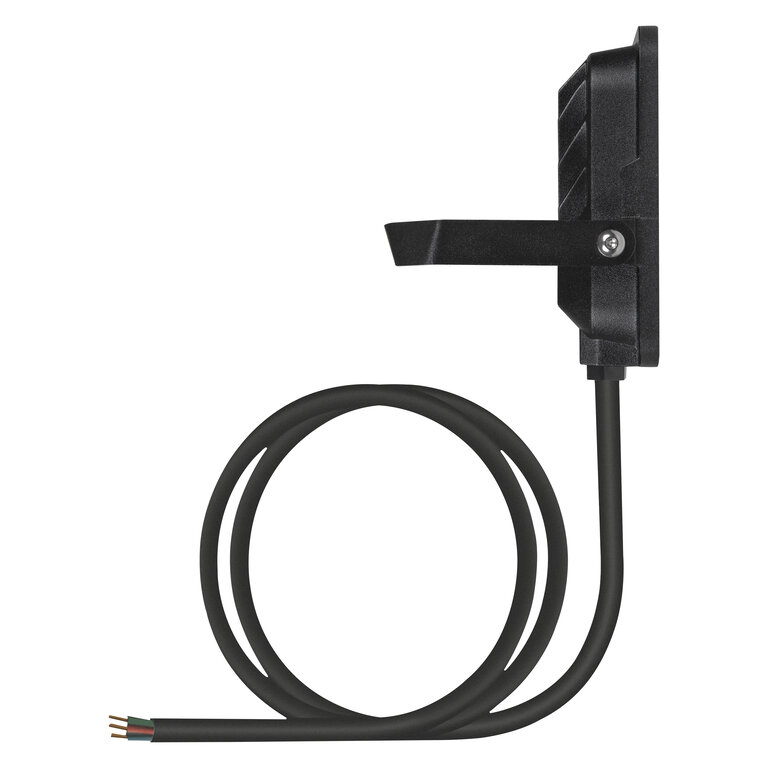

  • Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075574854 Folding box
1
175 mm x 52 mm x 150 mm 595.00 g 1.37 dm³
4058075574861 Shipping box
8
364 mm x 224 mm x 174 mm 5066.00 g 14.19 dm³
EAN STK number
4058075574854 4529774
