LEDVANCE

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	3.12 W
Nominal voltage	100…240 V
Nominal current	13 mA
Mains frequency	50…60 Hz

Photometrical data

Color temperature

RGB / Tunable White

Dimensions & Weight

Length	80.00 mm
Width	80.00 mm
Height	53.00 mm
Cable cross-section, input side	0.5…1.5 mm²
Wire preparation length, input side	6…7 mm
Product weight	122.00 g

Colors & materials

Product color	White
Body material	Polycarbonate (PC)

Temperatures & operating conditions

Ambient temperature range	-20…+50 °C
Temperature range in operation	-25…+50 °C

Lifespan

Number of switching cycles

50000

Additional product data

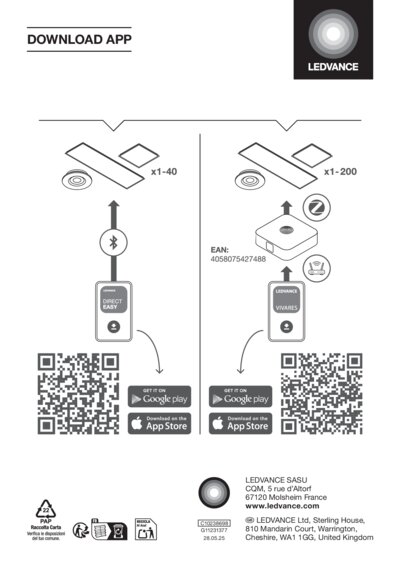

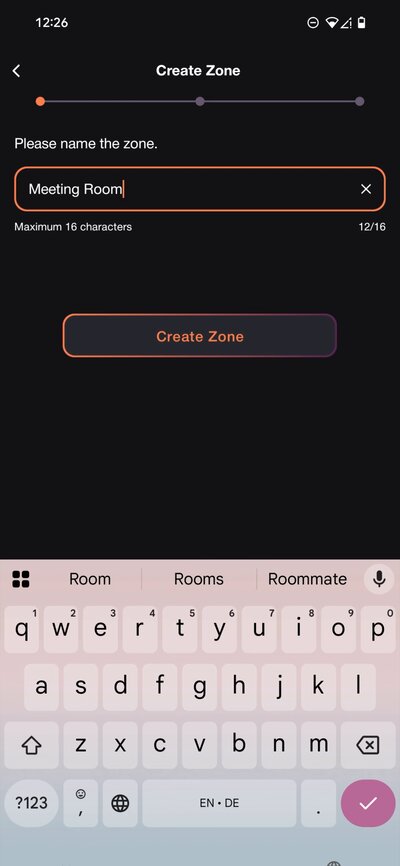

Commissioning App	DIRECT EASY, VIVARES
Added function	VIVARES

Capabilities

Dimmable	No
Dimming interface	Zigbee Direct
Dimming range	1…100 %
Type of installation	Integrated in flush device box

Certificates & Standards

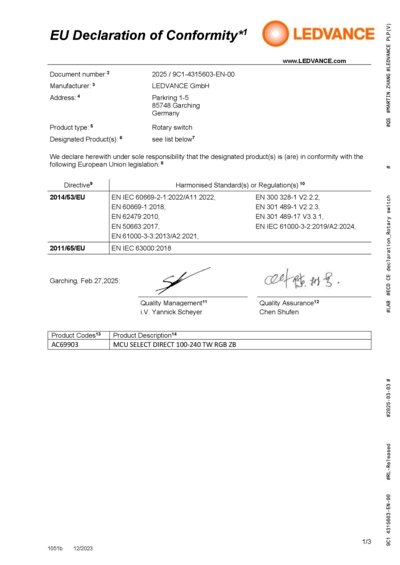

Standards	CE, ROHS, REACH
Protection class	II
Type of protection	IP20

LOGISTICAL DATA

Temperature range at storage

-40…+85 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Simple, intuitive operation
Manual dimming, switching and saving of light settings
Offers combined RGB and TW control
Individual adjustment of the brightness level and color temperature
Interchangeable front cover compatible with ABB, GIRA, JUNG, SCHNEIDER, BERKER, SIEMENS

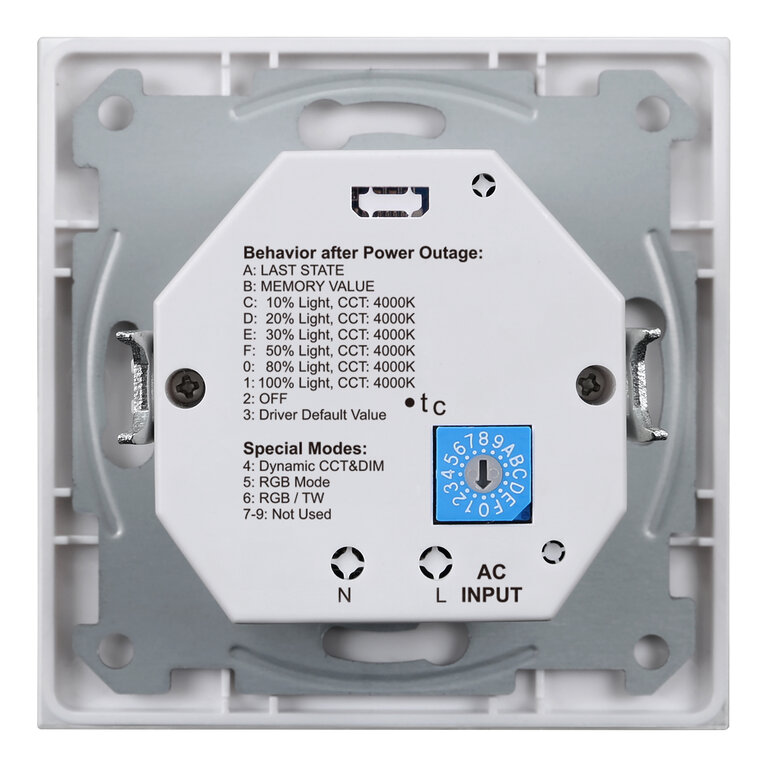

Behavior after power interruption can be set
Low maintenance through mains power operation
Optional surface mount frame available
Works without gateway in Direct Easy or with Vivares Zigbee

Areas of application

Meeting and conference rooms
Restaurants
Shop lighting
Private homes

Product features

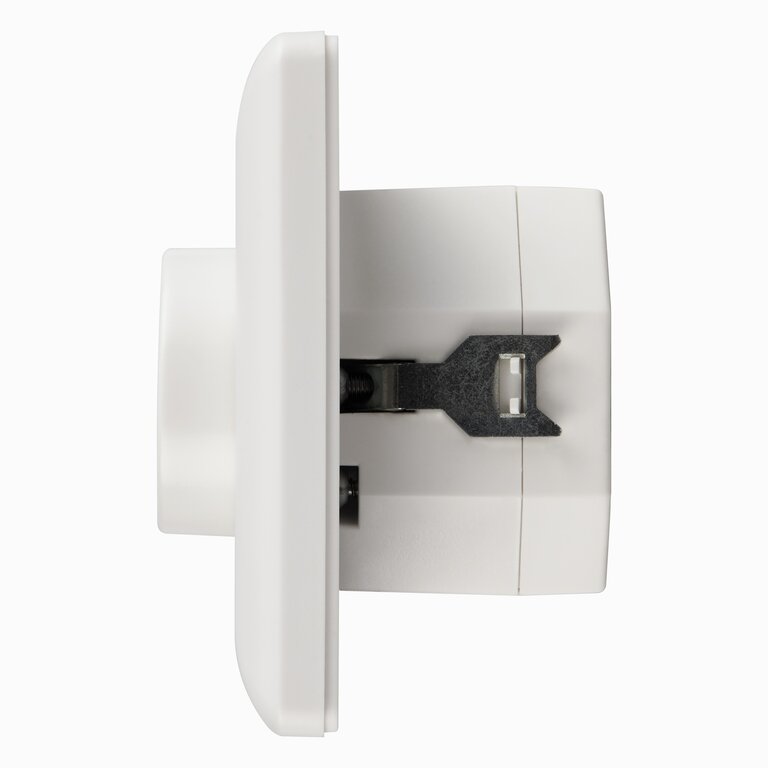

Zigbee 3.0 certified control device for installation in standard flush-mounted boxes

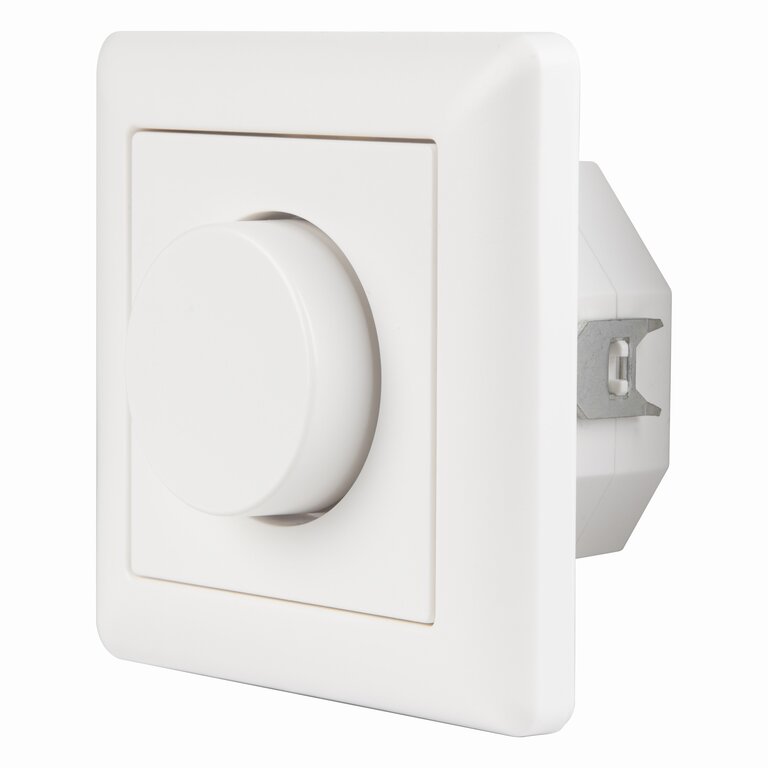

Rotary knob for manual light control
Tunable white, RGB, RGB plus TW control mode, adjustable via turn key

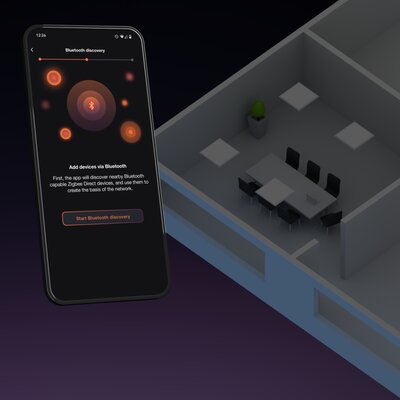

Direct commissioning via bluetooth possible
Compatible with Zigbee 3.0 hubs and controls
Number of Zigbee lights up to 40

Equipment / Accessories

SURFACE MOUNT FRAME for installation on walls without flush box

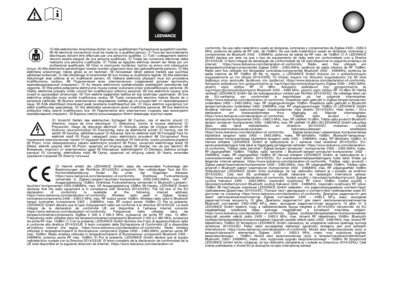

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.

References / Links

For current information see www.ledvance.com/light-management-systems

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume

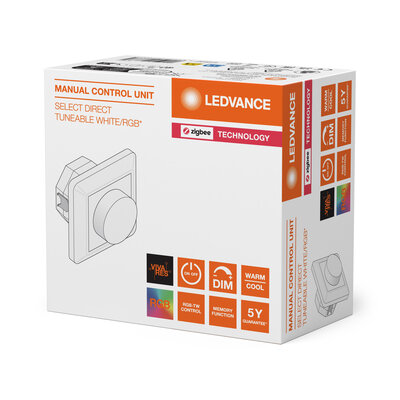

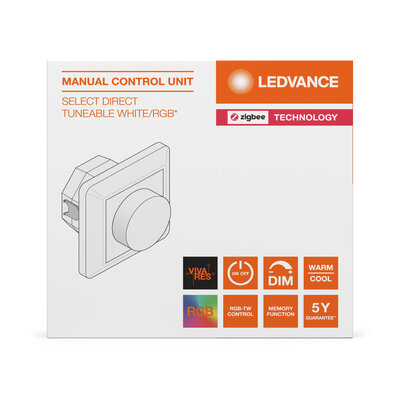

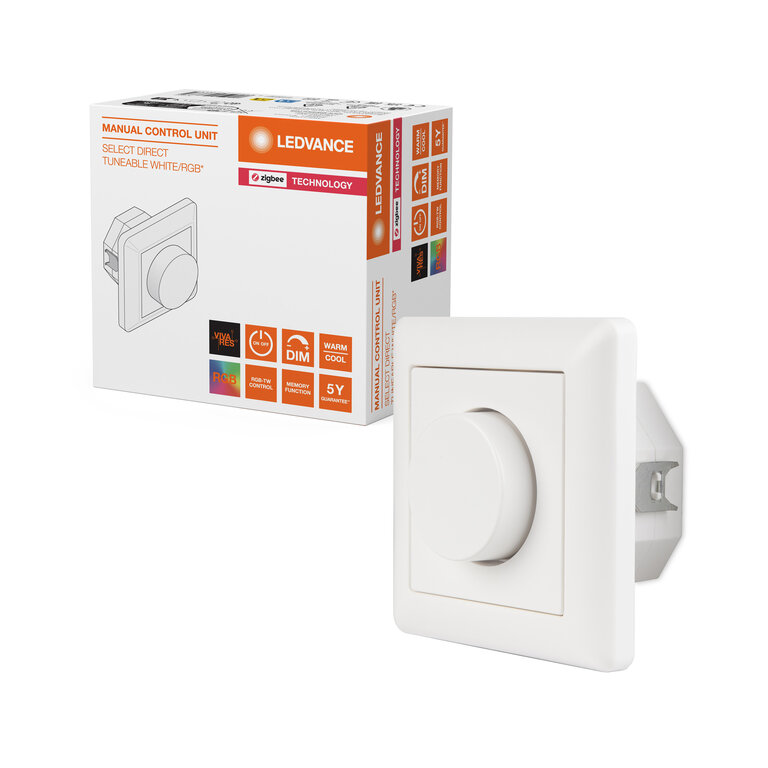

4099854476334	Folding box 1	110 mm x 100 mm x 60 mm	162.00 g	0.66 dm³
4099854476341	Shipping box 30	320 mm x 320 mm x 250 mm	5460.00 g	25.60 dm³

Country-specific information

EAN	STK number	EFO number
4099854476334	2628030	1407943

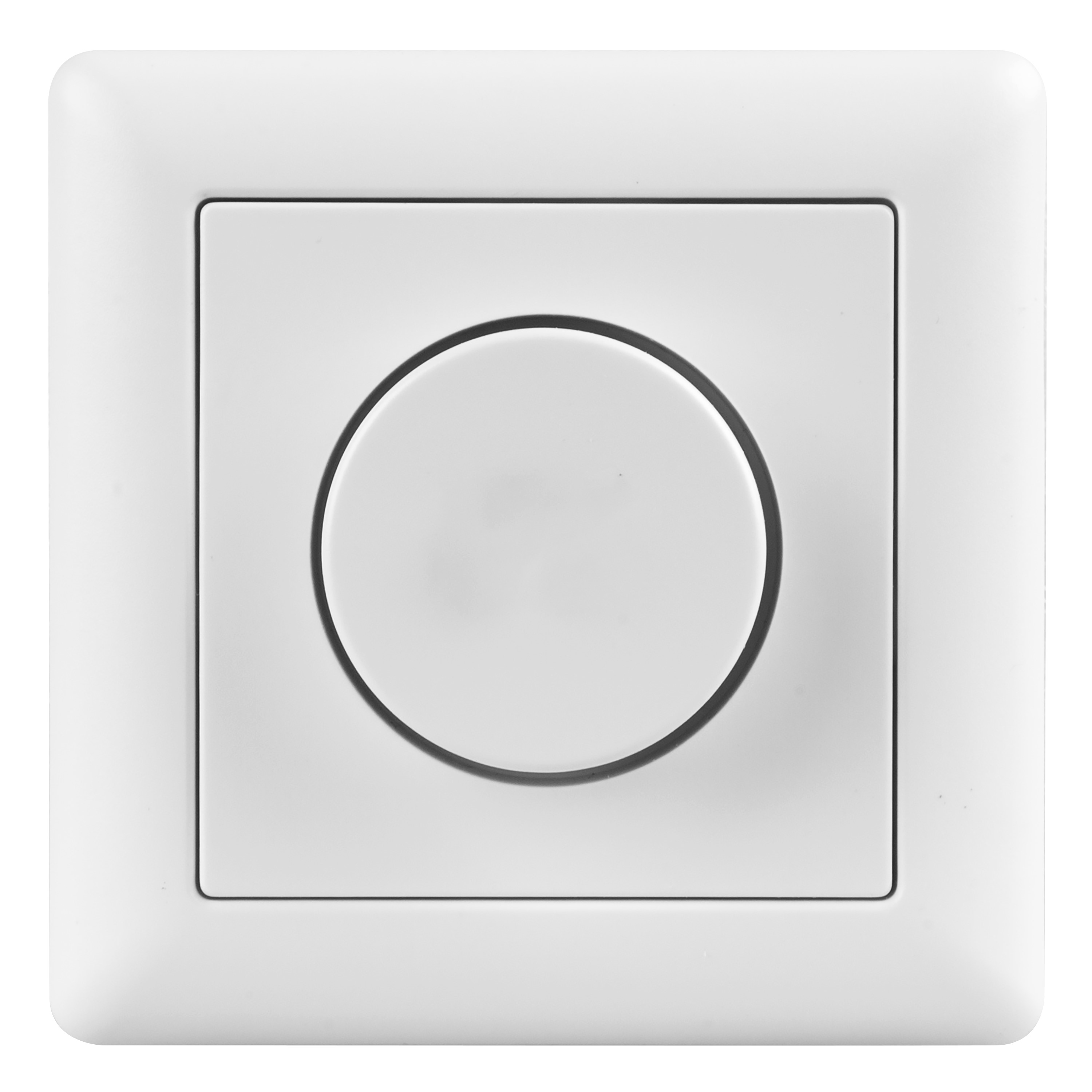

PRODUCT INFORMATION

MANUAL CONTROL UNIT SELECT DIRECT 100-240 TW RGB ZB
