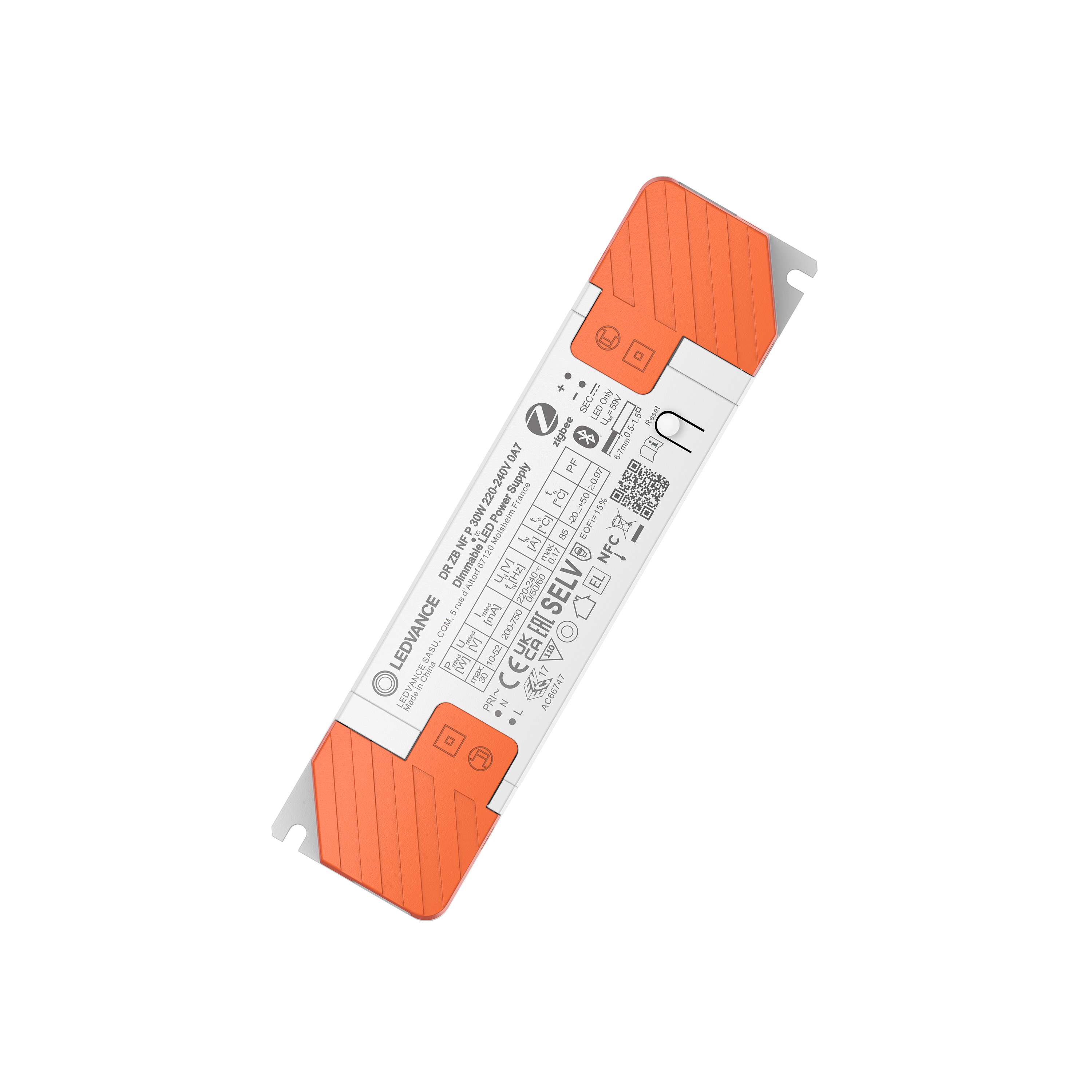

LEDVANCE

Nominal wattage	30.00 W
Nominal output power	30 W
Nominal voltage	220…240 V
Nominal output voltage	10…52 V
Input voltage range	198…264 V
Input voltage AC	198…264 V ¹⁾
Input voltage DC	178…280 V
U-OUT (working voltage)	10…52 V
Type of current	DC
Nominal current	170 mA
Nominal output current	200…750 mA ²⁾
Inrush current	4.88 A
Output current tolerance	+/- 3 %
Output ripple current (120 Hz)	+/- 3.0 %
Mains frequency	0/50/60 Hz
Total harmonic distortion	< 10 % ³⁾
Power factor λ	≥0.97 ³⁾
ECG efficiency	> 88 %
Device power loss	< 4 W
Max. ECG no. on circuit breaker 10 A (B)	51
Max. ECG no. on circuit breaker 16 A (B)	82
Max. ECG no. on circuit breaker 25 A (B)	128
Max. ECG no. on circuit breaker 32 A (B)	164
Max. ECG no. on circuit breaker 10 A (C)	51
Max. ECG no. on circuit breaker 16 A (C)	82
Max. ECG no. on circuit breaker 25 A (C)	128
Max. ECG no. on circuit breaker 32 A (C)	164
Surge capability (L/N-Ground)	2 kV
Surge capability (L-N)	1 kV
Galvanic isolation	SELV
Operating frequency	0/50/60 Hz
Power loss in stand-by mode	≤0.3 W

¹⁾ Permitted voltage range
²⁾ Tunable at 1 mA steps, +/- 3 % at full load
³⁾ Full load at 230 V/50 Hz

Length	118.20 mm
Mounting hole spacing, length	109 mm
Width	45.00 mm
Height	25.00 mm
Cable cross-section, input side	0.5…1.5 mm²
Cable cross-section, output side	0.5…1.5 mm²
Prewired	No
Wire preparation length, input side	6…7 mm
Wire preparation length, output side	6…7 mm
Product weight	127.9 g

Ambient temperature range	-20…+50 °C
Maximum temperature at tc test point	80 °C
Max.housing temperature in case of fault	<110 °C
Temperature range in operation	-20…+50 °C
Permitted rel. humidity during operation	5…85 %

ECG lifetime	100000 h ¹⁾
Number of switching cycles	50000

¹⁾ At Tc max. - 10°C

Encapsulated

Yes

Dimmable	Yes
Dimming interface	Zigbee 3.0 ¹⁾
Dimming range	1…100 %
Overheating protection	Yes
Overload protection	Yes
Short-circuit protection	Yes
No-load proof	Yes
Max. cable length to lamp/LED module	0,8 m
Suitable for fixtures with prot. class	II
Suitable for emergency lighting	Yes
Type of connection, output side	Push terminal

¹⁾ Zigbee Direct via Bluetooth Low Energy (BLE)

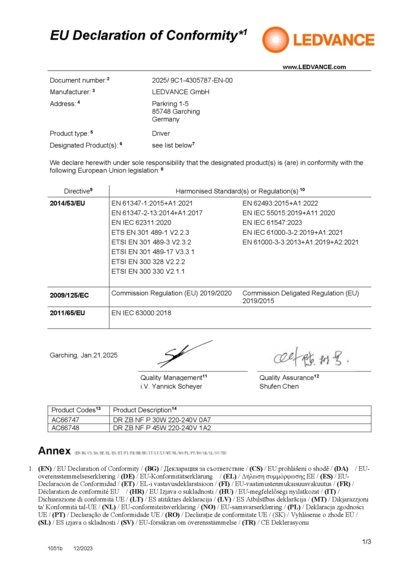

Approval marks – approval	CE, UKCA, EAC, ENEC, EL
Standards	Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384
Protection class	II
Type of protection	IP20

Temperature range at storage

-40…+85 °C

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits

Areas of application

Product features

Available with an output current range: from 200...750 mA (30 W)
Available with an output current range: from 600...1,200 mA (45 W)
Type of installation: independent and built-in
Suitable for emergency lighting fixtures acc. to EN 60598-2-2 with via NFC adjustable emergency output factor (EOFI)
Quick and easy current setting via NFC
Very long lifetime: up to 100,000 h
Supply voltage: 220…240 V
Operated with Safety extra-low voltage (SELV): < 60 V
