OPTOTRONIC CONSTANT CURRENT OUTDOOR - OUTDOOR PROGRAMMABLE LED POWER SUPPLIES - 0-10V DIM - IP66

OT 180W 347 480V 1250C 2DIM P6

NAED: 79209 Unpacked / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product features
  • OEM programmable with 1mA resolution to match LED load and maximize performance
  • Dimming down to 1 % on 0-10V dimmers
  • AstroDIM, LEDset, constant lumen maintenance, LED thermal protection, AUX output
  • Programming does not require powering up or connecting to AC line voltage
  • High levels of line transient protection for outdoor applications (6kV, 4kV EFT)
  • IP66
  • UL Class P Listed
Product information bulletin
OPTOTRONIC Programmable Outdoor Constant Current Dimmable LED Power Supplies
PDF (820.09 KB)
Other documents / promotion
Tap Tronic quick start
XLSX (40.98 KB)
Other documents / promotion
ULT to Optotronic- tapTronic LED Drivers Cross
XLSX (262.28 KB)
Electrical data
Nominal wattage 65.00 W
Nominal voltage 347…480 V
Mains frequency 50…60 Hz
Dimensions & Weight
Length 240.50 mm
Width 60.00 mm
Height 38.00 mm
Product weight 380.00 g
Capabilities
Dimmable Yes
Certificates & Standards
Protection class II
Type of protection IP66
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
0046135792090 Unpacked
1
10046135792097 Shipping box
10		 352 mm x 257 mm x 104 mm 10201.00 g 9.41 dm³

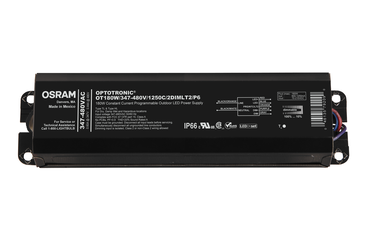

Product image: white background, horizontal
OT180W 347-480V Outdoor
TIF (20.31 MB)
