POLES STRAIGHT SQUARE STEEL
POLE STRAIGHT SQUARE STEEL 12 11G 4IN D3 BZ LAB
NAED: 63257
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Parking lots
- Parks
- Pedestrian walkways
- Outdoor
- Outdoor storage areas
- Small sports lighting
- Outdoor open spaces
Product features
- Poles available in seven heights: 8', 12', 15', 17', 20', 25', and 30'
- 8'-25' are 4" square; 25'-30' are 5" square
- 8'-25' are offered in 11 gauge while 25'-30' are offered in 7 gauge
- Fabricated from the highest grade structural steel
- Polycarbonate spring loaded top cover
- Bronze finish is standard. Black and white finish available
Equipment / Accessories
- Reinforced 2.5" x 4.5" cast iron hand-hole with ground screw included
- Easily secured base cover included
- Bolt circle template included
Installation Guide
Square Steel Pole Installation Guide
Square Steel Pole Installation Guide
Product Family Spec Sheet
SQUARE STEEL POLES
SQUARE STEEL POLES
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Dimensions & Weight
| Product weight | 117.2 lb |
Application & Mounting
| Replaceable light source | No |
Certificates & Standards
| Certification Listing | RoHS |
Additional product data
| Ordering Abbreviation | POLESQS2B/12/11G4IN/D3BZLAB |
| Abbrev. With Packaging Info. | POLESQS2B1211G4IND3BZLAB 1/CS 1/SKU |
| General Description | Square Straight Poles Gen2B, 12 foot tall, 11 gauge, 4 in square, drill 3 sides, bronze painted finish less anchor bolts |
Logistical data
| Case Qty | 1 |
| Case Length (in) | 241.000 |
| Case Width (in) | 4.688 |
| Case Depth (in) | 4.688 |
| Case Cube (ft) | 3.065 |
| Case Weight (lbs) | 137.465 |
| Pallet Qty | 1 |
| Cases/Pallet | 1 |
Product image: white background, upright

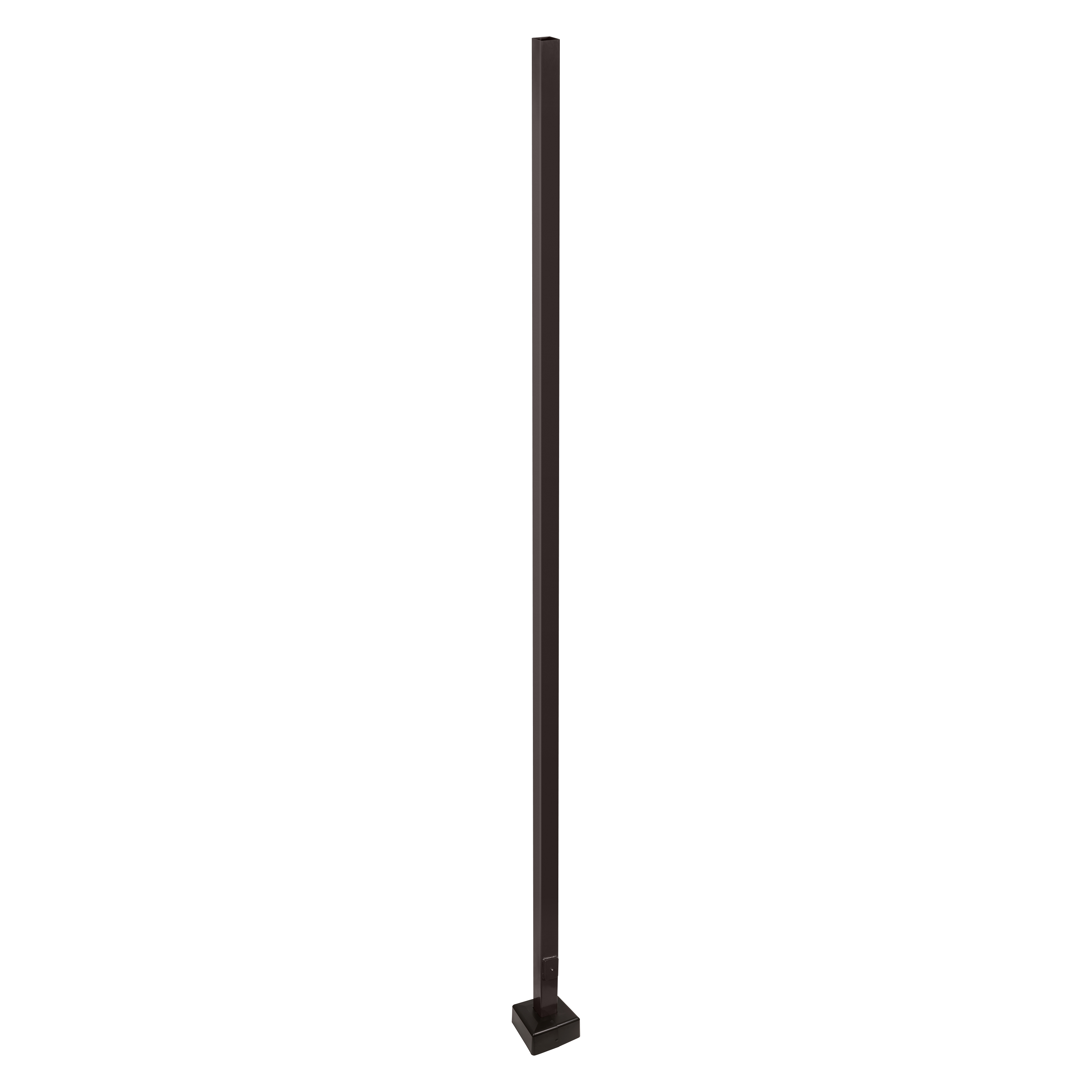

Square Steel Quick Ship Poles product view
Square Steel Quick Ship Poles product view
